EDUP High Speed 300Mbps ZTE 2.4GHz MT7628NN Black 4G router
- Category: Wireless Network Cards >>>
- Supplier: Shenzhen EDUP Electronics Technology Co. Ltd.
Share on (62053308714):
Product Overview
Description
EDUP High Speed 300Mbps ZTE 2.4GHz MT7628NN Black 4G router
Model: EP-KW7503
Similar Products
Product Description
Specifications of wireless wifi adapter
1. 4G wifi router,can support 4G/3G/2G at the same time
2 use Marvell 88MP1802 chipest, good quality, your good choice.
3 Speed 300Mbps
4 support 32 end users at the same time.
5. support factory price, OEM/ODM is available.
Router hardware | ||
processor | MT7628NN | |
Power input port | DC 12V---1A | |
WAN Port | 1 x RJ45(10BaseT/100BaseTX with Auto-MDIX IEEE 802.3/802.3u) | |
LAN Port | 2 x RJ45(10BaseT/100BaseTX with Auto-MDIX IEEE 802.3/802.3u) | |
WPS/Reset Buttons | Sgort press: WPS,Long press: reset(Used to restore the factory configuration of the router.) | |
Power button | Router's power switch (not required) | |
LED indication | 1,power supply 2,System (dial status, indiscriminate wired or wireless) 3,3/4G:Blue-green light indicates 3G, 4G status 4,WIFI Indication 5,WAN Interfaces; 6,LAN1; 7,LAN2; | |
Storage | SDRAM: 64M Bytes Nor Flash: 8M Bytes | |
Wireless parameters | ||
WIFI Frequency range | FCC: 2412-2462MHz(Ch1-Ch11) ETSI: 2412-2472MHz(Ch1-Ch13) | |
Mobile network frequency | FDD: B1 B3 B5 B8, TDD: B38 B39 B40 B41 TDS-CDMA: B34 B39 WCDMA: B1 B8 | |
Transmission rate | 11n:270/243/216/162/108/81/54/27Mbps 135/121.5/108/81/54/40.5/27/13.5Mbps 130/117/104/78/52/39/26/13Mbps 65/58.5/52/39/26/19.5/13/6.5Mbps | |
11g:54/48/36/24/18/12/9/6M(Adaptive) | ||
11b:11/5.5/2/1M(Adaptive) | ||
Number of working channels | 13 | |
Spread Spectrum Technology | DSSS(Direct Sequence Spread Spectrum) | |
Data modulation method | BPSK, QPSK, CCK and OFDM (BPSK/QPSK/16-QAM/ 64-QAM) | |
Sensitivity @PER (error packet rate) | 270M:-61dBm@10% PER;130M: -61dBm@10% PER;108M:-61dBm@10% PER;54M:-65dBm@10% PER;11M:-85dBm@8% PER;6M:-88dBm@10% PER;1M:-90dBm@8% PER | |
Transmission distance | Up to 50 meters in the room and up to 200 meters in the outdoors (depending on the environment) | |
RF Power | 11n : 15±dBm; 11g : 17±1dBm; 11b : 19±1dBm(Typical value) | |
LTE related hardware | ||

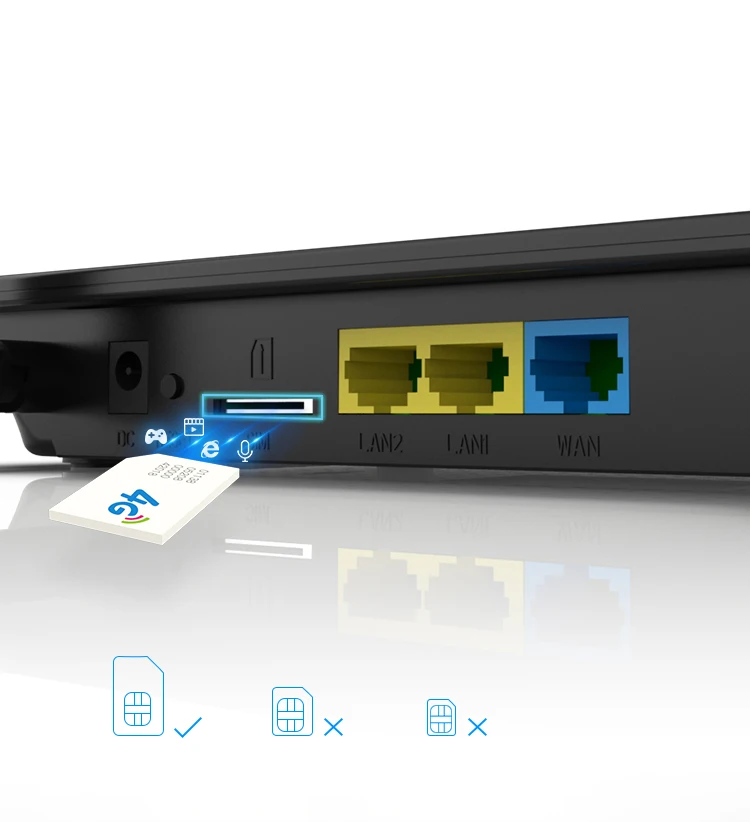

SIM Card Slot | Rear flip SIM card Slot | |
Antennas | External 4 antenna, corresponding to 4G main antenna, wifi dual antenna | |
Router software features | ||
IP Address | Static or dynamic | |
PPP over Ethernet | YES | |
The maximum number of users | 32 (Simultaneous Internet access) | |
Routing Protocol | Static route, RIP1/RIP2 | |
Configuration & Management | Based on WEB interface management (HTTP) | |
DHCP | Support Server and Client | |
Firewall protection | Built-in NAT firewall | |
Network protocol | TCP/IP, PPPoE,DHCP,ICMP,NAT,NAPT,ARP,PPP,PAP,CHAP,PPTP | |
FAQ :
1.What is our service?
---Your inquiry will be replied in 24hours
---Well-trained and experienced staffs to answer all your inquires in fluent English
---OEM&ODM, for any of your customized products we can help you to design and put into product
---Monthly output over 6,000,000 pcs
---All our products with 12months guarantee
2.how can I get samples?
Sample is available.
Sample lead time: 2-3 working days, 4-5 days with customized logo
More details, please contact with us.
3. what is our Payment methods?
We agree T/T, Western Union, PayPal.
30% deposit, balanced before shipment.
4.What is our Shipping & Trade terms?
Shipping By sea, air, or UPS, FEDEX, EMS, DHL, etc.
Delivered time: 2-3 business days for sample, 20-25 days for mass order.
Trade terms: EXW, FOB , CIF etc.
5. What is our Warranty and Certificates?
Our warranty is 12 months.
We have CE, ROHS, FCC certificates:
6. What is the factory details?
We are factory in Shenzhen Longgang district. we have a great overseas sales team to provide good products and good service for you.
