Mining Stone Industry Ceramic Industry Membrane Filter Press Plate
US $20.00-$80.00

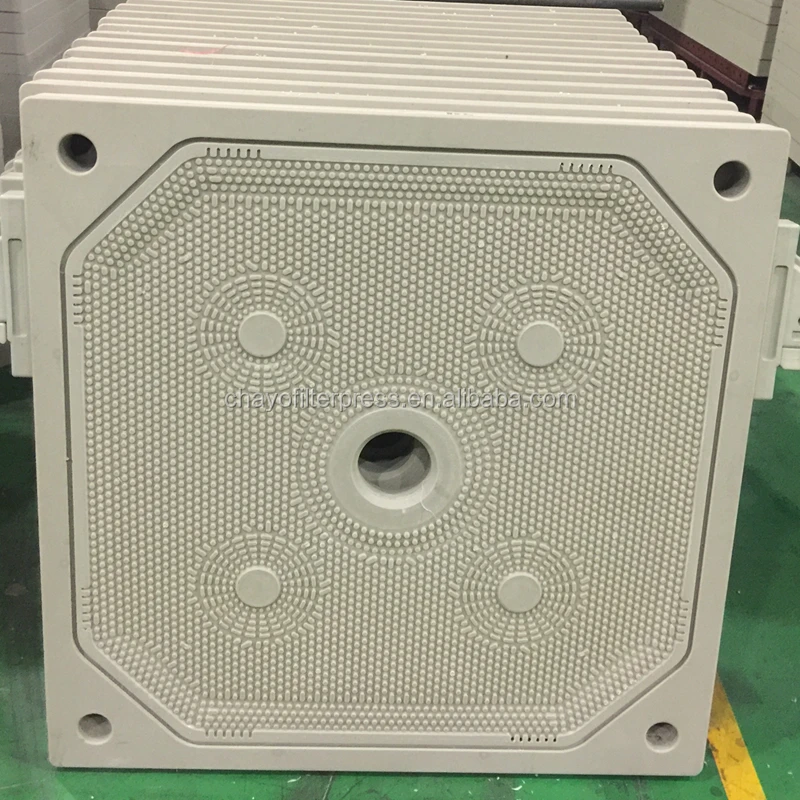

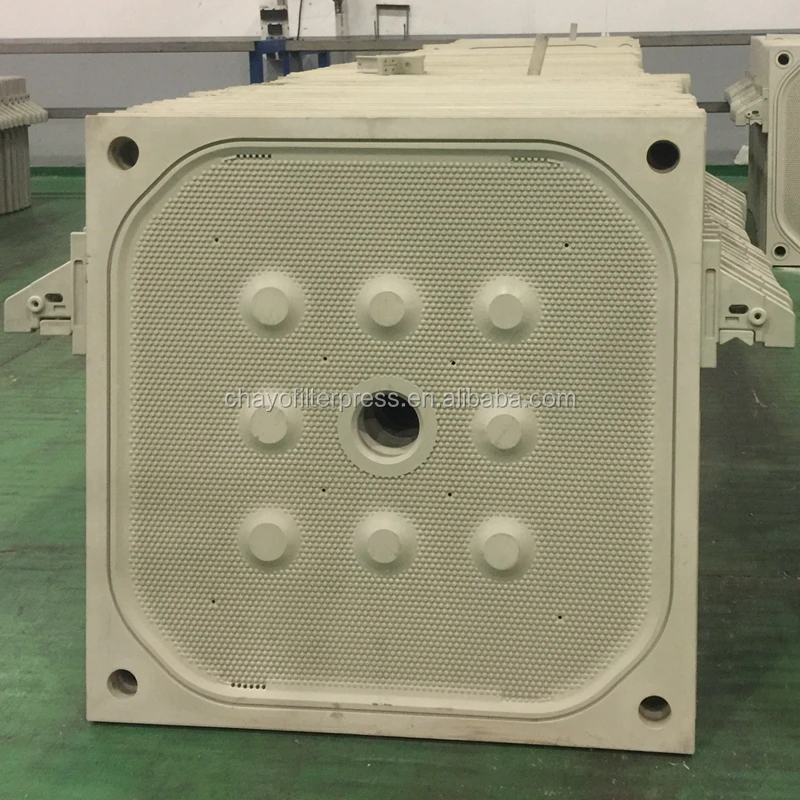

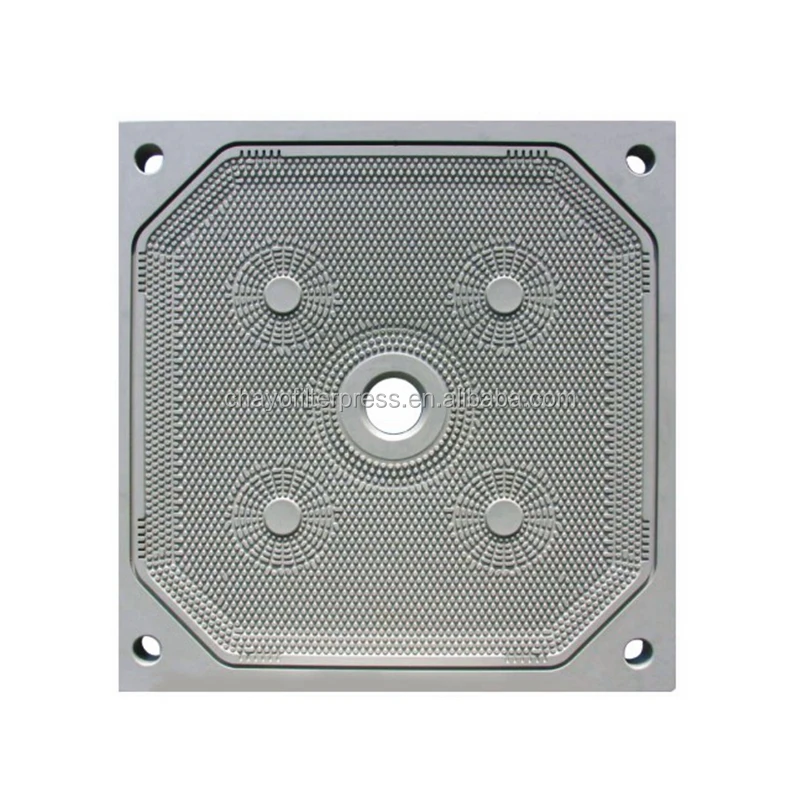

Chinese superior recessed filter plate for filter press
- Category: Filter Press Equipment >>>
- Supplier: Hangzhou Chayo Environmental&Technology Co. Ltd.
Share on (62053327771):
Product Overview
Description
\t\t\t\t\t\t\t\t\tProduct Description \t\t\t\t\t\t\t
We can supply different size of membrane filter plate, polypropylene filter plate,chamber filter plate,CGR filter plate,plate and frame filter plate,TCC(temperature controlled chamber) filter plate,TCM(temperature controlled membrane) filter plate ,size from 400x400mm,420mmx420mm,470mmx470mm,500mmx500mm,620mmx620mm,800mmx800mm,870mmx870mm,920mmz920mm,1000mmX1000mm,1200mmX1200mm,1250mmX1250mm.1500mmX1500mm,1600mmX1600mm,2000mmX2000mm.

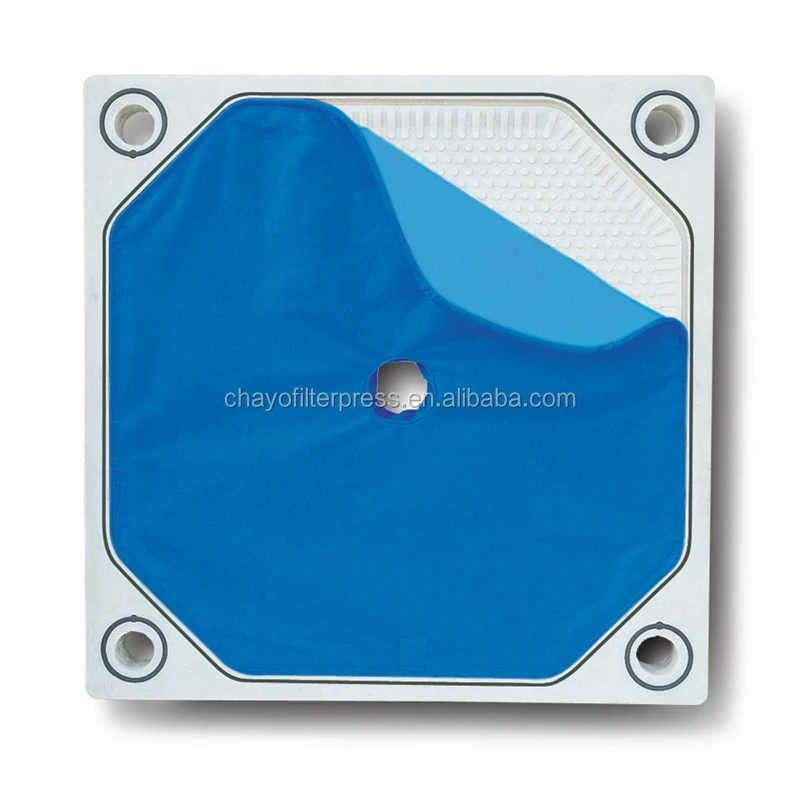

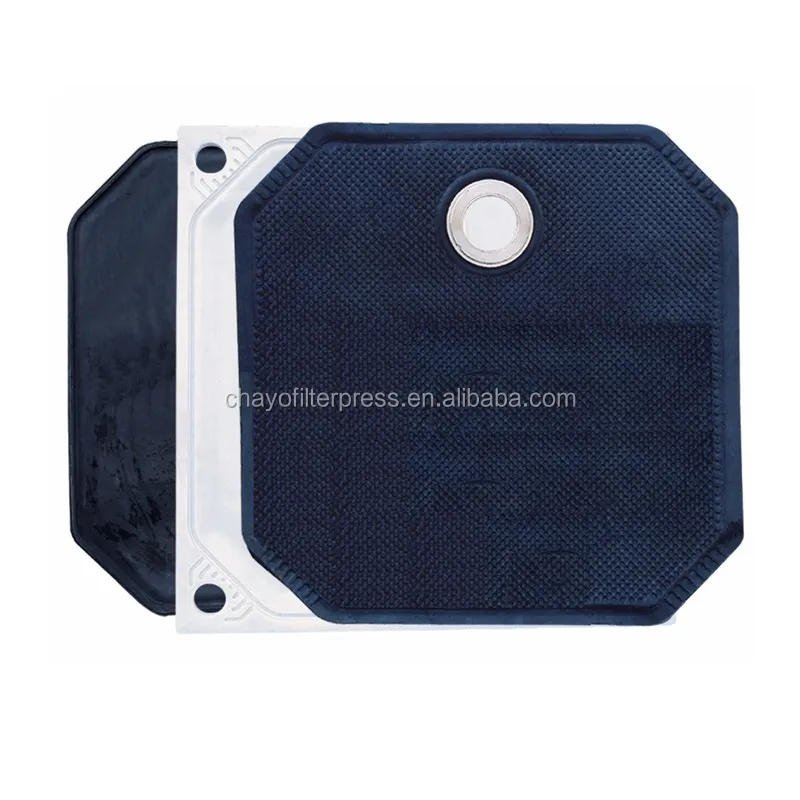

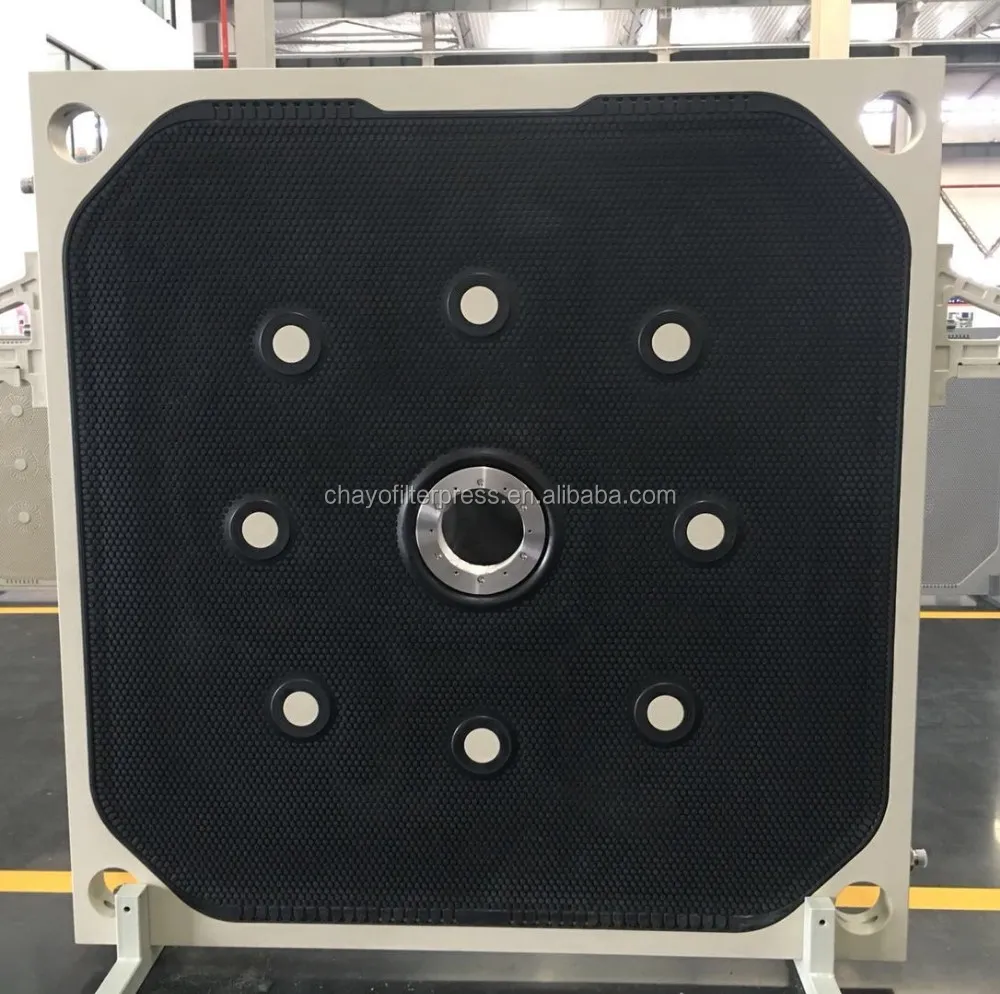

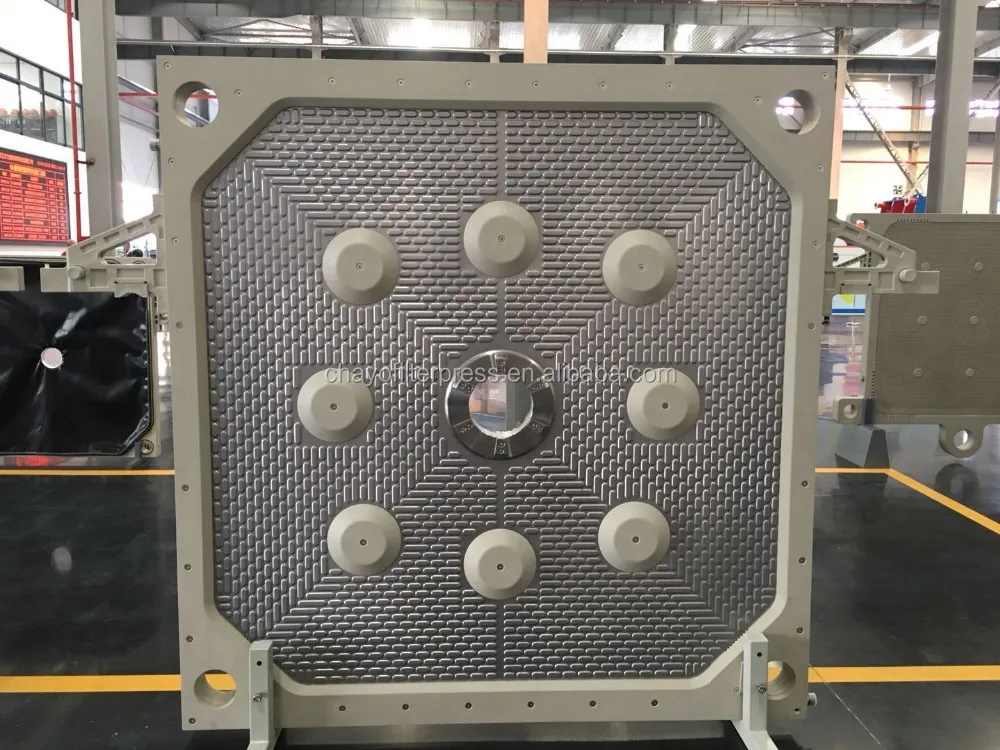

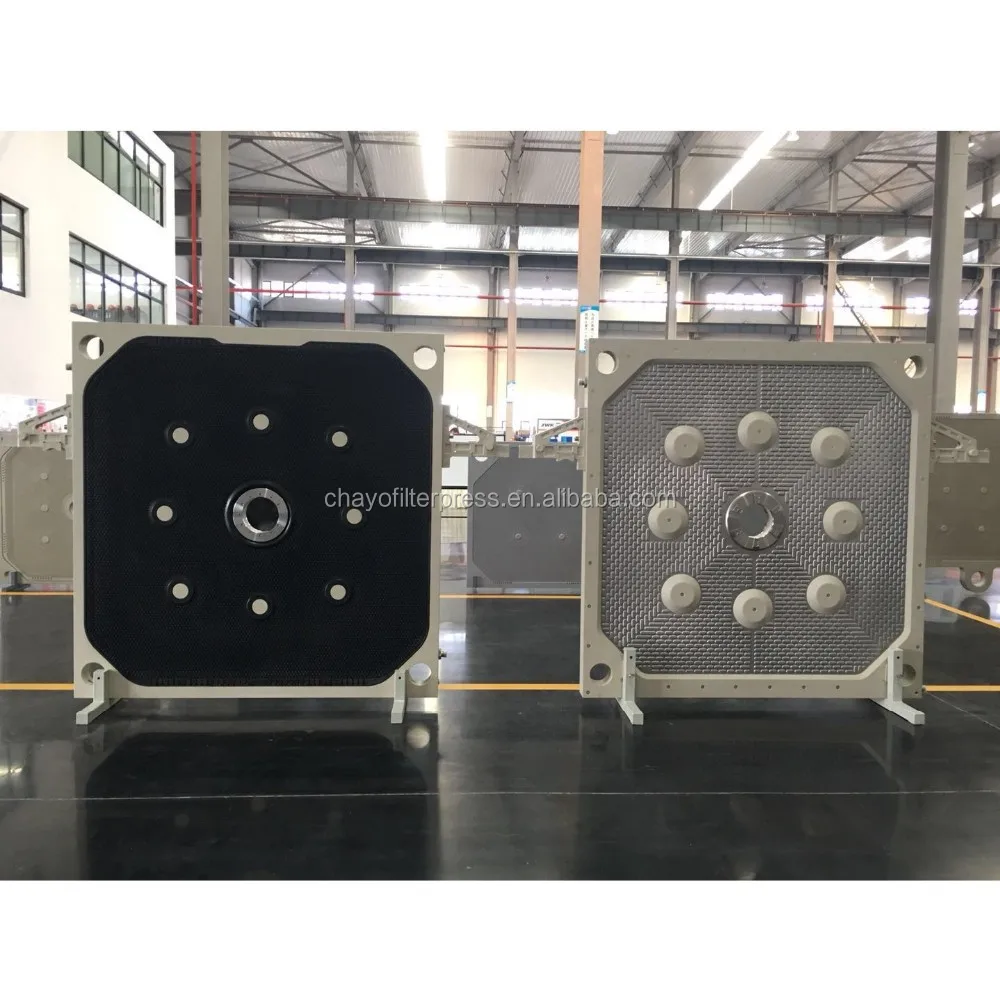

Membrane chamber plate
membrane chamber plates are used for the solid-liquid-separation in all industrial processes. the most advantages are obtained in that cases where squeezing effects due to high elastic membranes are becoming effective on filter cake.

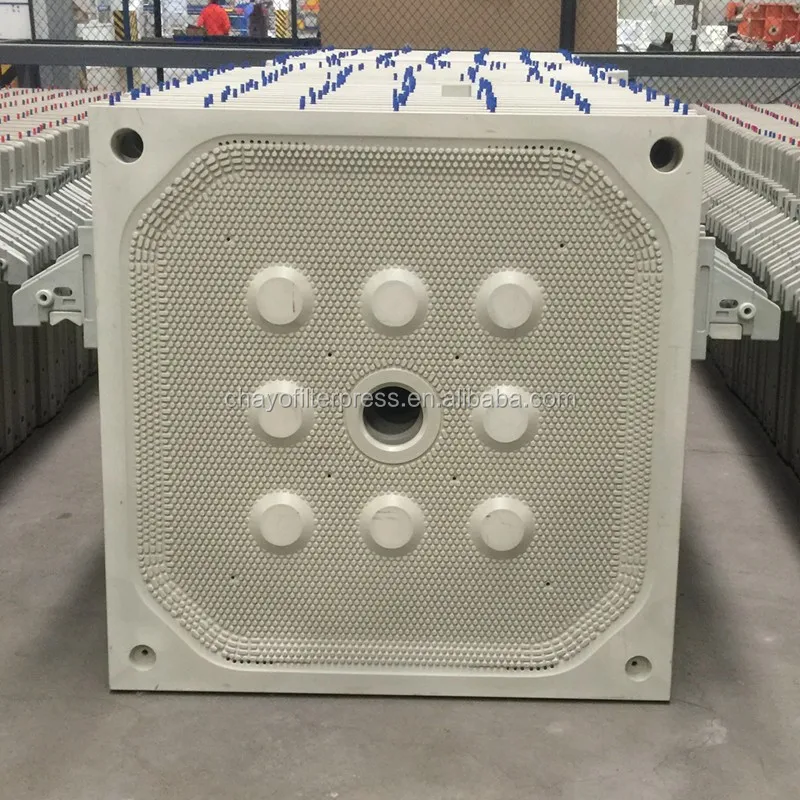

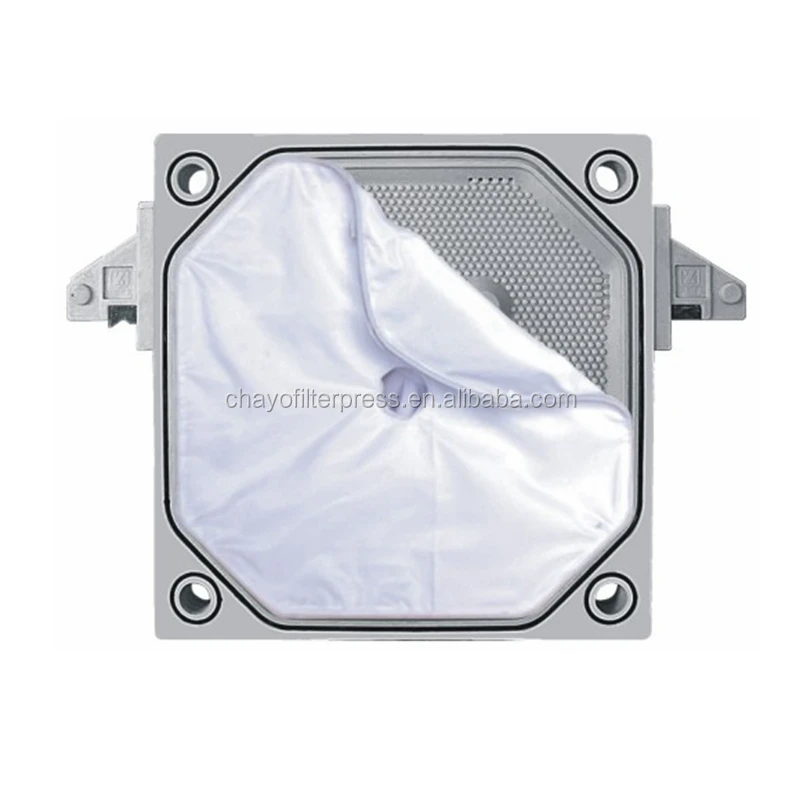

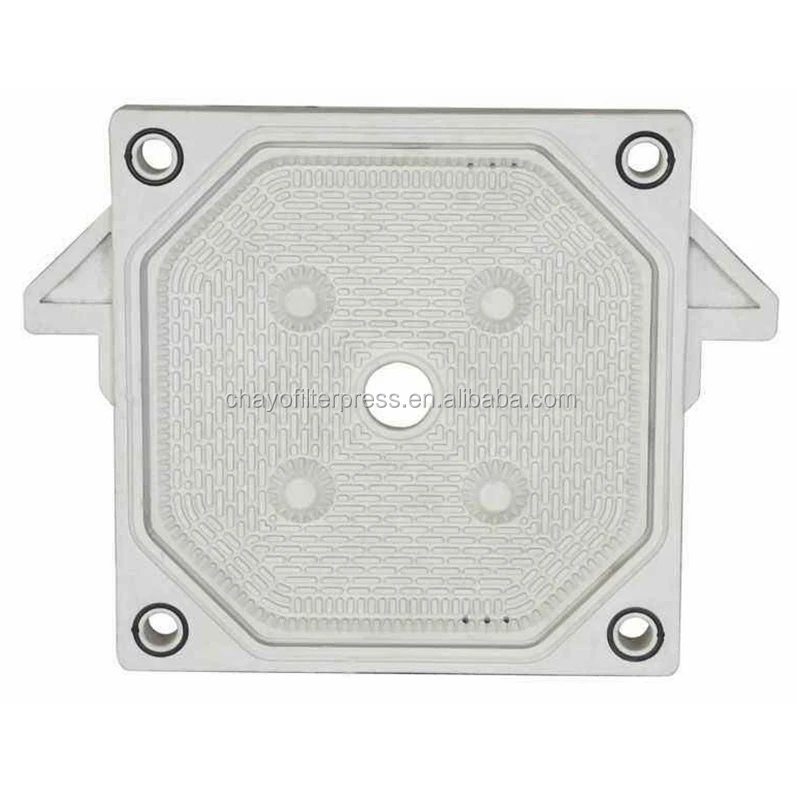

Chamber filter plate.
Chamber plates are suitable for all fields of application,advantage as following:
Fast FiltrationSlight Cloth Strain
Excellent Sealing
Good Heat Insulation
Easy Cleaning
Low Weight

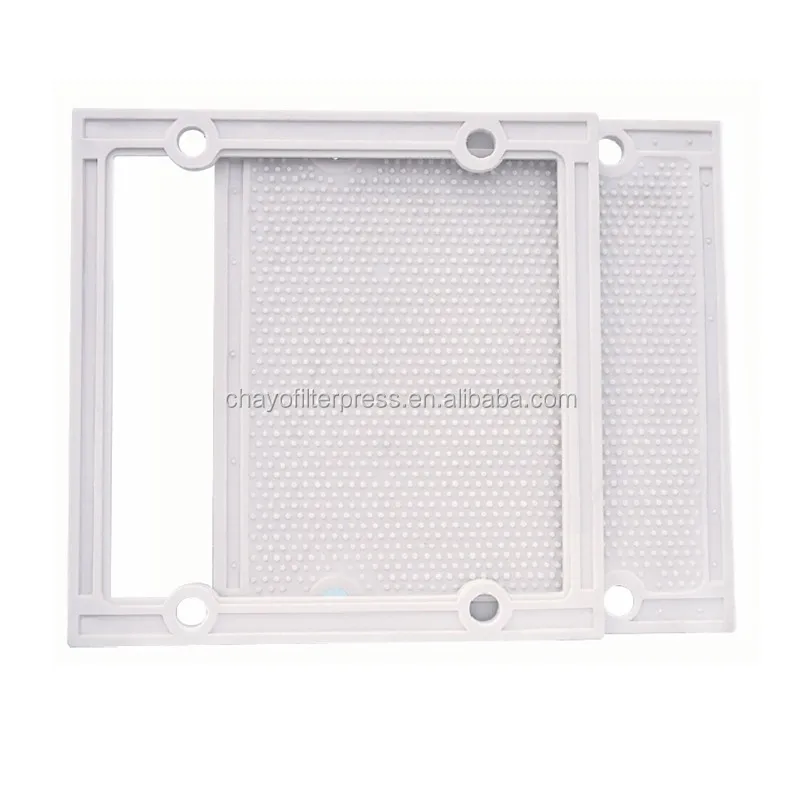

Plate and frame filter plate
Filter plates and frames are used in our days only in very
special cases. It is possible to use overhang filter cloths or even flexible filter media from cotton or paper.
Compared to chamber plates the field of application is limited with egard to filtration pressure and filtration temperature.
Special Design Filter Plate
TCC &TCM (Temperature Controlled Chamber Plate with external heating &Temp. Controlled Membrane Plate)
In this case the design of the combination plate concerning theoperation is similar to a membrane plate. The membrane isreplaced by a very good heat conductive stainless steel sheetwith a drainage grid.
The heating media flows externally between the surface of the body plate and the steel sheet fixed on the top . The heat transition via the filter cloth to the cake is significantly improved.
The very different heat expansion coefficients are compensated by a special liquid sealed attachment of the stainless steel sheet.
This system allows the most efficient and fastest cake drying

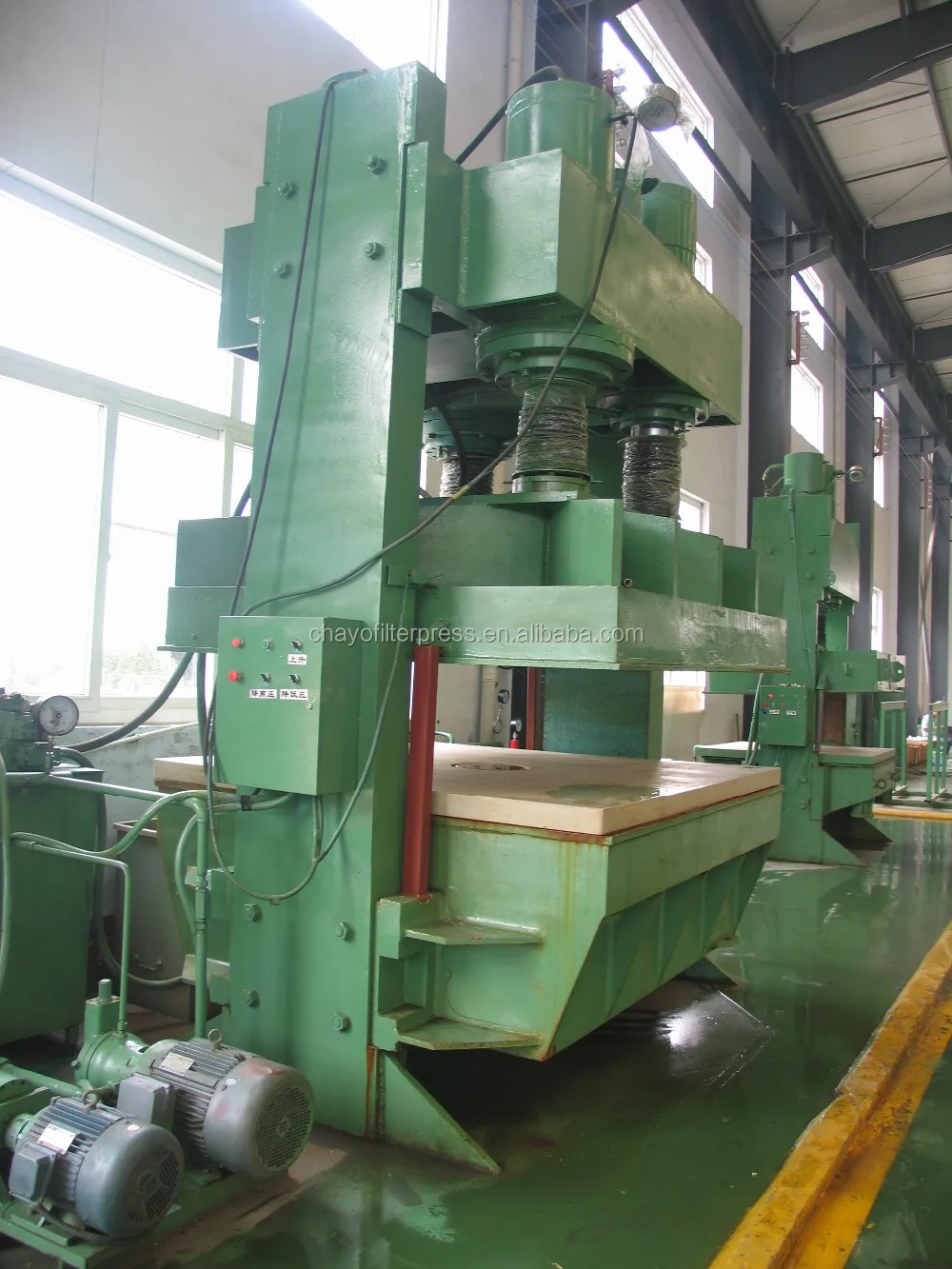

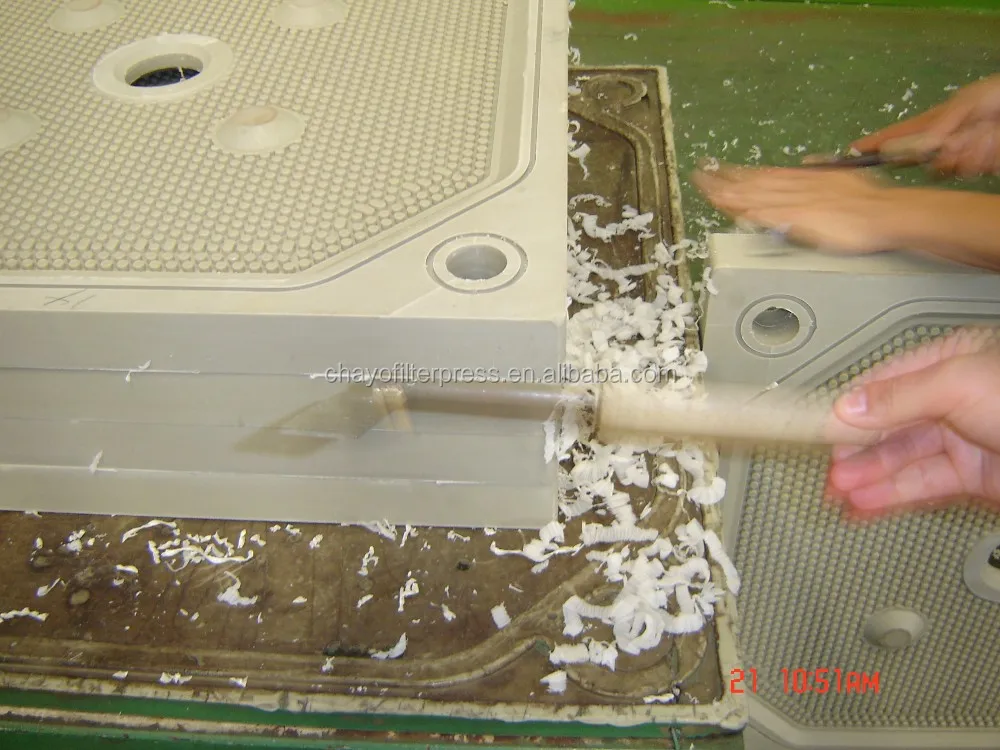

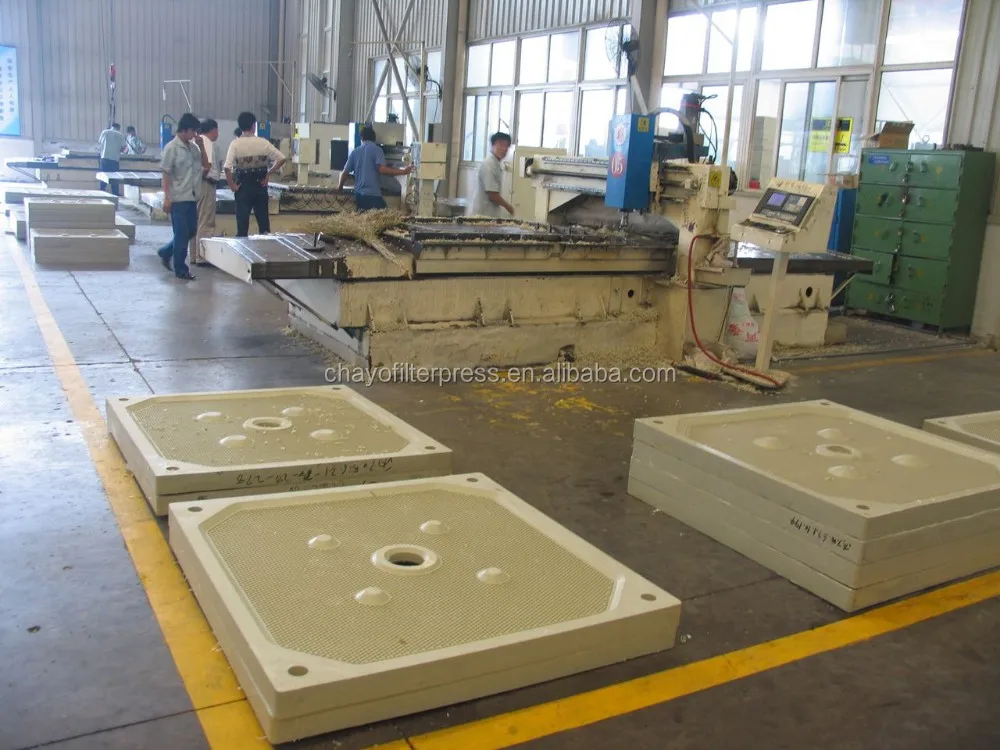

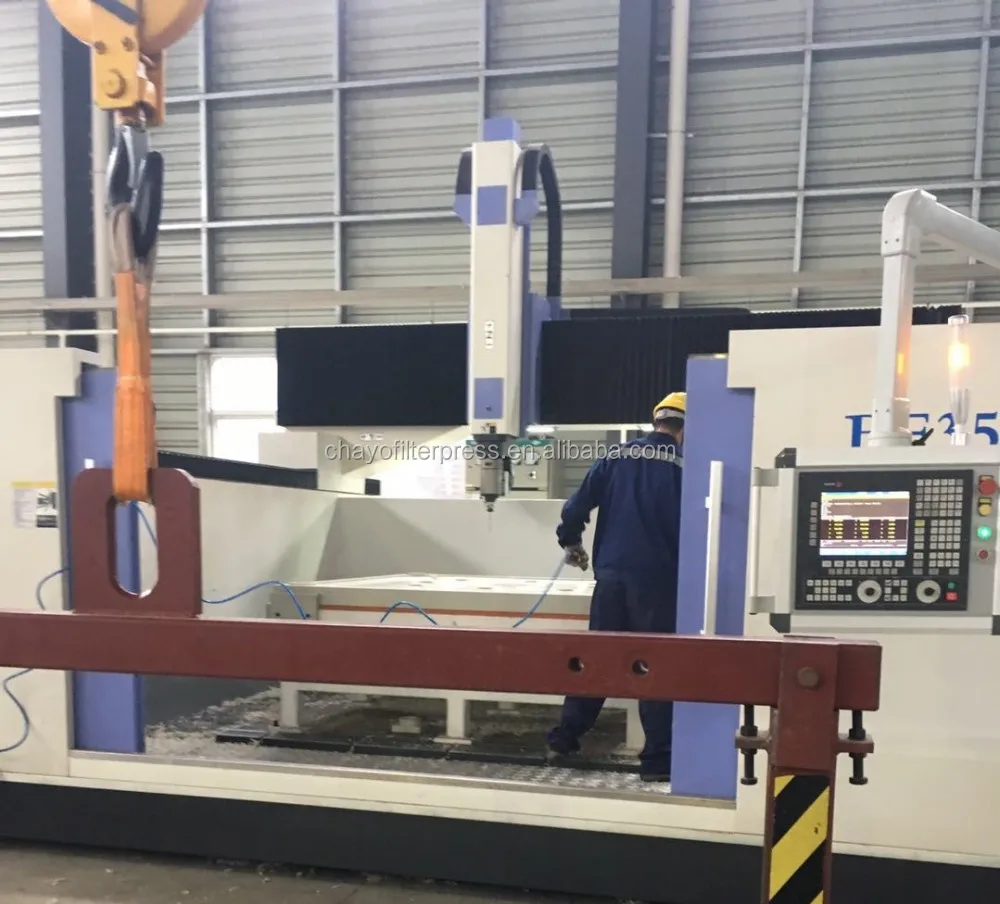

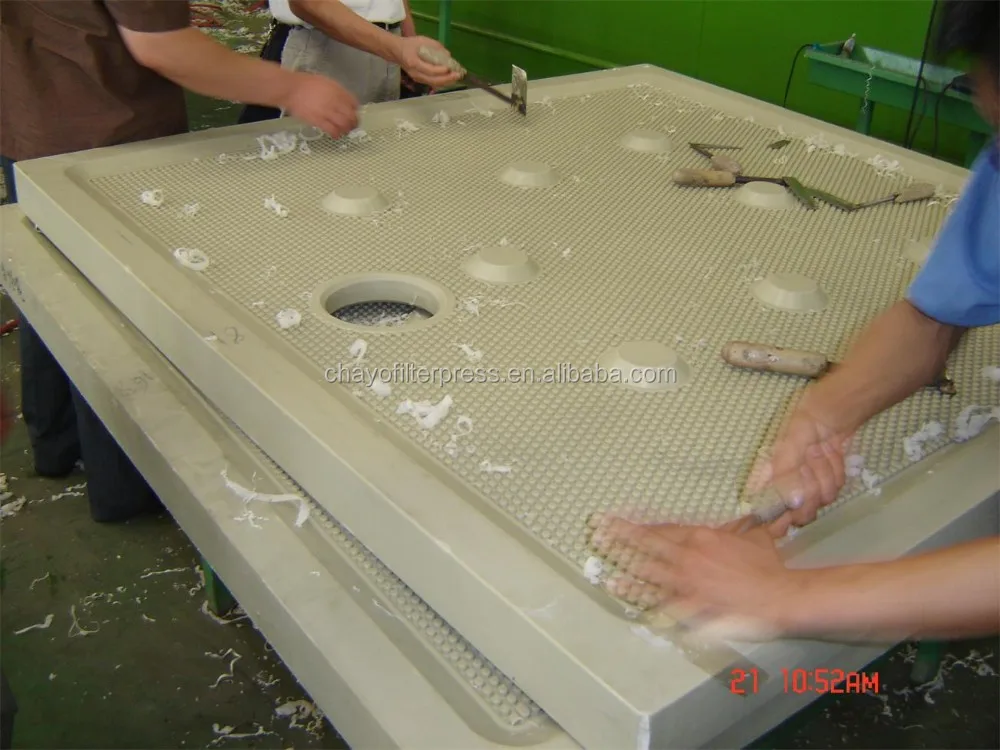

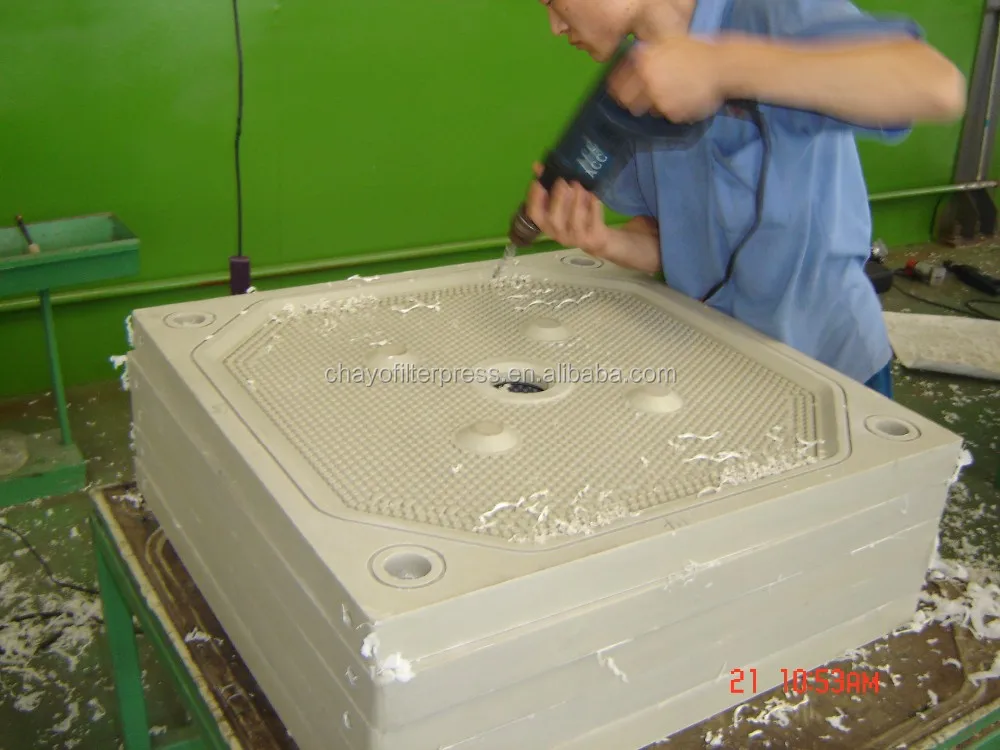

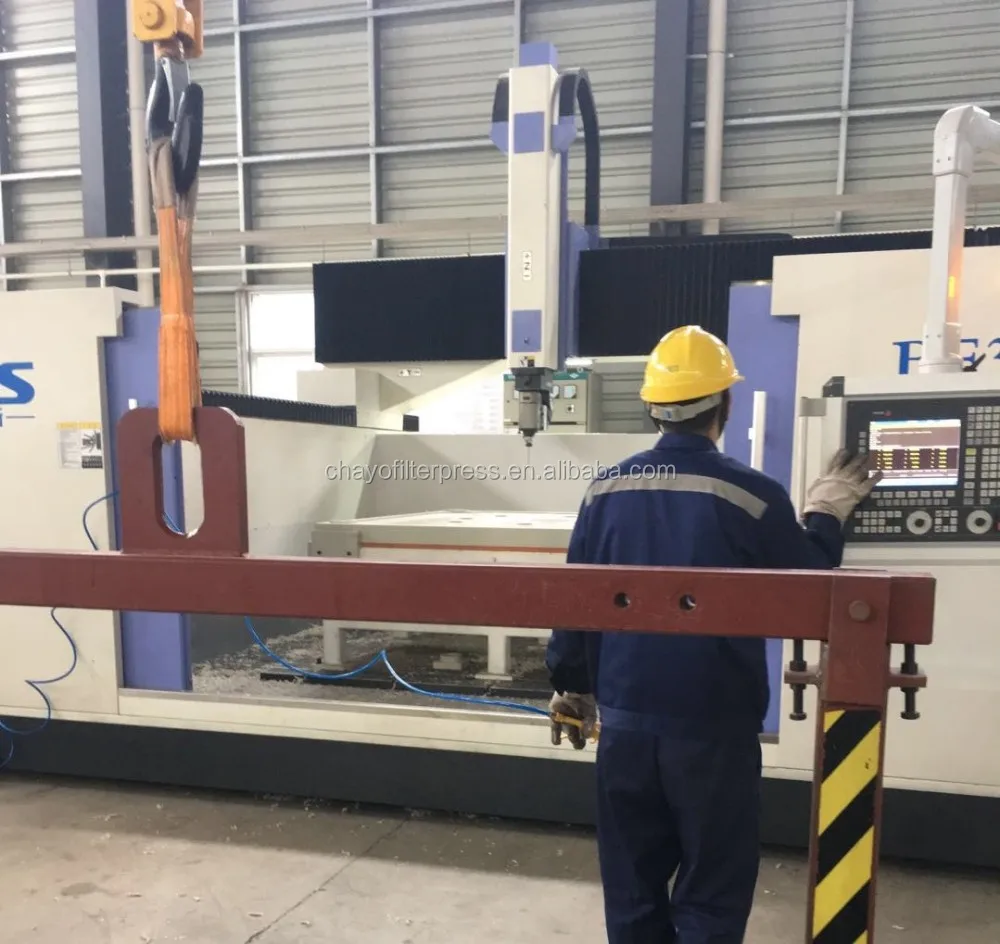

filter plate process

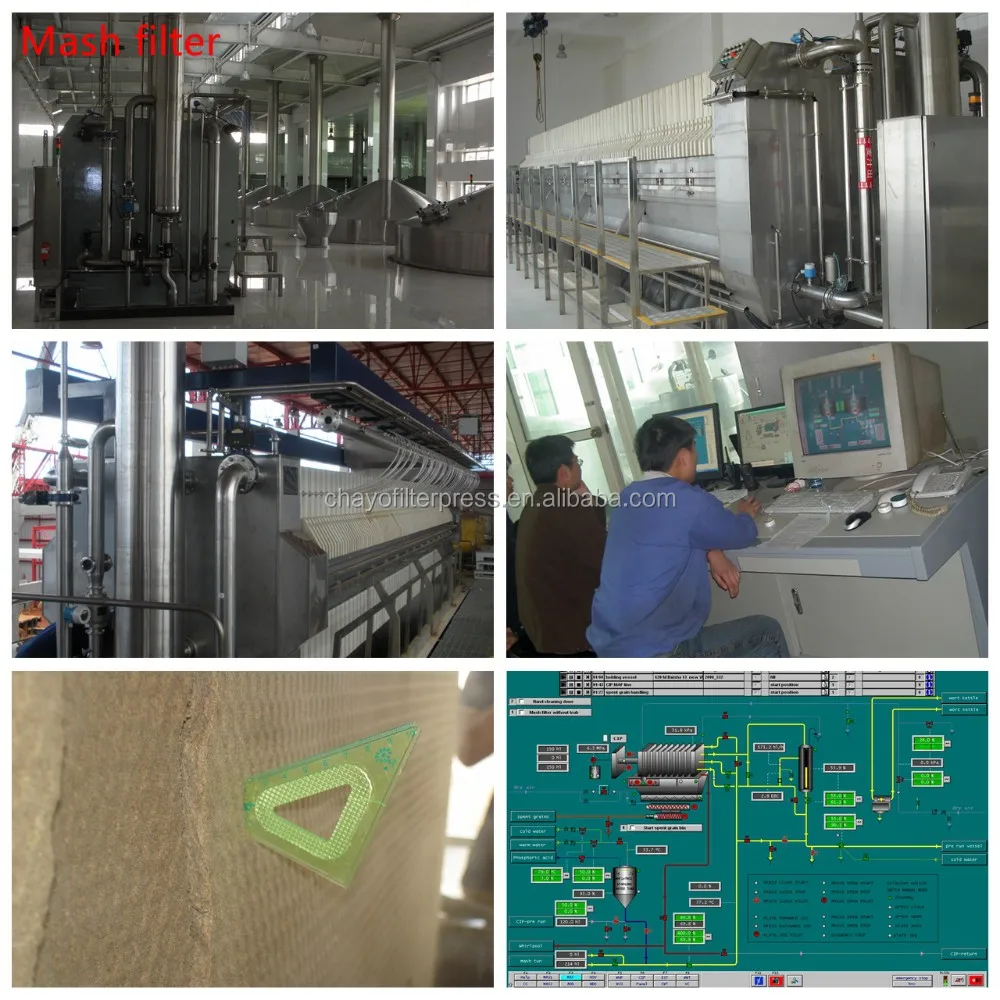

Application Industry

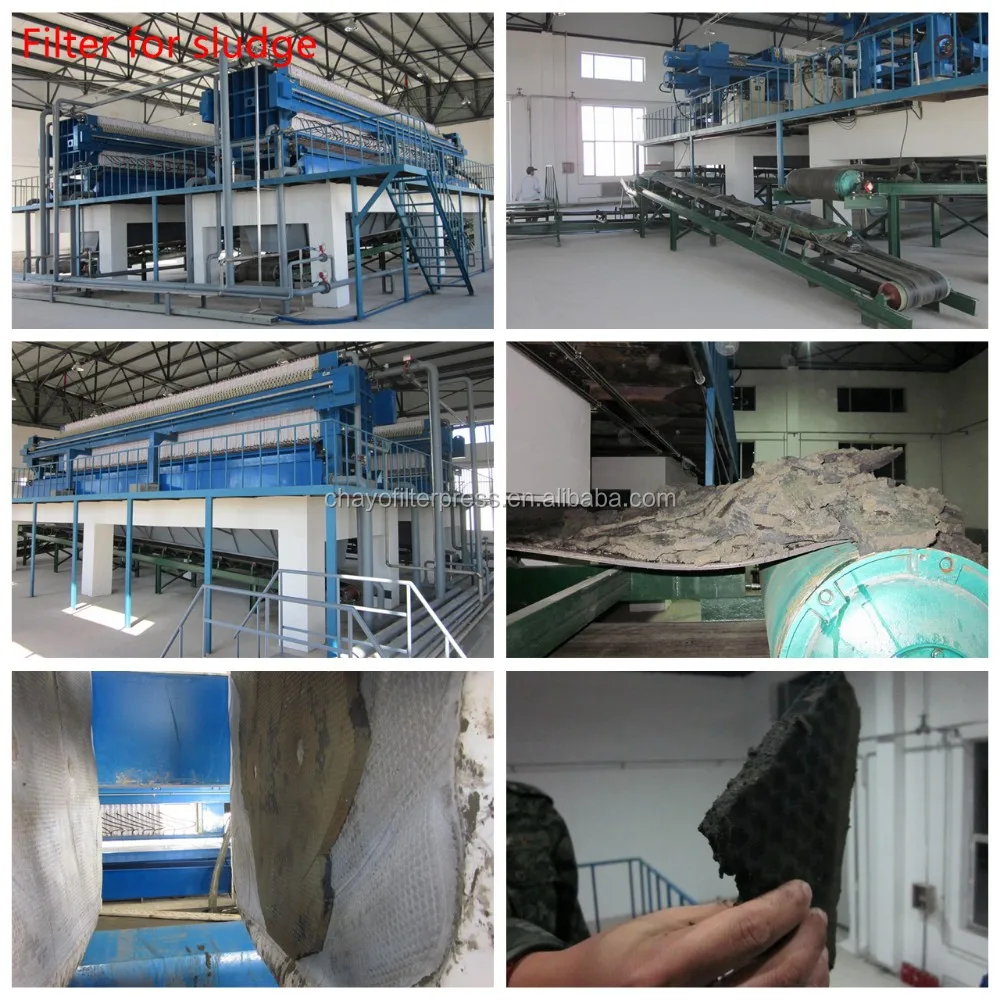

WASTE WATER / SEWAGE PLANTS
Waste water treatment and
water purification for potable water
dewatering and decontamination of industrial and
municipal waste water:
sewage from dust scrubbers,
paper, leather and latex waste water,
grinds of wood and stone,
coal and ore suspensions from flotation processes
neutralization plants, oil refineries
metalhydroxide sludges (galvanic)
drilling mud of oil rigs
CHEMISTRY
Manufacturing of mineral pigments,

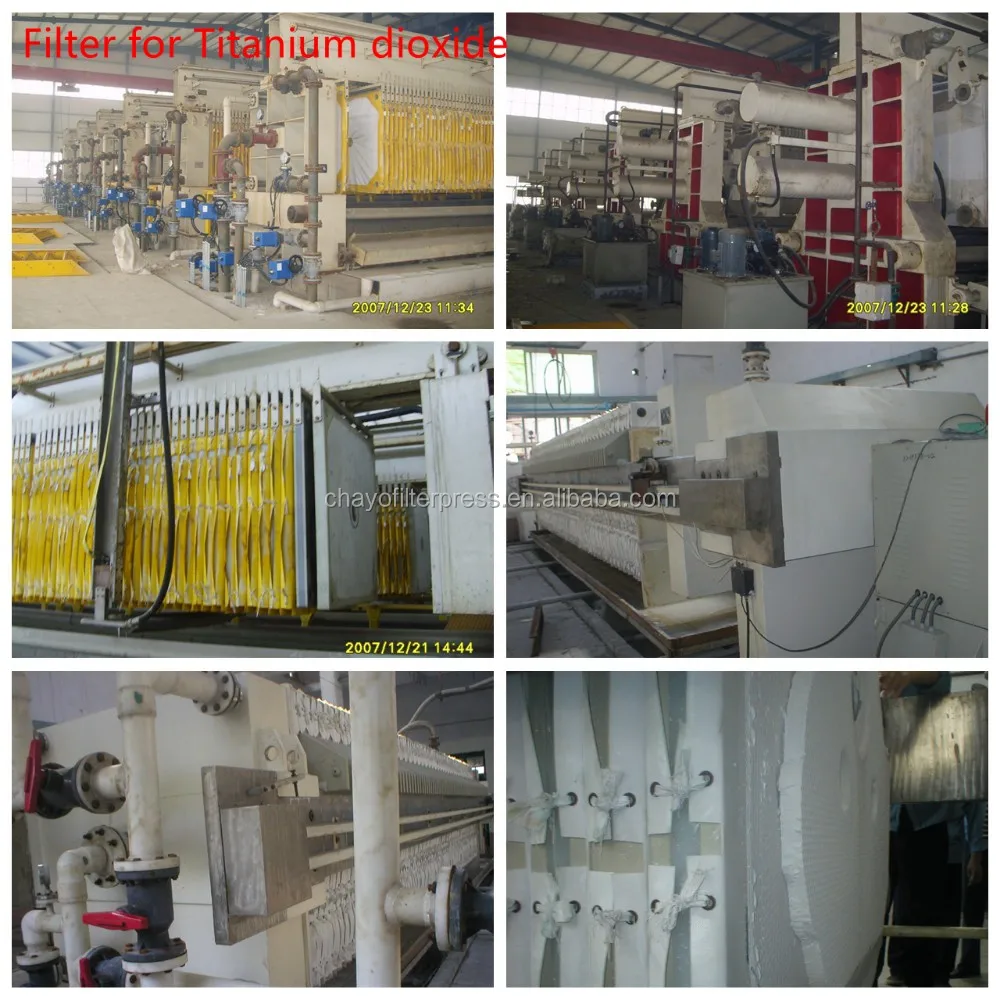

organic dyestuffs and titanium dioxide,
filtration of phosphoric compounds and ferments during
the production of wetting, washing and cleansing agents,
chemical intermediate products and fillers e.g.
kaolin, aluminum oxide, activated clay etc.
chlorine electrolysis, filtration of brine to produce

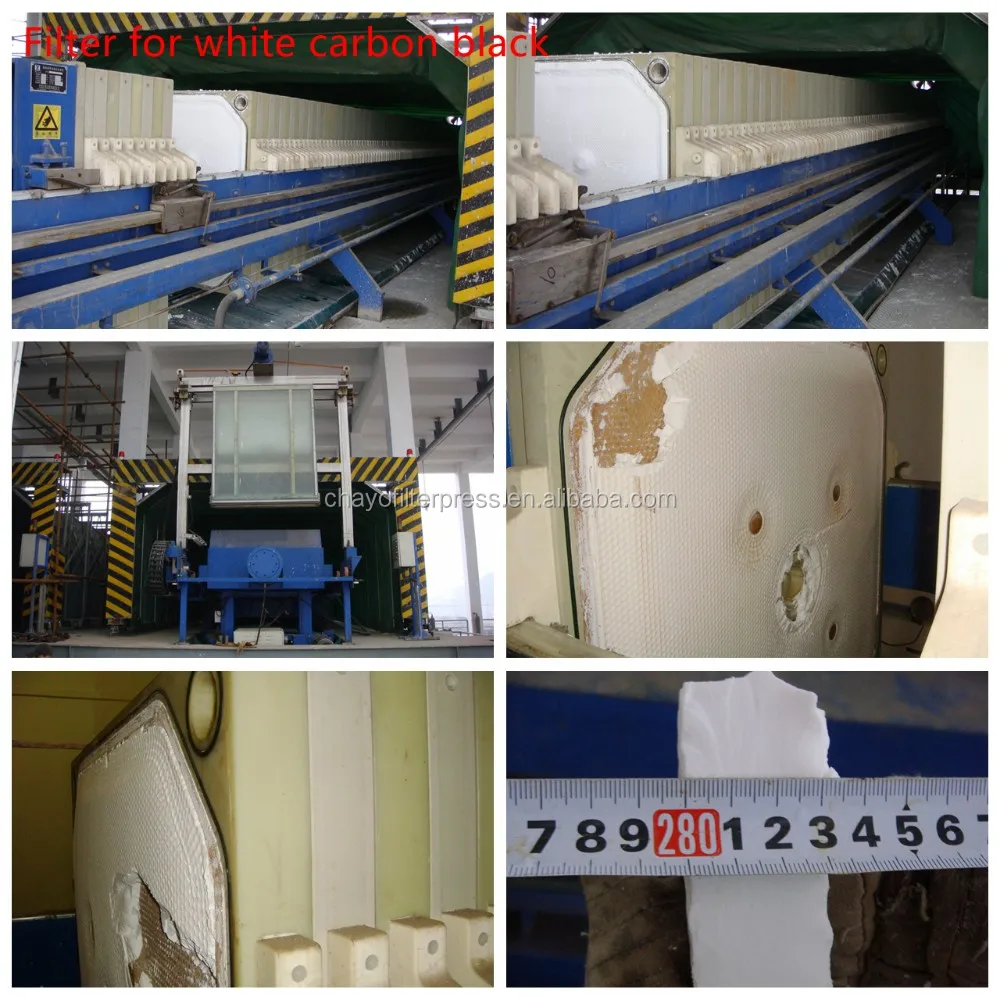

chlorine, sodium hydroxide, zeolite, silica etc.
PHARMACEUTICALS
Extraction and washing of intermediate products with sterilisation at temperatures up to 100 °C filtration of blood plasma, syrup etc.
BIOTECHNOLOGY
Filtration of blood plasma and other substances, which may not get in contact with bacteria.
FOOD

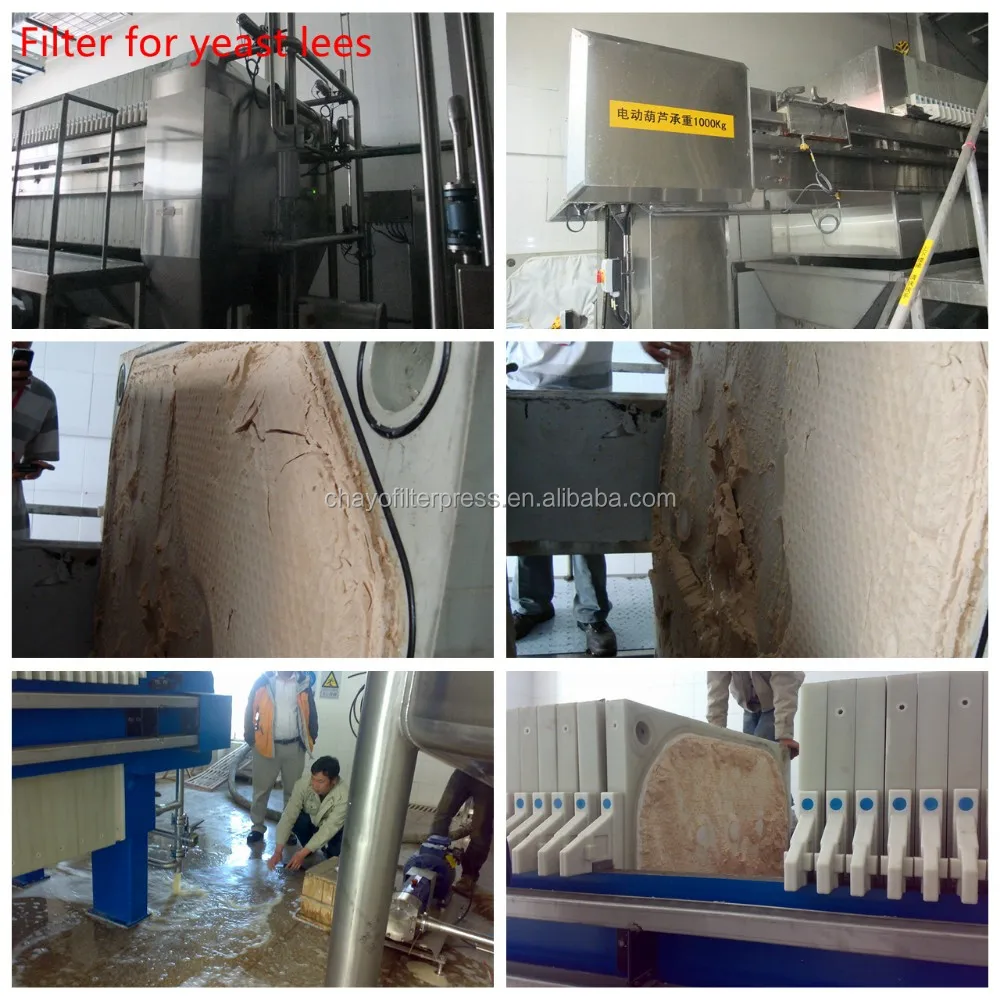

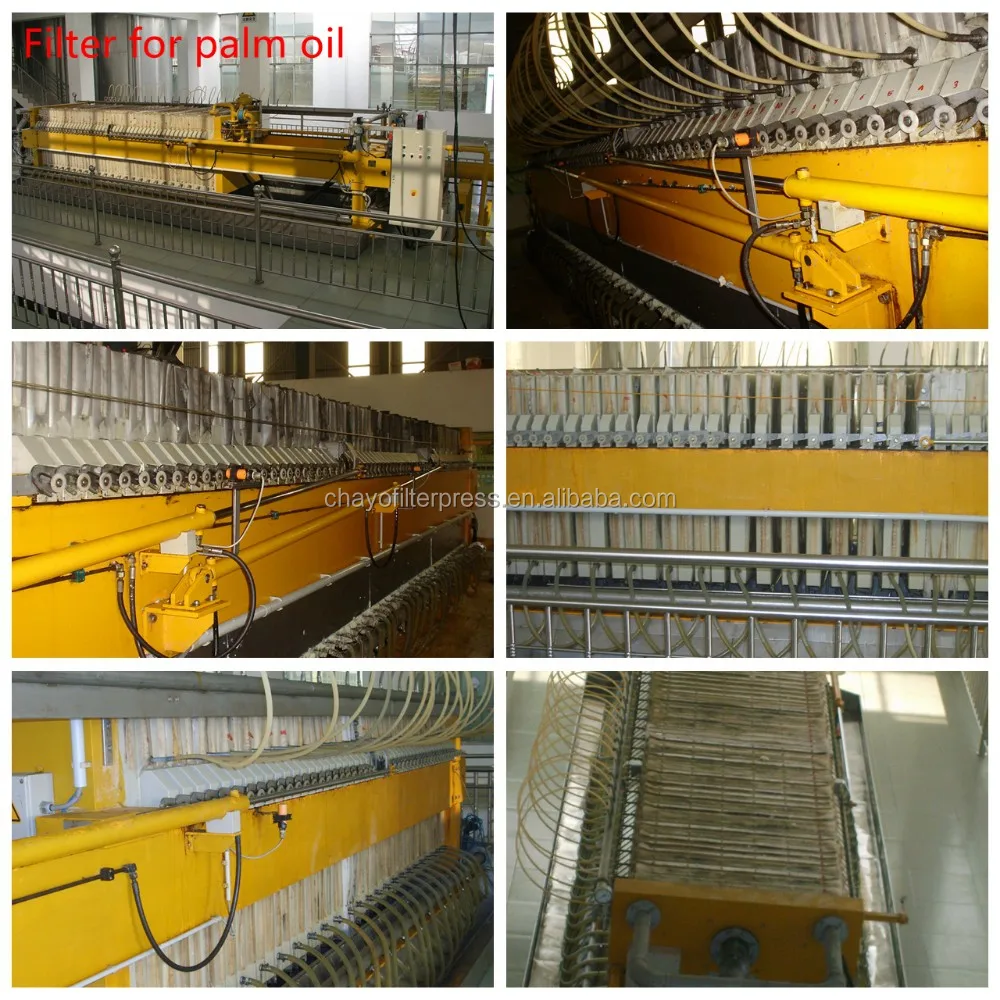

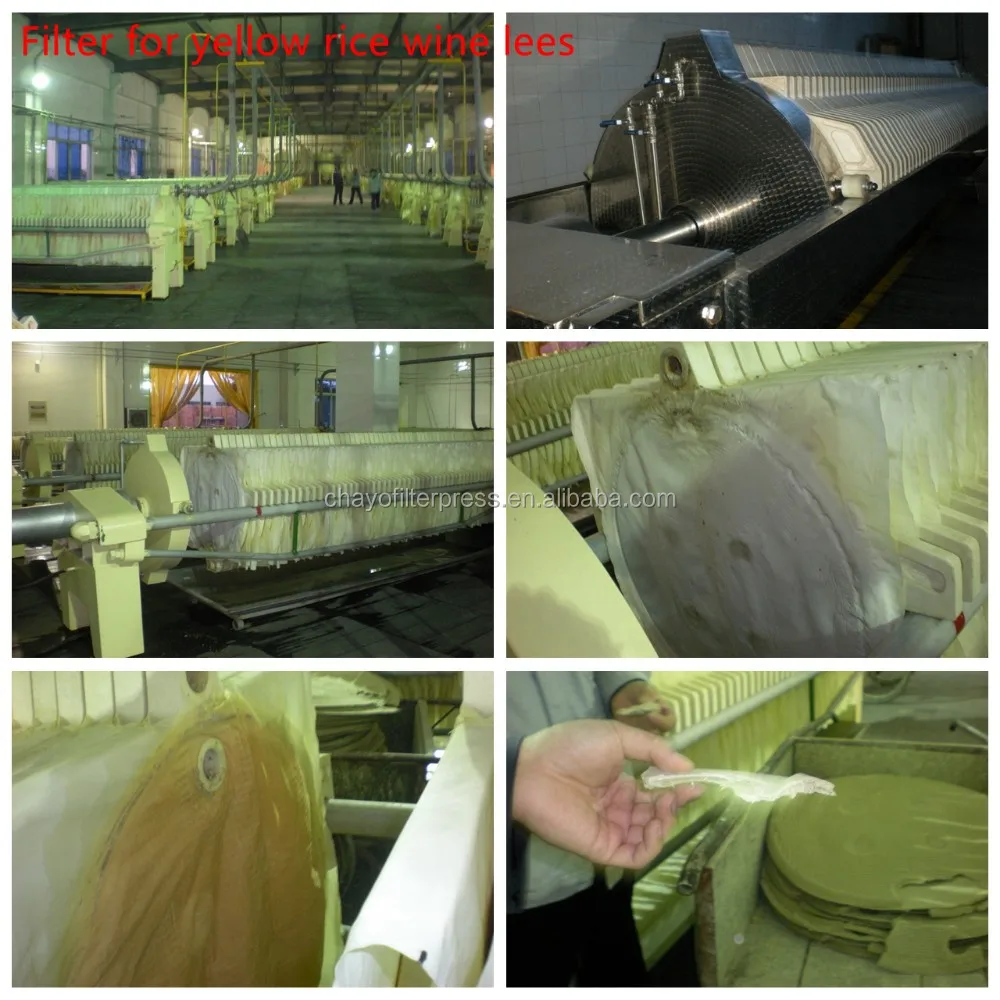

Production of soup, soup flavours, rice noodles, sugar, vegetable oil, palm oil, fruit juice, wine , yeast, starch, gelatine, beer, agar-agar etc.
CERAMICS
Dewatering of caolin, chalk, clay, porcelain and ceramic bulks
METALLURGY
Filtration of metallic salt solutions serving as first step of electrolysis when refining nickel, copper, silver, gold and uranium and by-products as molybdenum electrolytic separating of metals reprocessing of batteries
Customer visit
About us
Hangzhou Chayo Environmenal Technology Co.,Ltd is a comprehensive high-tech enterprise who supply a complete set of service of press filter including, manufacture,design,install,debugging&EPC. Chayo has more than 10 year experience in field of solid and liquid separation technology,mainly engaged in design &develop of deep dewater treatment of sludge /sewage treatment process and equipment, Chayo has provided more than 1000sets of various equipment and service for numerous deomestic and foreign enterprises, and its products and service have been widely used and won a good reputation.
Chayo offers different series, such as filter press cloth, chamber filter presses, membrane filter presses, plate and frame filter presses,lime dosing device,flocculant dosing device,screw conveyor,antomatic system and sludgeand dewatering equipments and specially designed filter presses according to different filtration materials. our fully automatic palm oil membrane filter presses are for oil fractionation, our automatic carrageenan membrane filter presses have automatic filter cloth washing system, our automatic medicine filter presses comply with GMP requirements, etc. we offer special filter press design services to meet special industrial filtering requirements.
Owning to our rich experience in solid-liquid separation, we optimize the filtration of your plants to meet your special needs. If you need detailed information, please send emails to us.
