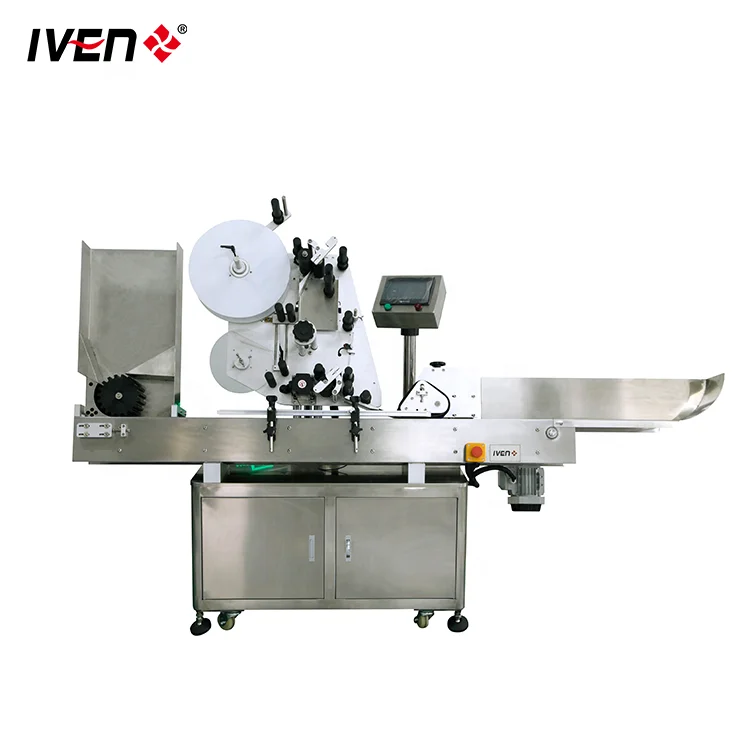

Pharmaceutical Blood Tube Automatic Labelling Machine Price is suitable for automatic labeling of the vacuum blood collection tube and other similar tube.
Our Advantages 1.Good configuration, strong stability, high performance Adopt German Leuze GS photoelectric sensor, United States AB servo motor, JSCC motor and the corresponding speed drive, which have made a good foundation for the rapid, high efficient and stable labeling. 2.Applicable for transparent label, high efficiency, no tube stucking. Applicable for both transparent and opaque labels. Servo motor controls label sending, making it rapid and stable. Give up the traditional roller filling way, adopt the unique feed way to avoid tube stuck or breakage.
Main technical parameters and configuration
Production capacity
12000-18000 pcs/h, (effected by label size and tube size)
Label
Both transparent and opaque label
Tube size
ø 12 - ø 16 mm, length: 75 mm - 100 mm
Labeling precision
± 1 mm in length
Gas consumption
≤ 0.1 m3 / min, air source pressure: 0.5 Mpa ≤ P ≤ 0.8 Mpa; no need gas if without code device.
Power
450W/AC220V
Overall size
2000mm×500mm×1700mm
Weight
200kg
IVEN Can Do !
IVEN provides integrated engineering solution for worldwide pharmaceutical and medical factory include the clean room, auto-control and monitoring system, pharmaceutical water treatment system, solution preparing and conveying system, filling and packing system, automatic logistics system, quality control system and central laboratory and etc. According to the pharmaceutical industry's regulatory requirements of different countries and customer's individual demand, IVEN carefully customizes engineering solutions of turnkey projects and helps customers to win the target markets, IVEN creates value to customers.
Turnkey Project for IV Solution Plant from A to Z
• Project Design • Pharmaceutical Water Treatment • Solution Preparation • IV Solution Production Line • Sterilization • Inspections Packing • Clean Room & HVAC • Stability Chamber • Laboratory Instruments • Utilities • Documentation & Qualification • Installation, Commissioning, Training • Service
