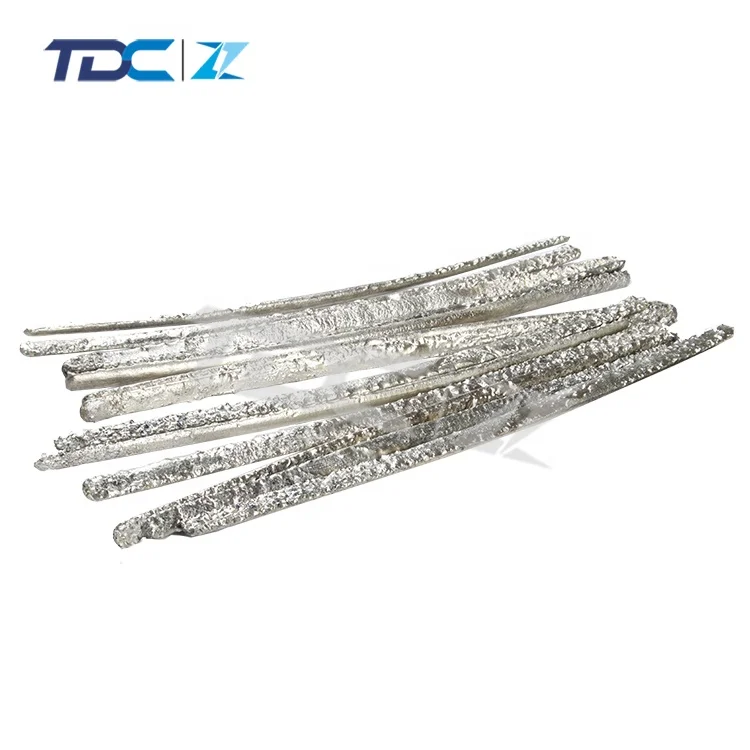

YD welding rod easy operation tungsten carbide composite rod for work piece machining

Share on (62053382640):


Price:

Quantity:


Product Overview

Description


YD welding rod easy operation tungsten carbide composite rod for work piece machining

Product Description



Product description of tungsten carbide composite rod

Tungsten carbide composite rod has been used and respected throughout the Oil drilling, Mining and Construction industry worldwide. Our unique manufacturing process results in the highest quality tungsten carbide composite rod and tungsten inserts available in the market. This is proven by numerous successful applications like junk mill, stabilizers, rotary shoes, reamers, milling shoes, foundation coring, wear pads, casing window mills, liner mills, junk baskets, foundry sand mixers, construction drilling and screw feeders etc. Tungsten Carbide composite rod are well known in the drilling industry for its quality and consistency. Particles are crushed, specially sorted for even grain size distribution and treated to ensure best wetting properties, both during manufacture and field application. Stringent quality control and manufacturing procedures ensure repeat ability of excellent quality tungsten carbide blend in a tough resilient nickel silver matrix that holds the carbides. Drill tech tungsten carbide composite rod has excellent wear & cutting properties, weld ability and low fuming during application.



Product details of tungsten carbide composite rod

Item

Details

Material

YG+Cu Sn Zn

YG+Cu Sn Zn+10% Ni

Common particle size

1/16" x 1/8" (1.6 x 3.2 mm)

3/16" x 1/8" (3.2 x 4.8 mm)

1/4" x 3/16" (4.8 x 6.4 mm)

5/16" x 1/4" (6.4 x 7.9mm)

3/8" x 5/16" (7.9 x 9.5 mm)

1/2" x 3/8" (9.5 x 12.7 mm)

WC grit compositions

70% ,60%,50%

Grade

YG-9.5, YD-8, YD-6.5. YD-5. YD-3, YD-10mesh, YD-18mesh, YD-30mesh

Length

280mm, 450mm

Hardness

>160 HB

TRS

>690 MPa

Application

Junk mill, Stabilizers, Rotary shoes, Reamers, milling shoes, Foundation coring, Wear pads, casing window mills, Liner mills, Junk baskets, Foundry sand mixers, Construction drilling and Screw feeders etc.



Grade recommend of tungsten carbide composite rod

Grade

Particle sizes(mm)

Length of welding rod

YD-9.5

8.2~9.5

280 or 450mm

YD-8

6.4~8.2

280 or 450mm

YD-6.5

4.8~6.4

280 or 450mm

YD-5

3.2~4.8

280 or 450mm

YD-3

1.6~3.2

280 or 450mm

YD-10mesh

10~18mesh

280 or 450mm

YD-18mesh

18~30mesh

280 or 450mm

YD-30mesh

30~50mesh

280 or 450mm



Product feature of tungsten carbide composite rod

1. Strict quality control manufacturing process

2. Long lifetime

3. Hard wear resistance

4. Grits size are in the same average

5. Rods are straight and so on

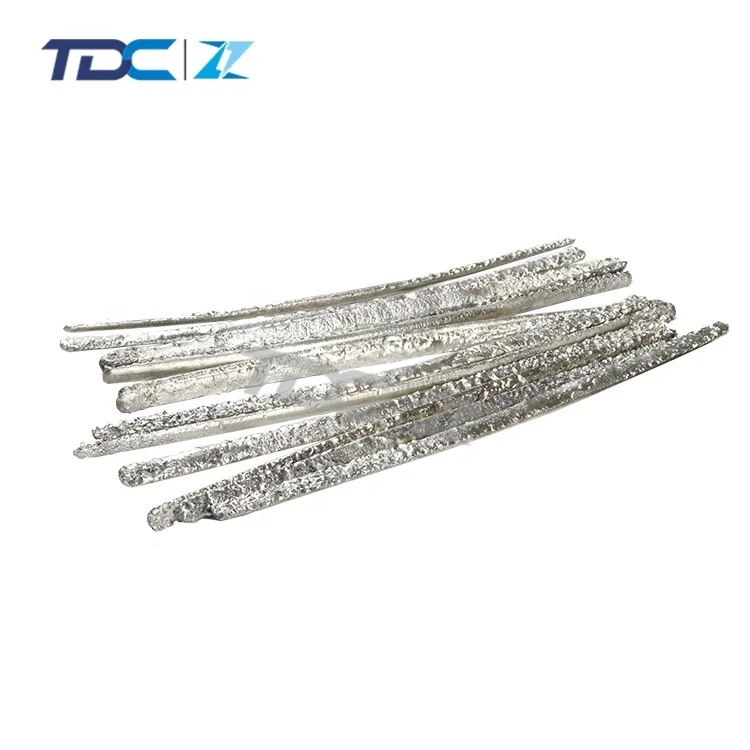

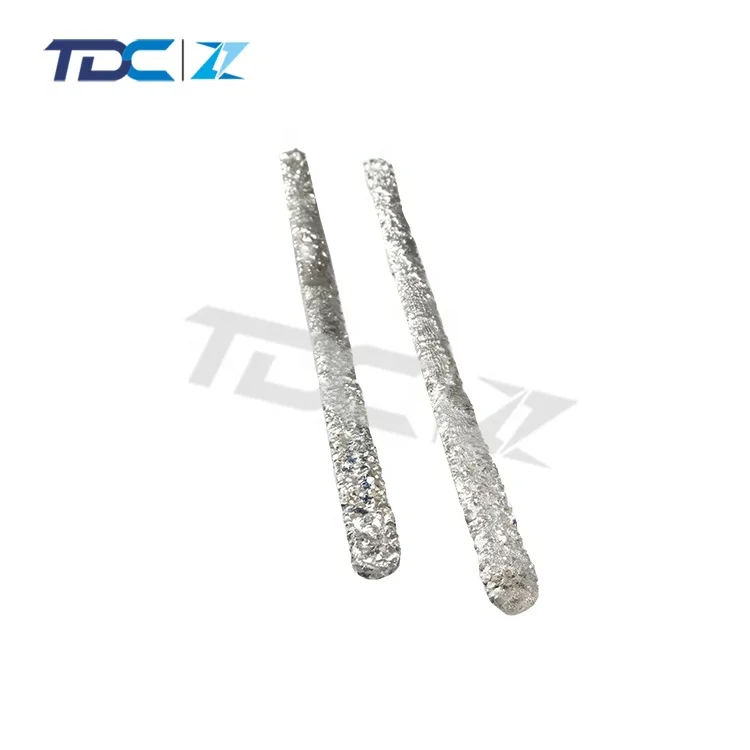

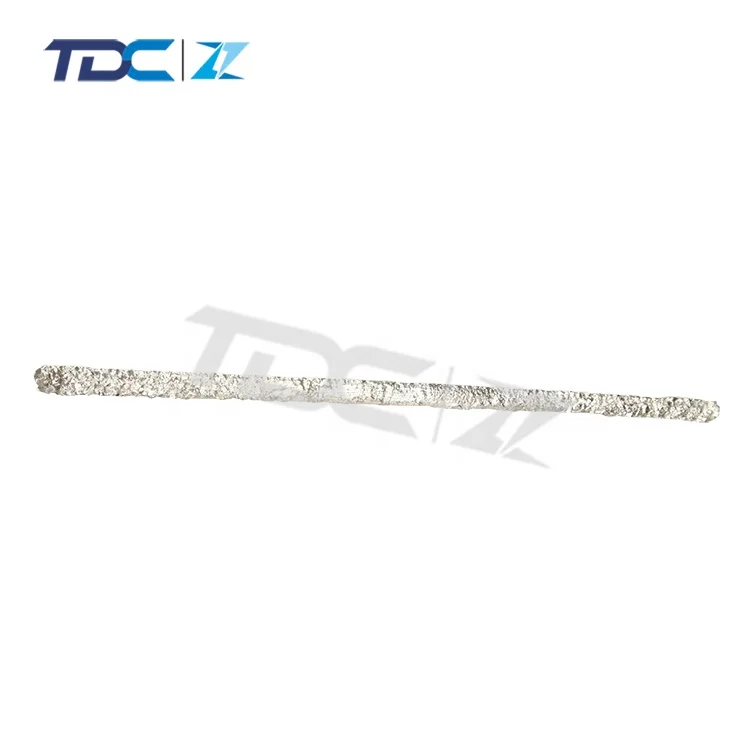

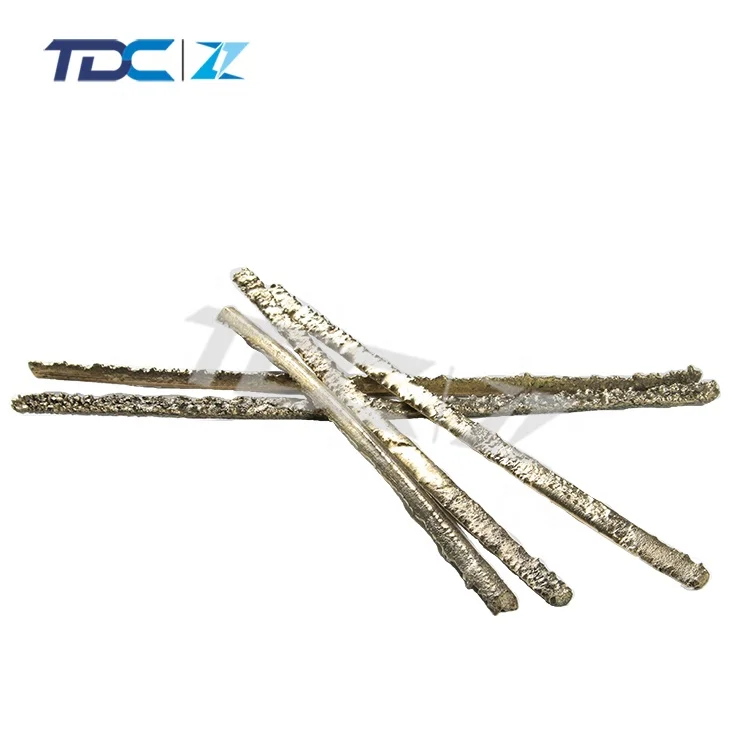

Product picture of tungsten carbide composite rod

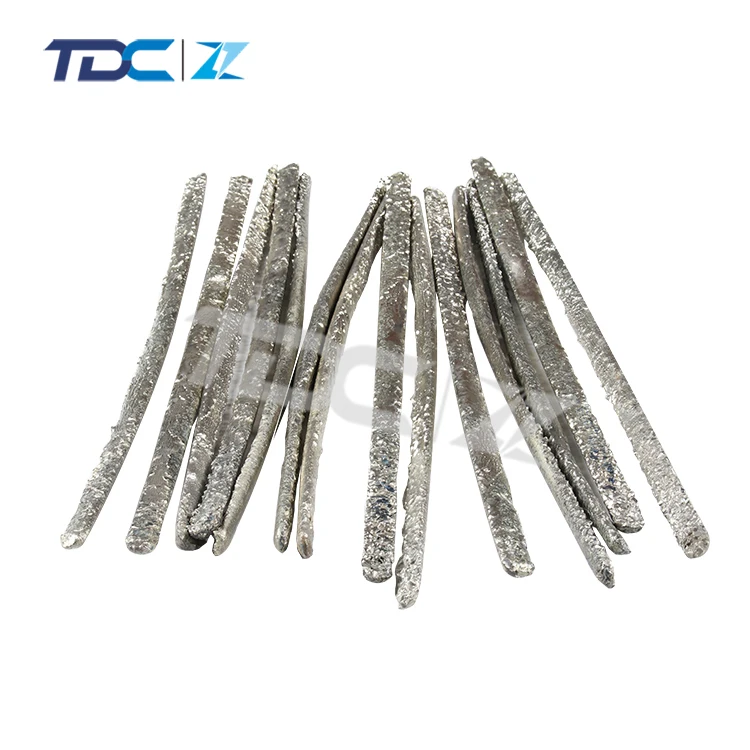

carbide composite rod (7)

composite welding rod (8)

Packaging & Shipping

mailing



Company Information

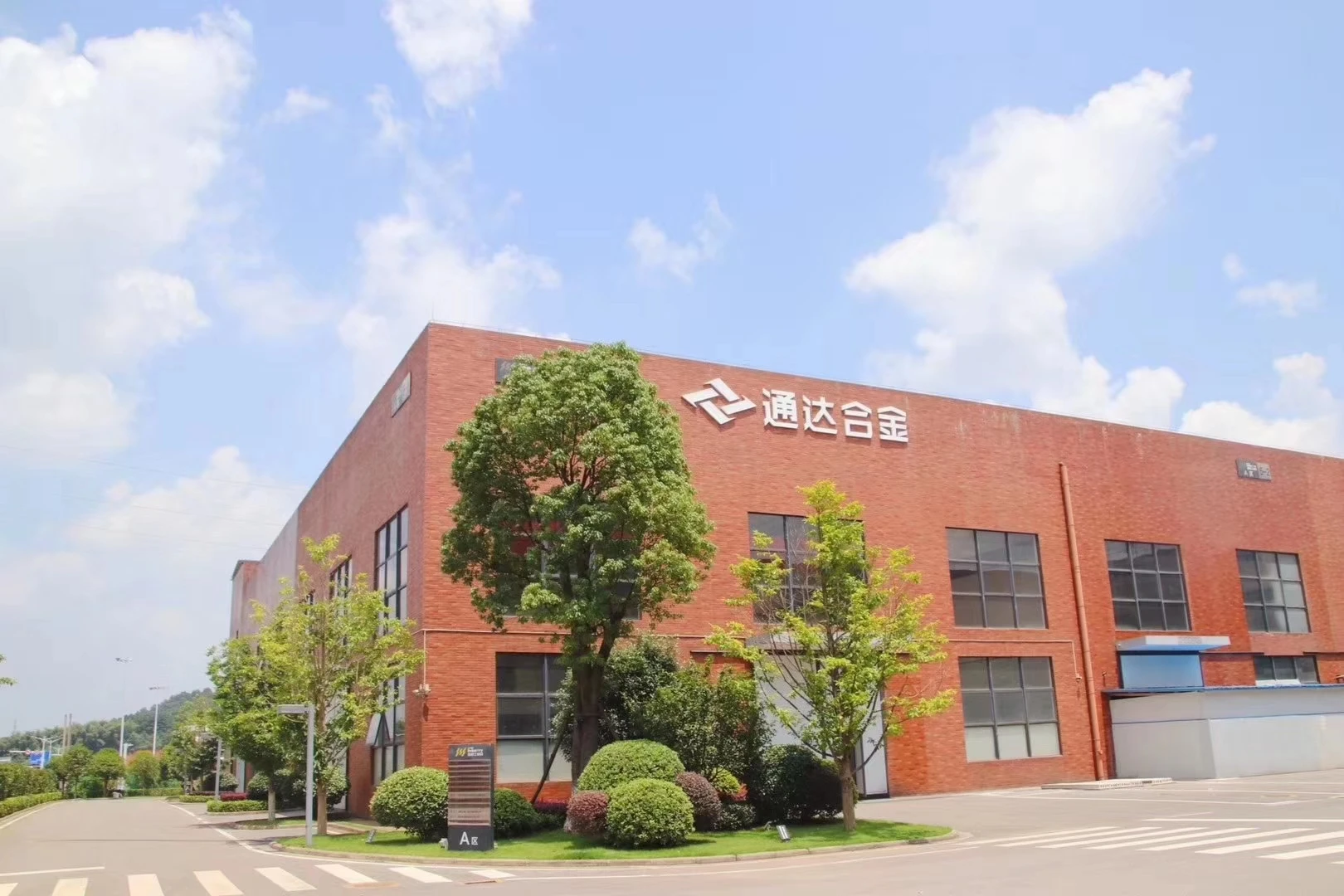

new factory





 Zhuzhou Tongda Carbide Co., Ltd.is originating from 2001 with name of Zhuzhou Tongda Cemented Carbide Works before. It's focus on studying and manufacturering tungsten carbide ball, rod, plate, bushing, ring, roller, grinding jar and other cutting tools, wear parts,and special customized engineering componenis more than 15 years. It's a professional and diversified tungsten carbide manfacturer, who is always providing the most efficient solutions for our client, and committed to introducing the advanrages of tungsten carbide tools to various industries and contries.
We have ocer 500 employees. Our well-equipped facilities and strict quality control throughout all stages of prodocution enables us to guarantee total customer satisfaction. As a result of our high quality products and outstanding customer service, we have gained a sales netwok reaching worldside. Stable quality control and considerate service is the constant promise given by Tongda to all our dear users, to resolve the needs of our user is the value for the exist of our company.
We are sincerely to established business relationship to all the friends. No matter how difficult product your purchase. We devoted ourself on manufacturing meet your needs product.




High and new advanced equipment: imported 10MPa HIP sintering furnace from Germany.
The unique new technology: vacuum high temperature and high pressure sintering. The product uses pressure sintering at the last stage, greatly reduces the porosity, improves the compactness, and greatly improves the mechanical properties of the product.
