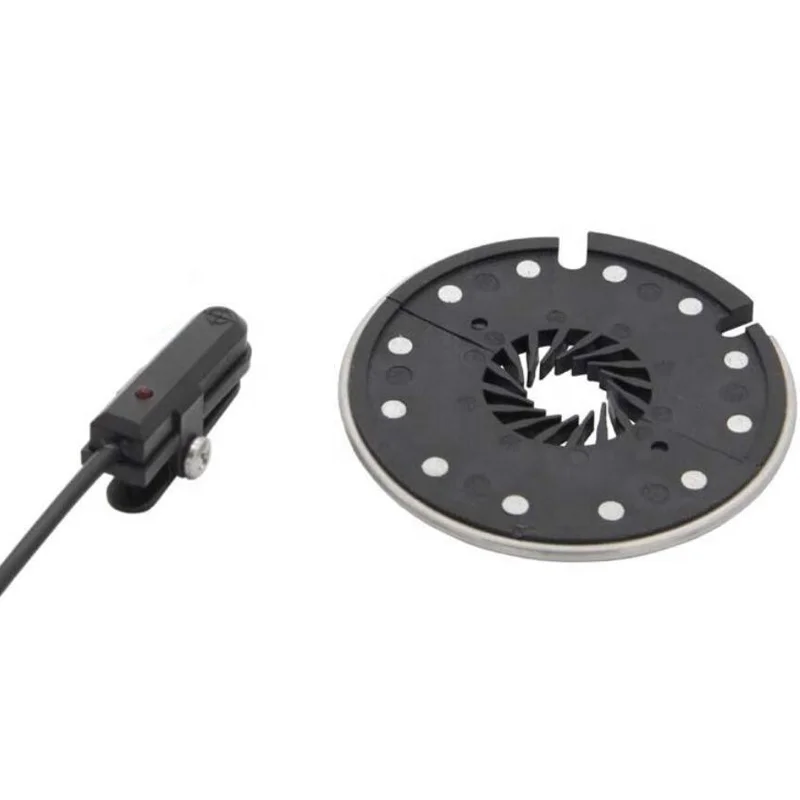

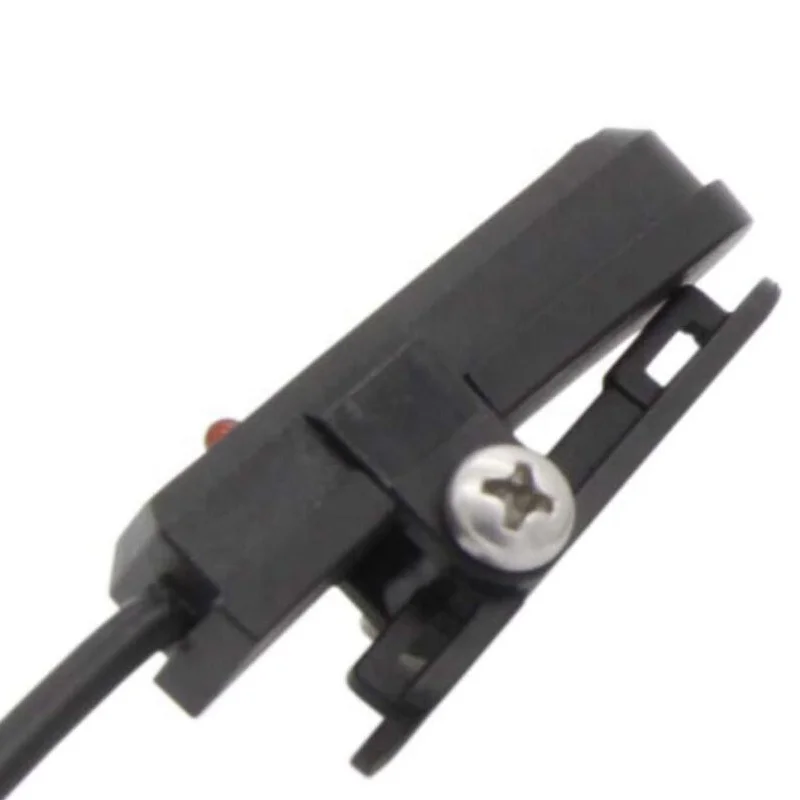

Scooter parts PAS 12 Magnets Ebike Pedal Assist Sensor KT-D12 KT D12 System Assistant Sensor
KT-D12 power-assistant sensor is with the characteristics of 12 signal outputs,
fast power response, good accuracy, strong water resistance, high reliability, etc.
Its installation and removal is quick and easy.
It can be installed in different locations to adapt to a variety of vehicle models.
Detailed Images

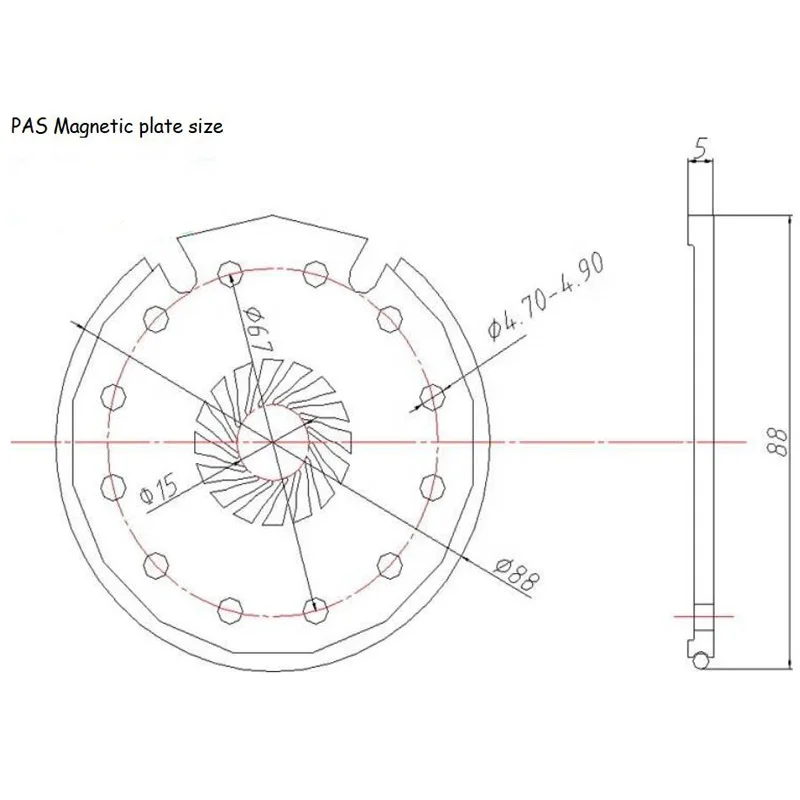

Magnetic steel plate dimension:
Wire leading mode: three-wire system
Standard interface: SM-3Y
Left position installation instructions:

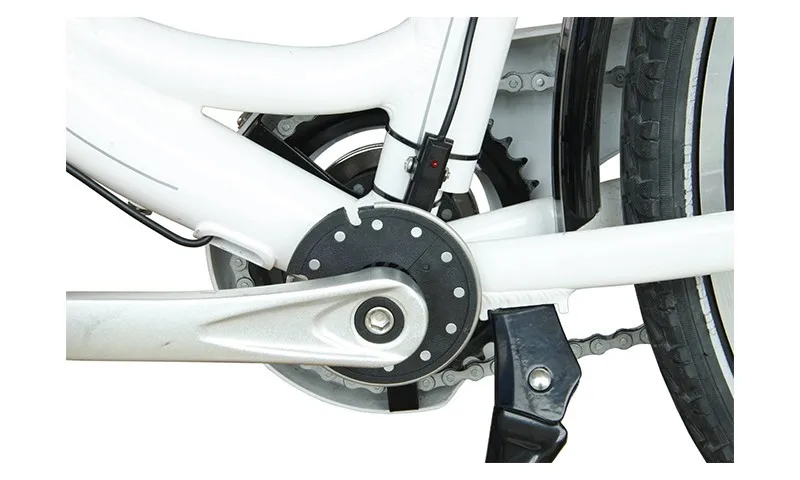

Installation of KT-D12L power-assistant sensor doesn't need remove the crank,
and the sensor can be installed directly on the electric bicycle axle.
Fixing the sensor with a cable tie:

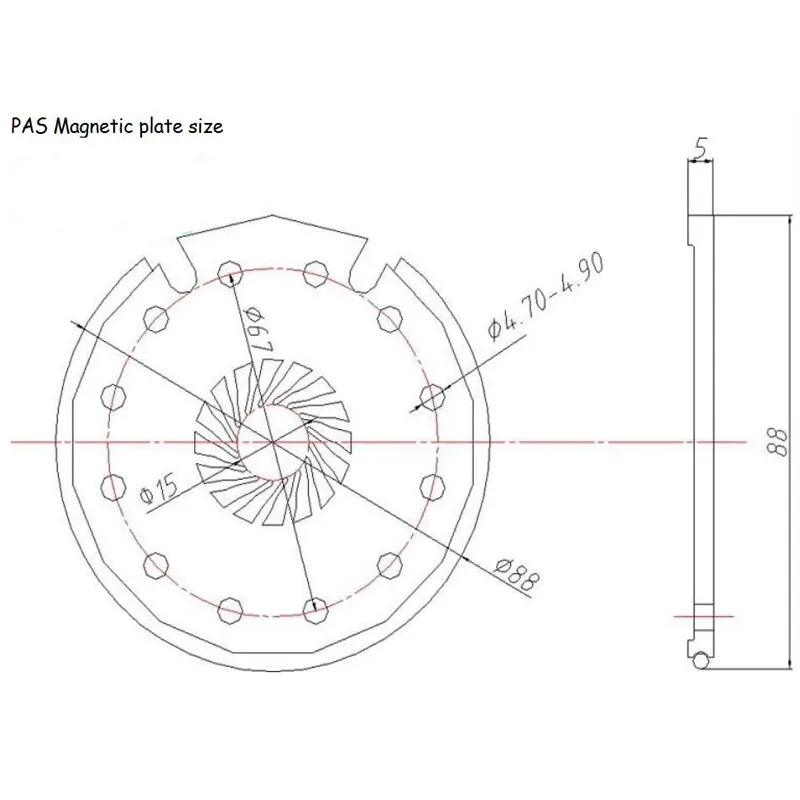

Installation of magnetic steel plate dimension:

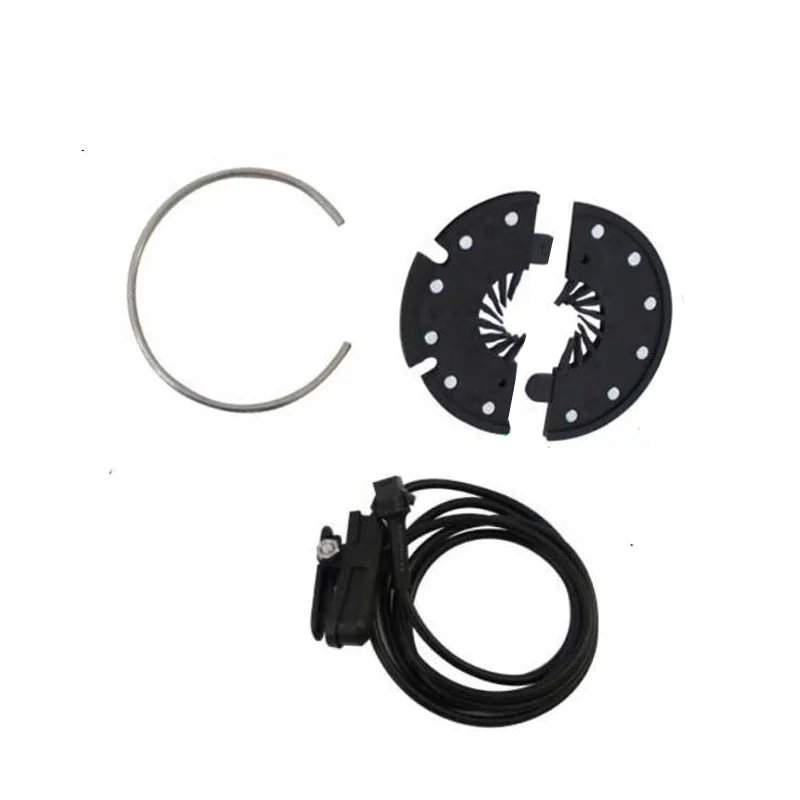

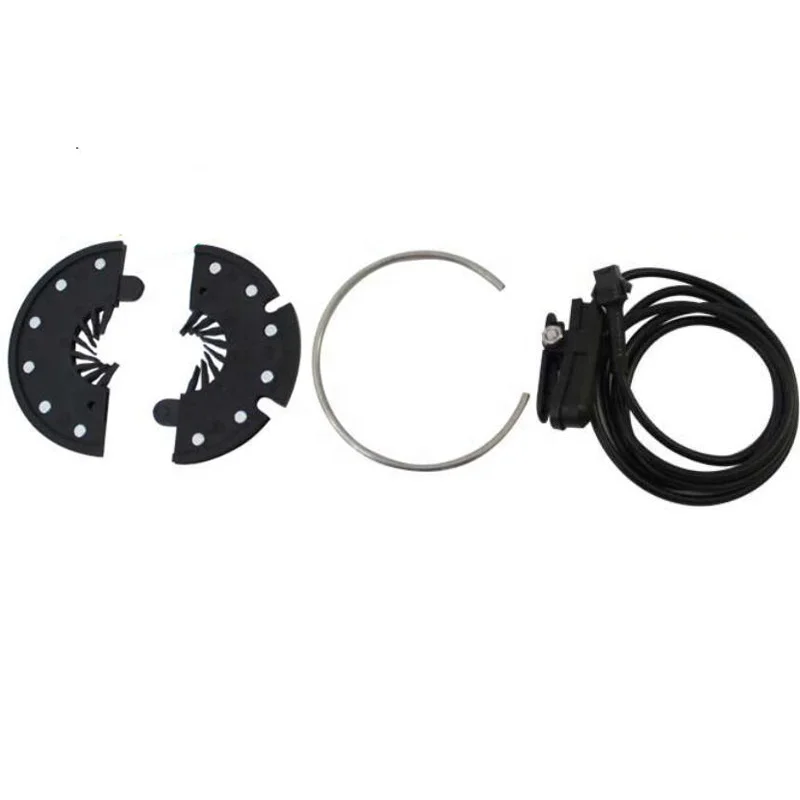

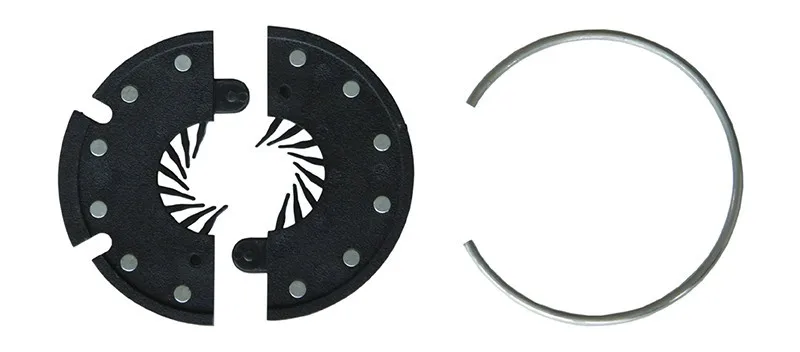

Magnet plate assembly should plug the two pieces of magnetic steel plate
according to the following diagram, which is then fixed by using a circlip.

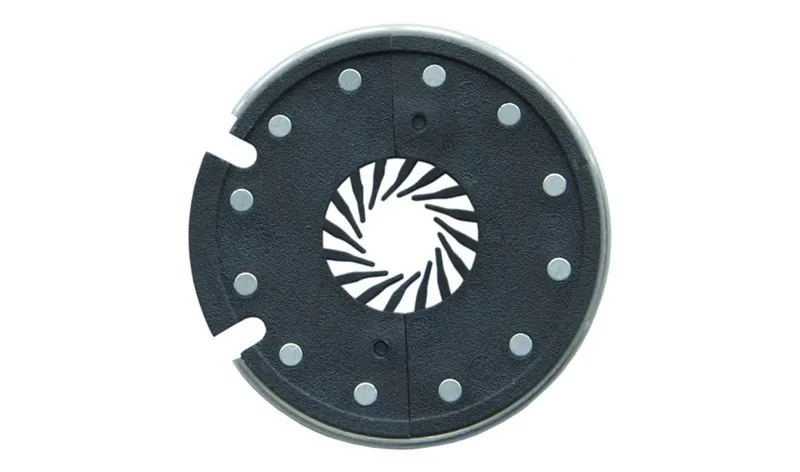

The assembled magnetic steel plate is as shown in the diagram.
