ASK 4K*2K HDMI Splitter 1x4 HDMI Splitter 1 in 4 out Support Full HD 3D Metal House 3840*2160P
- Category: >>>
- Supplier: Ask Technology Co. Ltd.
Share on (62053690324):
Product Overview
Description
ASK 4K*2K HDMI Splitter 1x4 HDMI Splitter 1 in 4 out Support Full HD 3D Metal House W/Power adapter
Introduction:
The 1x4 HDMI Splitter that supports Full HD 3D&4K*2K uses a single HDMI source,accessing to multiple HDMI sinks. The Splitter allows one HDMI devices to be split easily to
eight HDMI compatible monitors or projectors. The Splitter can also be placed at the end of a
long HDMI cable to regenerate the HDMI signal.
Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
Detailed Description
HDMI Splitter 1x8
Model No:SP14008M
ASK HDMI Splitter
>>Features
8 Po
l One HDMI input signal split to four HDMI sink devices l Support Full HD, Full 3D l Support 4Kx2K resolution l Support CEC l Support deep color 30bit, 36bit, 48bit l Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC l Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3 /DSD/HD(HBR) l Support signal retiming l Support input up to 15metres AWG26 HDMI standard cable length, output up to 25metres AWG26 cable length l No loss of quality l Installs in minutes l Need DC5V/2A power supply |
rt 4K*2K HDMI Splitter 1x8 Support Full HD 3D Metal House W/Power adapter
>>Operating and Connection

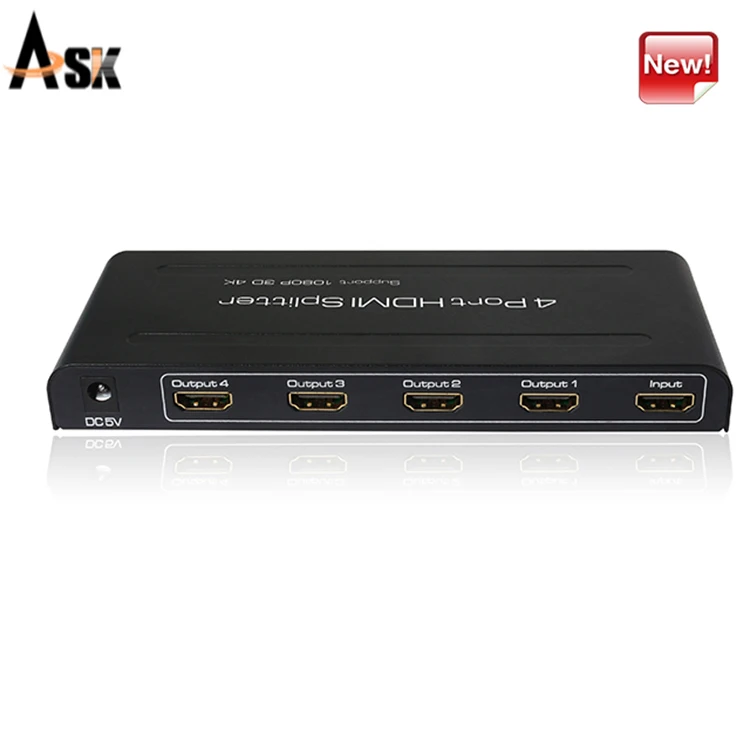

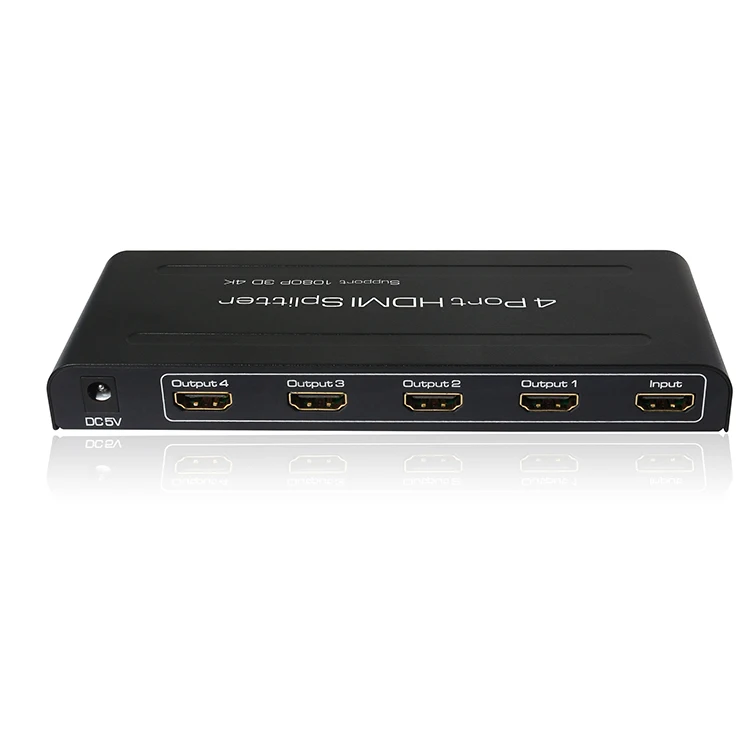

Connect one cable from HDMI source devices into HDMI Splitter input. Connect one cable from each display (monitor or projector) into the HDMI Splitter outputs. Connect 5V power supply to the HDMI 1x4 Splitter. |
8 Port 4K*2K HDMI Splitter 1x8 Support Full HD 3D Metal House W/Power adapter
>>Specifications
HDMI resolution …………………………....24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i Support video color format …………………...……..….……..24bit/deep color 30bit,36bit, 48bit Support audio format…..….DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD HD(HBR) Max bandwidth…………………………………………………….………………………….340MHz Max baud rate………………….………………….………………………………………..10.2Gbps Input/Output TMDS signal ………….………………………..………... …..0.5~1.5Volts p-p(TTL) Input/Output DDC signal ………………………………………..……...……… 5Volts p-p (TTL) Input cable distance..…... …………………….…………………...………….≤15m HDMI AWG26 Output cable distance………………………….……….…...≤25m AWG26 HDMI standard cable Max working current……………………………..……………………………………….....1200mA Power adapter format..Input: …………….....AC (50HZ, 60HZ) 100V-240V; Output: DC5V/2A Operating Temperature range……..………….……………………………….…… (-15 to +55℃) Operating Humidity range……………………….….…………..5 to 90%RH (No Condensation) Dimension (L x W x H) …………………………….…………………………..180X68X20(mm) Weight…..……………………………………………………..…….…………………..………320g |
Home Theatre System ASK HDSW0017M1 4K hdmi 3x1 switch with audio extractor
>> Products Picture
FAQ
Q1.What is your MOQ?
A: Our MOQ is not the same based on different items. Small orders are also welcome, but the unit price is also difference from wholesale price.
Q2.What package do your use for the product?
A:Usually we have professional neutral package for the products. Customized package are also available based on certain MOQ.
Q3.What is your main market?
A: Asia Australasia Central/South America Eastern Europe Mid East/Africa North America Western Europe
