RFS DT20F split DC powered 12V/24V air conditioner for truck cabs 3000W

Product Overview

Description

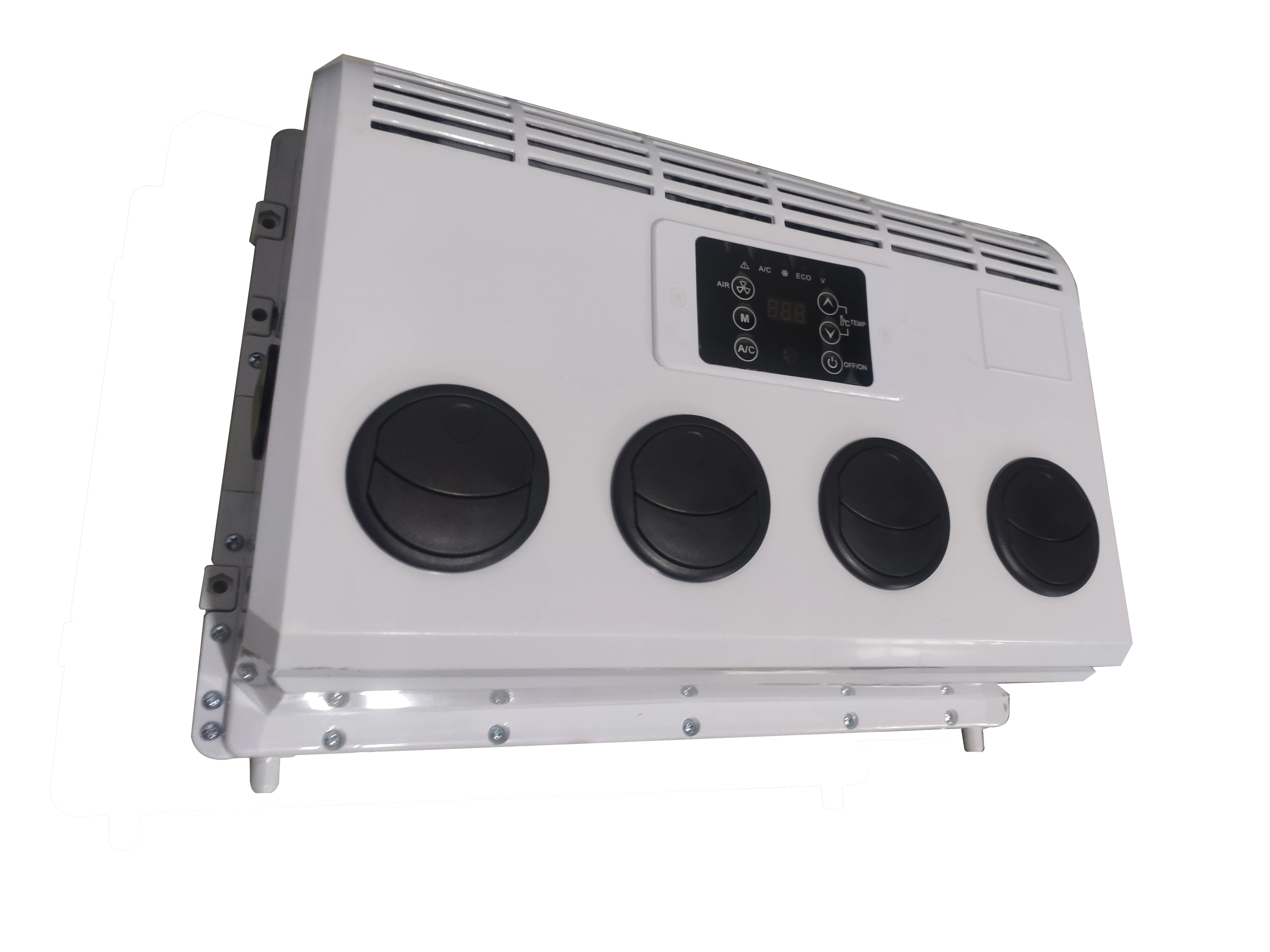

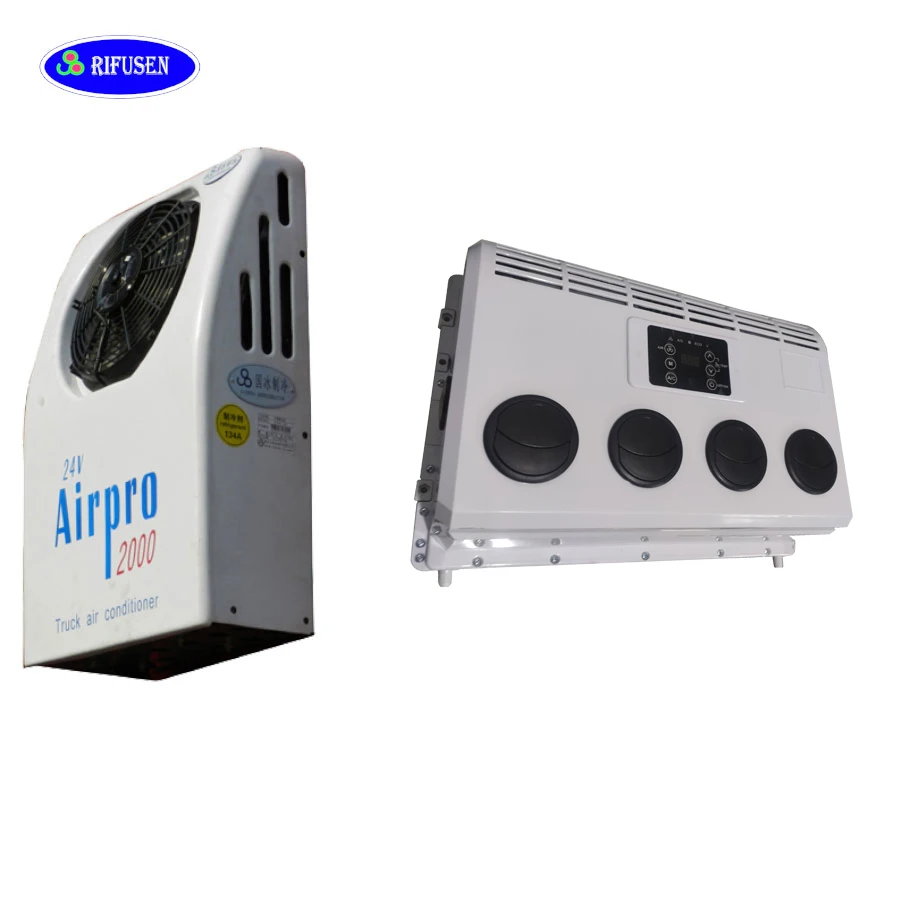

DT20F split DC powered 12V/24V air conditioner for truck cabs

DT20F Electric Air Conditioner for Motorhome

DT20F Battery Driven Air Conditioner for trucks



Product Description:

DT20F Split DC powered Air Conditioner is suitable for truck cabins, construction machinery and electric vehicles. It is in split type and it is driven by battery.



Salient Features:

1)      Easy to fit

2)      Noise free operation

3)      Low maintenance

4)      Fast cooling

5)      Back and ceiling mounted condenser



Technical Data:

Model		DT20F
Cooling Capacity		3000W
Installing type		Split & Back mounted condenser
Driven mode		Battery driven unit
Compressor Voltage		DC12V/DC24V/DC48/DC60/DC72,etc
Total current rating		≤80A(DC12V);  ≤40A(DC24V)
Condenser	Structure	Copper pipe and aluminum foil fin
	Fan Quantity	1
	Air Flow Volume	1700 m3/h
Condenser fan		Axial flow
Evaporator	Structure	Copper pipe and aluminum foil fin
	Blower Quantity	1
	Air Flow Volume	650 m3/h
Evaporator blower		Double axle and centrifugal flow
Compressor	Model	YM18
	Displacement	18 cc/r
	Type	Totally-enclosed, DC Powered and direct connection
Refrigerant		R134a
Dimension (mm)	Condenser	693*488*187;  28.00 KGS
	Evaporator	626*497*143;  6.00 KGS
Optional parts & function		Wireless controller & Heating function
Applicable vehicle type		All truck cabins, construction machines and electric vehicles



Corporate Profile

        Xinxiang Rifusen Industrial & Trade Co., Ltd. (also known as Xinxiang Guobing Refrigeration Co., Ltd.) is a leading manufacturer and supplier of Bus Air Conditioner and Truck Refrigeration Units, based in Xinxiang, China. Since 2005, we have been offering light duty bus air conditioners, heavy duty bus air conditioners as well as truck refrigeration units, made using the high-grade material to ensure uniform cooling and low maintenance. These Bus Air Conditioners and Truck Refrigeration Units we offer are available in various capacities based on your requirements, and they are easy to install and are very cost and energy efficient.

         Our air conditioning systems and refrigeration units are mainly used for trucks, mini-buses, medium buses, large buses, construction machinery, agricultural machinery and engineering vehicles.

        We are ISO9001:2008 certified.

         Please visit our website: www.xxgbzl.com

After-sale service

1.       We provide guide on how to test and how to install A/C or Refrigeration Units

2.       We provide 36-month warranty

3.       After the warranty period, if parts or components are damaged or wrong, please contact us for replacing new ones



FAQ

1.       Q: Are you a factory or trading company?

A: We are a factory. Xinxiang Rifusen Industrial & Trade Co., Ltd is formerly known as Xinxiang Guobing Refrigeration Co., Ltd, and the factory has about 100 staffs.

2.       Q: Can we visit your factory?

A: We warmly welcome your visit. You could visit our workshops, check our production lines and test the parts and components of A/C or Refrigeration Units before mass production.

3.       Q: What is the lead time?

A: If your order is less than 20 sets, the lead time shall be 7 working days. If your order is more than 20 sets, the lead time will be prolonged accordingly.

4.       Q: China is so far, how can we enjoy after-sale service?

A: Many engineers in Middle-East, Europe and America and other areas are our business partners, and we authorize them to provide services at your site if necessary.

5.       Q: How do you pack your products to prevent damage in long transport?

A: Small-size products are packed in thick corrugated paper cartons, and foam fillers are inserted in the cartons to prevent damage. Large-size products are packed in wooden cartons or iron frames.
