1. Standard
The control cable can be produced according to the standard GB9330-1988, ISO9001-2005, and the factory can also manufacture the cables in accordance with other standards.

2. Scope of Application
The control cable are suitable for the wiring of electrical controlling equipments and instruments, monitoring and controlling return circuit, electrical protection and measurement in power distribution unit under the circumstance that the rated voltage is up to 600V AC.

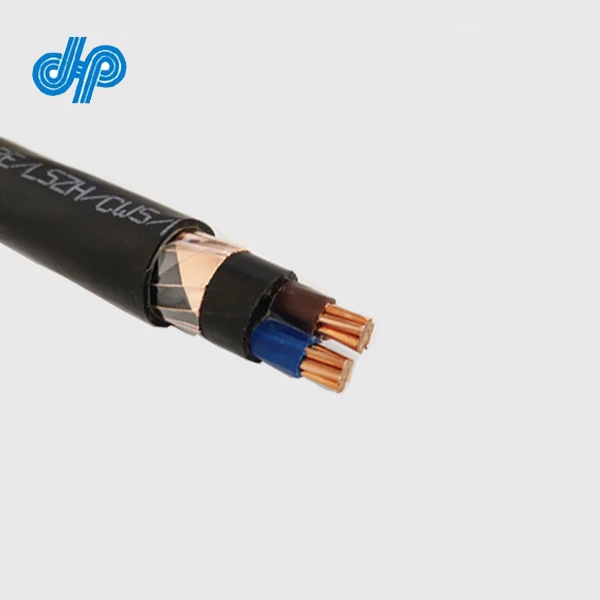

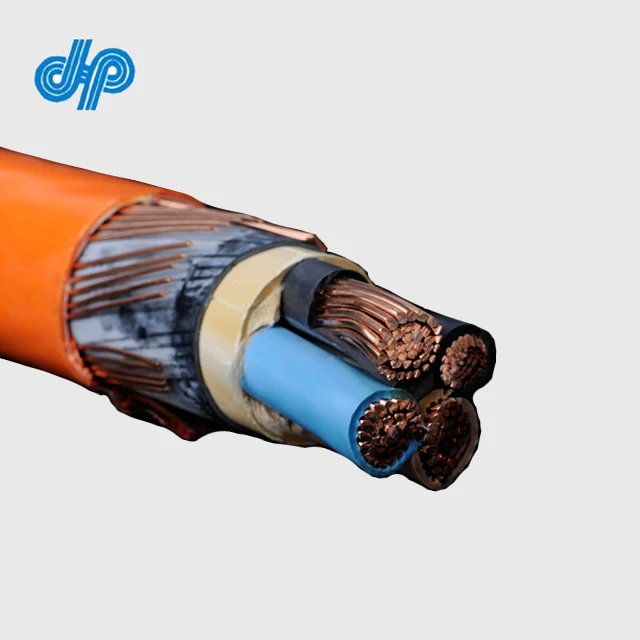

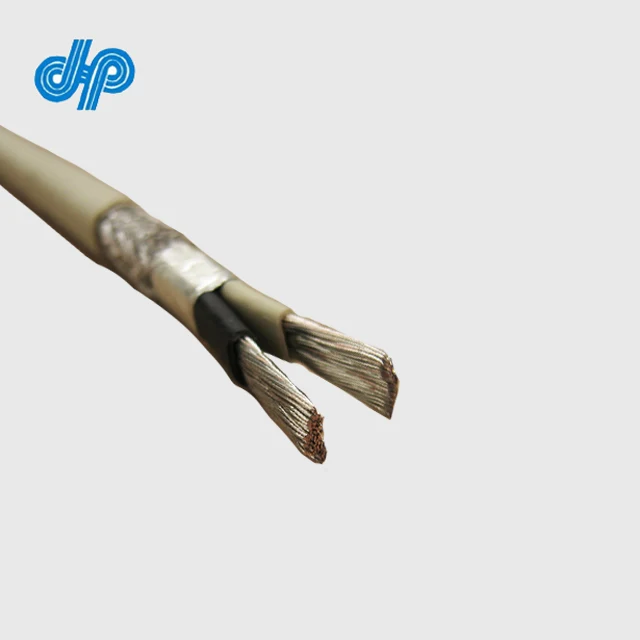

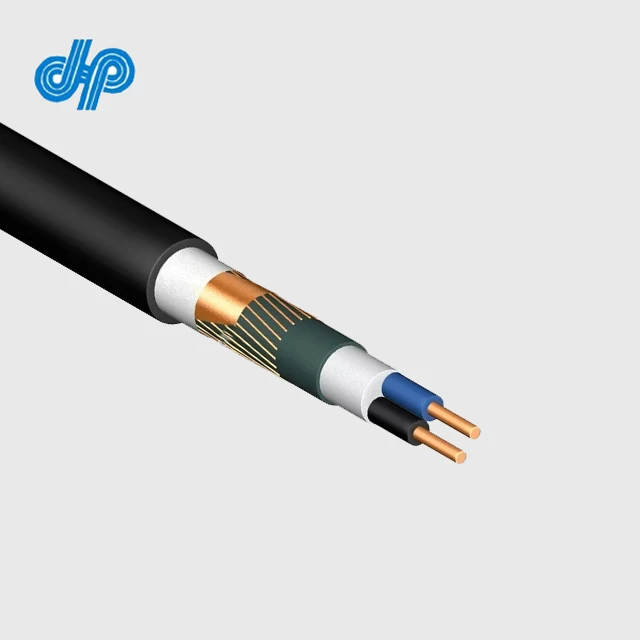

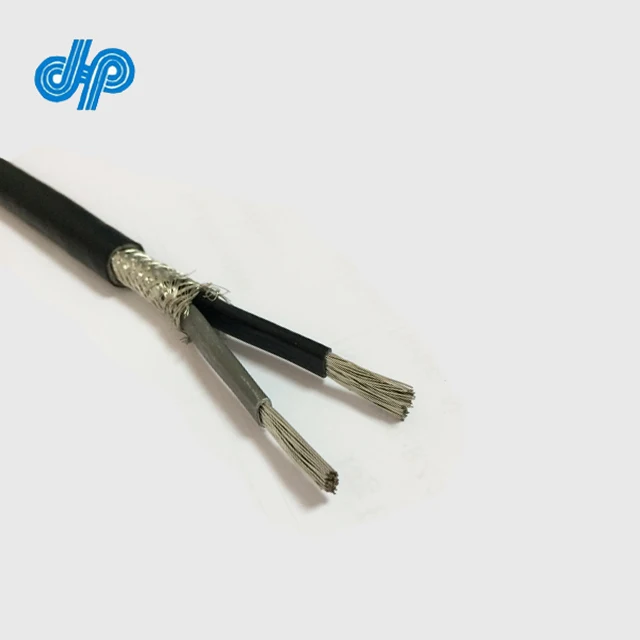

3. Construction

Conductor: Bare or tinned flexible copper conductor, acc. to IEC60228

Insulation: PVC, XLPE, LSZH

Shield: Bare or tinned copper braided shield, foil shield

Shield: Aluminum Foil

Drain Wire: Tinned copper wire

Jacket: PVC or LSZH or PE

Voltage: 300/500V, 450/750V(600V), 600/1000V

2 conductor with shield 16 AWG (1.31 mm2)

2 conductor with shield 14 AWG (2.08 mm2)

2 conductor with shield 12 AWG (3.31 mm2)

2 conductor with shield 10 AWG (5.26 mm2)

2 conductor with shield 8 AWG (8.37 mm2)

2 conductor with shield 6 AWG (13.3 mm2)

2 conductor with shield 4 AWG (21.1 mm2)

2X2.5mm2 2x4mm2 2x6mm2 2x10m2 2x16mm2 2x25mm2

2x1.31mm2 2x2.08mm2 2x3.31mm2 2x5.26mm2 2x8.37mm2 2x13.3mm2 2x21.1mm2

2x16AWG 2X14AWG 2X12AWG 2X10AWG 2X8AWG 2X6AWG 2X4AWG 2x2AWG

2x2.5+2.5mm2 2x4+2.5mm2 2x6+2.5mm2 2x10+2.5m2 2x16+2.5mm2 2x25+2.5mm2

2x2.5/2.5mm2 2x4/2.5mm2 2x6/2.5mm2 2x10/2.5m2 2x16/2.5mm2 2x25/2.5mm2

4. Service Conditions
(1)The long-time working temperature of conductor of PVC insulated control cable is 70°C
The long-time working temperature of conductor of XLPE/LSZH insulated control cable is 90°C
(2) The temperature for laying the cables can not be lower than 0°C.

(3) Permissible bending radius(r):

Unarmoured cable: 12D≥R≥ 6D; (D: Outer diameter of the cable);

Armoured or copper-tape screened cable: R≥ 12D;

Shielded flexible cable: R≥ 6D
