Outdoor full color football led screen stadium display panel digital advertising pantalla P4
- Category: >>>
- Supplier: Shenzhen APOLLOMI Technology Company Limited
Share on (62053747909):
Product Overview
Description
Outdoor p4 full color hd led football led screen led stadium display panel
Our quality department maintains a strict quality management system ,which rigorously conforms to ISO9001 quality management system requirements.Our company has formed a considerably scale industry chain and push the company to be an industrialization ,standardization,procedure,complete system and large-scale enterprise.Our company is verifed by CCC,CE,ROHS,FCC,ISO9001:2008,ISO14001:2004,HI-TECH and also awarded the membership of Shenzhen LEDassociation.
About the outdoor led stadium screen
Product discripution of the led sports screen display
Easy to maintain:

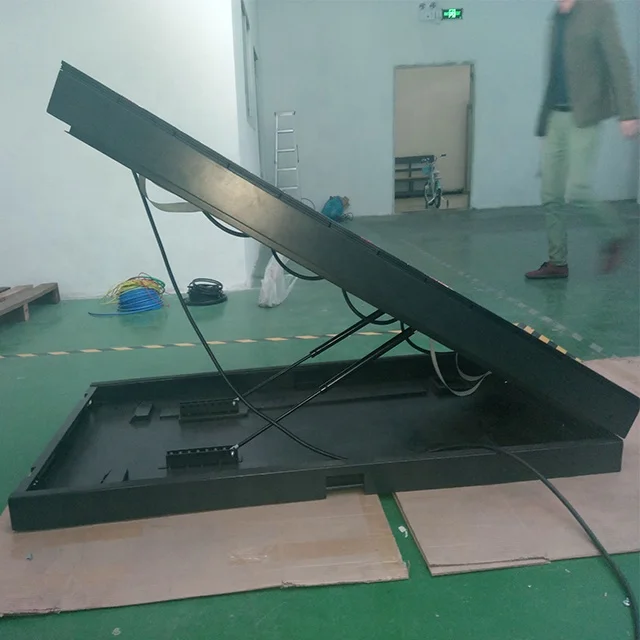

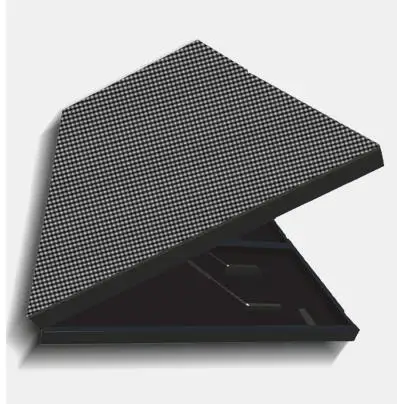

Front open cabinet, easy to install and maintain, just change the bad module at the front screen, magnet easy to pick down, reducing the maintain cost |  |
 | Saving space:
Front service cabinet makes it ideal to use at any place, it can be directly mounted in the wall without help of sophisticated tools and perfectly integrated with the surrounding building environment |

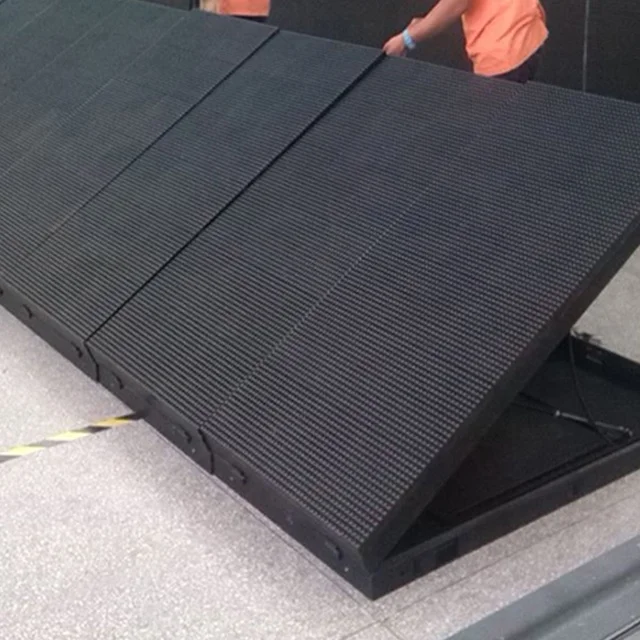

Helpath stand:
Supporting frame can be adjusted the angle up and down, realize the cabinet spelling in a big screen, easy to assemble and disassemble. |  |

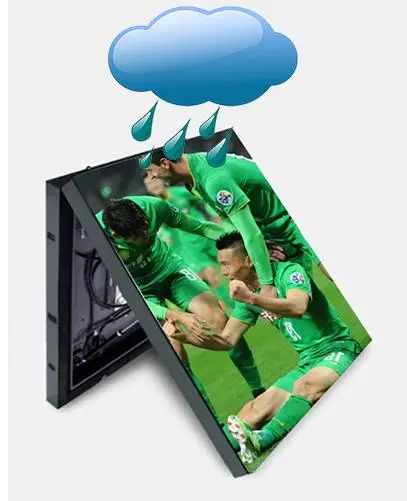

 | IP-65 weather rating:
The special waterproof of led screen protects it from water and dust when it installed in outdoor areas. High IP rating IP65 ensures great quality outputs in every condition |
The led football screen parameter

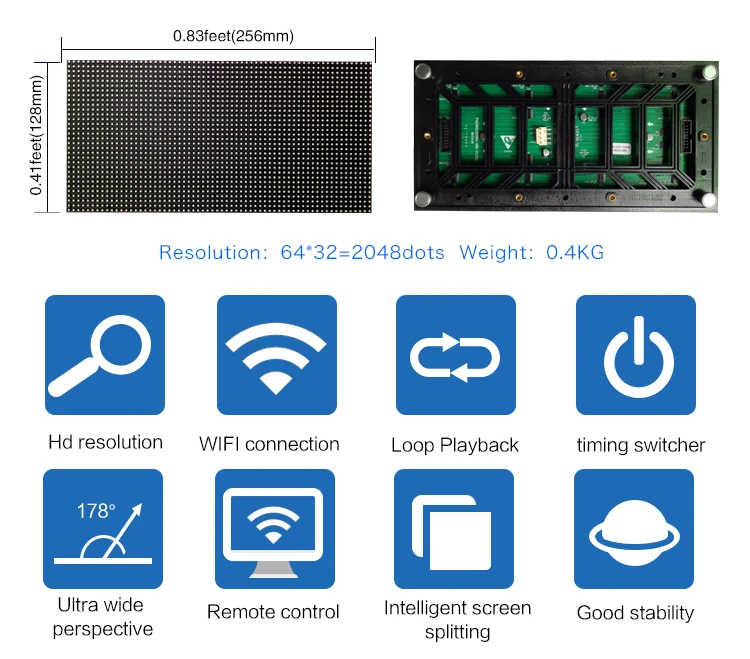

Unit Module | Item: | Parameter |
Model: | PH4mm outdoor LED modules | |
Pixel Pitch: | 4mm | |
Pixel configuration: | 3in1 (1R1G1B) | |
Module Size: | 256*128mm | |
Module Resolution: | 64(W) * 32dots(H) | |
Module Thickness: | 13MM | |
Module Weight: | 0.4KG | |
Package LED mode: | SMD1921 | |

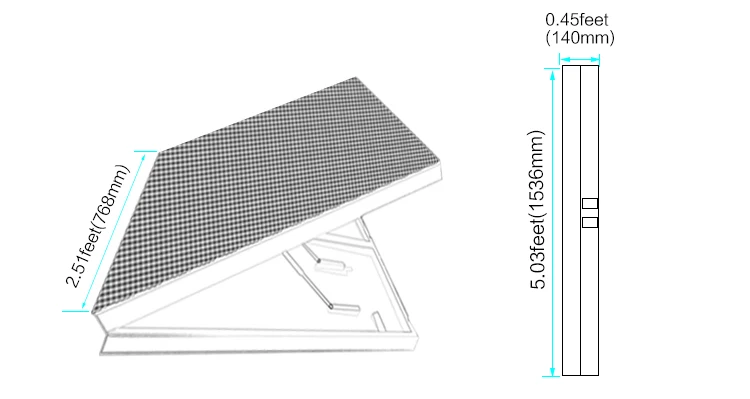

Unit Cabinet | Cabinet Size: | (W)768mm* (H)1536mm *(D)140MM (Customize) |
Cabinet Composing: | 4pcs | |
Cabinet Resolution: | 192* 384dots | |
Cabinet Material: | Front Opening Water-proofed Steel | |
Screen Parameters | Designed Screen Size | (W)3.072M * (H)1.536M = 4.718SQM |
Screen Resolution | (W)768 * (H)384 = 294912pixels | |
Max. Brightness | 6500cd/sqm | |
Ingress Protection | Front/Rear: IP65 | |
Best Viewing Distance | 5m-50m | |
Driving Method | 1/8 scan, constant current | |
Viewing Angle | Horizontal 120° ±10º; Vertical 120°±10º | |
Brightness Control | R,G ,B 256 Grade/Each | |
Colors Number | 4096 grey level, display 16.7M colors | |
Refresh Rate | 1920Hz | |
Frame Frequency | 60Hz | |
Input Voltage | AC220V±15%,50Hz±2Hz | |
Defects Rate | ≤0.0001 | |
Power Consumption | Max.: 1100W/sqm Average: 780W/sqm | |
MTBF | >10,000 hours | |
Life span | ≥100,000 hours( 50% brightness) | |
Humidity-operating | 10%~95% | |
Temperature | Storage:-40℃~ + 85℃ Operation:-25℃~ + 45℃ | |
Control system | Huidu HD-C30 Asynchronous | |
Power supply | Youyi 200W | |
Input signal | Video, VGA, DVI/HDMI | |

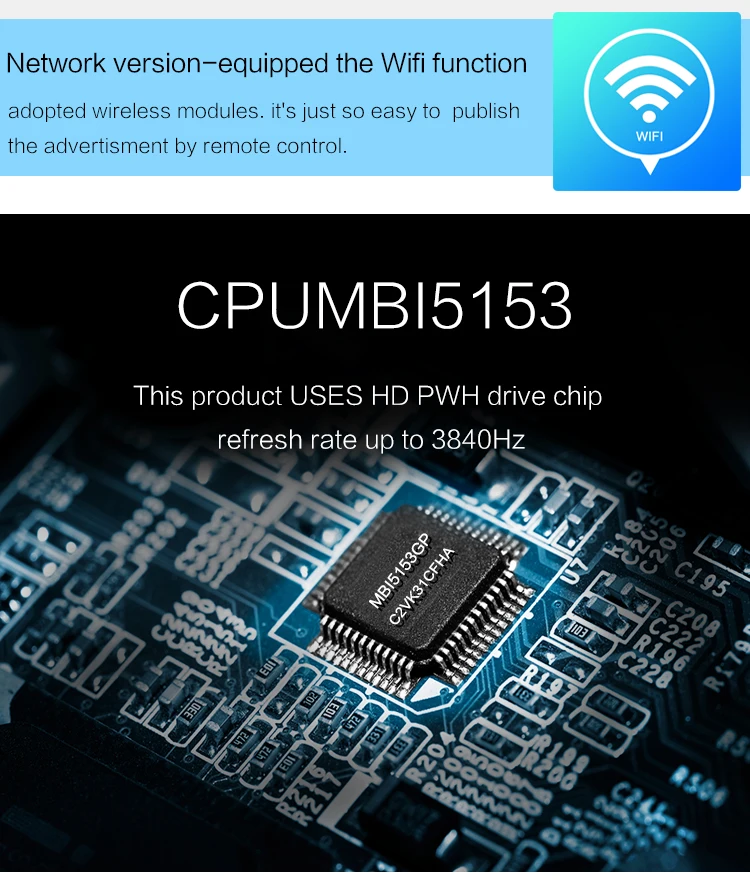

Driver IC | 5020 Driver | |
5020 Driver | Outdoor Fixed |

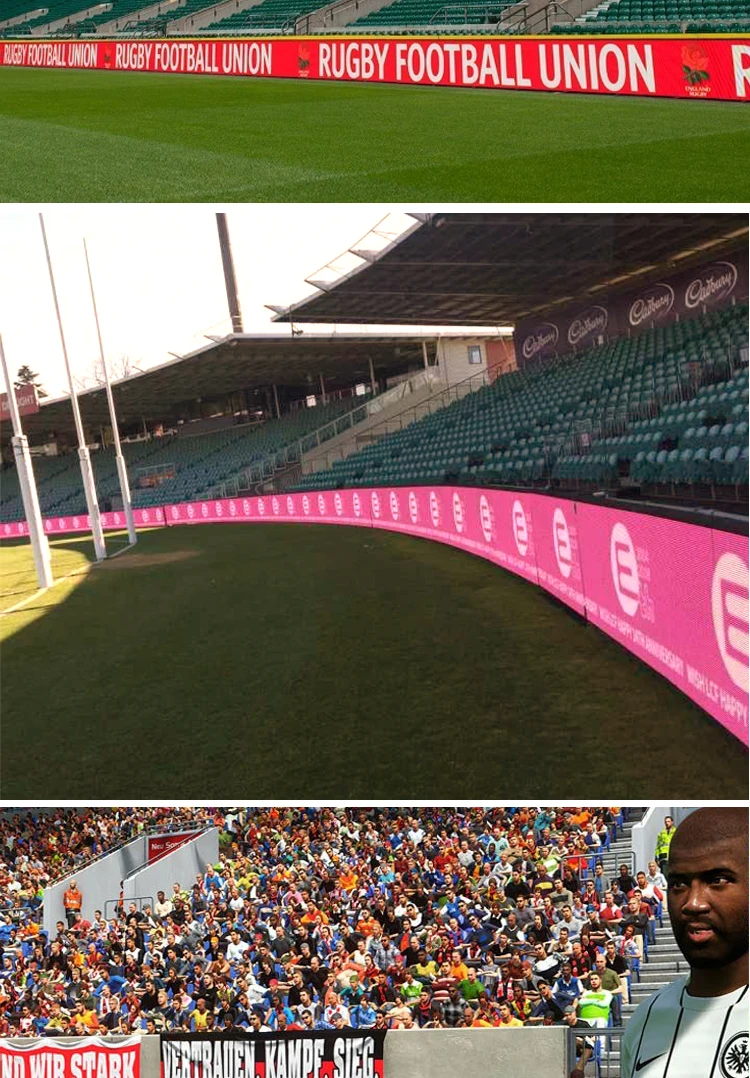

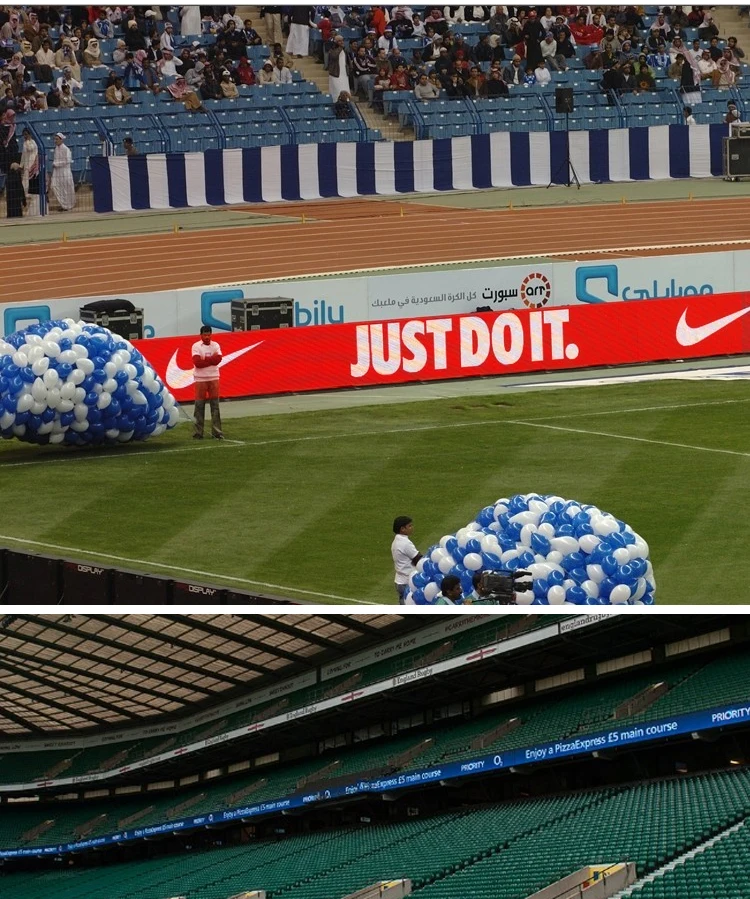

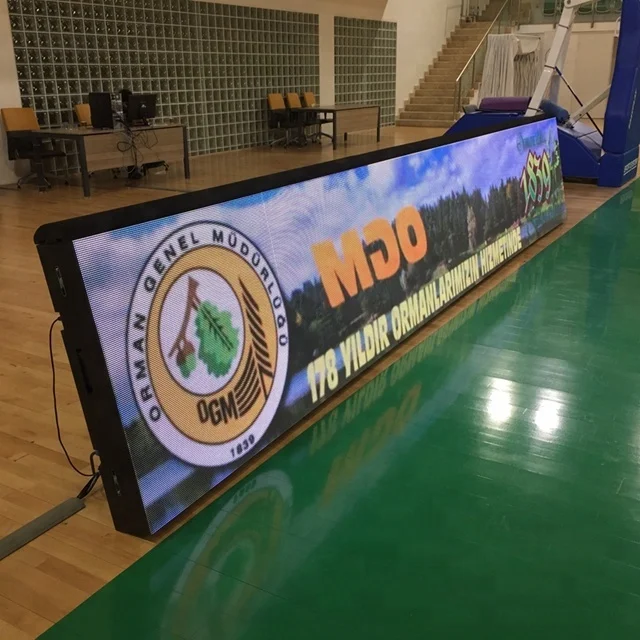

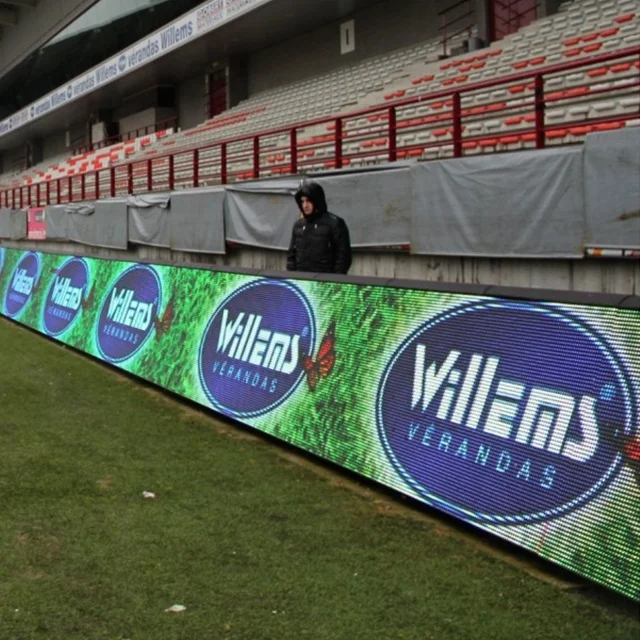

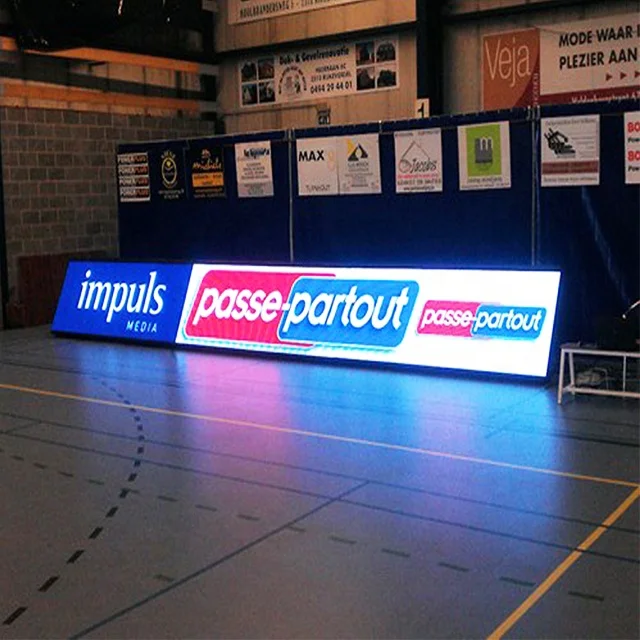

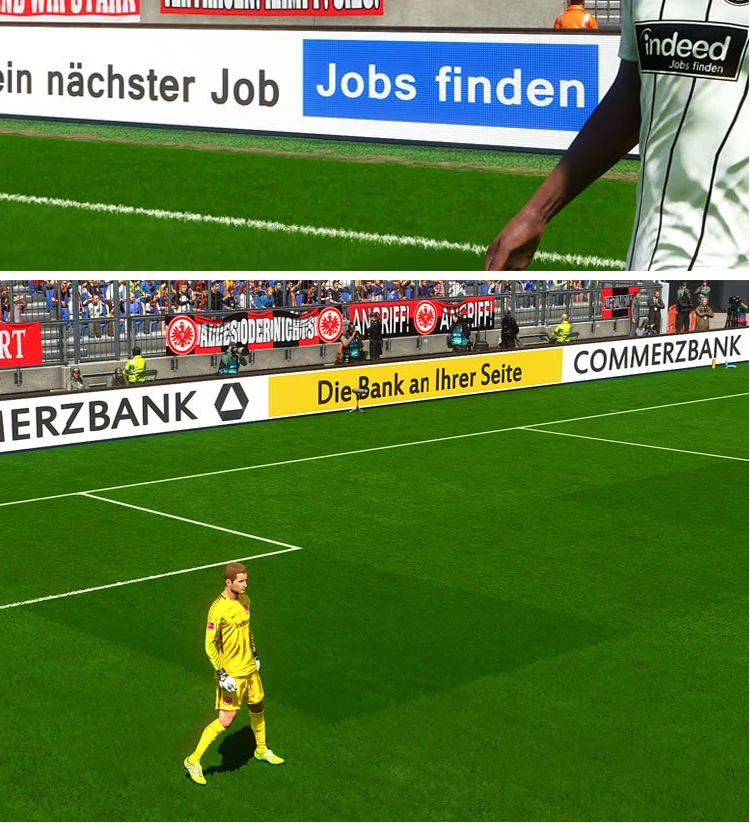

Some showing cases about staduim screen display
Want to know more led screens?Please click here---
About our company-Apollomi
Attentive Services
5 years warranty
Attentive service and professional after-sales service
Now led display variety, so many customer dazzing. Commercial squares have outdoor led display for advertising, however, the led display screen products are mixed, resulting in a number of security problems. Fire is the main problem.
Free training
The company provide free on-site training on equipment operation to the technical personnel of the buyer, ensuring that the personnel of the user can be skilled in the routine use of various equipment and software as well as the judgment and resolution of minor faults.
Quick response
Any quality problem occurred during the normal operation of the screen, after receiving your notification, our company engineer will give you the professional technicians to fixed it out in time.
Lifelong maintenance
Our company promises to provide customers with free telephone consultation, system upgrade and other services for life. Parts are damaged outside the warranty period, and only equipment cost is charged for the parts provided.
FAQ
Q1: Are you manufacturer or trading company?
A1: We are the real manufacturer which focus on LED display.
Q2. Is it OK to print my logo on led product?
A2: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q3: How to deal with the faulty?
A3: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, Under normal use and storage, we will be responsible for the equipments. If there is any failure in product quality, our company will maintain and change the components for free.
After Maintenance period, only charge the material costs fees free of manual work fees.
Q4. How to do the shipping?
A4:You can use our shipping agent who we have cooperate more than 4years
Or you can use your shipping agent.
Q5.what if i don't know how to installation the screen?
A5:Firstly; we would send some video to help you how to install the screen ,once you receive the screen.
Secondly; we can guide on line or Telephone guidance if customers have any questions about the installation and usage.
For large project, we provide your engineer a week free training, Or if you pay the related fees, we can send our engineers to conduct on-site guidance.
