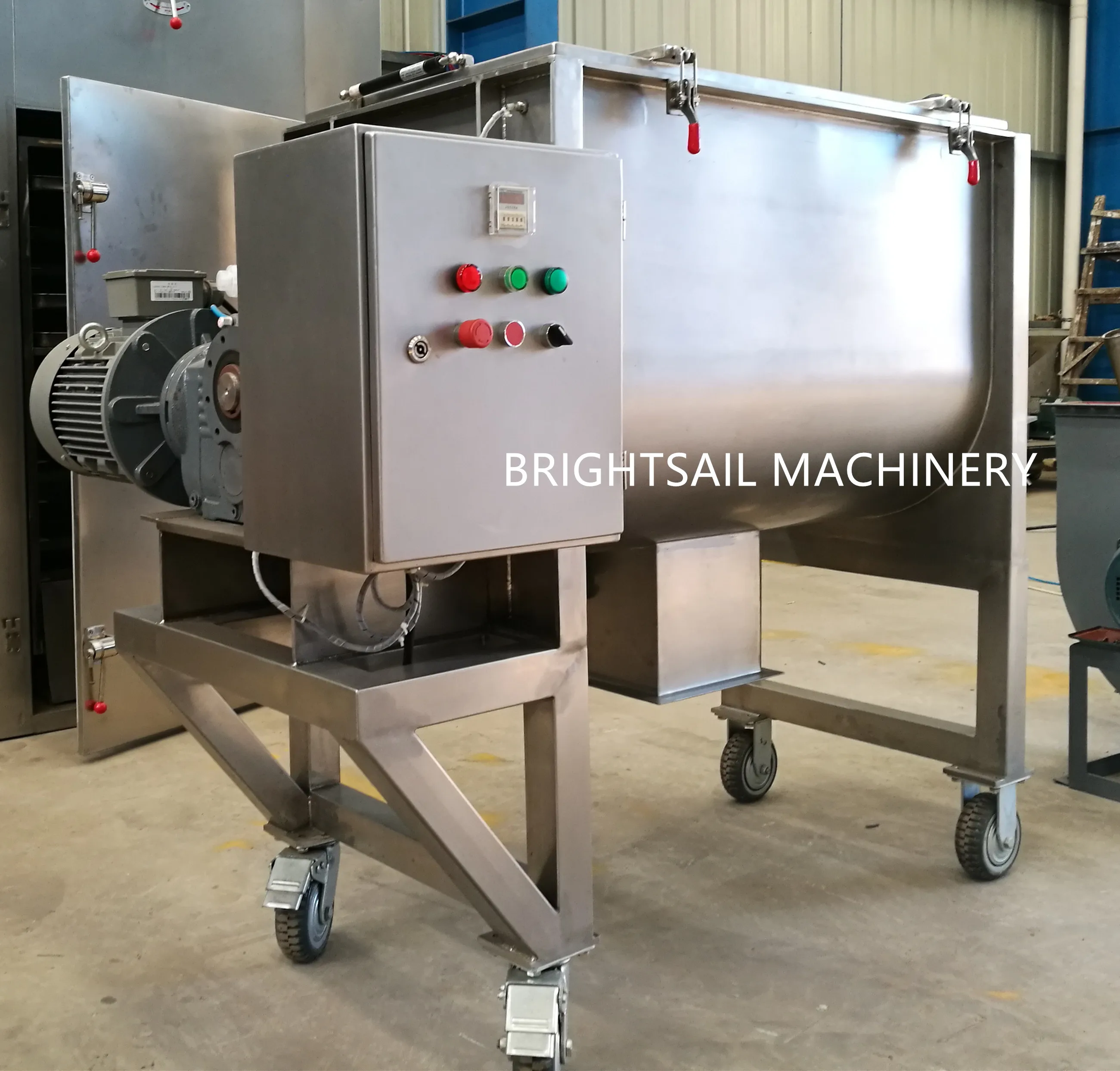

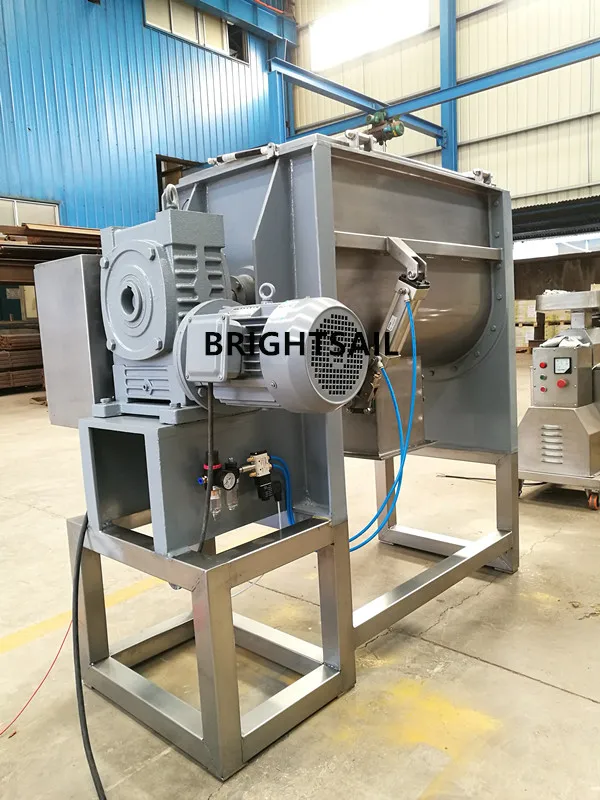

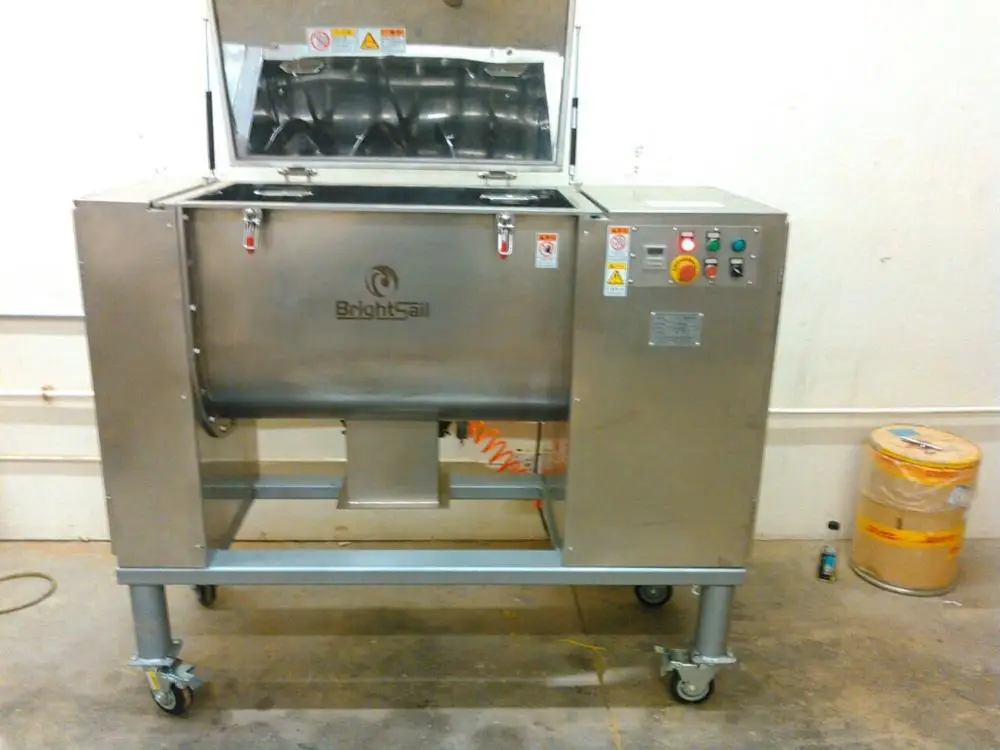

Machine for milk powder mixing powder blending machine ribbon blender
Product Description
BSR ribbon mixer is widely used in solid-solid(powder material) and solid-liquid mixing in the fields of food, chemical and pharmaceutical industry. For example, be used for detergent powder mixing, coffee powder mixing and spice powder mixing.

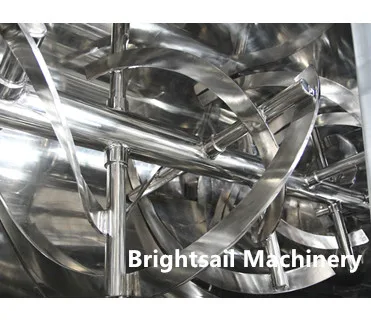

This type mixer consists of mixing barrel, spiral ribbon and driven parts. The spiral ribbon is made of two layers.
Technical Data
Model
Max work volume(L)
Speed(rpm)
Motor(kw)
Overall size(L*W*H,mm)
Weight(kg)
BSR-100
60
76
2.2
1080*758*615
330
BSR-300
180
66
4
1550*812*1015
780
BSR-500
300
66
5.5
1975*1059*1120
955
BSR-1000
600
41
11
2340*1380*1455
1400
BSR-2000
1200
33
18.5
2480*1651*1805
2500
BSR-3000
1800
33
22
2945*1896*1980
3300
BSR-4000
2400
29
22
3038*1946*2205
3600
BSR-5000
3000
29
30
3932*2010*2035
4620
BSR-6000
3600
26
37
3938*1882*2246
5300
BSR-8000
4800
26
45
3986*2160*2516
6800
BSR-10000
6000
19
55
4500*2270*2667
8900
BSR-12000
7200
19
55
4500*2466*2785
9520
BSR-15000
9000
17
75
5363*2470*3020
9950
BSR-20000
12000
17
75
5670*2650*3497
11140
Detailed Images

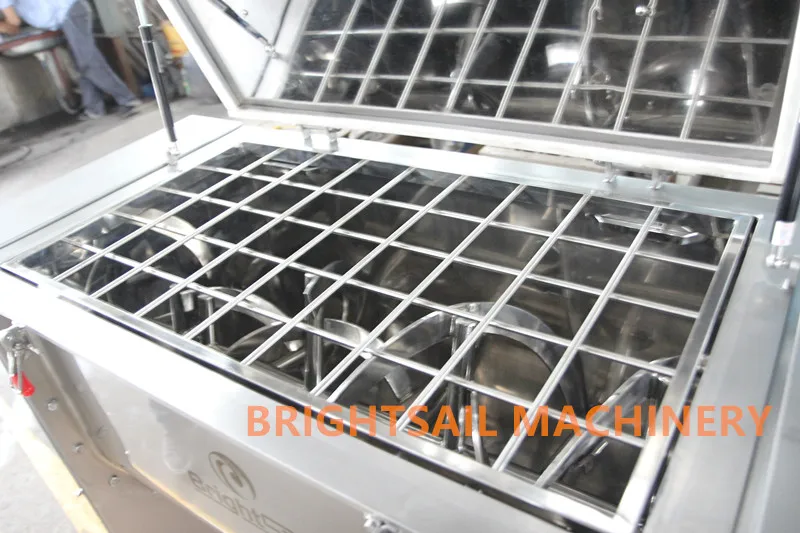

1) safty net can protect workers from danger 2) usually we use pneumatic valve to discharge on ribbon blender
Two types of sealing: The packing seal is a conventional seal on which the gas seal can be added to increase the sealability. The mechanical seal has better sealing performance than the packing seal, less leakage and long service life. It can be used for powder and liquid, and has a wider range of use and higher price. Its components are moving ring, static ring, cooling device, compression spring and so on (It depends on the specific equipment). Remark: The pictures are for reference only, depending on the specific equipment.
Certifications
Our mixer machine has been certified by European Conformity and International Organization for Standardization. So about machine quality, you do not have to feel worried.
Company Information
JIANGYIN BRIGHTSAIL MACHINERY CO.,LTD. belongs to Jiangyin Heng Sheng Steel Structure Co.Ltd, which was established in two 2002.
It's professional and engaged in research, development, production,sale and service of grinder machine,mixer,sifting machine,overall powder solution,welding service,welding machine, and metal processing,and chemical powder.
Since its foundation, Brightsail has always adhered with the principle of quality firstly and technology is life. Recently, the two companies own more than 50 employees, about 400m2 of office space, cover about 340m2 of manufacturing space. With customer centric idea as base,it takes evey detail seriouly in the process of production to assure high performance and quality of each part and equipment as well as the stable operation in more than 50 nations around the world.
In addition,we have abtained CE,ISO certificates. In 2018, our company obtained prize from Alibaba group as top-100 seller in east China region. Our products have been exported to such contrires and regions as USA,Canada, Germany, Australia,Europe,Africa,South Asia,middle Asia. We also welome OEM and ODM models. Our company name “Brightsail” is also our hope to all of our customers and parters around the world, we hope will grow together and set a sail to bright.
Our Services
1. Pre-sales service:
Inquiry and consulting support with 24 hours, Machine test service, Factory visit
2. After-sales service:
Instructing how to install and use the machine, One year warranty, video support
Packaging & Shipping
FAQ
Questions you want to know:
About machine for milk powder mixing powder blending machine ribbon blender:
1.What material do you need to mix?
2.What is the bulk density(g/cm³ or kg/m³) of it?
3.How many liters or kilos of material do you need to mix per batch?
4.What machine material do you want,all stainless steel 304 type or only contact part stainless steel 304,other carbon steel type?
