MPPT Solar Inverter 1.2kva 800W 1500W 2.4kva modified sine wave inverter
- Category: >>>
- Supplier: Shenzhen Sunray Power Co. Ltd.
Share on (62053917930):
Product Overview
Description
MPPT Solar Inverter 1.2kva 800W 1500W 2.4kva modified sine wave inverter
Production description:
1. Integrated simulated sine wave Inverter
2. Built-in MPPT solar charger controller
3. High efficiency,light weight,and compact design
4. Configurable AC/Solar Priority
5. Double power surge bearable for demanding load
Data sheet:
Model | Victor-XM-1200-12 | Victor-XM-2400-24 |
| Rated Power | 1200VA/800W | 2400VA/1500W |
| Input | ||
| Voltage | 230Vac | |
| Select voltage range | 170Vac~280Vac(for personal Computers) | |
| 90~280Vac( for home appliances) | ||
| Frequency Range | 50/60Hz auto sensing | |
| Output | ||
| AC Voltage Regulation(batt mode) | 230Vac+/- 5% | |
| Surge Power | 2400VA | 4800VA |
| Efficiency battery to Inv | 88% | |
| Transfer time | 10ms for personal computers;20ms for home appiances | |
| Waveform | Simulated sine wave | |
| Battery&AC Charger | ||
| Battery Voltage | 12Vdc | 24Vdc |
| Floating Charge Voltage | 13.5Vdc | 27Vdc |
| Overcharge Protection | 16Vdc | 32Vdc |
| Maximum Charging Current | 20A | |
| Solar Charger | ||
| Maximum PV Array Power | 500W | 1000W |
| MPPT Range@Operating Circuit Voltage | 15~80V | |
| Max PV array Open Circuit Volt | 102V | |
| Max Charging Current | 40A | |
| Maximum Efficiency | 98% | |
| Physical | ||
| Dimension,D*W*H(mm) | 282*221*73 | |
| Net Weight(KGS) | 3.2 | 3.6 |
| Operating Environment | ||
| Humidity | 5%~95 relative Humidity | |
| Operating Temperature | 0~55℃ | |
| Storage Temperature | -15~60℃ | |

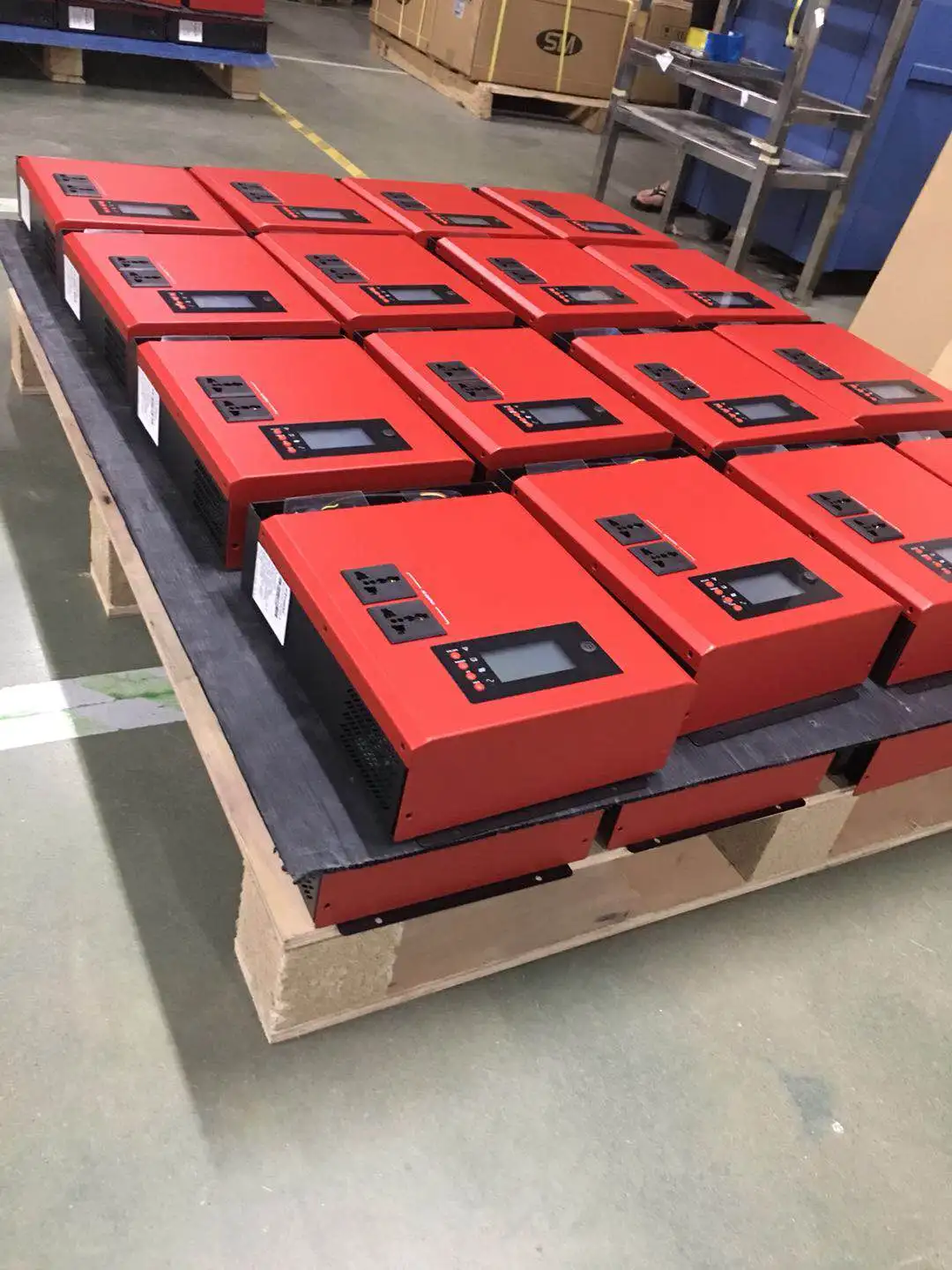

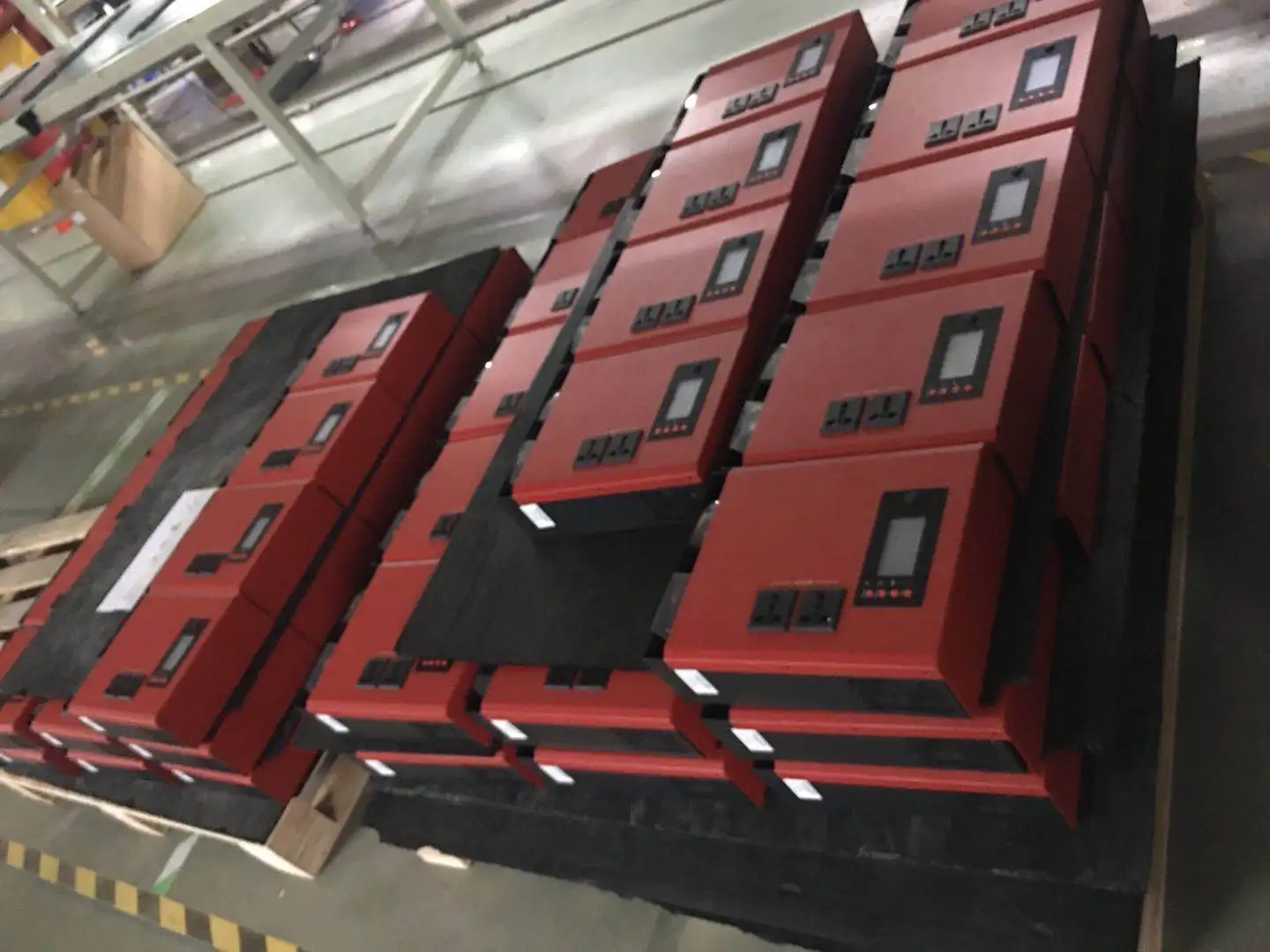

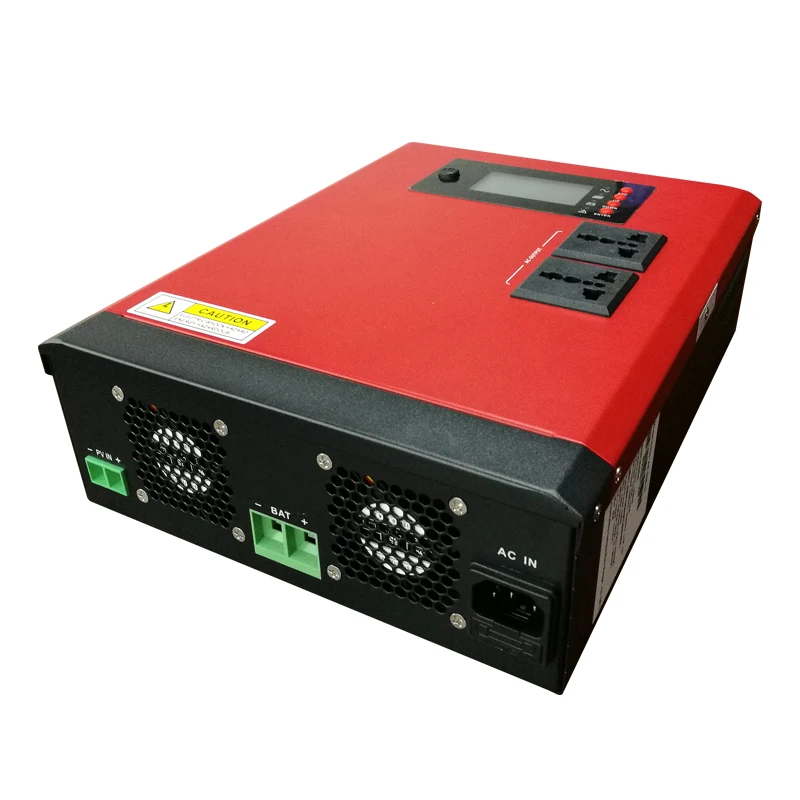

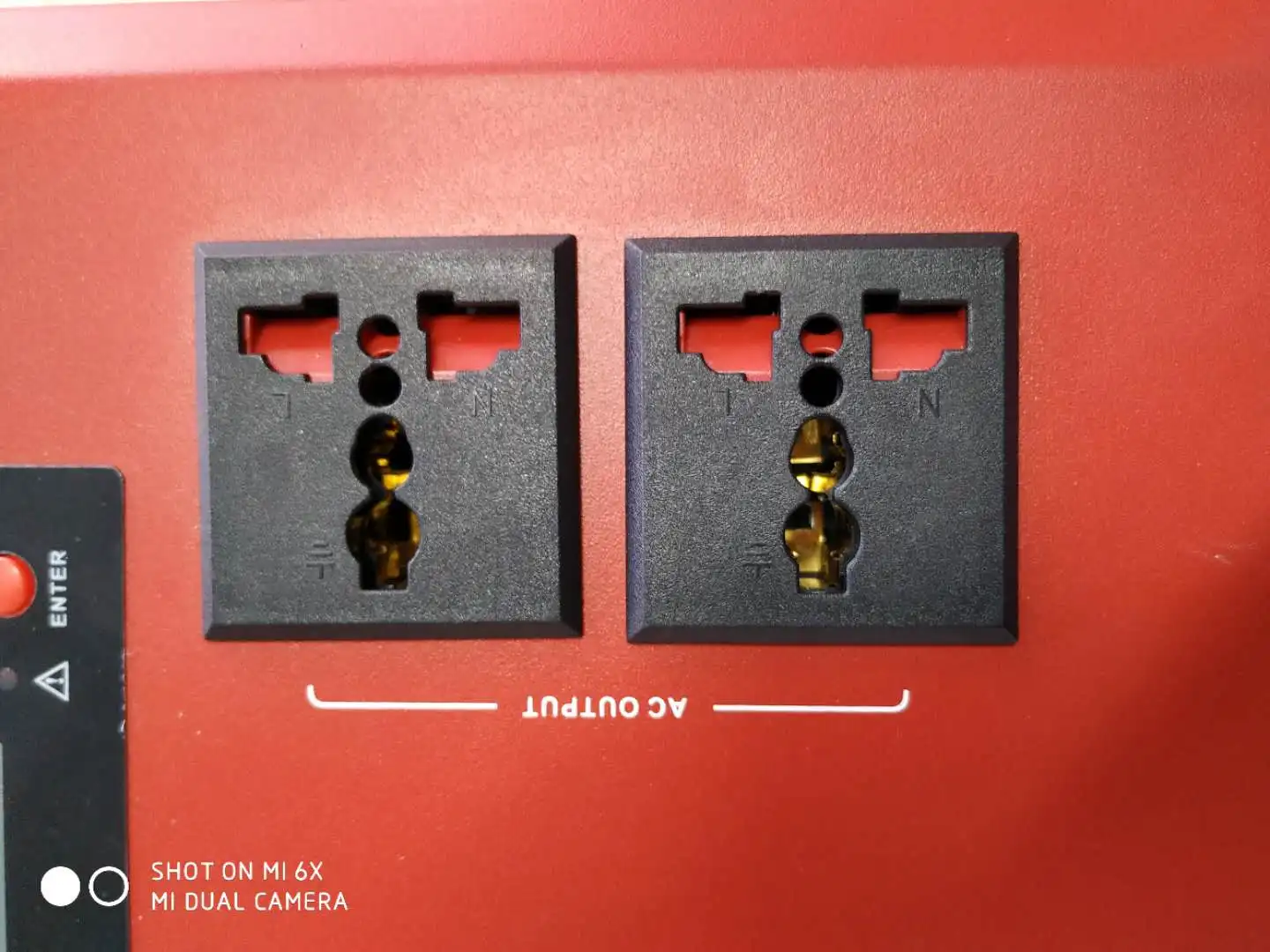

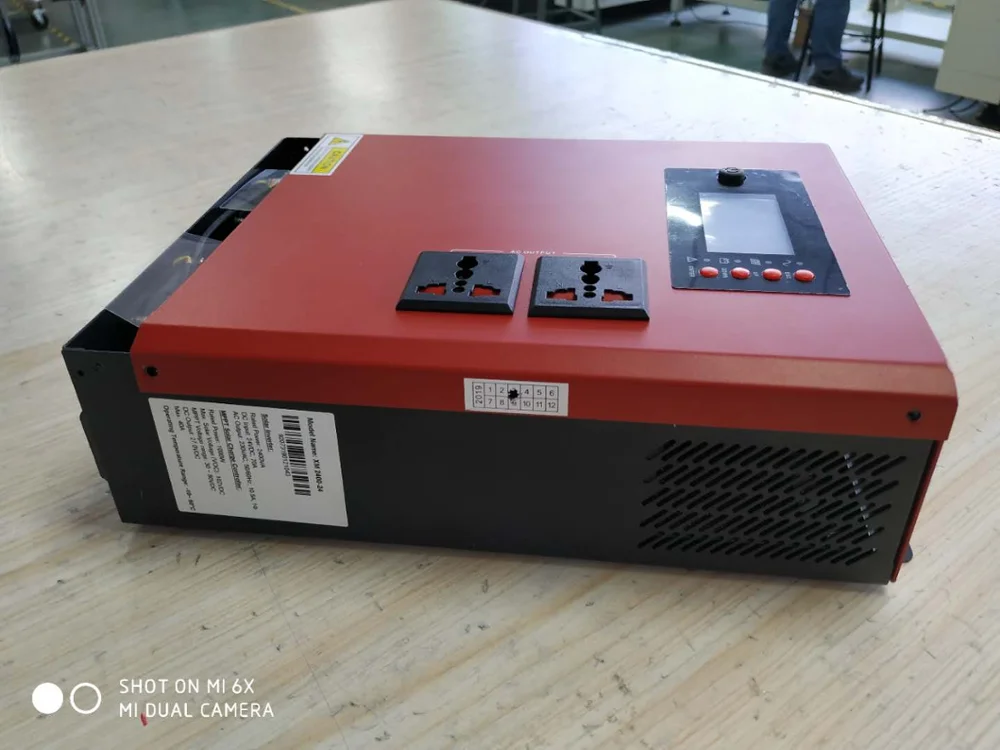

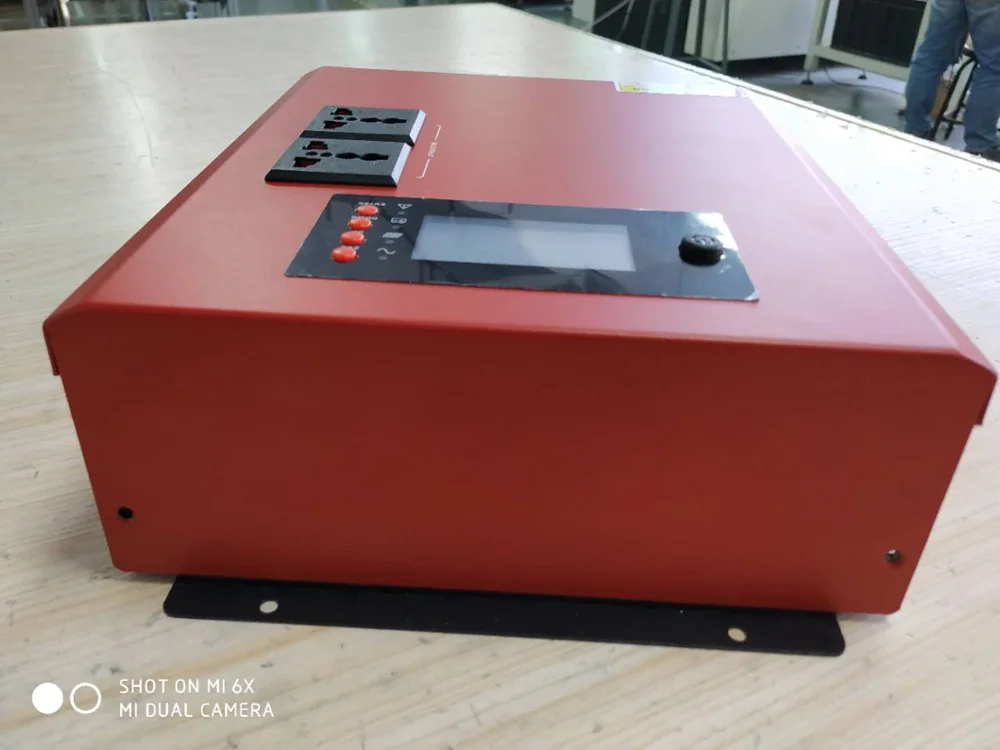

Image:

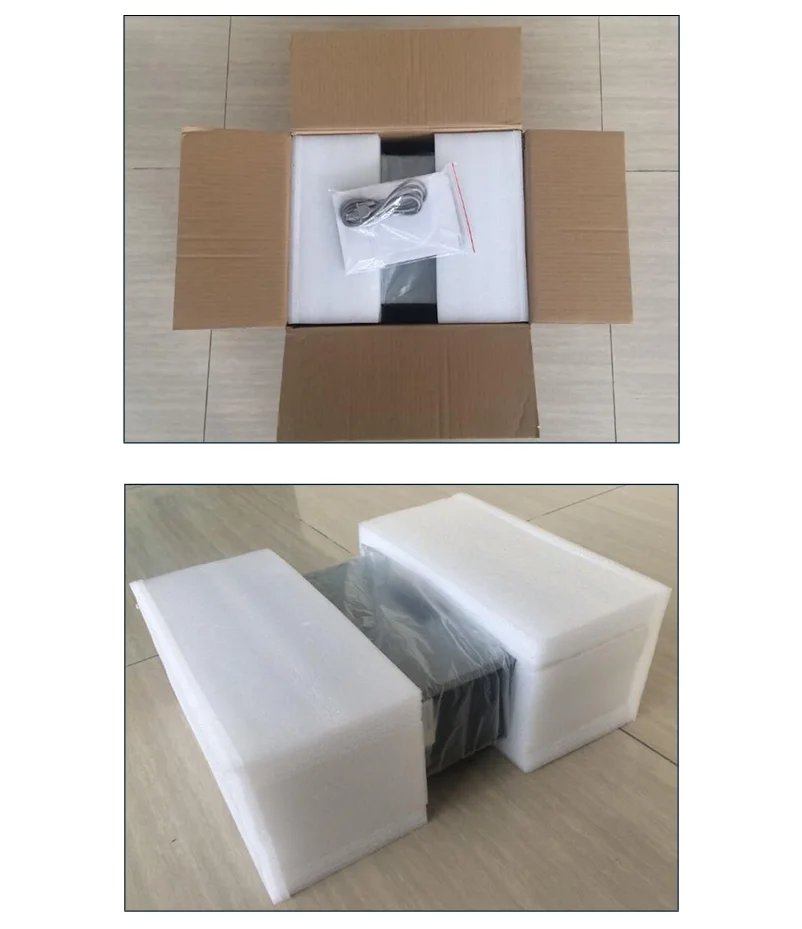

Packing:
