Manufacturer 1000 degree muffle furnace high temperature electrical resistance ceramic sintering box/muffle furnace
- Category: Lab Supplies >>>
- Supplier: Nanyang Dadi Electric Equipment Co. Ltd.
Share on (62054081071):
Product Overview
Description
Manufacturer 1000 degree muffle furnace high temperature electrical resistance ceramic sintering box/muffle furnace
1200 Degree Muffle furnace mainly used in chemical analysis, physical decomposition and synthesis, super hard materials (such as ceramic), Rare and precious metal smelting and purification, metal heat treatment of sintering process research and other scientific experiments. Universities and colleges, scientific research institutes, medical and health, petroleum chemical industry, mining enterprise, quality and technology supervision agencies and other units laboratory, laboratory are the use of such equipment.
- Gravimetric analysis;
- Sintering;
- Quantitative analysis;
- Heat treating;
- Glass preparation
Product Description

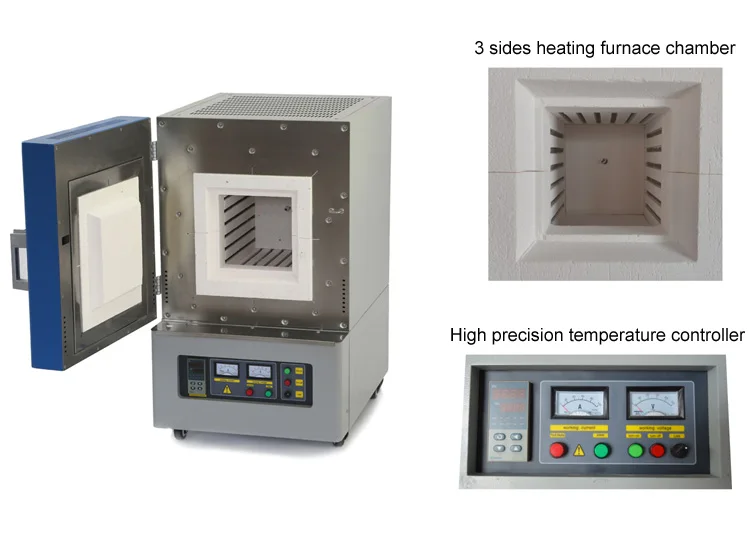

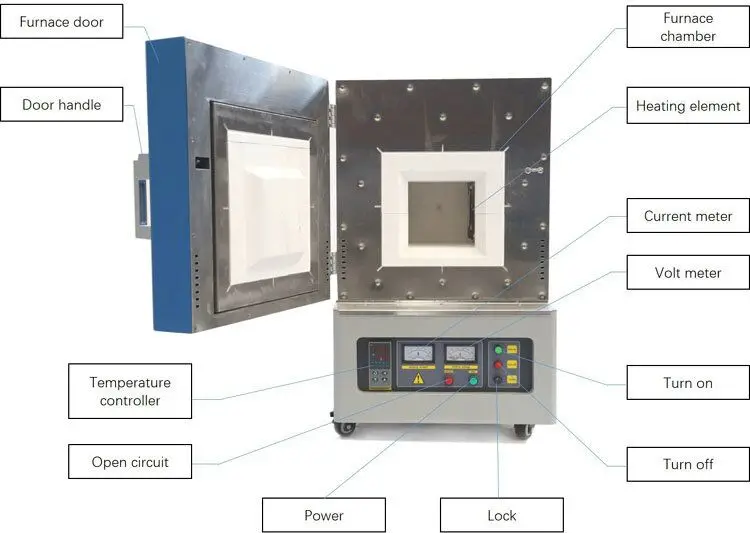

1200 Degree Muffle furnace Structure:
High purity alumina fiber insulation surrounding the chamber provides maximum energy efficiency.
Heavy duty double layer structure with cooling fan to keep furnace exteriors safe to touch.
Doble layer sreel case with forced air cooling to ensure lower saferface temperature.
One optional venting port is built on the top of furnace,need at extra cost .
Muffle furance details specification:
| Item No. | SX2-2-12TP |
| Chamber size: | 200x150x150 mm, Capacity:1 liter. |
| Power: | 2000 W Max. ( power cord is included ) |
| Voltage: | AC 220V 50/60 Hz |
| Max. Temperature : | 1200 °C for short time ; |
| Continuous Working Temperature: | 1100 °C Max. ; |
| Max. Heating Rate: | 0-30 °C /min,Suggest to be 20.C/min. |
| Temperature Controller : | PID automatic control and auto-tune function. 30 programmable segments for precise control. Built in protection for overheating and broken thermocouple. Large digital control panel for easy operation. |
| Temperature Accuracy : | +/- 1 °C |
| Heating Elements : | Fe-Cr-Al Alloy doped by Mo. |
| Thermocouple : | K type |
| Standard parts: | crucible tongs 1pc,high temperature gloves 1 pair,one user manual. |
Muffle furnace Standard Sizes:
Type | Furnace size | Working/Max.temperature | Delivery time |
1200.C muffle furnace | 100x100x100mm | 1100.C/1200.C | 1-3 days |
1200.C muffle furnace | 200x150x150mm | 1100.C/1200.C | 1-3 days |
1200.C muffle furnace | 300x200x200mm | 1100.C/1200.C | 1-3 days |
1200.C muffle furnace | 400x300x300mm | 1100.C/1200.C | 1-3 days |
Warranty: One year limited warranty with lifetime support, excluding heating element and ceramic tube damaged by user.
Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.

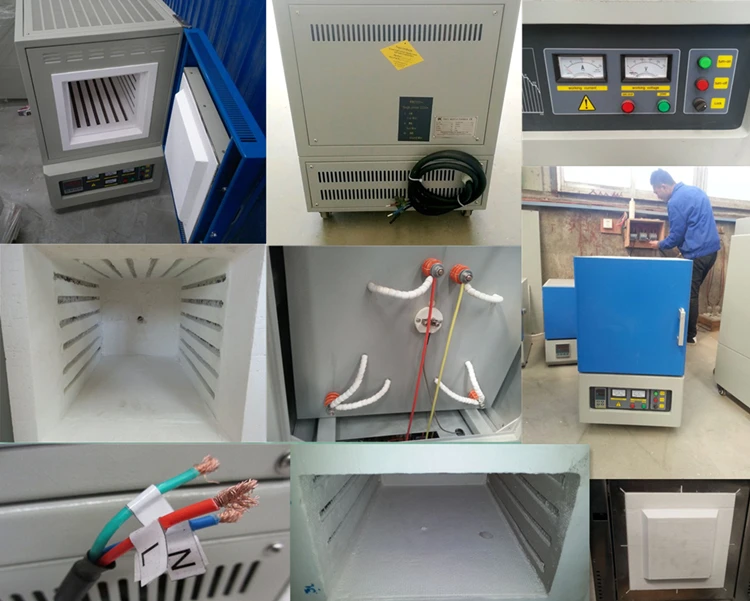

Detailed Images

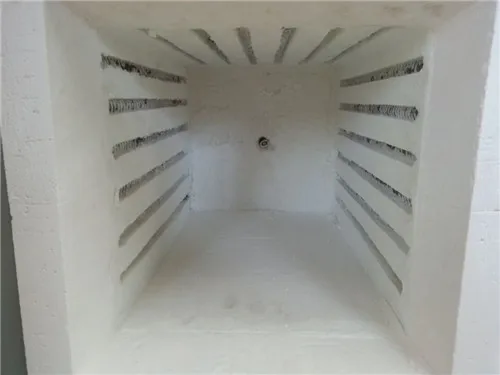

High temperature furnace test area
Related products
Certifications
Our products have passed CE certification, SGS,UL,ISO9001 and other certificates.

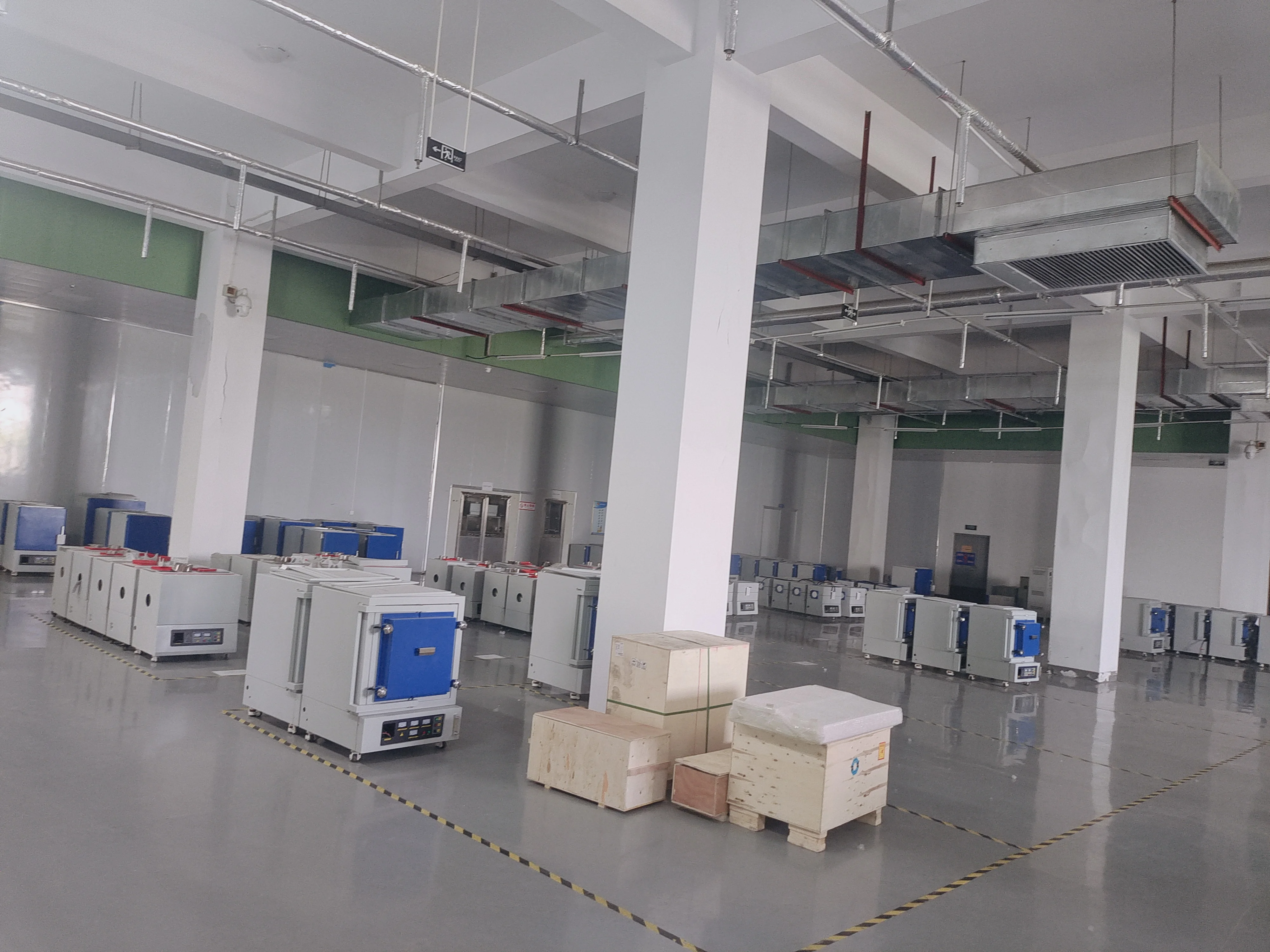

Company Information
Nanyang Dadi Electric Equipment Co., Ltd is a professional Heat treatment furnace manufacture which with more than 15 years experiences.
We have Professional technical engineers team, complete scientific management system, standard workshop and strict quality-monitoring framework.
The most important thing is that we have our own furnace shell processing factory, which has a great advantage for delivery time and price.
Our furnaces have been exported to more than 30 countries and with good feedback from our customers.
Our quality policy is "first-class Quality, first-class technology and sincere service to make customers satisfy".Our eternal faith is "living on quality, reputation on honesty, development on mutual benefit". We are looking forward to offering our best services to our friends from at home and abroad.
Mainly products:
Car bottom furnace | High vacuum furnace | Tube furnace |
Muffle furnace | Atmosphere furnace | Crucible furnace |
Bottom loading furnace | Dental sintering furnace | Etc. |
How to make an order
FAQ
1. Q:Are you muffle furnace manufacturer?
A: Yes, we are professional muffle furnace manufacturer of China.
2. Q:What kind terms of payment can be accepted?
A: L/C, T/T, Western Union, Paypal, Trade Assurance, etc.
3. Q: Can I ask for customized furnace?
A: Yes, customized furnace is accepted.
4. Q: What about the delivery time?
A: Normally within 15 days after receiving your payment or based on order quantity and production schedule.
5. Q: What about the guarantee period?
A: The guarantee period is 12 months.
6. Q: What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
