New 8K UHD android tv box 4k channels by wifi 2.4G 5G Dual frequency iptv set top box



Product Description









































































































































































































































                                 HS9 Specifications
Key Specifications
High Performance CPUQuad-core 64-bit high-performance Cortex A53, 1.5 GHz,
Integrated multimedia acceleration engine NEON,
Hardware Java acceleration,
Integrated hardware floating-point coprocessor
3D GPUSix-core High performance GPU Mali-T720,
OpenGL ES 2.0/1.1/1.0, OpenVG 1.1, EGL,
40 GFlops, Pixel fill rate greater than 2.7GPixel/s.
MemoryDDR3/3L SDRAM interface(2GB),
eMMC 5.0 flash interface(8GB).
Image DecodingH.265/HEVC Main/Main 10 profile&level 5.1 high-tier,
H.264/AVC BP/MP/HP&level 5.1, H264/AVC MVC,
VP6/VP8/VP9,
MPEG1,MPEG2 SP&ML, MP&HL,
MPEG4 SP&level 0-3, ASP&level 0-5, GMC, short header format,
AVS-P16(AVS+)/AVS JIZHUNprofile&level6.0,
VC-1 SP&ML, MP&HL, AP&level 0-3,
Support 4Kx2K decoding,
Pixel Rotate/Horizon Revert/Vertical Revert,Pixel Scale,
Output pixel format configurable, YUV420/YV12/…
Image DecodingLarge resolution support, up to 16384x16384,
YUV400/YUV420/YUV422/YUV444
Picture Rotate/Horizon Revert/Vertical Revert,Picture Scale
Output pixel format configurable, YUV420/YV12/…
Video and Image EncodingH264 BP/MP/HP&level 4.2 video encoding,
1080p&60fps/2x1080p&30fps/4x720p&30fpssimultan eous encoding,
Variable bit rate(VBR) or constant bit rate(CBR) mode, macroblock level bit rate control,
Low-delay encoding,Encoding of multiple region of interest(ROIs),
Picture Rotate,Picture free scale up/down, scale ratio from 1/4 to 4,
Full input format support, NV12/NV21/YUV420SP/…
Audio Encoding/DecodingMPEG L1/L2,
Dolby Digital/Dolby Digital Plus,Dolby DMA Audio Effect,
AAC-LC and HE AAC V1/V2 decoding,APE, FLAC, OGG, AMR-NB, and AMR-WB decoding,
G.711(u/a) audio decoding,G.711(u/a), AMR-NB, AMR-WB, and AAC-LC encoding
IPTVJS Linux API Network (portal) protocol support RTSP, HTTP, HLS, RTMP, MMS, RTP, UDP, IGMP
Security ProcessingTrusted execution environment(TEE),
Secure OS Support GP standard,Secure boot,Secure Storage,Secure upgrade,Protection for JTAG,
2K bits EFuse,Digital rights management(DRM),Downloadable conditional access(CA)(DCAS),
HDCP 1.4 protection for HDMI outputs,
Graphics and Display Processing2 Display device, dual display(same or different content),
For the main display device:
4 video layer(also can support graphic),
12 graphic layers,
4 alpha blending channel, potter duff compatible blending operation
For the auxiliary display device:
4 video layer(also can support graphic),
4 graphic layers,
2 alpha blending channel, potter duff compatible blending operation.
On line video processing, ultra-low-delay,Independent scaler for each channel, anti-alias-filter,
Letter box and PanScan,Full format 3D video processing and display,Full-hardware anti-aliasing and anti-flicker,
Color space conversion(CSC) with configurable coefficients,Sharpening, adaptive detail/edge enhancement,
Saturation, adaptive color enhancement,Contrast enhancement,black/white level stretch,flesh-tone-rectify,
Audio/VideoPAL and NTSC standard output, and forcible standard conversion,
Aspect ratio of 4:3 or 16:9, forcible aspect ratio conversion, and free scaling,
4Kx2K/1080P/1080I/720P/576P/576I/480P/480I output,
HD and SD outputs from the same source,HDTV TX with HDCP,
Analog video interface:
One CVBS interface
Audio interface:
Two audio-left and audio-right input interface,
Audio-left and audio-right output interface
S/PDIF interface,
HDTV audio output,

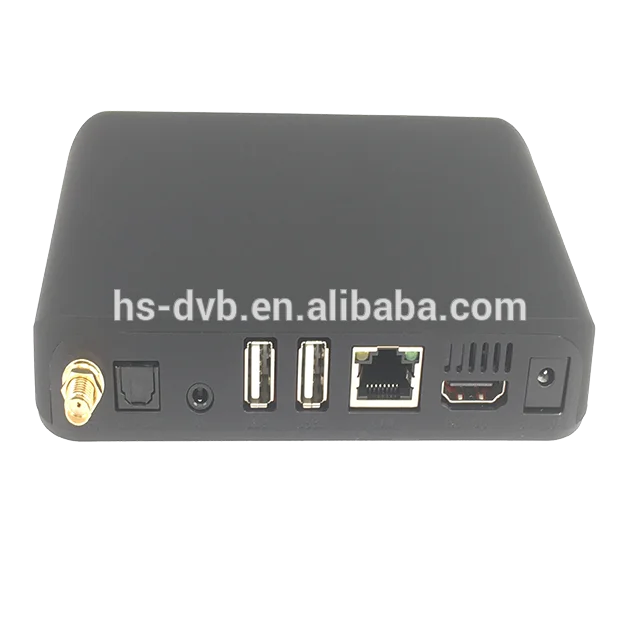

Peripheral InterfacesDC-In :DC-5V   2000ma( VDE,Xterra,BS),
USB :USB*2  HOST function,

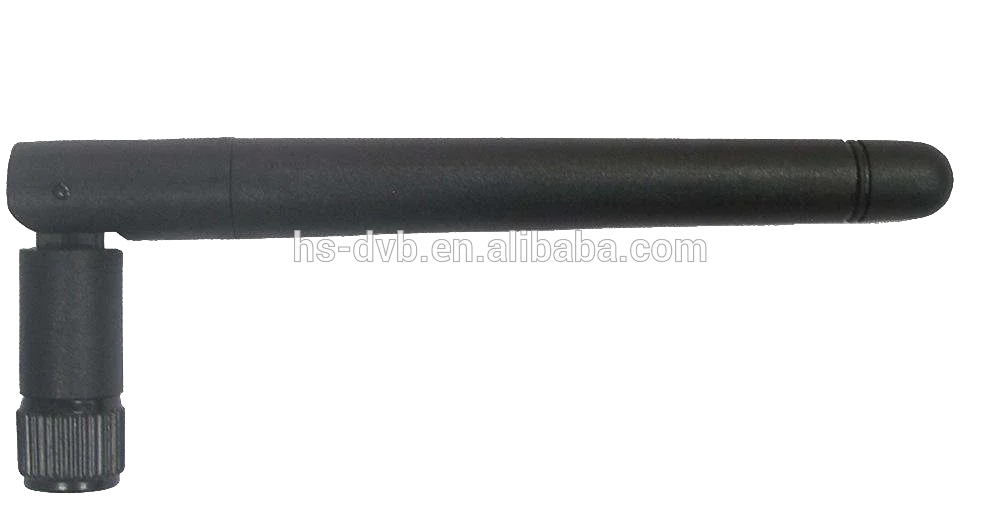

WIFI :Built-in wifi
RCA-AV :CVBS-1,Audio-L/R,
RJ-45 :100M Ethernet,
Switch :on-off,
HDTV
