2200W Heavy Duty Industrial Fume Extractor Smoke Purifier for Laser Welding Marking
- Category: >>>
- Supplier: Dongguan Villo Technology Inc.
Share on (62054242400):
Product Overview
Description
VH-T Series Self Cleaning Filter Cartridge Type Fume Extractor
Product description
VH-T series are highly efficient welding fume extractors with self-cleaning system, very ideal for the fume and dust disposal in the welding workshop or other similar working conditions.
Applications
Welding (manual arc welding; gas shielded arc welding; argon arc welding, etc.), cutting, grinding, and other smoke purification applications.
Features
* Siemens motor and excellent metal plate technology ensures long-lasting durability.
* Compact and portable product including convenient 360 degree rotation suction arm for desirable.
* Pulse jet cleaning method for the filter makes machine to work continuously. User can set the pulse frequency depending upon the requirements.
Right elevation
Left elevation
Front elevation
Technology Parameters
Model | VHT-15S | VH-150T | VH-220T | |||||
Voltage(V/Hz) | 220 / 50 | 380 / 50 | ||||||
Power (W) / (HP) | 135 / 0.18 | 1500 / 2.0 | 2200 / 3.0 | |||||
Rated current（A） | 1.6 | 3.4 | 4.8 | |||||
Max air flow (m³/h) / ( CFM ) | 220 / 129.4 | 1500 / 882 | 2200 / 1294 | |||||
Noise dB (A) | 63±2 | 75±2 | ||||||
Dia. air inlet (mm) / (in) | Ø 50 / 2 | Ø 150 / 6 | Ø 150 / 6 (2pcs，φ150/pcs ) | |||||
Filter area (m²)/ ( sq.ft ) | 1.8 / 19.4 | 10.0 / 12.0 | 15.0 / 18.0 | |||||
Filter efficiency | ＞99% | ＞99% | ||||||
Dimension[L*W*H] (mm) / (in) | 320*300*520 / 12.6*11.8*20.5 | 700*750*1400 / 27.6*29.5*55.1 | 700*750*1600 / 27.6*29.5*63.0 | |||||
Weight(kg)/ ( lb ) | 23 / 50.7 | 150 / 331 | 210 / 463 | |||||
It is normal that the current value may fluctuate in a small range Voltage and frequency will affect the current value | ||||||||
Product Configuration
PTFE Coated Filter
360° rotation suction arm
Powerful Motor
Optional Configuration
Explosion Proof Motor
Multi Tower Light
Multiple Filtration Version

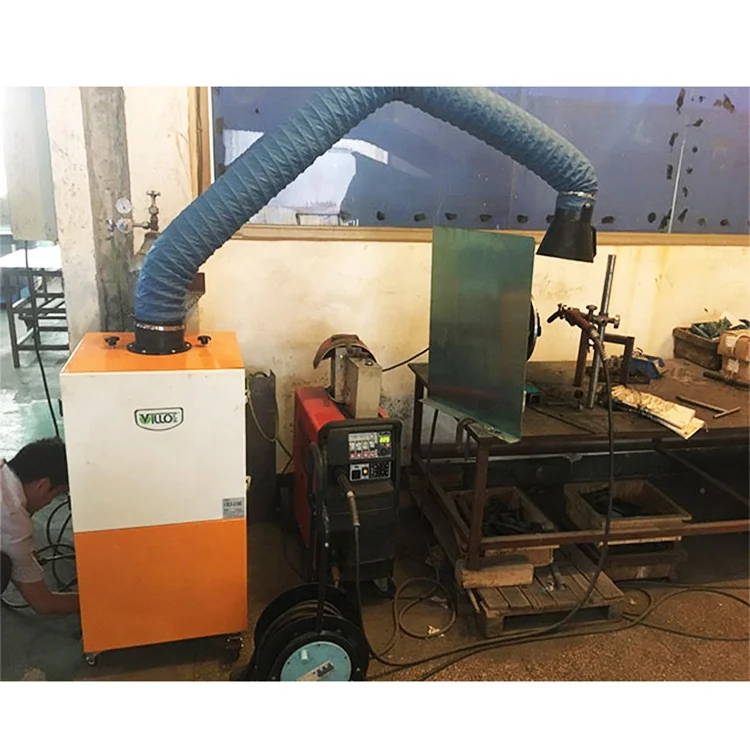

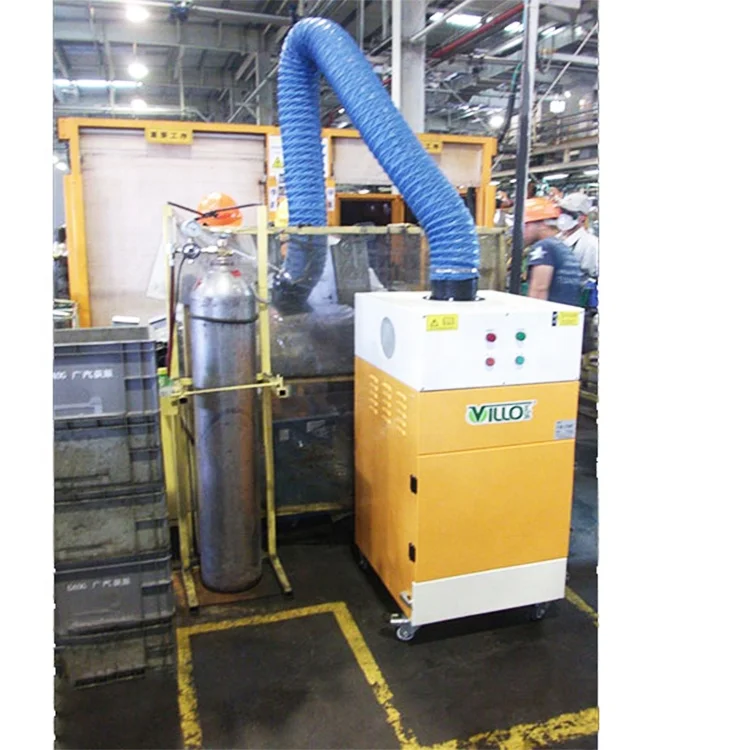

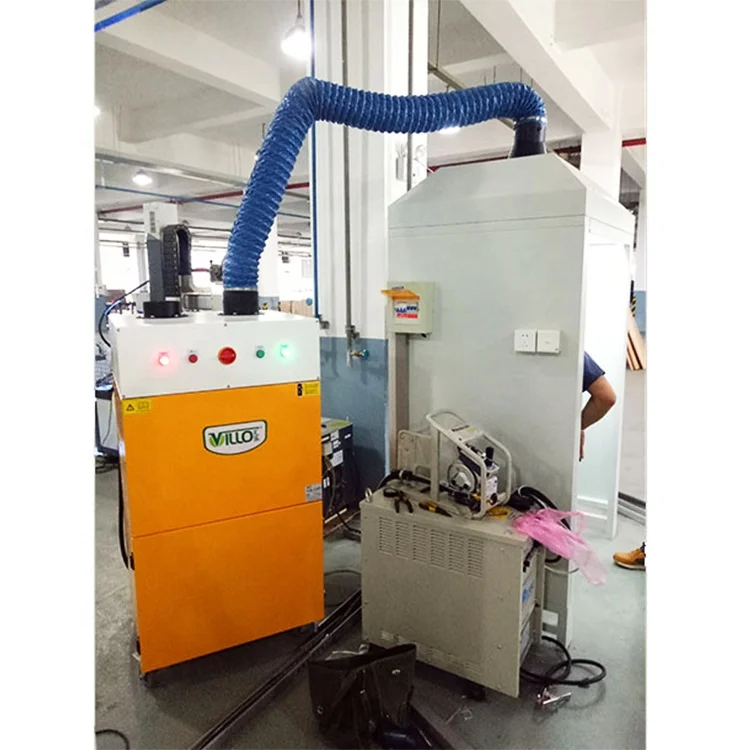

Successful Project
