tire shredder cost junk tires recycling to make rubber granule

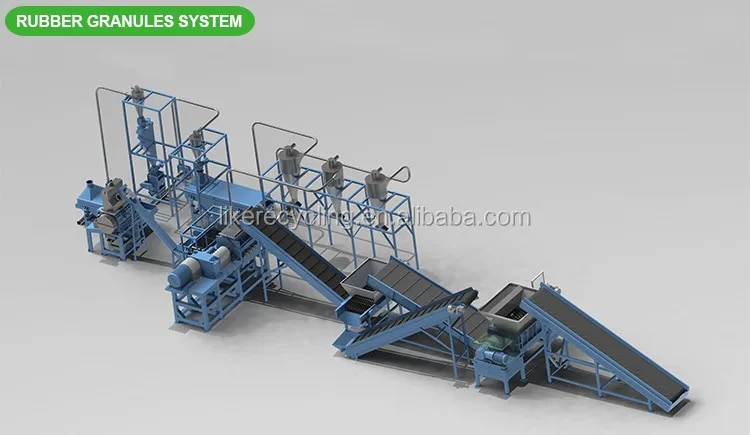

LIKE Recycling is the leader in cost-effective turnkey tire recycling systems sole globally. LIKE Recycling systems deliver optimum production performance and profitability at the industry's most affordable costs for TDS (tire derived shreds), wire free chips, crumb rubber , and fine rubber powder, used in a varity of applicatons worldwide.

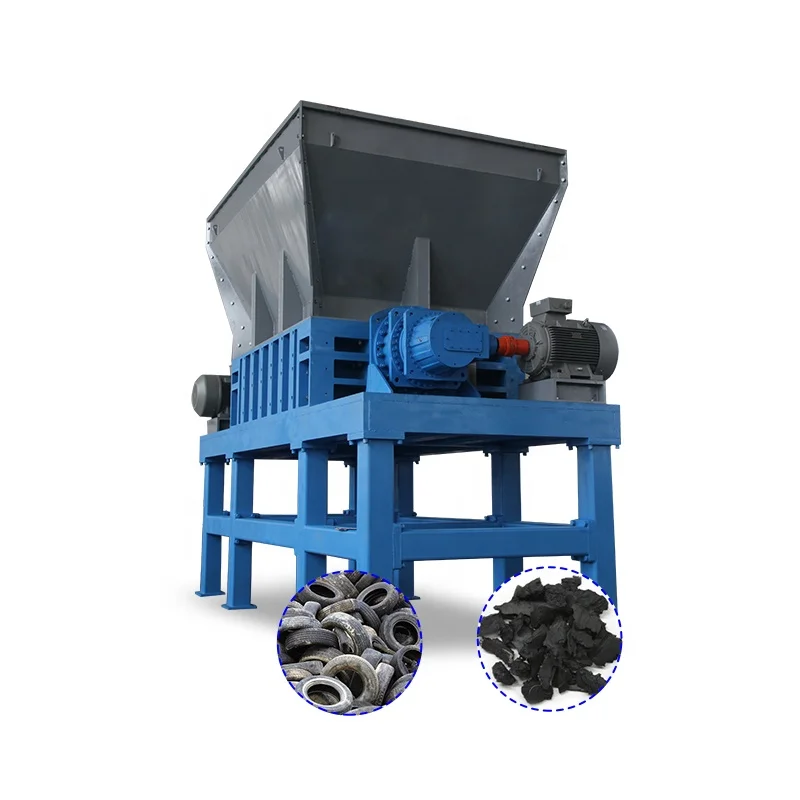

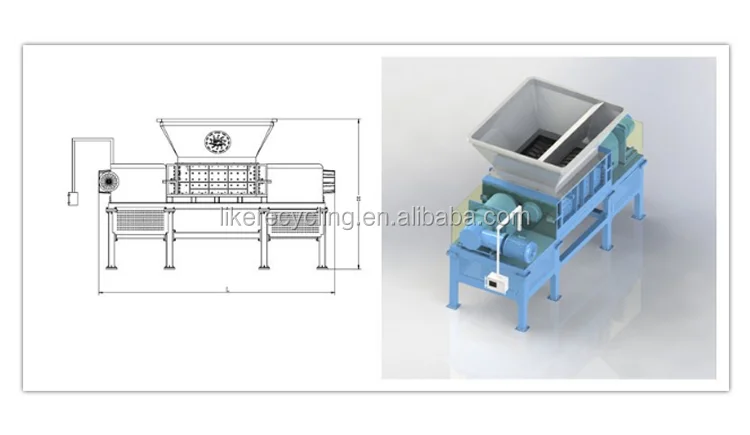

Double shaft tire shredder:

To produce 50-150mm TDF rubber blocks as request.

LIKE's two shaft shredders are specially designed for used tires, low speed, high torque operation minimize the noise and power consumption with high throughout rate. All the shredder blades thickness ranges from 25mm-152mm depending on type of tires, output ,final product, the shredder can process OTR tires, big truck tires, passenger car tires at a rate of 1t-30t in one hour.
Model
Input size
Output size
Capacity
Motor
Weight
TS-800
800mm
50*50mm
1-2t/h
2*22kw
8t
TS-1200
1200mm
60*60mm
3-5t/h
2*37kw
14t
TS-1600
1600mm
50-150mm
6-8t/h
2*45kw
18t
TS-1800
1800mm
50-150mm
7-10t/h
2*55kw
23t
TS-2000
2000mm
75-200mm
10-15t/h
2*75kw
36t
TS-2400
2400mm
100-200mm
20-30t/h
2*110kw
56t
TS-2800
2800mm
150-250mm
25-35t/h
2*160kw
75t

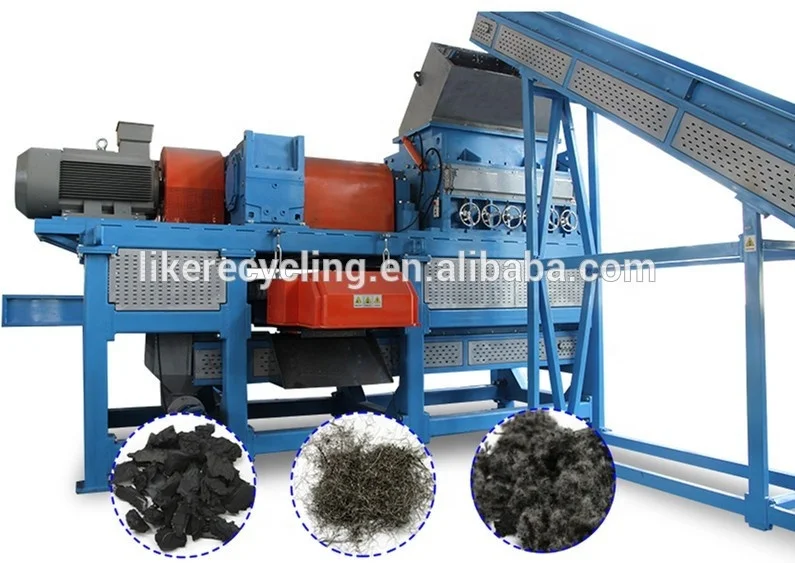

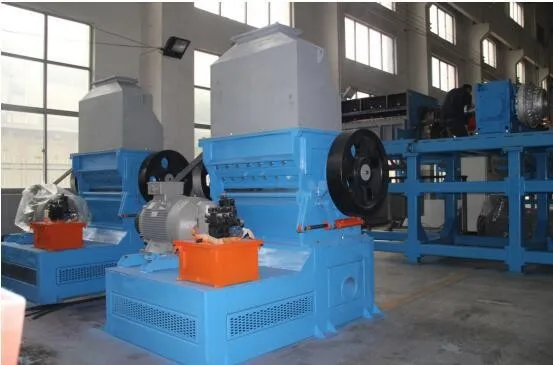

Rasper(grator)

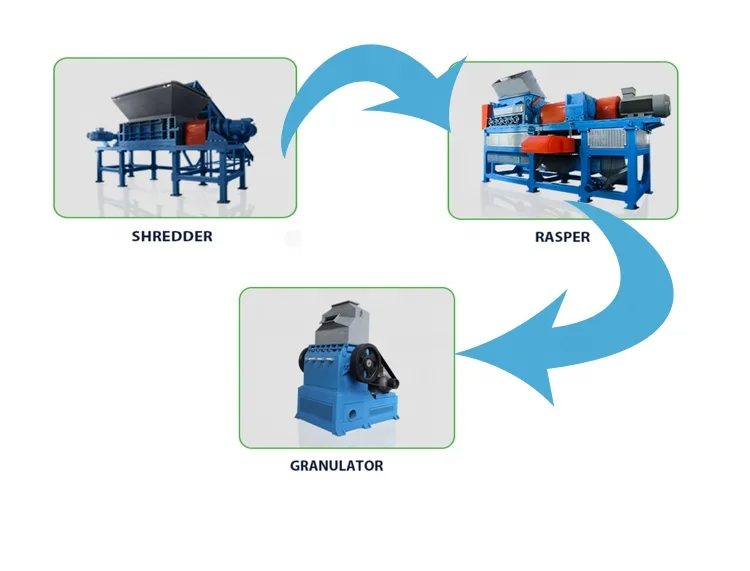

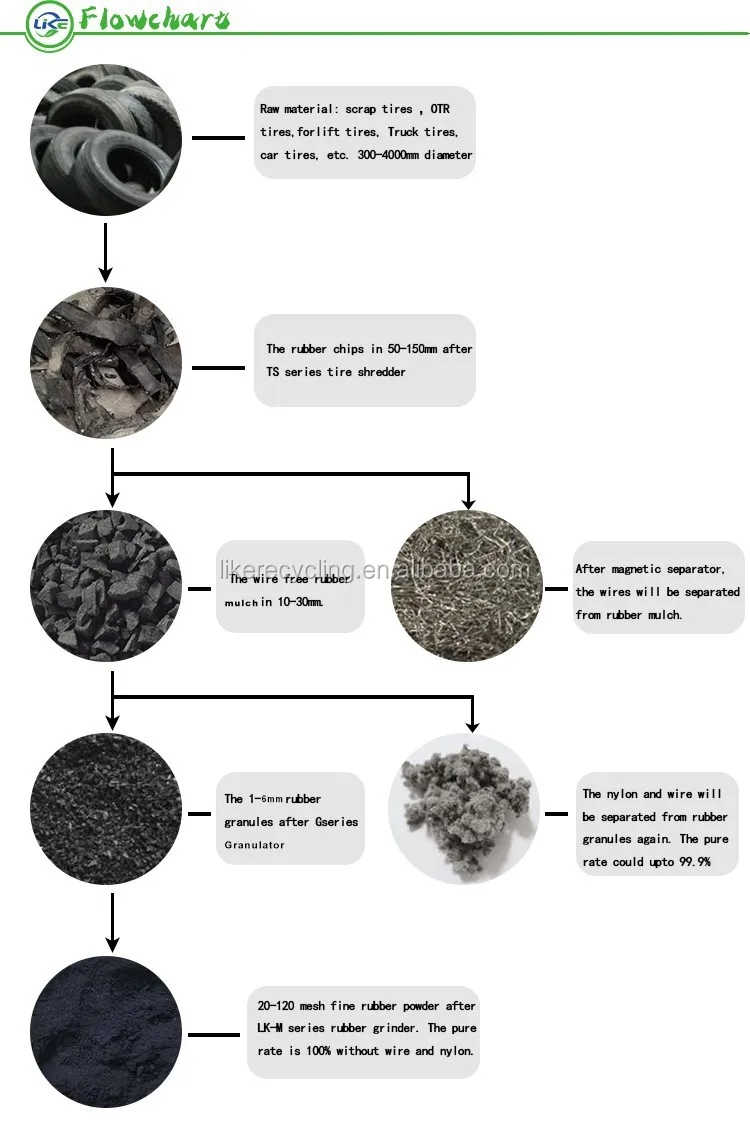

After the first step double shaft tire shredder, the rubber blocks will be processed into 10-30mm rubber mulch by rasper.

99% wire steel will be separated in this step.

It can process up to 6 tons of input per hour. The main rotor housing is equipped with replaceable wear plates to increase the durability and longevity of the cutting chamber.

Rasper
LK-R315
LK-R132
LK-R90
LK-R75
LK-R55
LK-R45
Powder
315kw
132kw
90kw
75kw
55kw
45kw
Voltage
As request
As request
As request
As request
As request
As request
Capacity
3-6t/h
1.5-3t/h
1-1.5t/h
700-1t/h
500-700kg/h
300-500kg/h

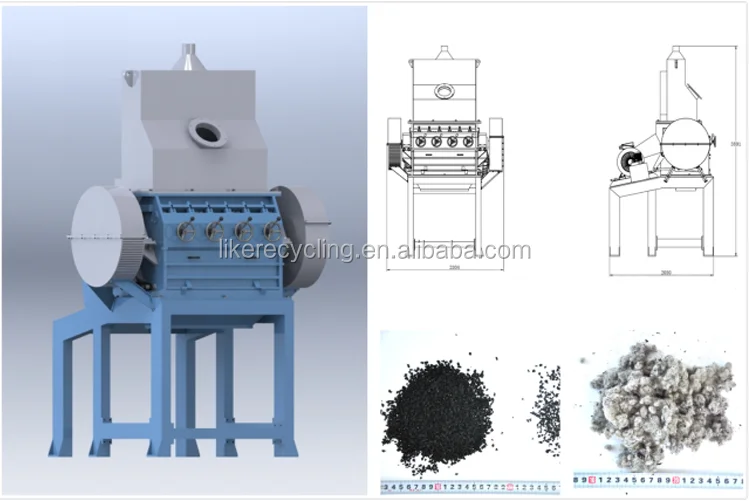

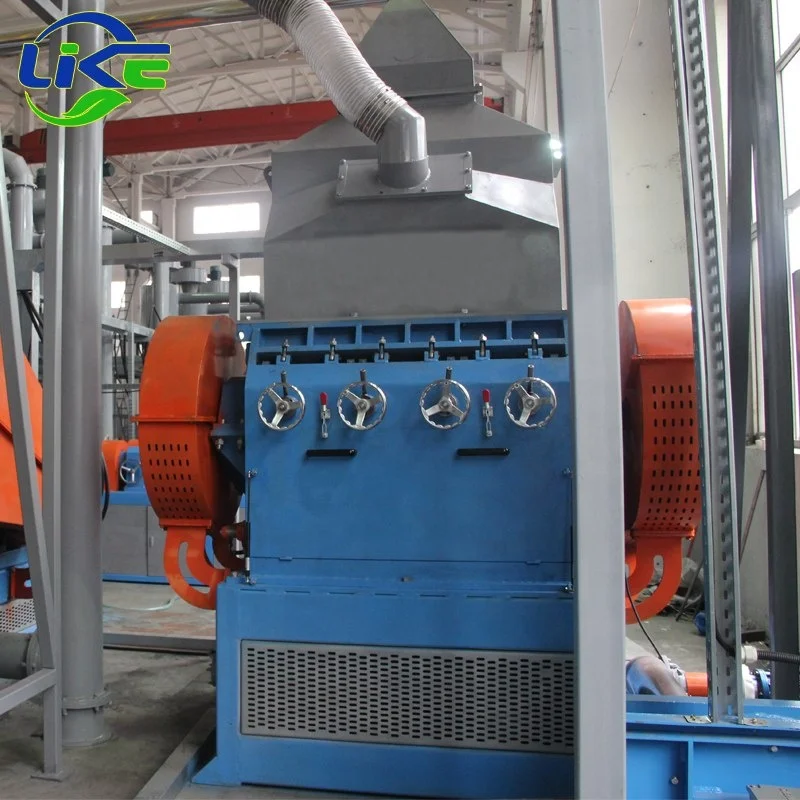

Granulator

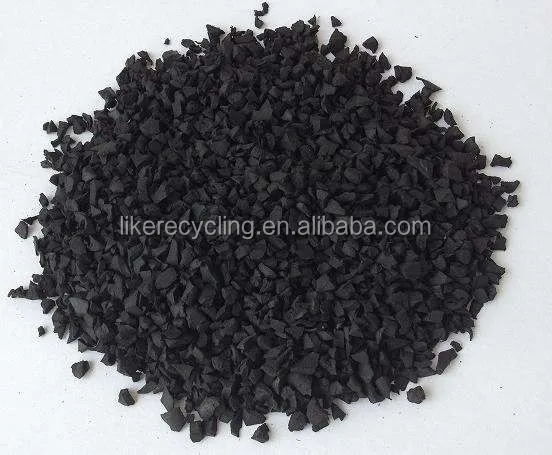

The Granulators are designed to grind the rubber mulch from the Grater into small granules as fine as 1mm. The granules are screened and re-circulated until the desired size is reached. Due to the design of the Granulator and precise alignment of the blades, the Granulator produces a very uniform cut and high quality granule.


Model
G-90
G-45
G-37
Power
90kw
45kw
37kw
Capacity
800-1500kg/h
500-800kg/h
300-500kg/h
Final size
1-6mm
1-6mm
1-6mm
Weight
5600mm
3300mm
2950mm
Related Products

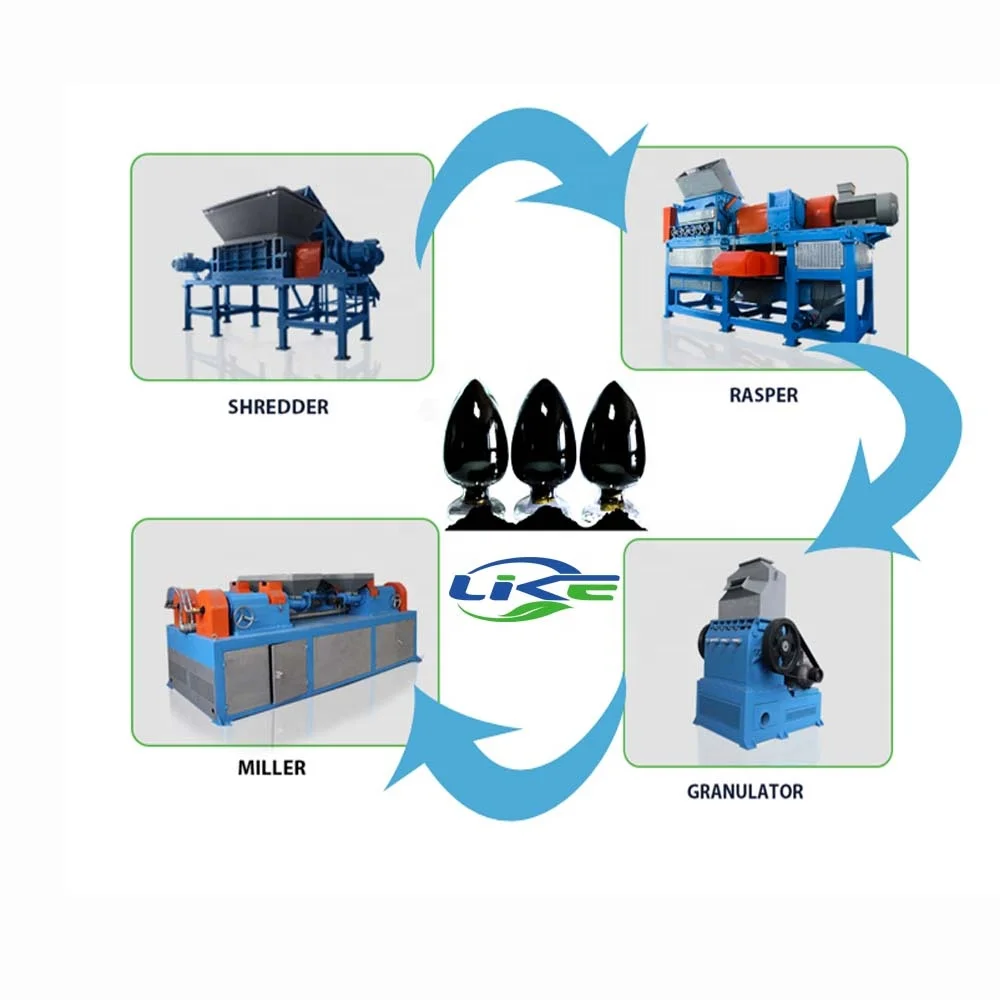

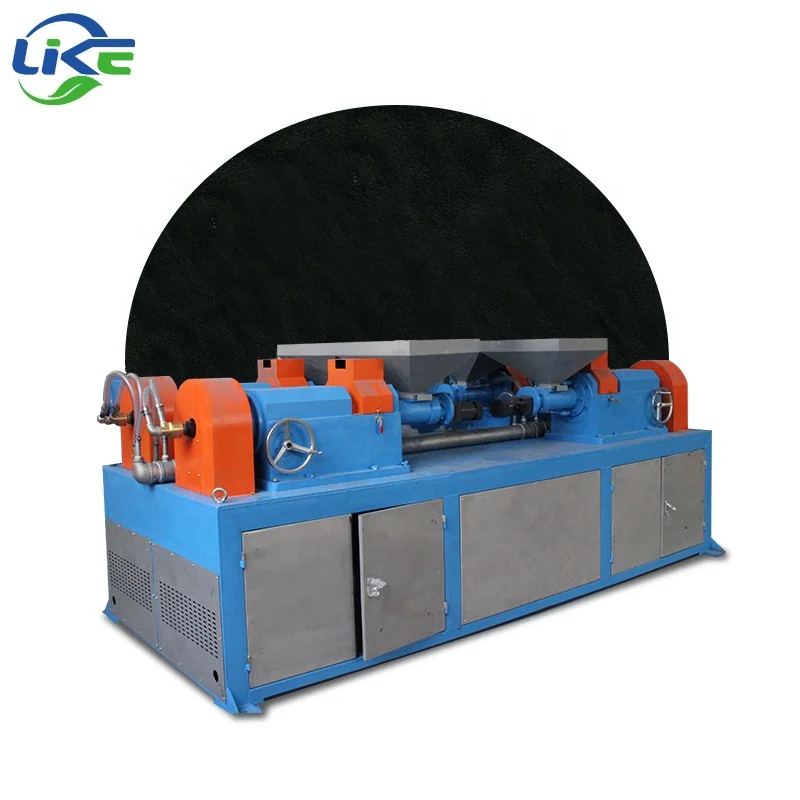

Miller

The miller is designed to grind 1-6mm granules to 30-120 mesh fine rubber powder according to demand. It features with convenient operation, high speed grinding tray which makes a continuous operation.

OTR tire cutting machine

LK OTR Tire cutters are designed by approval American Technologies specially to cut giant OTR tires. Siemens Motor drive hydraulic system and cylinder,place the tire betwork to lock arm, fasten two blades rotating between tire and shear cylinders work to move, two blades rotating blades forming shear, achieve the effect of shear.


Our Company
Application
FAQ

1) Are you a factory or trade company?

We are professional recycling line machine factory, professional design engineer, experienced production team, advanced manufacturing and processing facility. You can get good technical support from us.

2) How can I trust your company?

a. famous brand component as our standard configuration, like Siemens Motor, Siemens PLC and Schneider component. All parts use high quality material and precise processing

b. Assessed by third party-national test centre. national patents,SGS, CE, ISO certificate

c. Welcome to visit our factory to check at any time

3) How about the test running & installation?

Before delivery, welcome you to come to testing all machines in our factory.

Before shipping out your machines, we will invite you to come to test your machines, when you are satisfied; we start to pack and delivery.

We will dispatch enginne to your country to help you to install and debug the machine,  as well as training your workers.

4) How about the warranty?

Under the proper usage, 1-3 year for whole machine, we provide long-time after sales service for our customer.
