small fan 20mm 20x20x10mm 5v 12v dc brushless cooling fan price
- Category: >>>
- Supplier: Shenzhen Yccfan Technology Co. Ltd.
Share on (62054331067):
Product Overview
Description
small fan 20mm 20x20x10mm 5v 12v dc brushless cooling fan price
Product Description

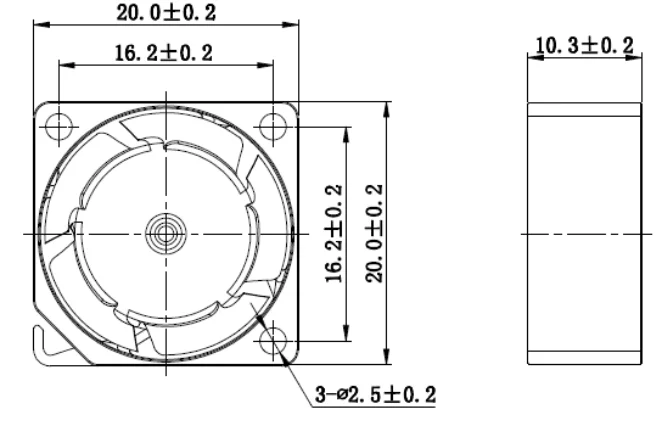

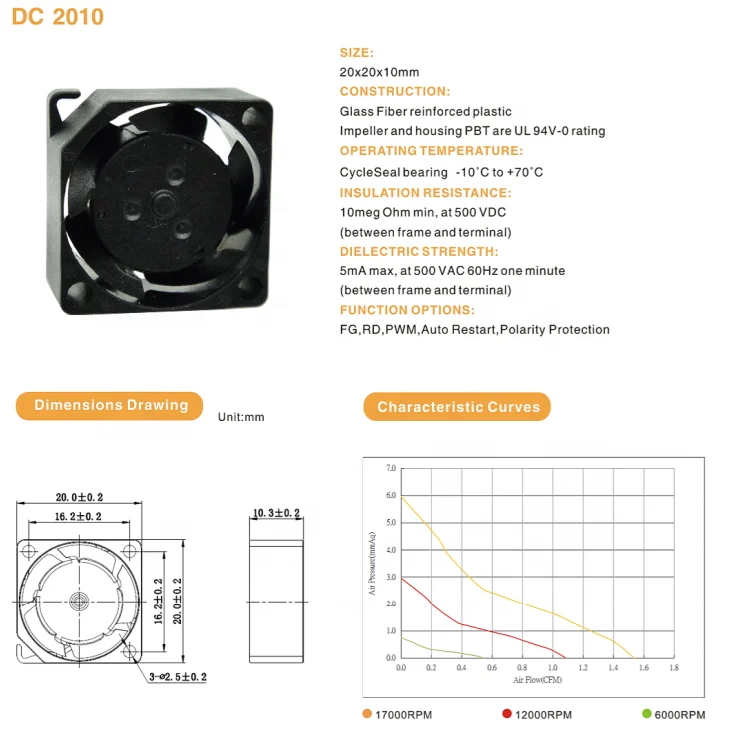

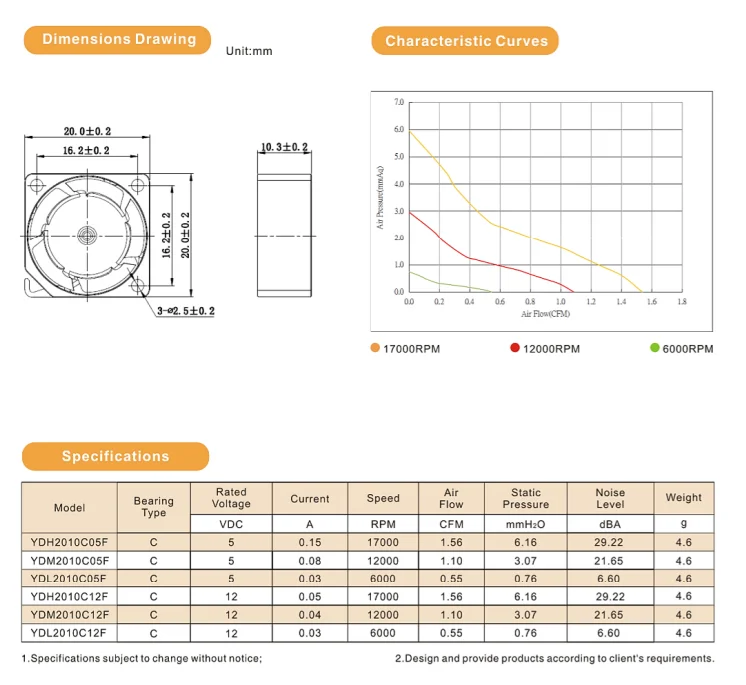

3.7v 5v 9v 20x20x10mm dc mini micro cooling fan specifications
Model | Bearing (S/hypro) | Voltage (V) | Current (A) | Speed (RPM) | Air Flow (CFM) | StaticPressure (mmAq) | NoiseLevel (dBA) |
YDL2010X03 | S / Hypro | 3.3v | 0.15 | 6000 | 0.57 | 1.03 | 10.86 |
YDM2010X03 | S / Hypro | 3.3v | 0.2 | 9000 | 0.85 | 2.32 | 20.55 |
YDH2010X03 | S / Hypro | 3.3v | 0.25 | 12000 | 1.27 | 3.93 | 27.13 |
YDL2010X05 | S / Hypro | 5v | 0.1 | 9000 | 0.85 | 2.32 | 20.55 |
YDM2010X05 | S / Hypro | 5v | 0.15 | 12000 | 1.27 | 3.93 | 27.13 |
YDH2010X05 | S / Hypro | 5v | 0.2 | 15000 | 1.89 | 7.23 | 37.28 |
YDL2010X12 | S / Hypro | 12v | 0.07 | 9000 | 0.85 | 2.32 | 20.55 |
YDM2010X12 | S / Hypro | 12v | 0.1 | 12000 | 1.27 | 3.93 | 27.13 |
YDH2010X12 | S / Hypro | 12v | 0.15 | 15000 | 1.89 | 7.23 | 37.28 |
1. Rated voltage: 5v 9v 12vdc voltage can be made if need.
2. Air flow, air pressure, speed and rated voltage can be customized as customer's requirement
3. Privated Labelling: All of axial fan are able to be Private labeled.
4. 2 wire, 3 or 4 wires (PWM / FG / RD function ) can be made if needed.
5. Cycle seal bearing : 40000hours @ 40°C temperature
Realted Products
DC FAN is powered by 3.3v,5v, 12v,18v,24v,48v, YCCFAN manufacturer fan from 20mm -200mm, check below lists mto find what you need, pls feeel free to send your questions.
small fan 20mm 20x20x10mm 5v 12v dc brushless cooling fan price
Certifications
UL & CUL & CE & RoHS & SGS & ISO9001 & ISO14001 & 3C and more to be continued.
Main Customers
YCCFAN'S quality is approved by Panasonic,Mistubishi,Sony etc, Thanks for all of you big support.
Panasonic Visiting
small fan 20mm 20x20x10mm 5v 12v dc brushless cooling fan price
Our Services
1 : Customized Fan
YCCFAN provide cooling solution for cusomter's special product and requirement.
Application industry :
Thanks for all customers support,we will always focus on your requirement and do better.
Panasonic , Sony , Mitsubishi , Fuji , Midea, HYUNDRI,SENSICA, PLANTOWER, KSTAR , INVT ,INFY POWER etc.
2 : Quality Assurance
a : 100 % testing before the fan leave our factory
b. Good after services to every customer
c. Inspection 100% raw material for quality, UL94V-0 plastic are compliance to RoHS SGS standard.
d.Warranty : Two-year for ball bearing fan, one-year for sleeve bearing fan
3 : Good Reputation & After-sales Service
Focus on customer , Grow together, YCCFAN always do the best.
If any requirement, pls mail Teresa directly via oversea02 at yccfan.com
Skype: teresa3573 Wechat : T1036693615
Tel : 86-13631613620
FAQ
Q1 : Provide preferably product fan for you:
1 Fan Type, DC/AC
2 Case Size (Dimensions)
3 Speed
4 Air Flow
5 Noise Level if situation needs
6 Rating Voltage, 3v/3.3v/5v/9v/12v/48v/115v/220-240v/380v
7 Bearing, Sleeve/2Ball/VAPO
8 Wire, 2 lead wires/3 lead wires/4 lead wires (PWM control/FG signal output/RD Alarm)
9 Wire Length
10 Connector or not
11 Just contact me freely if any request,I will get back to you soon.
Q2: Can you tell me the normal DC Cooling Fan Model?
20*20*6mm 20*20*10mm 25*25*10mm 30*30*7mm
30*30*10mm 40*40*10mm 40*40*20mm 40*40*28mm
50*50*10mm 50*50*15mm 50*50*20mm
60*60*15mm 60*60*25mm 60*60*38mm 70*70*15mm
80*80*15mm 80*80*25mm 80*80*38mm 92*92*25mm 92*92*38mm
120*120*25mm 120*120*38mm
150*150*51mm 172*150*51mm 172*51mm
We have more model,just e-mail me to get details...
Q3: Can I get samples before order ?
A3: Definely, that's our suggestion too. when mass production, performance is compliance to sample checked.
Now, contact Teresa Yu to get more information.
