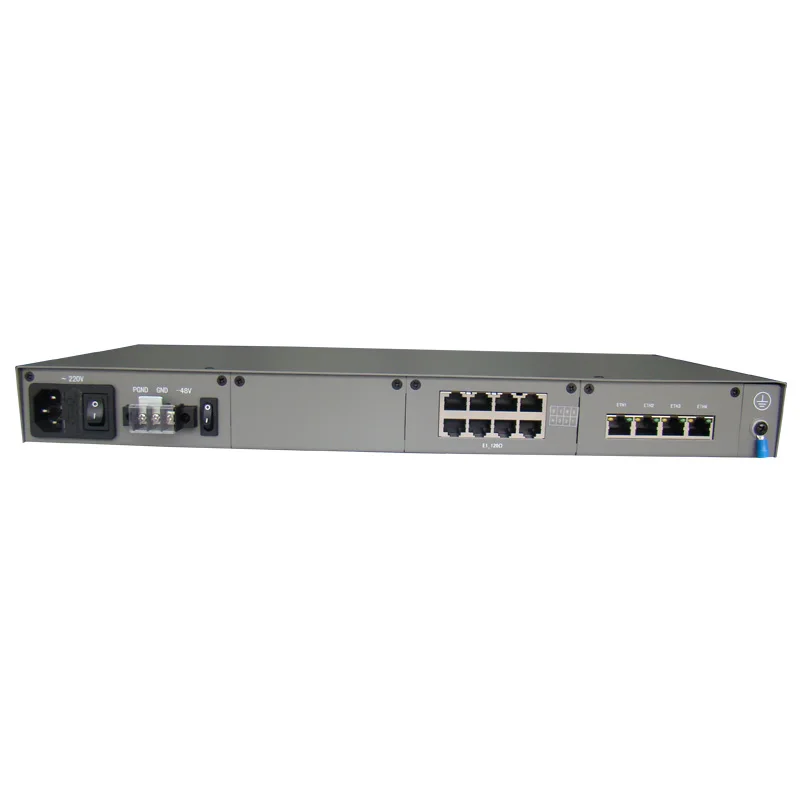

Humanity HM RS1030N 8E1 4Ethernet PDH fiber optical multiplexer FOM with SFP optical redundancy option

Product Overview

Description

Humanity HM-RS1030N SFP type 8E1 +4Ethernet over fiber optical multiplexer





Humanity HM-RS1030N SFP type 8E1+4Ethernet fiber optical multiplexer realizes 8E1 and 4Ethernet transmission over fiber. It's with full alarm monitor, high integration, low power consumption, stable performance and easy to use.





Main Features

• Single board design, 1U, 19inches
• Comply with ITU-T G.703, G.823 and G.742
• Optical rate with 155Mbps
• Ethernet option with 10/100M, MDI/MDIX, full/half duplex adaptive
• Full alarm indicators, easy to monitor the local and remote device status
• AC and DC dual power supply



Technical Parameters

Optical interface	2xSFP slot for SFP modules
	SFP modules not included
E1 interface	8E1
	Comply with ITU-T G.703, G.823, G.742
	Rate: 2.048Mbps±50ppm
	Code: HDB3
	Connector: RJ45 for 120Ohm
Ethernet interface	4 Ethernet ports
	Connector: RJ45
Environment	Power: AC220V, DC-48V
	Power consumption: less than 15W
	Operating temperature: -5°C~50°C
	Relative humidity: ≤95%, non-condensing
	Power consumption: less than 15W
