High Precise Ball Screw Servo Drive Low Noise Square Electric Cylinder
- Category: Pneumatic Cylinders >>>
- Supplier: Shenzhen Superworker Technology Co. Ltd.
Share on (62054378737):
Product Overview
Description
Product Description

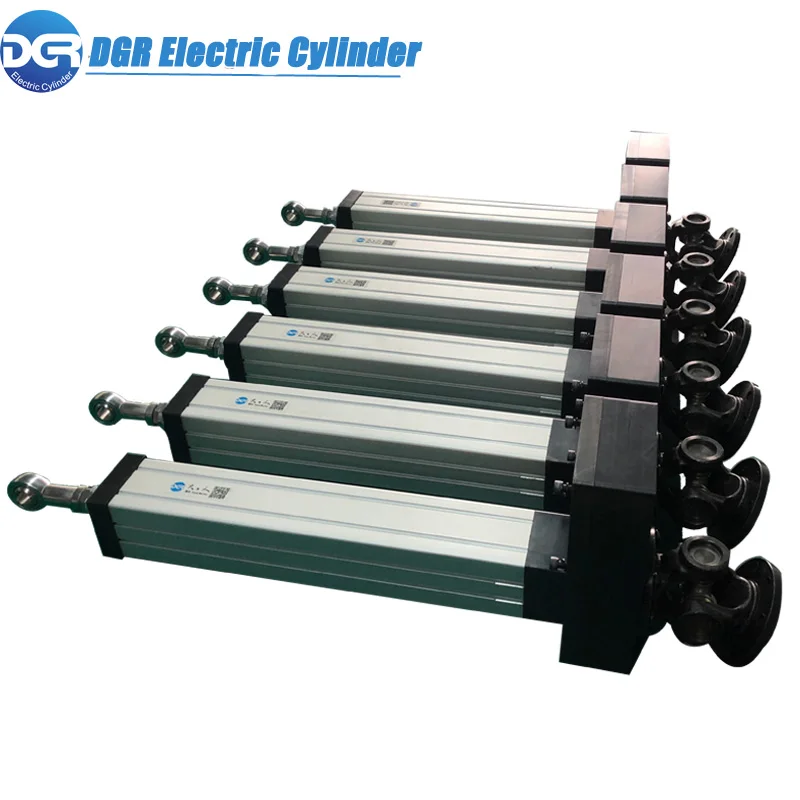

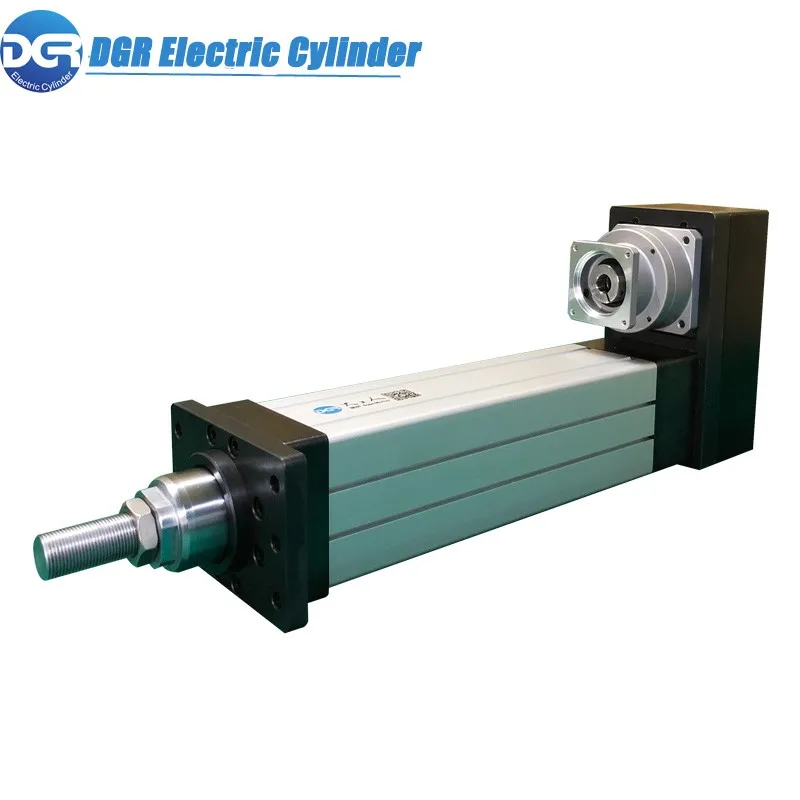

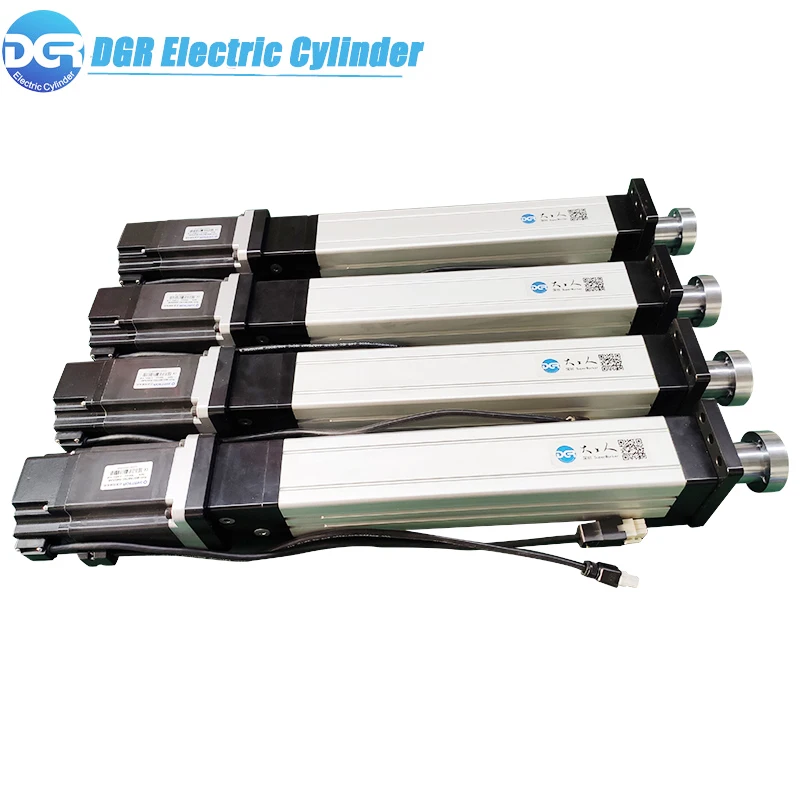

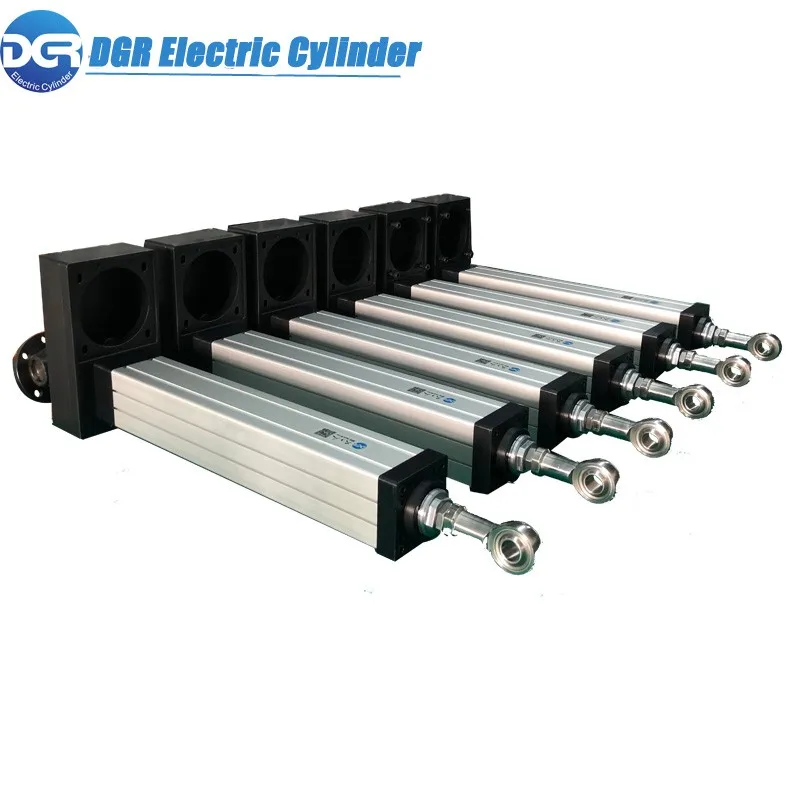

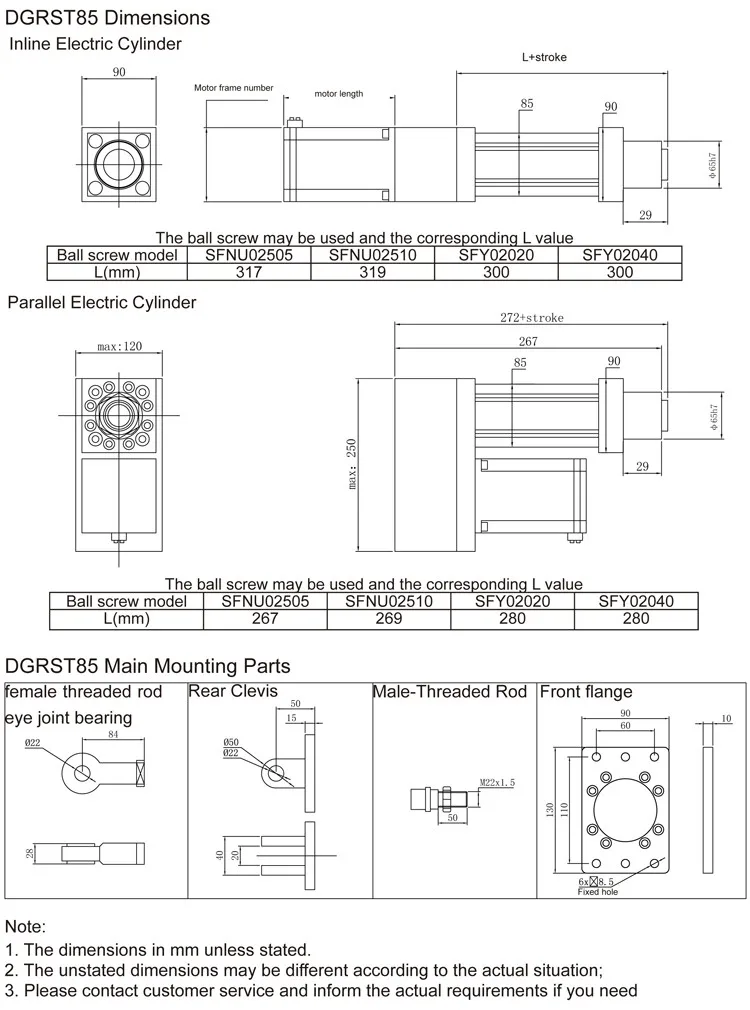

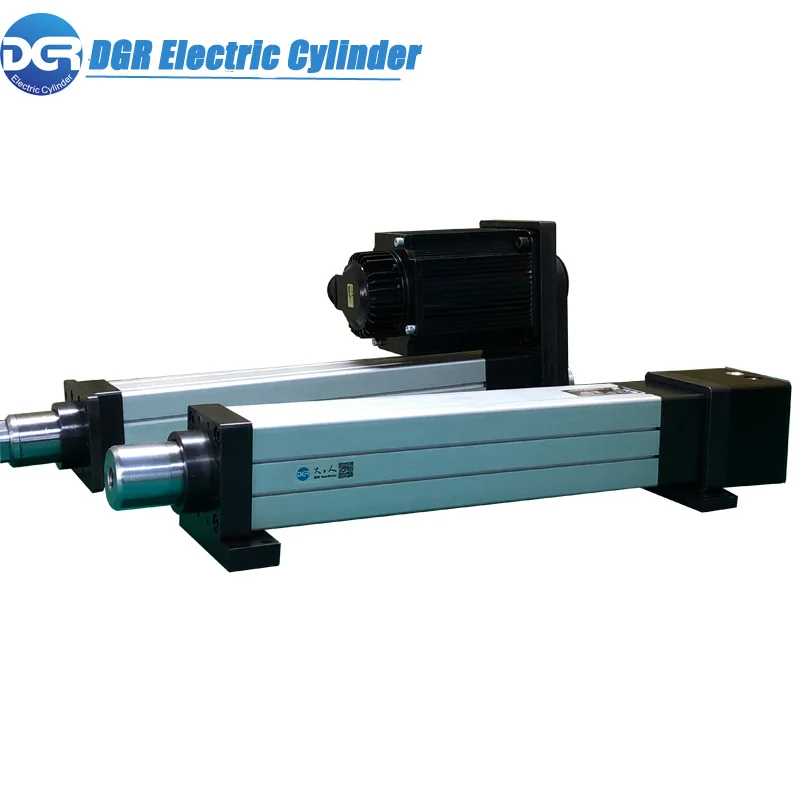

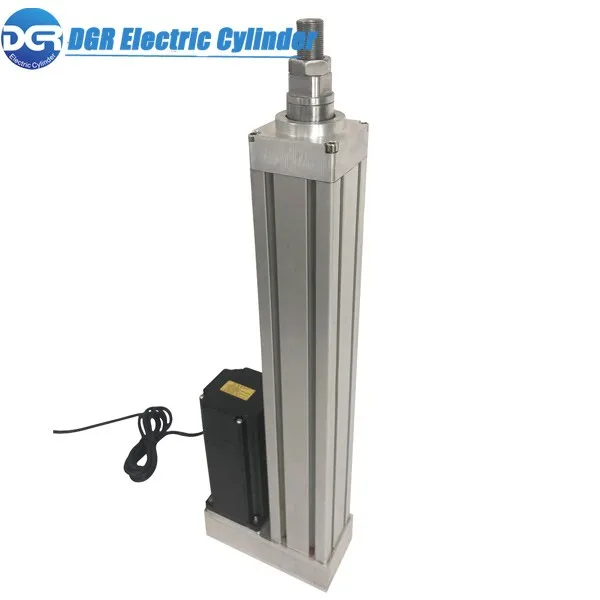

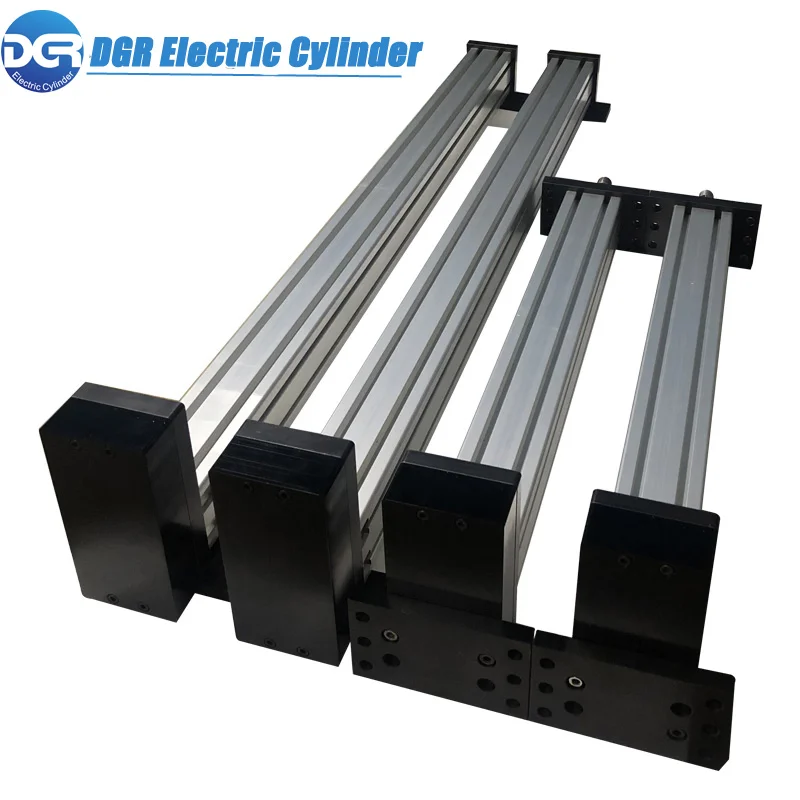

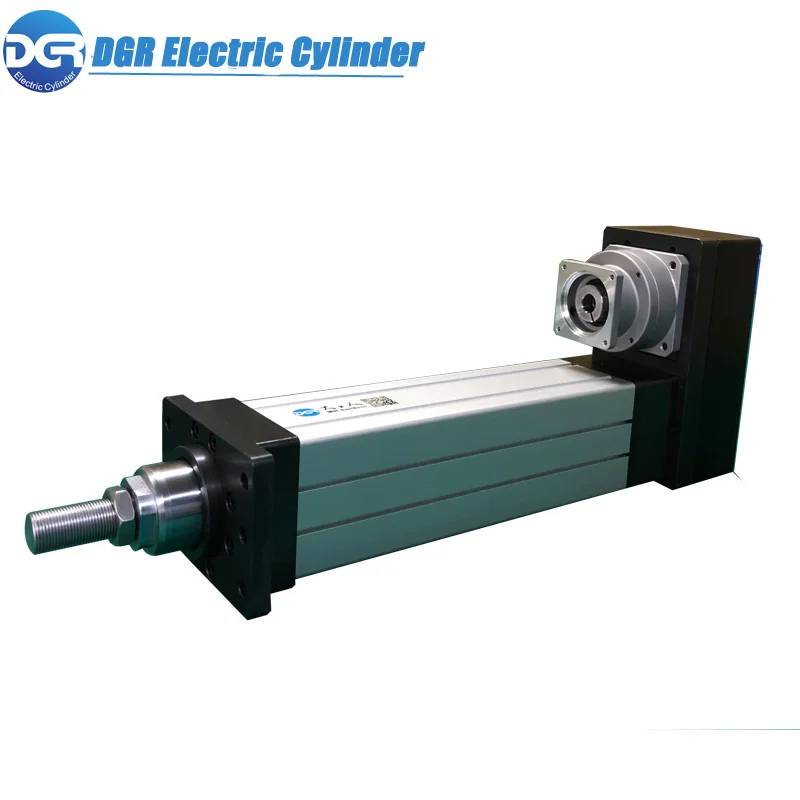

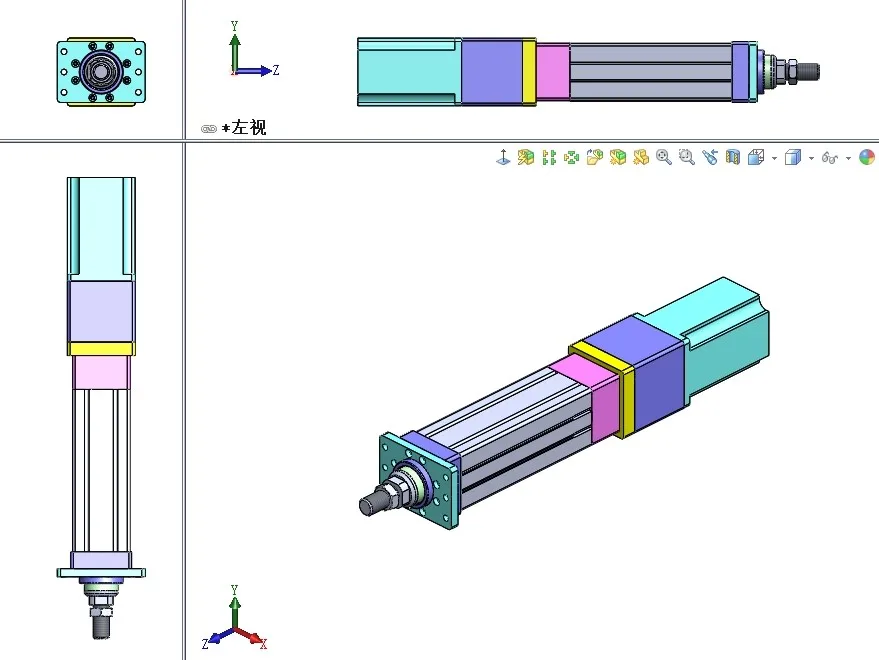

DGRST85 High Precise Ball Screw Servo Drive Low Noise Square Electric Cylinder Technical Data
| Product Series | DGRST85 | ||||
| Screw lead / pitch (mm) | 5 | 10 | 20 | 40 | |
| Max. Power of Motor (W) | 2000 | ||||
| Max. Rated Thrust (N) | 10000 | 10000 | 8000 | 8000 | |
| Max. Speed (mm/s) | 167 | 250 | 667 | 1000 | |
| Rated Driving Torque (N.m) | 7 | 16 | 25 | 30 | |
| Max. Ball Screw Diameter (mm) | 25 | 25 | 20 | 20 | |
| Rated Dynamic Load of Ball Screw (kgf) | 1724 | 2954 | 1387 | 653 | |
| Max. stroke (mm) | 1500 | ||||
| Axial Backlash (mm) | 0.02-0.04 | ||||
| Lead Error Every 300mm (mm) | 0.023 | ||||
| Repeatability Accuracy (mm) | 0.02 | ||||
| Flange Size of Optional Servo Motor Series (mm) | 90/100/110 | ||||
| Flange Size of Optional Stepper Motor Series (mm) | 86/110 | ||||
| Flange Size of Optional Gear Box Series (mm) | 90/120 | ||||
Note:
1.If you need to know the ball screw life, please contact customer service for detailed consultation;
2.The max. thrust and the max. speed can not be reached at the same time. Different motor and gear boxes will be used.
3.If the Max. stroke exceeds 500mm, it is recommended to add a guiding device;
Note: If above parameters can not meet your needs, please contact us, we can customize according to your requirements with NO MOQ.
DGRST85 Electric Cylinder Features :
High Accuracy
High precision, the processing of key parts is completed by CNC machining, and the machining accuracy is within 0.02mm.
Long Life
Run over a distance of 100,000km
Careful Material Selection
1.Select aluminum alloy as the cylinder material, simple and light, beautiful appearance
2.Select sensor components of internationally famous brands .
3.Select high-quality grease to minimize friction, which enables the drive efficiency to reach up to 90%.
Refined Design and Processing
1.The connection between the screw nut and the piston rod is rigid
2.All screw threads are coated with screw locking adhesive after commissioning to ensure the equipment is stable and trouble-free.
3.Electric cylinder comes with anti-rotation mechanism by default
4.Servo electric cylinders work in complex environments only require regular grease lubrication. No consumable parts need maintenance and replacement, which will reduce the cost of after-sales service compared to hydraulic systems and pneumatic systems.
Excellent Service
1.Each DGR electric cylinder is backed by a lifelong tracking service to ensure it can be used normally over its life cycle. (including: handling product failure, providing spare parts and technical support)
2.DGR Electric cylinder can be custom engineered for customer's particular application.
Duty Cycle
Ball screws are used for frequent operation of electric cylinders, the duty cycle is ensured to be greater than 50% or continuous operation.
Complete Testing
Professional factory inspection: including appearance, mechanical properties, stability, noise decibels, etc.
Wide Selection of Motors
1.A variety of AC servo motors or stepper motors for option: such as Delta, Mitsubishi, Panasonic, Yaskawa and other brands
2.Motor comes with brake to ensure secure operation.
Recommendations
Applications

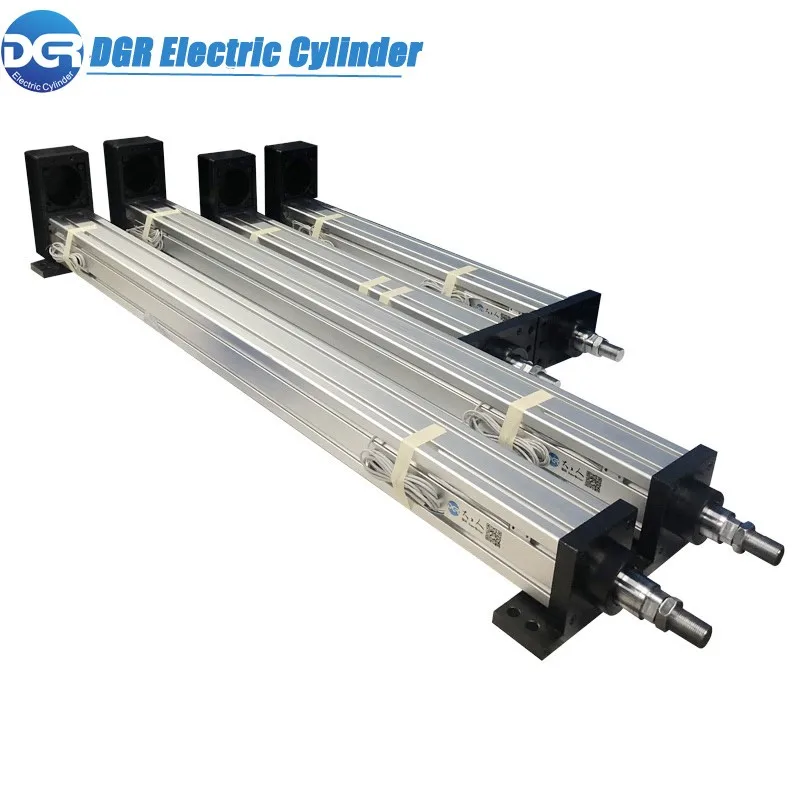

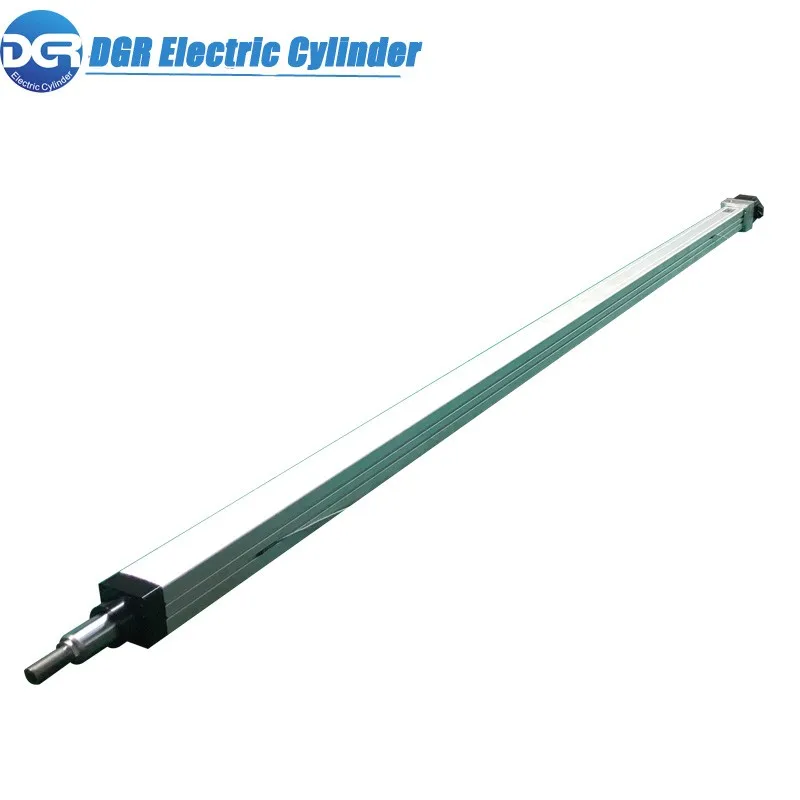

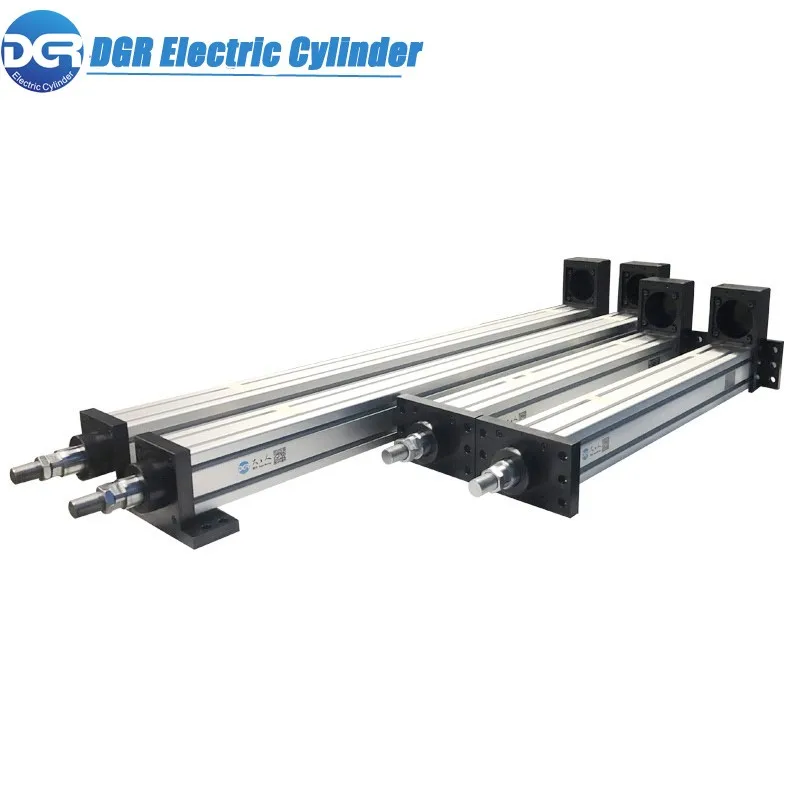

DGRST85 High Precise Ball Screw Servo Drive Low Noise Square Electric Cylinder

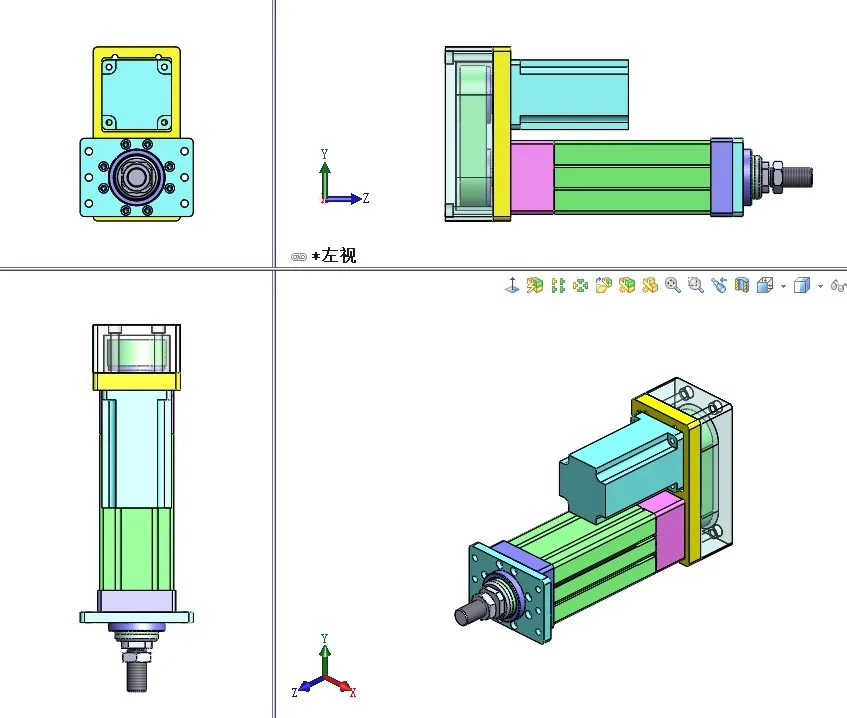

Dagongren Electric Cylinder ST-85
Entertainment
Six degrees of freedom motion platform widely used in a variety of simulation, entertainment equipment, robotic arms, dynamic seats in movie theaters.
VR Simulations
Multi-degree of freedom platforms can be applied to virtual reality motion seats, such as: VR gaming, racing simulator
Automobile industry
Electric cylinder servo press is widely used in: Automotive industry: Press-fitting of engine components (cylinder heads, liners, oil seals, etc.), press-fitting of steering gear assemblies (gears, pins, etc.), press-fitting of driveshaft assemblies, press-fitting of gearbox assemblies, brake disc assemblies Press-fitting, etc.;
3D Robotic Billboard
The motor controls the motion of each unit in the 3D robotic billboard, and constructs various static and dynamic patterns through matrix elevation changes to simulate three-dimensional topography, text patterns, wave motion, and the like. The 3D robotic billboard can also be combined with projection and digital image to realize the multimedia and digitization of the matrix, making it more ornamental and dynamic.
Automation Industry
The electric cylinders are widely used in the automation industry, such as automation production line, steel continuous casting, material handling, injection molding machine, valve control, precision machine tools, pharmaceutical machinery, precision machining, mechanical lifting platform, food industry, etc
Our Company
Shenzhen DGR Electric Cylinder Technology Co., Ltd.compared with other systems that use hydraulic pressure or air pressure as the drive source, the electric cylinder is directly controlled by an electric motor, and no intermediate medium such as oil and gas is needed to transmit power.
This can avoid systematic errors due to oil leakage and air leakage, so the electric control system has superior control performance, faster speed, higher carrying capacity and longer life than the hydraulic system.
Our Service
OEM available at NO MOQ;
Customized specifications;
Additional Features applicable;
Fast reply within 12 hours, 7~15 days' delivery, high reputation in globe.
