Safety Standard:
IEC609501/IEC60065
IEC63335-1
EMC Standard:
EN55022/EN50024/EN61000-3-2
EN61000-3-3
Power High Efficiency:
Meet Level VI


INPUT | Voltage Range | 90-264VAC | ||
Frequency Range | 47-63Hz | |||
Standby Power | 0.1W max | |||
Efficiency | ErP 3.0 / CEC VI | |||
AC Input Current | 1.5A max at 230VAC at full load | |||
Inrush Current | Peak inrush current shall be limited to 30A within 10ms at 264VAC ( Cold Start ) | |||
OUTPUT | DC Voltage ( Range ) | 12V max | ||
Voltage Range | ±5% | |||
Load Current ( Range ) | 2.5A max | |||
Range Power | 12.5W max | |||
Line Regulation | ±1% | |||
Load Regulation | ±5% | |||

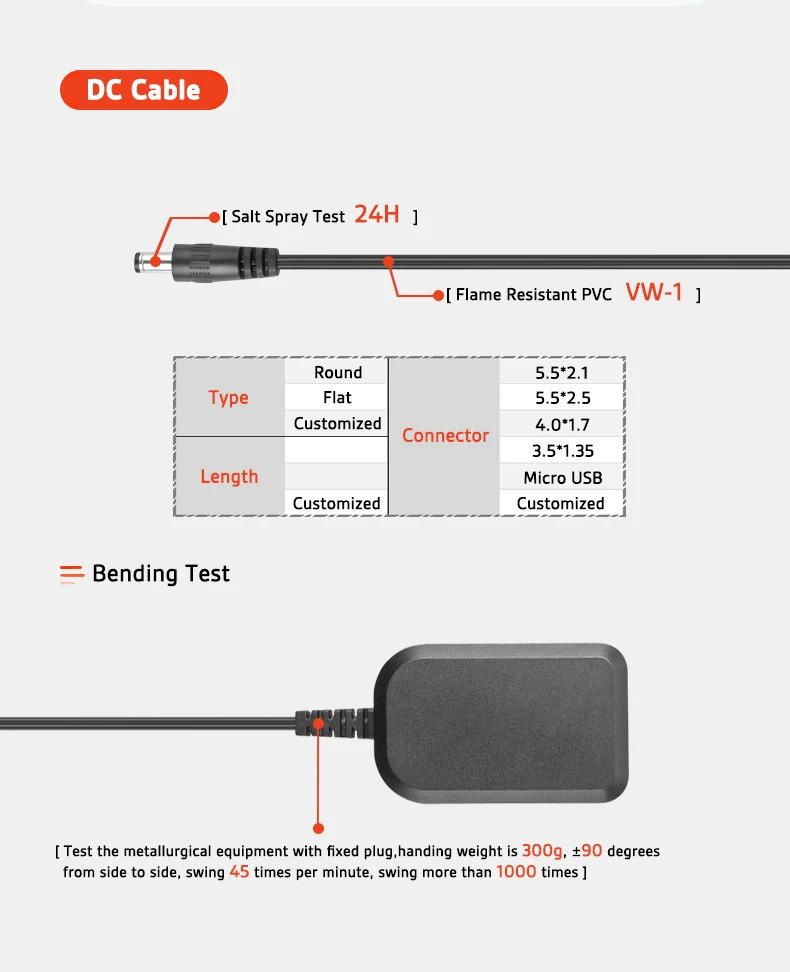

DC Cord | 1.5m | |||
Connector | 5.5mmx2.1mm 5.5mmx2.5mm 4.0mmx1.7mm Micro USB USB Type-C or customized | |||

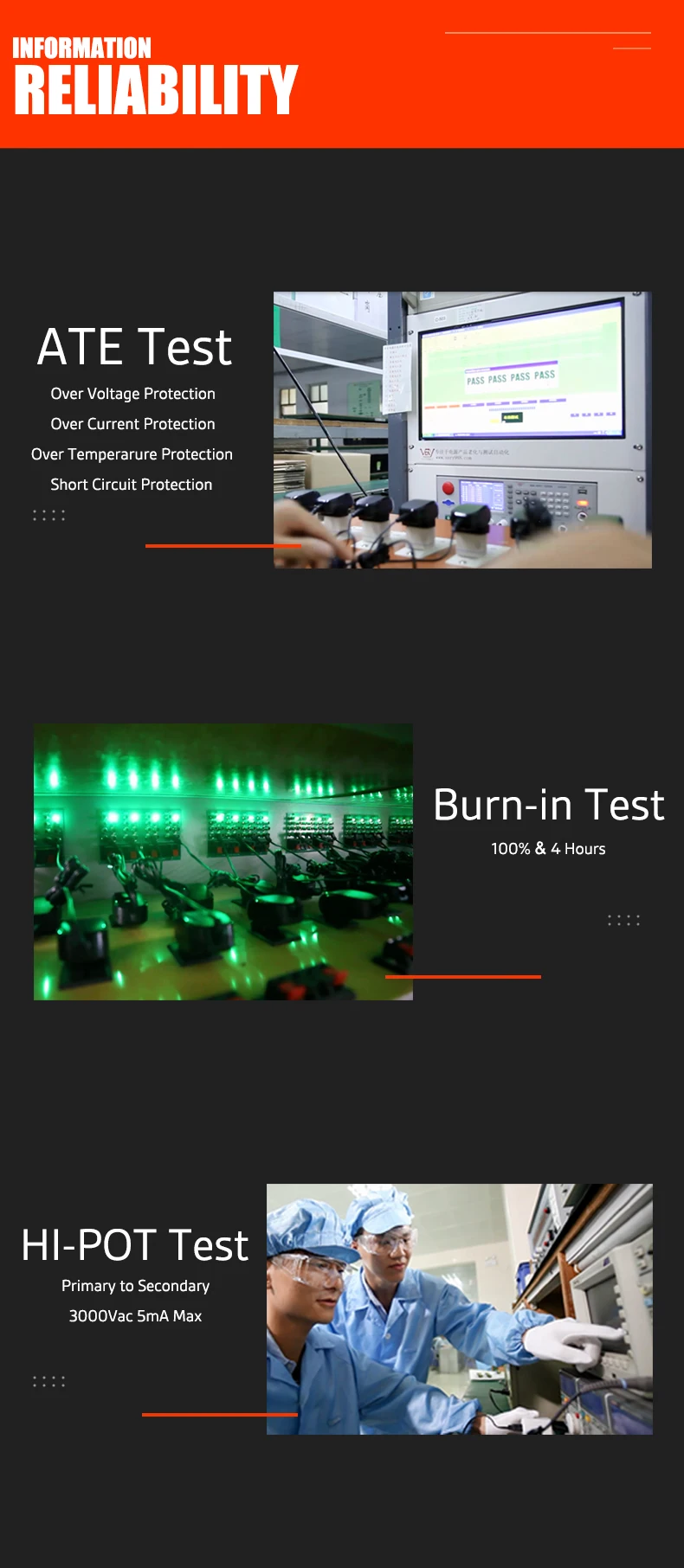

Protection | Over-Current Protection | |||
Over Voltage Protection | ||||
Over temperature Protection | ||||

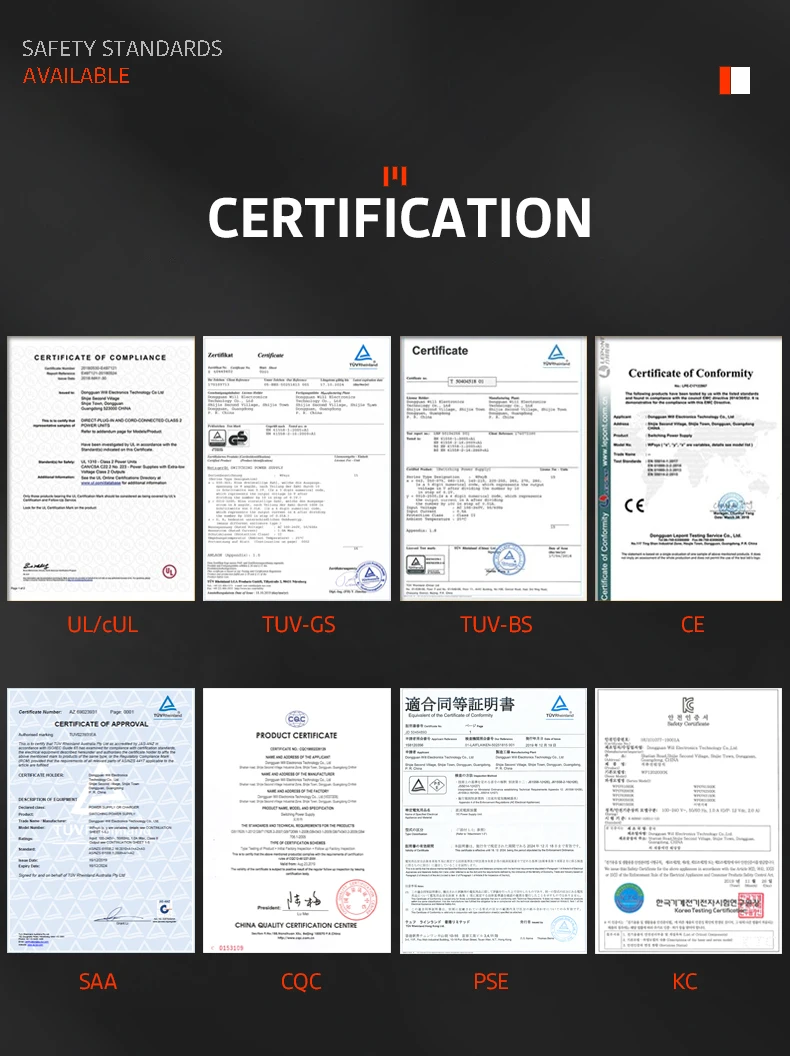

Safety Approval | CUL / CE / TUV-GS / TUV-BS / RCM / PSE / UL | |||
MTBF | 20,000H | |||
Warranty | 24 months | |||

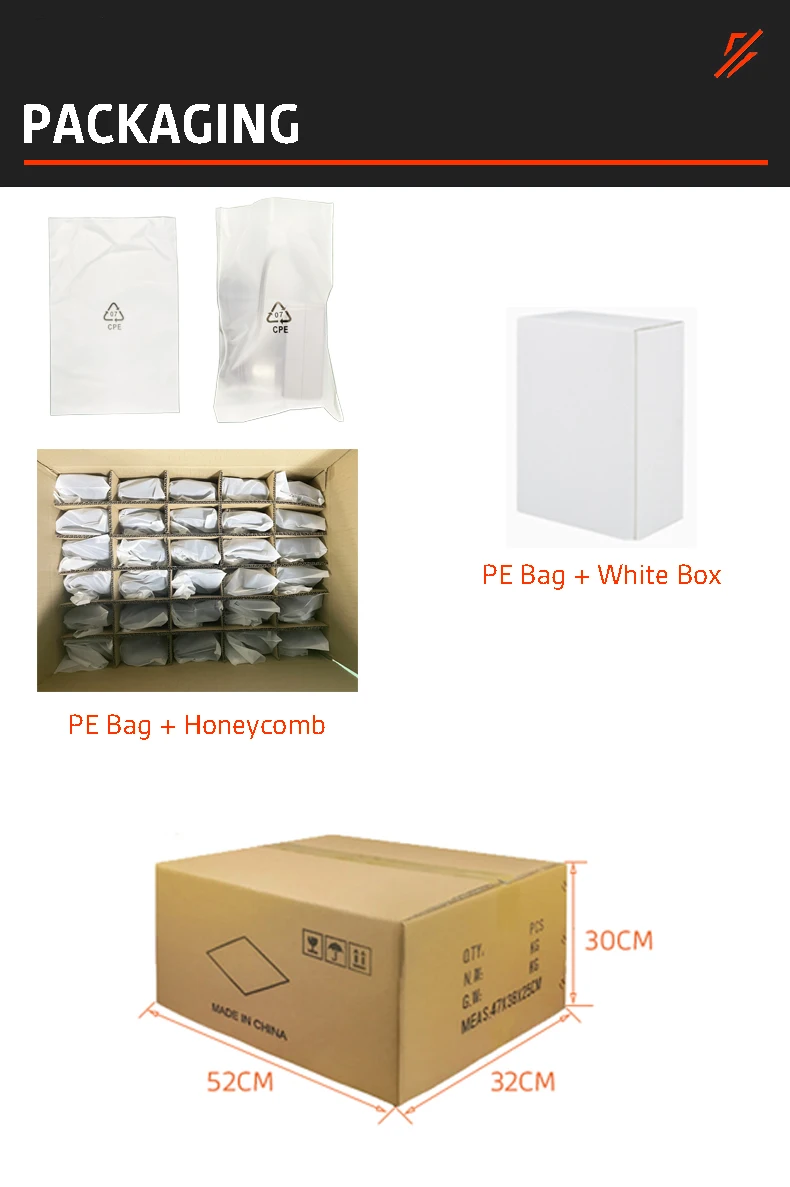

Packaging | with PE bag and white box | |||
