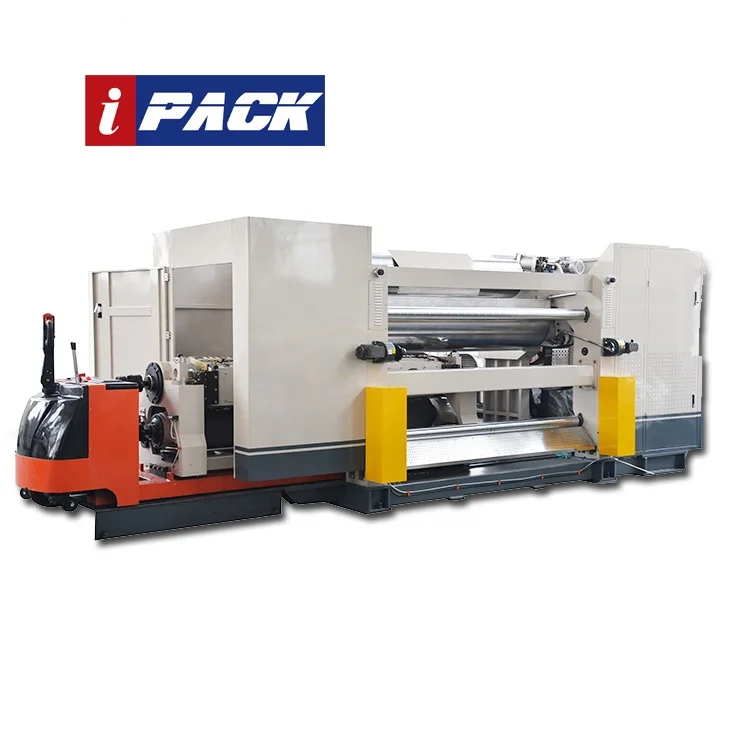

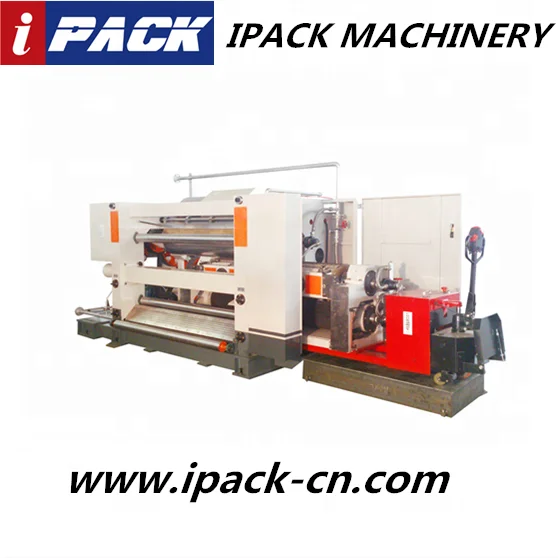

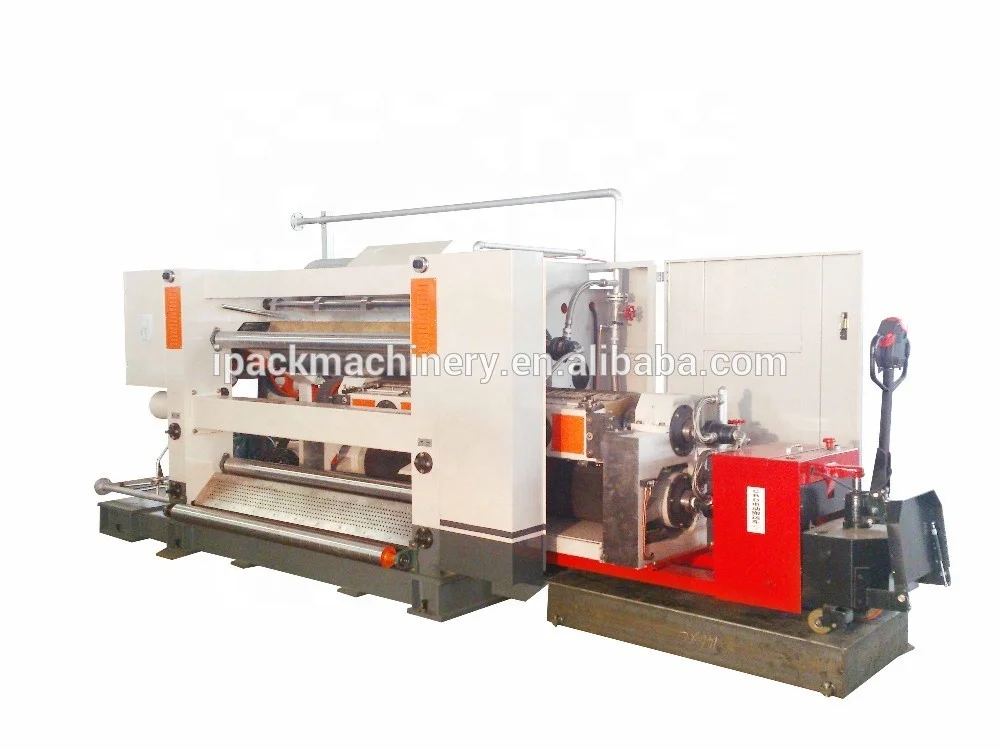

Fast change roller machine 360 model cassette type single facer machine
- Category: >>>
- Supplier: Cangzhou Ipack Machinery Manufacture Co. Ltd.
Share on (62054489545):
Product Overview
Description
1.Machine Description:
*Single facer is design for producing single-face corrugated paper:This machine is cassette type design, easy and quick to change flute in 15mins with dolly by hydraulic system
2.Machine Function:
*Corrugated Rollers:
Diameter | Φ360mm
|
Material |
48CrMo high quality alloy steel, rigidity HRC55°-58° |
Processing Way |
After quenching and tempering,The surface of upper-lower roller is ground, then plating chrome or tungsten carbide |
Control Way |
Airbag control Lifting Up-down |
Driving Way |
frequency motor |
Way of Transmit cardboard |
Vacuum Cover adsorbable style, Height pressure Draw fan with noise deadening device |
Way of Bearing lubricating |
High temperature grease |
Fulte Type |
(U/V) ACBEF(According to customers requirements) |
*Press Rollers:
Diameter | Φ415mm
|
Material |
Carbon steel (MS)45# |
Processing Way |
After quenching and tempering,The surface of upper-lower roller is ground, then plating chrom |
Control Way |
Airbag control Lifting Up-down |
Way of Bearing lubricating |
High temperature grease |
*Glue Rollers:
Diameter | Φ269mm |
Material |
Carbon steel (MS)45# |
Processing Way |
Surface is ground,inscribed with 25 lines of pitted mesh,then plated chrome |
Driving Way |
frequency motor |
Way of Bearing lubricating |
High temperature grease |
Glue Supply |
Automatic glue circulating system(storage tank+glue pump);PLC automatic control glue and electric adjust glue width;Independent glue unite |
*Preheater Rollers:
Diameter | Φ400mm |
Material |
seamless steel tube |
Processing Way |
After quenching and tempering,The surface of roller is ground, then plating chrome |

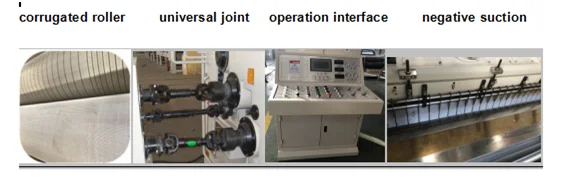

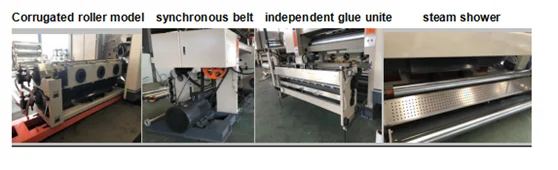

3.Main Components:
4.Machine Technical Parameter:
Working Width | 2200mm |
Design Speed | 200m/min |
Working Speed | 180m/min |
Pneumatic Source Pressure(Mpa) | 0.4---0.8Mpa |
Power | 380V, 50Hz |
Main Drive Motor | 30KW |
Suction Motor | 15KW |
Glue Adjusting Reducer | 0.1KW |
Glue Gap Adjusting Motor | 0.25KW |
Glue Pump | 2.2KW |
5.Main Components Brand:
Components Name | Brand |
Reducer | Taiwan |
Belower | Shanghai |
Main Bearing | NSK |
Main Electrical | Schneider |
Button | Schneider |
Main Motor | Heibei Yongshun |
Inverter | Taiwan |
PLC | Schneider |
Touch screen | Taiwan |
