HeBei LVJOE Machinery Manufacturing (group) Co.,Ltd was established in 1998, it's a diversified development enterprises with researching, designing, manufacturing, international trade, project equipment integration. We are strong company nationally of comprehensive strenght in the gypsum equipment industry. LVJOE had won a lot of national awards, such as high-tech enterprise certificate, gypsum construction equipments research center certificate, many patent certificates about gypsum equipment issued by relative government departments. The Euromean Union issued issued CE quality system certification, ISO9001 quality system certification. We set up the gypsum construcion research center in 2011, is praised as a municipal civilization unit in HeBei Province, the contract and promise keeping unit.

Product Name:

Gypsum Board Manufacturing Machine

Gypsum board producing machine

gypsum board making machine

paper faced gypsum board manufacturing machine

Consumption for making 1 square meter gypsum board

Note: the data will be reduced after continuous working for 3 months. The data can be adjusted with different recipes.

Main Systems Technical Introduction:

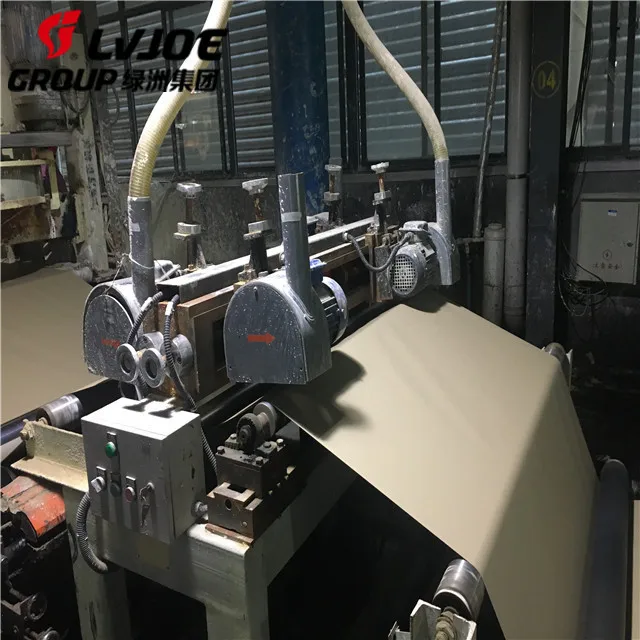

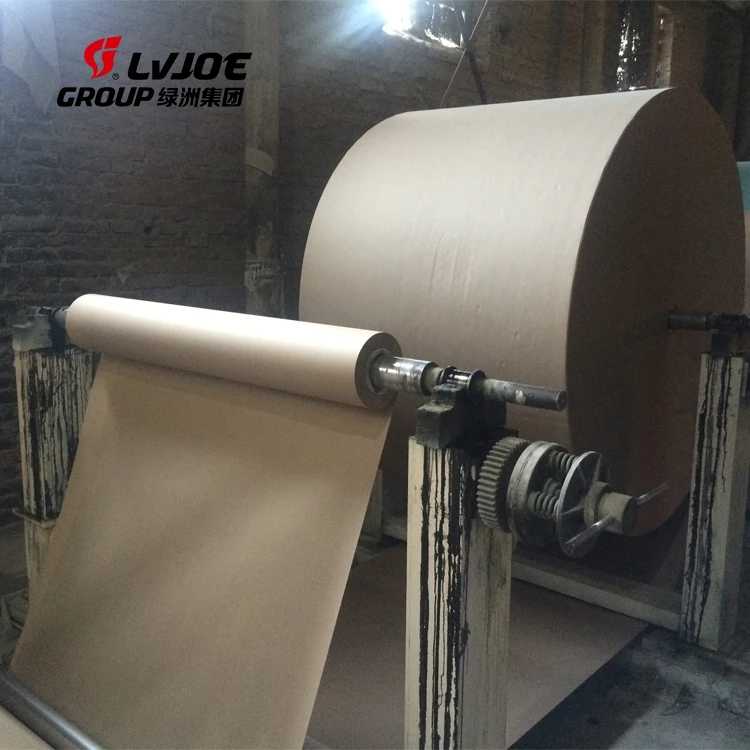

1.  Paper Supply System

It adopts special pneumatic shaft and magnetic powder brake. The high accuracy paper connecting way and high precision electro-hydraulic alignment device, along with the automatic marking device played

very big roles for shaping, and ensured the good appearance quality.

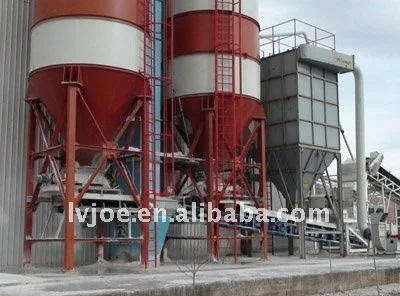

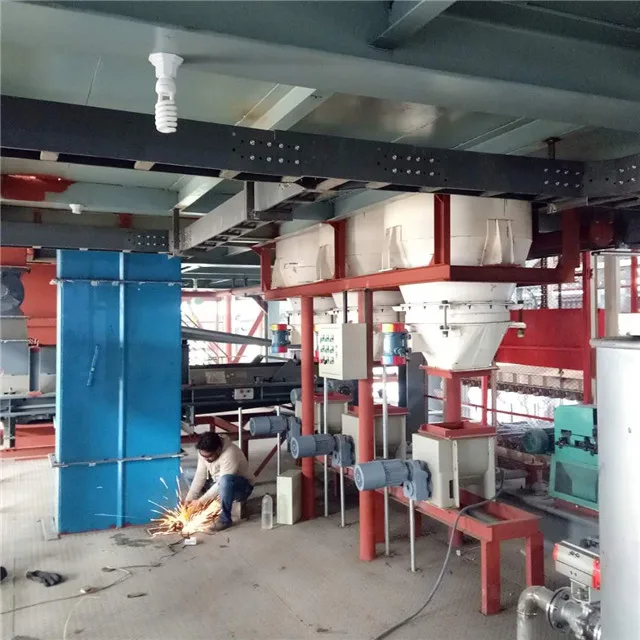

2.Gypsum powder supply system

It takes the exclusive impeller feeder and high precision weighing belt as the core of powder feeding. Thus it ensured normal supply of the gypsum powder. Moreover, it contains series of powder additive storages, discharging and metering feeding systems; glass fiber cutting and its metering feeding systems etc.

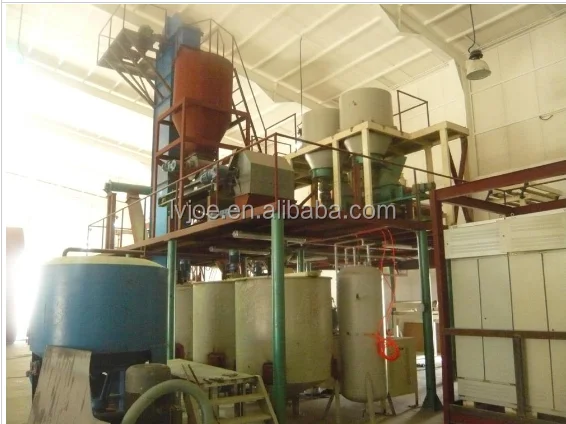

3.Water supply system

It has the accurate screw measurement pump and visual liquid flow meter device which lead great convenience  for operation.

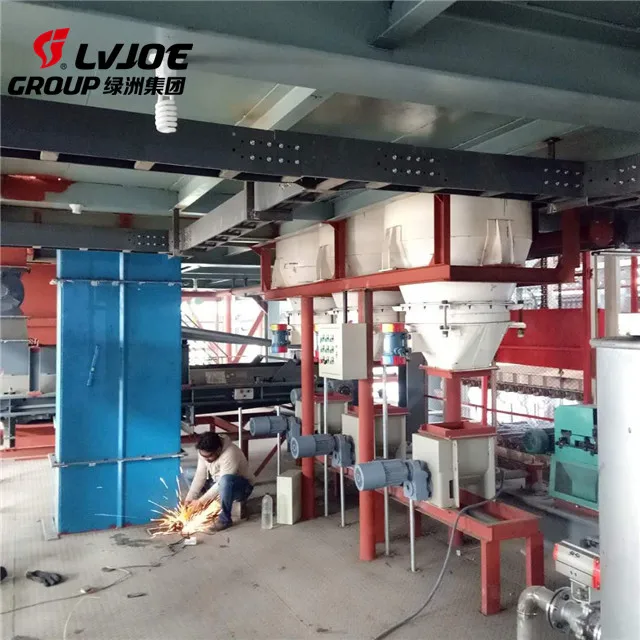

4.Foaming system

It adopts high volume pressostat for gas supply, got screw metering pump and advanced foaming station. The foaming station adopts advanced dynamic and static combined foaming system which makes the foam uniformly enter into the mixer.Thus it has a key effect on improving product quality and testing products’ weight.

5.Forming System

The vertical mixer and the pneumatic forming device are made of special wearable stainless steels which enhance the system’s wearable ability and prolonged its life span. The vertical mixer got pin type, none-pin type and other types to choose.

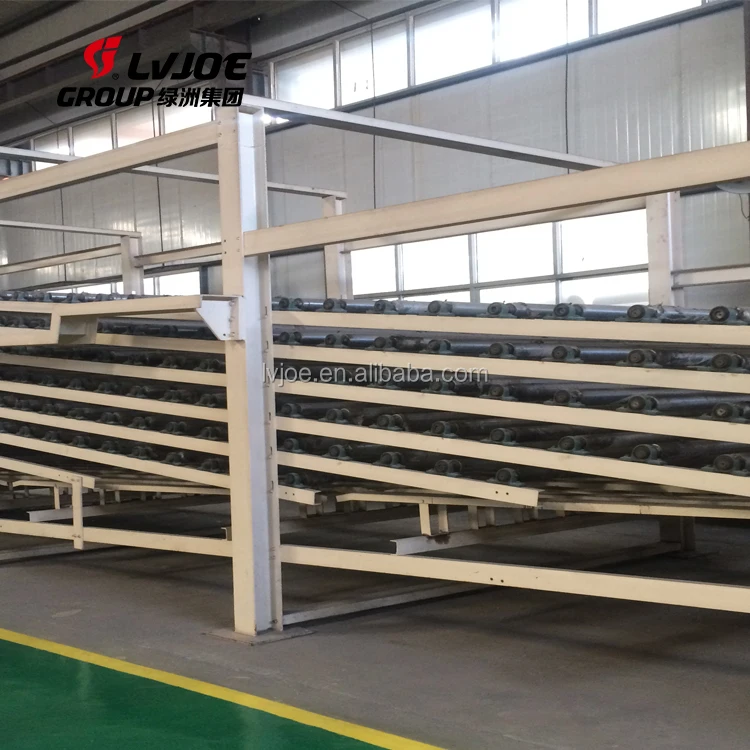

6.Conveying System

This system added the waste board dumping device which reduces the workers’ labor intensity and ensures the cleaness of workshop.

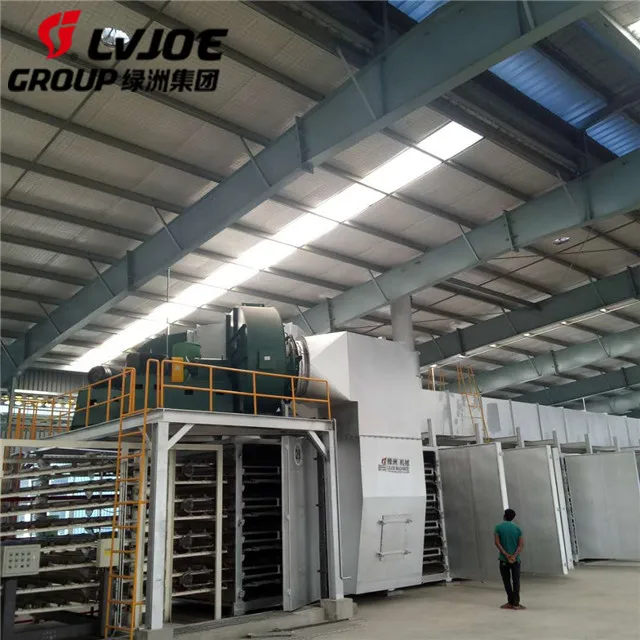

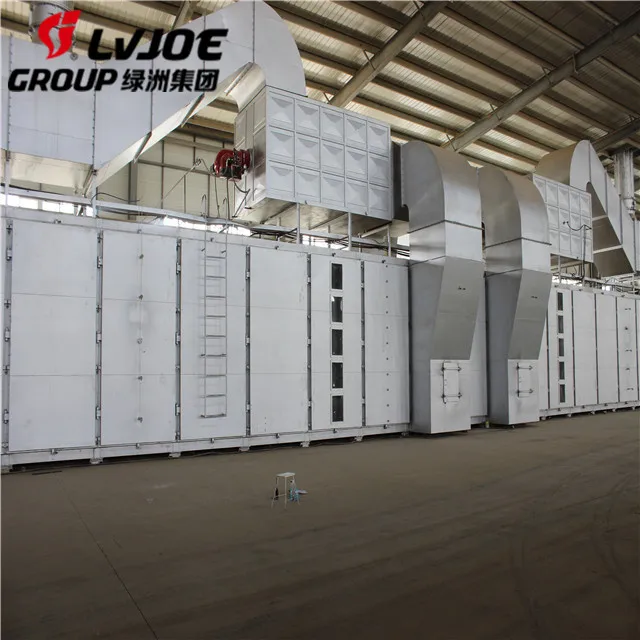

7.Drying System

The drying system is the core of the whole production line and it affects the quality and the energy consumption of the products. It has interior muti-layer coiler heat releasing type, external finned  heat exchanging type, and

hot air direct drying type. According to the airflow direction, it has longitudinal airflow type, transverse airflow

type, and Longitudinal, Transverse combined airflow type. And it also can configure waste heat recovery system under customer’s demand. Inside of the dryer, there are various regulation and controlling mechanisms to stabilize the temperature and airflow of each layer freely, thus it guarantees the quality of the gypsum board, and reduces energy consumption.

8.Heating System

Most of this system uses the organic thermal carrier boiler (thermal oil boiler and hot air boiler), which takes coal, oil, and nature gas as main fuels. The thermal oil type boiler takes thermal oil as the carrier and the oil is carried into the heat exchanger of the dryer by the high pressure oil pump, as for the hot air boiler, it makes direct use of the hot air, and blow it to the dryer, fully makes use of the energy, and reduces the cost.

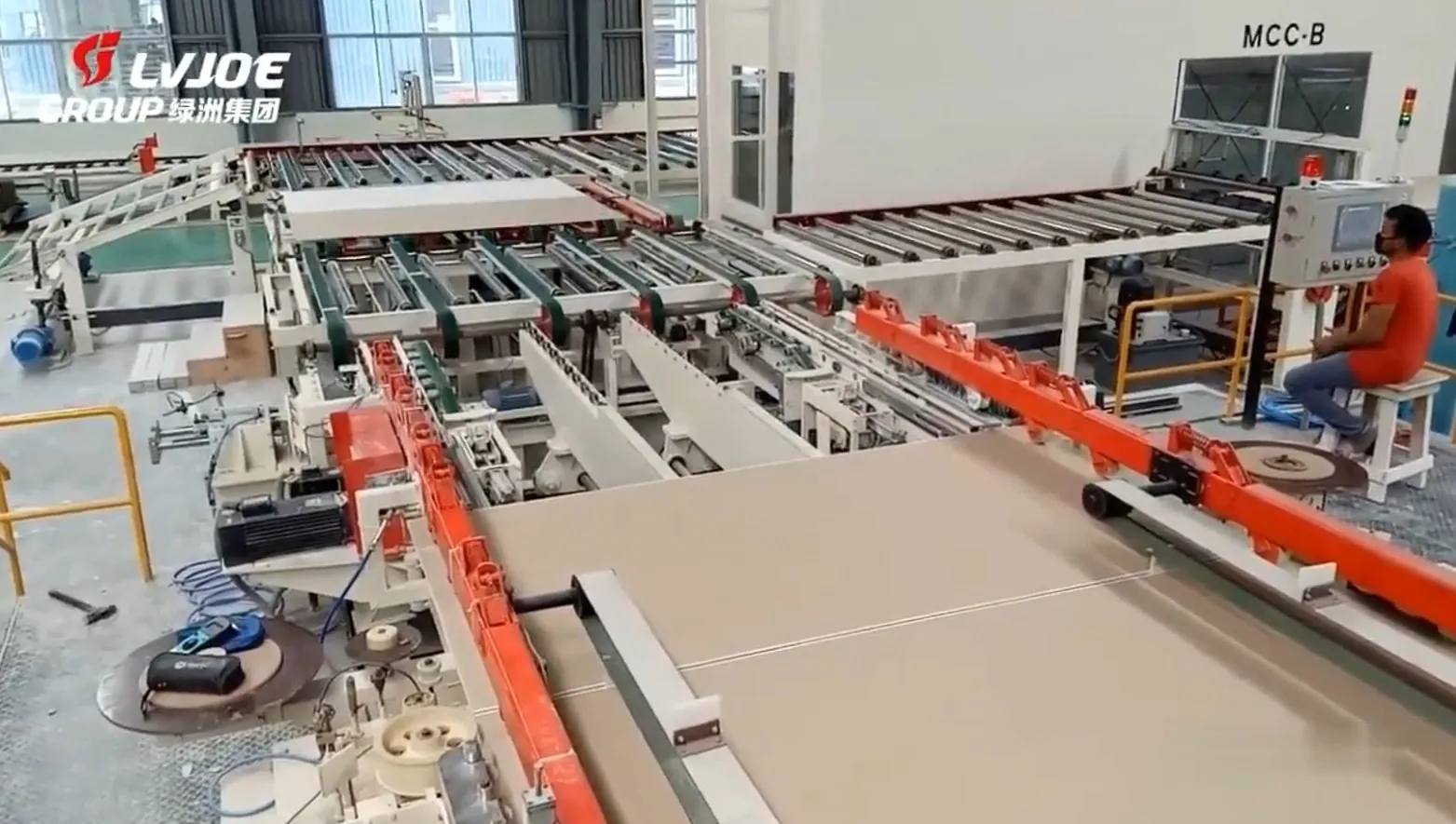

9.Edge Cutting and Sealing System

After turning over and folding the board, the system cuts the folded board and seals it together. The waste raw material after cutting is chopped into powder, let this powder absorb slurry, then can be used as accelerator. The sealing system adopts advanced technology from abroad and domestic, reduced cost, and improved efficiency.

10.Dust removal system

This system uses the pulse blow bag dust collector, this kind of dust collector improves the dust removal effect, and makes it reach the environmental standard. In addition. It is convenient to deal with the dust and recycle. This system is good for the country and the people.

11.Control system

All of the three control stations adopt PLC control system. AC contactor and drive device chose reliable brand, and it also uses the contact-less equipments such as frequency converter, photoelectric sensor etc.

Insured the reliable operation and realized the long-term and continuous fully automatic running of the gypsum

board production line.

Paper faced gypsum board production line is a kind of light weight board decorating material with many specifications, whose main raw materials are calcined gypsum(natural gypsum, desulfrized gypsum,phosphor gypsum) and card board(face paper),adding certain percentage of water, starch, additives and foaming agent, after mixing, forming,cutting,drying,shearing and sealing procedures etc. It got the features as: light weight, fire-proof, water-proof, heat insulation, vibration-proof, simple to produce, easy of application, elegant decoration effect etc.

How we work

1. Sales Team: 24hours online for you

2. Designing team: design the best layout for you

3. Manufacuring team: promise best quality with high presion

4. Installation & Commissioning team: finish the installation and testing of whole line

5. Process team: promise you the qualified formula

All above to promises you a 100% perfect project.

Service

1. We provide production line design, cost accounting, installation and pperation, equipment maintence and the whole life cycle technical support

2. Provide technical formula for clients, to help clients to occupy the leading position in th market.

3. Provide production line equipment technical data and instruction

Quality

We regards product quality as the lives of enterprised, the main components and wearing parts are made of high quality wear-resistant materials and advance processing technology, so that the equipment endurable and wear resisting, wearing parts warranty for one year, and our company perennial supply of device of wearing parts.

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 90 days. It is according to different situation..

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample  but we do not pay the cost of freight.

Q: What is your way of payment ?

A:L/C or T/T.
If you have another question, welcome to our factory.
