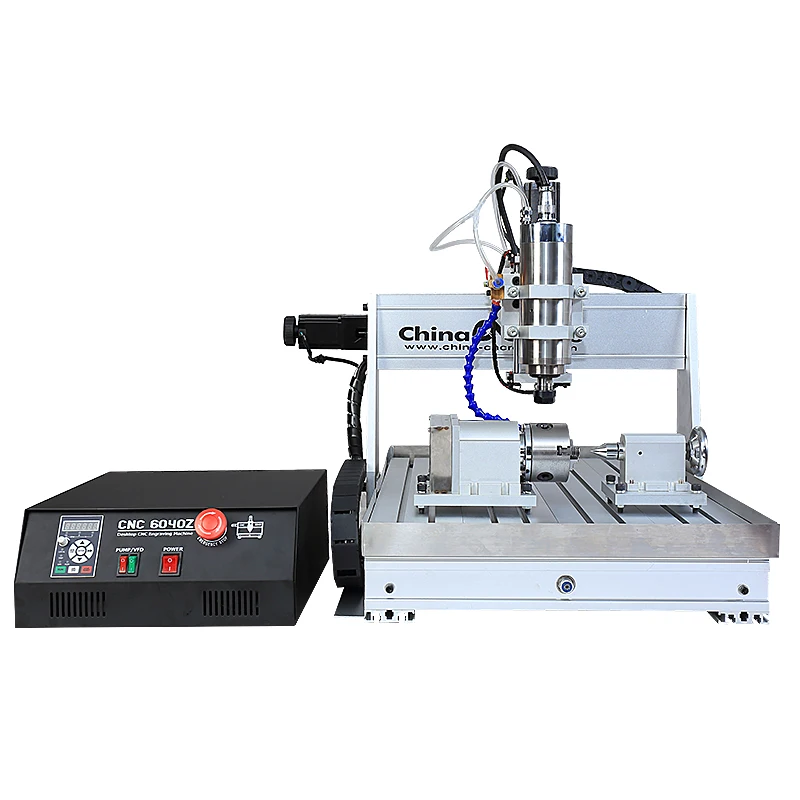

Small desktop 3/4 axis 2200W water cooling spindle 6040 mini cnc milling router Machine with water sink
- Category: >>>
- Supplier: Shenzhen Scotle Technology Ltd.
Share on (62054527362):
Product Overview
Description
Product Description

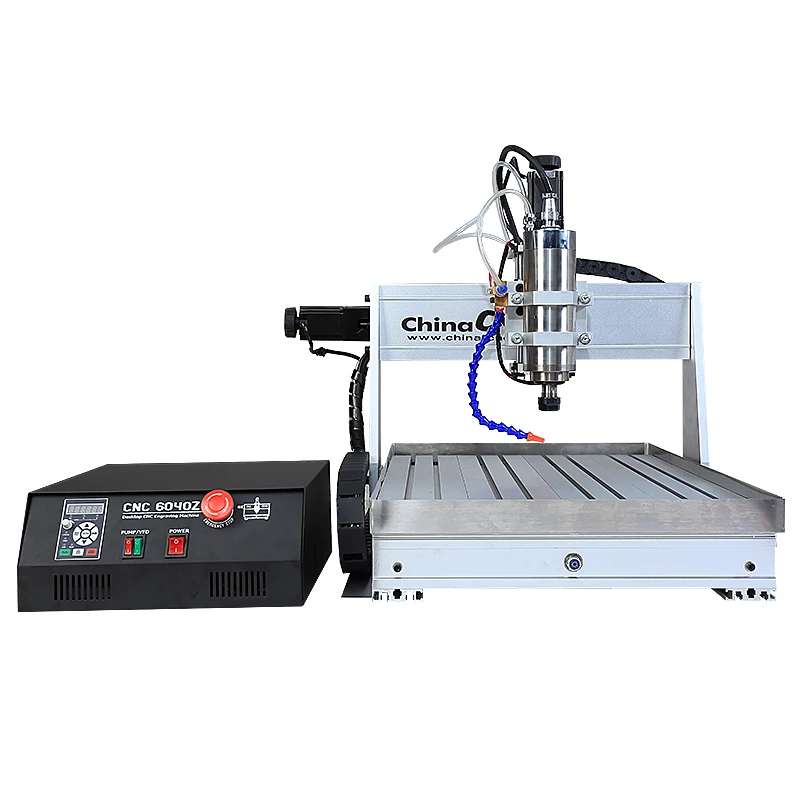

ChinaCNCzone 3/4 axis CNC 6040 Engraving machine with water sink
Effective working travel | 400(X)mm*600(Y)mm*105(Z)mm | Stepping motor type | 57 two-phase 3A 150N.cm | ||||
Shape dimension | 890*690*525mm | Spindle motor | Brand new 1500W water cooling spindle, 24000RPM | ||||
Work table dimension | 742mm*480mm | Principal axis collet | ER-11A 3-7mm, ER-16A 3-10mm | ||||
Frame materials | Aluminum alloy 6063 and 6061 the unique and dedicated mold extrusion profiles. let counterfeiters dwarfs | Repeat accuracy | 0.05mm | ||||
acceptable material thickness | ≤95mm | Spindle precision | radial beat acuities 0.03 mm | ||||
Driving units | X/Y/Z axis | 1605 ball screw | Software environment | MACH3 Support windows XP, USBCNC support Windows XP, Windows 7 | |||
Sliding units | X axis | Dia.16mm chrome plate shafts | Maximum speed | 0-4000mm/min | |||
Y axis | Dia.20mm chrome plate shafts | Control unit | Toroidal transformer + PWM power supply module + TB6560 3axis drive board | ||||
Z axis | Dia.13mm chrome plate shafts | Computer connection | USB port and Parallel port | ||||
Command code | G code, or any MACH3 support format file | Warranty | One Year | ||||
Protection | Emergency stop button | Package and size | one weeden package , 86*65*68cm | ||||
Operating Voltage | AC220V | Gross weight | 80KG(3axis) | ||||
Accessories | Pump, Auto checking tool , cutter, same as accessories photo | 90KG(4axis) | |||||
Features:
Outstanding features for this CNC 6040 3 Axis Mini Wood Engraver Machine .
Machine Structure Highlights
* USB and parallel interface both support
* Ball screw made it a higher precision
* Limited switch added
* 1500W/2200W water cooling spindle
* 4th axis can be Plug-and play, no need to replace controller box.
Machine Structure Highlights
* USB and parallel interface both support
* Ball screw made it a higher precision
* Limited switch added
* 1500W/2200W water cooling spindle
* 4th axis can be Plug-and play, no need to replace controller box.
- Control System Highlights
* Easy operate Mach 3 or USB CNC software
* Auto-Checking function, easy to set origin of Z axis
* Built-in frequency converter in control box
* The control box can be CNC 3 axis & CNC 4 axis universal
* Auto-Checking function, easy to set origin of Z axis
* Built-in frequency converter in control box
* The control box can be CNC 3 axis & CNC 4 axis universal

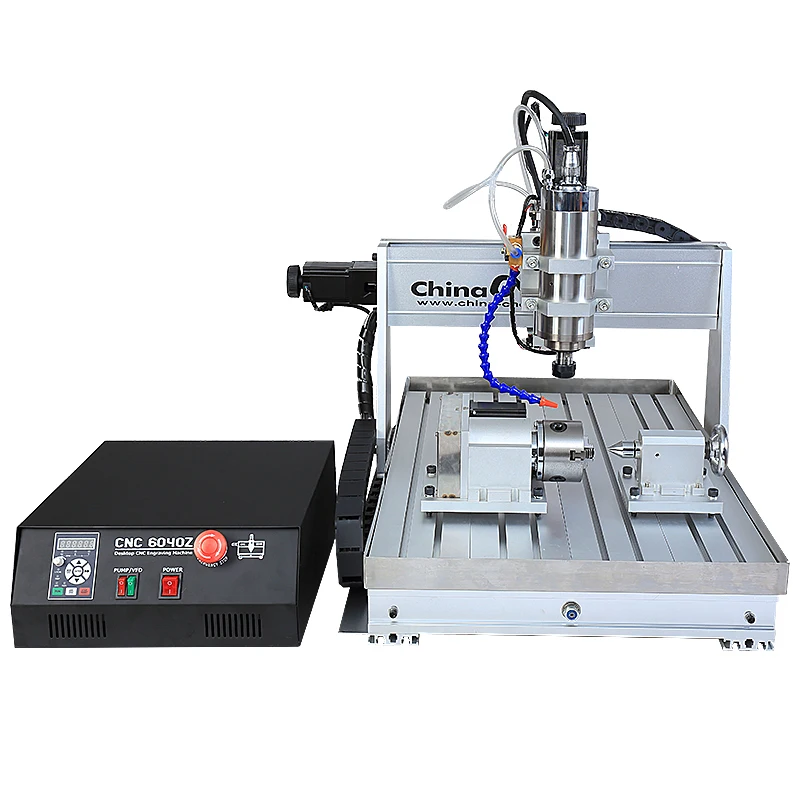

Rotation axis parameter (the 4th axis) | ||
The 4 axis size (mm) | 220(L)*116（W）*105（H） | |
Center height | 65mm | |
External diameter | 80mm | |
Hold diameter | 60mm | |
Reduction | 1:6 | |
We have 3 types of Port for your option: LPT (Parallel Port) / USB (Port) / DSP (DSP controller box) . Different Ports have different controller box.
For connection issues:
Using LPT Parallel Port as a expample

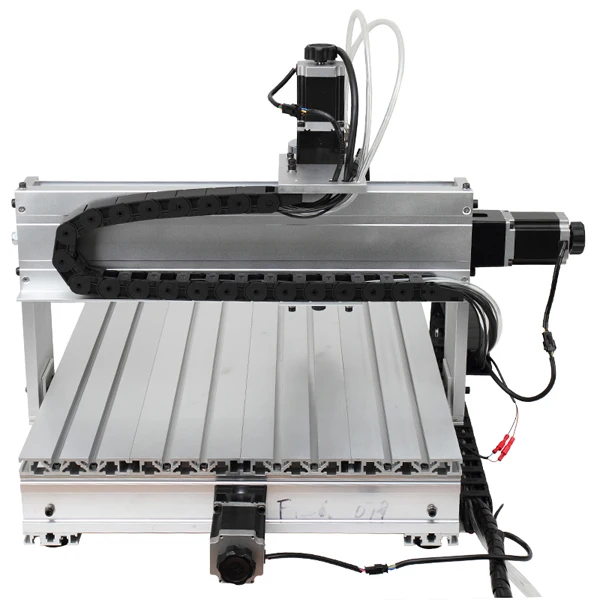

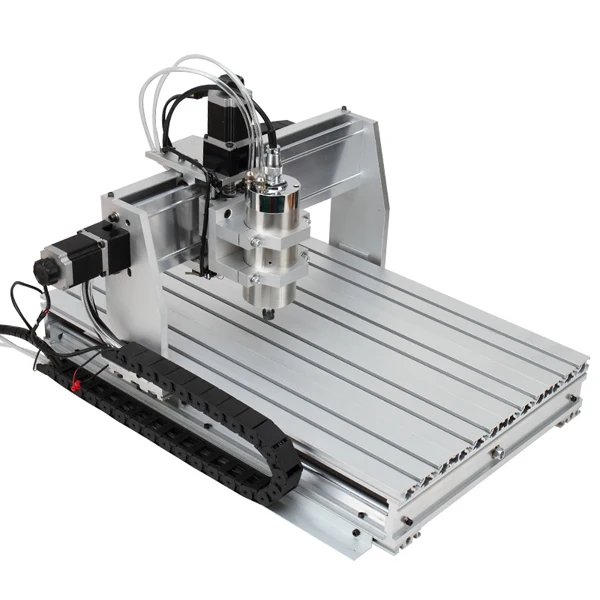

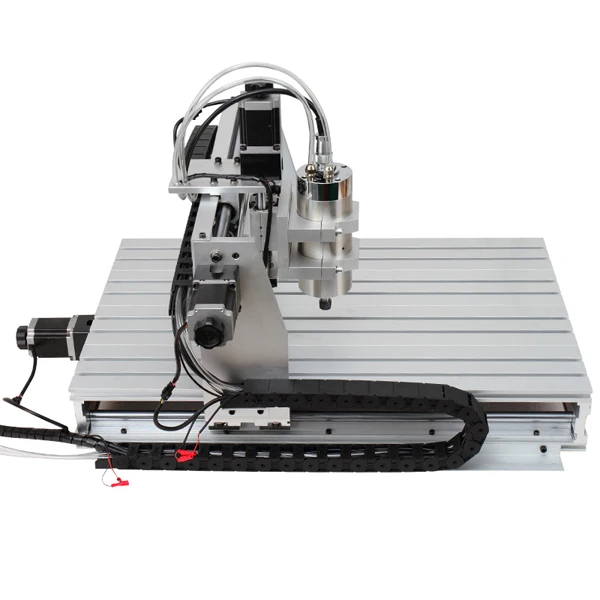

Detailed Images
Size Information
Related Products

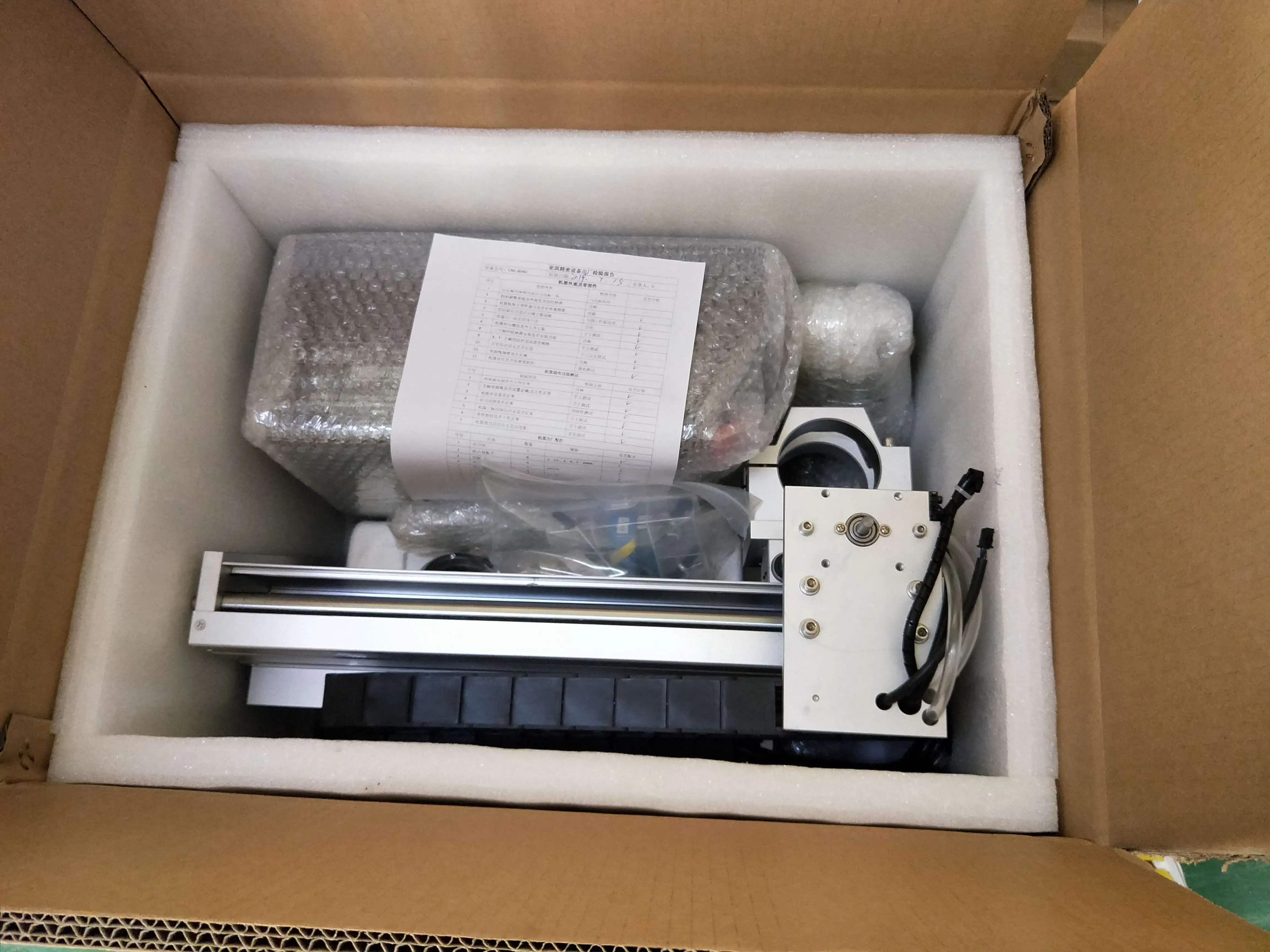

Packing&Shipping
One wooden box: 86*65*68cm; Gross Weight: 80KG (3 axis ) 90KG (4 axis) with water tank.

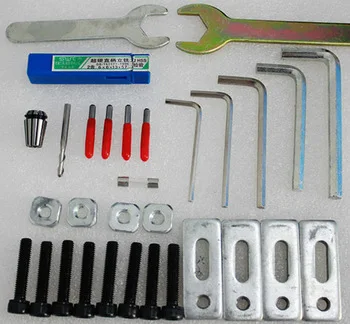

Packing list:
1 water pump *1
2. Fixed briquetting *4
3. milling bit *1
4. clamp tool *3
5. auto-checking tool *2
6. clamp tool *6
2. Fixed briquetting *4
3. milling bit *1
4. clamp tool *3
5. auto-checking tool *2
6. clamp tool *6
7. engraving bit *3
8. limited switch *2
9. screws *4
10 collet 3.175 / 6 *1
11.USB cable&CD
12.rotary axis（optional）
13.water tank（optional）
14.2.2kw/1.5kw spindle（2.2KW is standard，1.5KW is optional .Please contact me if you choose 1.5KW）
8. limited switch *2
9. screws *4
10 collet 3.175 / 6 *1
11.USB cable&CD
12.rotary axis（optional）
13.water tank（optional）
14.2.2kw/1.5kw spindle（2.2KW is standard，1.5KW is optional .Please contact me if you choose 1.5KW）
Company Introduction
Shenzhen Scotle technology limited is a professional supplier of Mini CNC machiine , laser machine and engrave machine, It has more than 8 years export experience , professional presales service and aftersale service, and professional reliable technical support, 2 factories locate in Shenzhen China. Cnczone is one of the branch of the scotle, which is specialised in CNC machine.Through 8 years development , It has already formed perfect managment system and standard opperating procedure , Products exported to more than 100 countries and regions all over around the word. Company always adhereing to "meeting and exceeding customer need " business phynosophy, Helping customer save money and time. To be the best Mini CNC supplier is our beautiful vision.
Our Services:
1.Prompt reply, any problem , Please contact us by email / skype / phone / trademanager online service.
2. We provied picture and video support.
3.Free parts send to you in 1 yeas warranty period, although it rarely occurs.If the parts less than 0.5KG,we pay the postage for you.
2. We provied picture and video support.
3.Free parts send to you in 1 yeas warranty period, although it rarely occurs.If the parts less than 0.5KG,we pay the postage for you.
Why Choose Us
1. We joined Alibaba Trade Assurance to make sure the buyer’s benefit. and we are the high-quality supplier,which has been assessed by Alibaba and SGS.
2. As a professional manufacturer, we have 10 years factory experience for Mini cnc Machine. We are devoting to researching and manufacturing different models of Mini CNC machine .
3. All Self-developed products have been passed certification of CE, FCC, FDA.
4. We have been cooperated with many customers from 100 countries and region, and more and more customers in the world are using our machine, we also received many good feedbacks and reviews.
2. As a professional manufacturer, we have 10 years factory experience for Mini cnc Machine. We are devoting to researching and manufacturing different models of Mini CNC machine .
3. All Self-developed products have been passed certification of CE, FCC, FDA.
4. We have been cooperated with many customers from 100 countries and region, and more and more customers in the world are using our machine, we also received many good feedbacks and reviews.
FAQ
1. Easy operate
We will send you a english manual with the machine.
If still have any question ,please contack us by email / skype / phone / trademanager online service.
2. Video support
In after-sale service, we can also provede video support.
3. Warranty
Free parts send to you in 1 yeas warranty period, although it rarely occurs.
If the parts less than 0.5KG,we pay the postage for you.
4. MOQ
1 set welcomed, it will be a nice try.
5. Accessories & tools
Will send you a tool box as picture.
6.Software & Interface
If use parallel port, use Mach3 software.
If use USB port, use USB CNC software.
We will send you a english manual with the machine.
If still have any question ,please contack us by email / skype / phone / trademanager online service.
2. Video support
In after-sale service, we can also provede video support.
3. Warranty
Free parts send to you in 1 yeas warranty period, although it rarely occurs.
If the parts less than 0.5KG,we pay the postage for you.
4. MOQ
1 set welcomed, it will be a nice try.
5. Accessories & tools
Will send you a tool box as picture.
6.Software & Interface
If use parallel port, use Mach3 software.
If use USB port, use USB CNC software.
