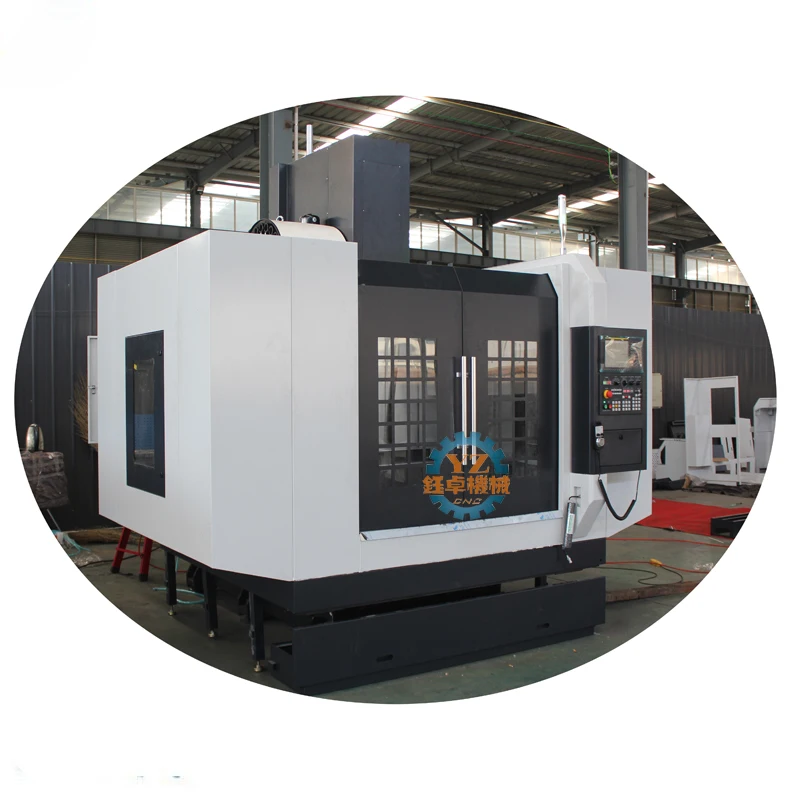

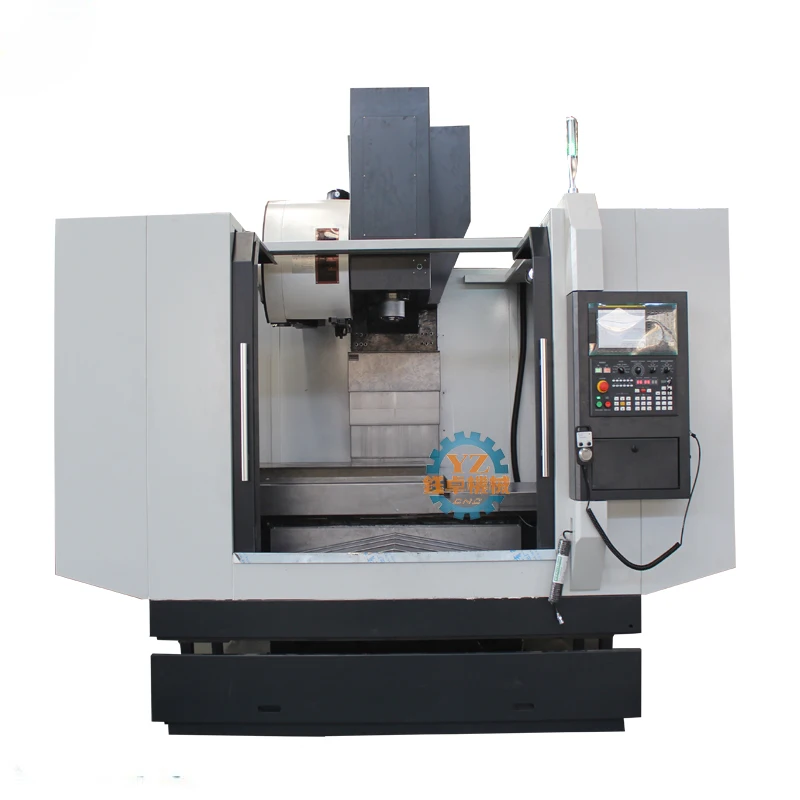

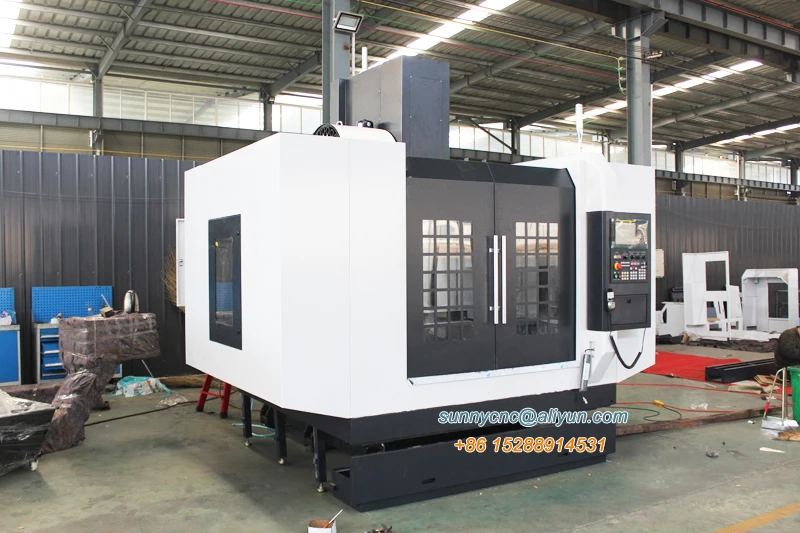

VMC 1270 Vertical CNC Machining Center CNC Milling Machine With FANUC CNC Controller

Share on (62054534894):


Price:$38,800.00

Quantity:


Product Overview

Description



Product Description

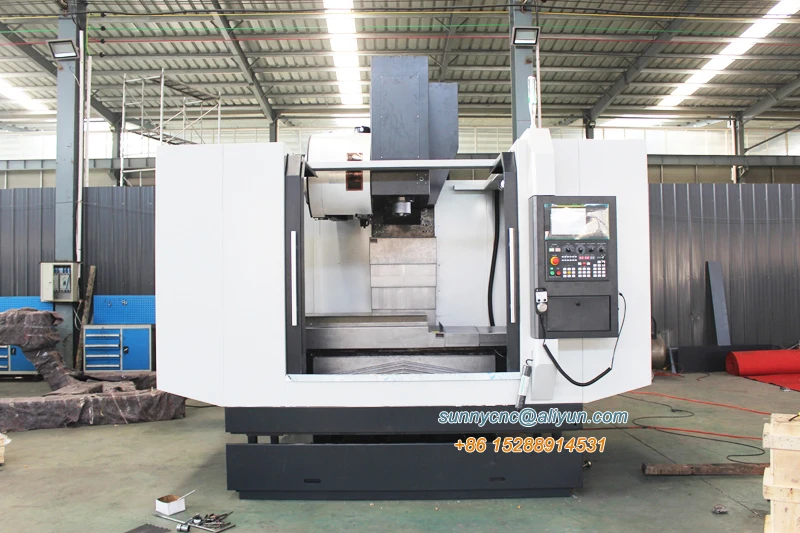

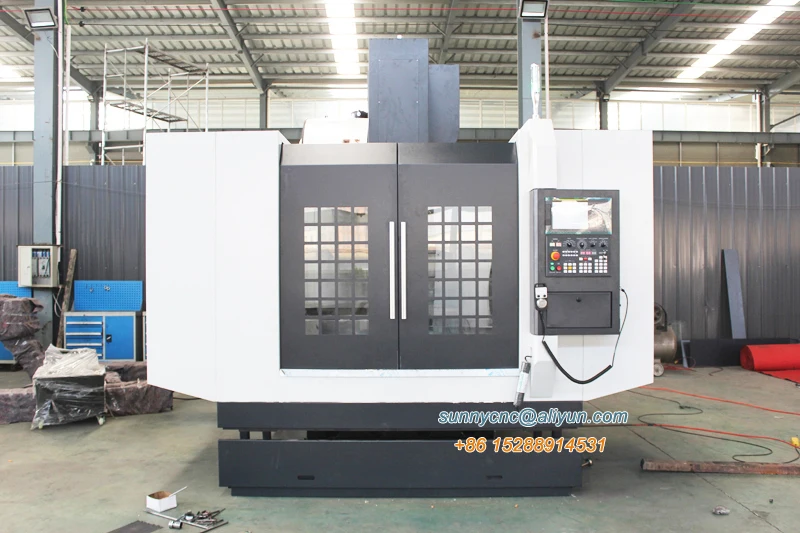

VMC 1270 Vertical CNC Machining Center CNC Milling Machine With FANUC CNC Controller


ITM
Item
Unit
VMC850
VMC1060
VMC1270
Travel
X axis
mm
800
1000
1200
Y axis
mm
500
600
700
Z axis
mm
500
550
700
Spindle nose to table
mm
100-600
100-650
100-800
Feed
X Y Z rapid feed
m/min
24
24
24
Cutting feed
mm/min
1-8000
1-10000
1-12000
Table
Table size
mm
1000x500
1200x600
1300x650
Max.load
kg
600
600
700
T slot
mm
5-18
5-18
5-18

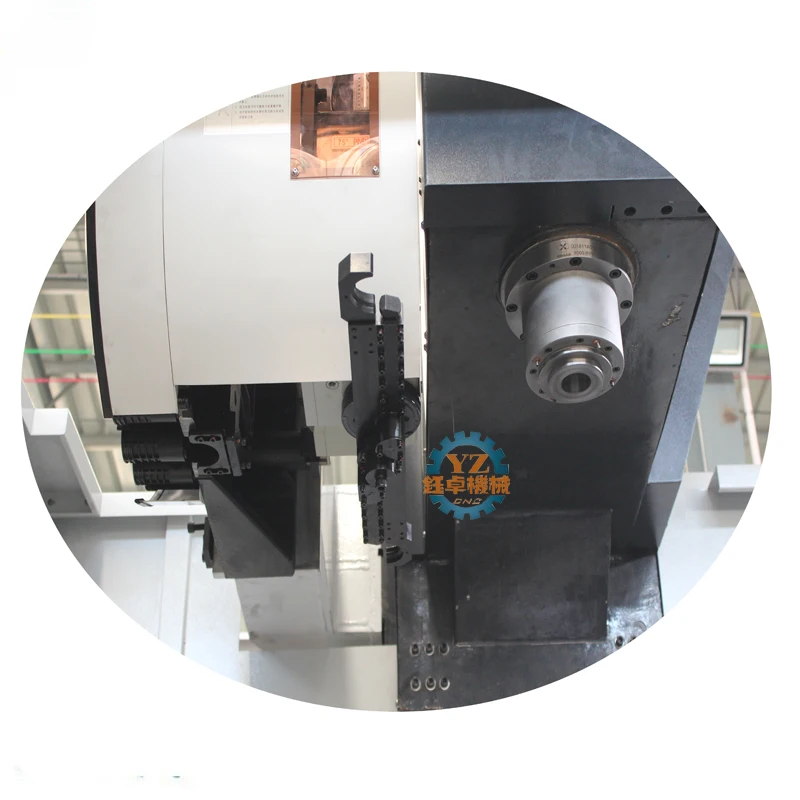

Spindle
Speed
rpm
8000
8000
8000
Spindle bore
mm
150
150
150
Spindle taper
BT40
BT40
BT40
Main motor
kw
7.5/11
11/15
11/15
Accuracy
Positioning Accuracy
mm
0.01/300
0.01/300
0.01/300
Machine
Size( L W H)
mm
2700x2300x2500
2800x2400x2500
3000x2600x2700
Weight
kg
4800
6000
7000

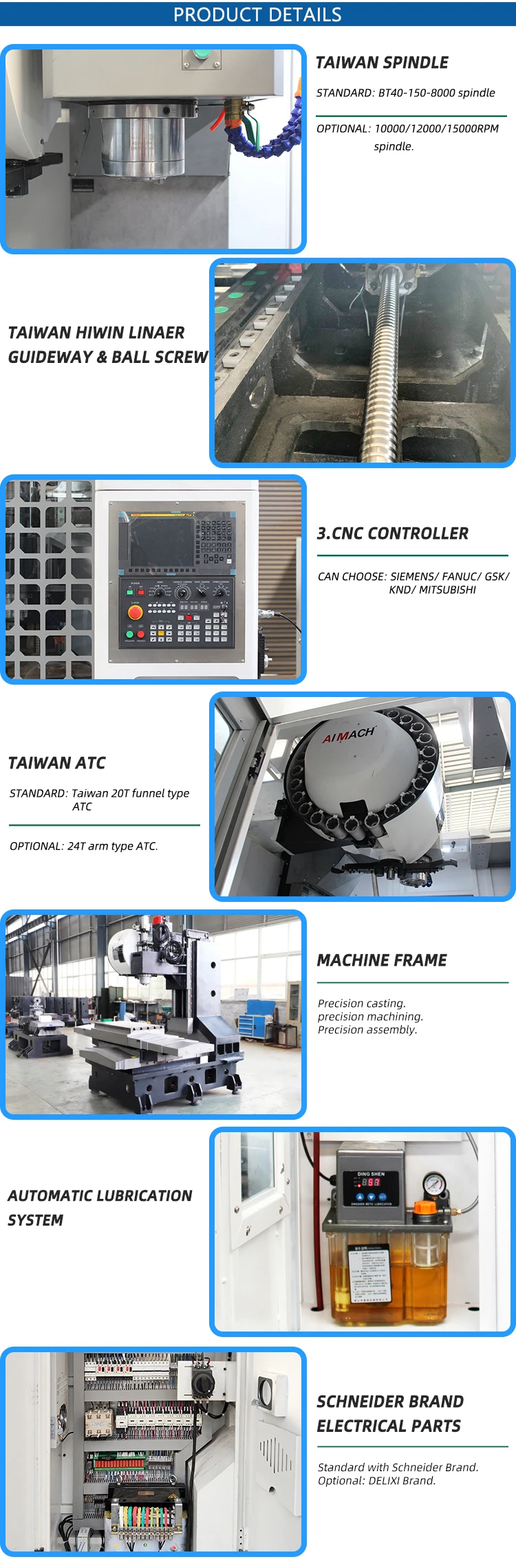

Standard configuration:
1-KND/GSK CNC Controller
2-Full Enclosure Machine Guard

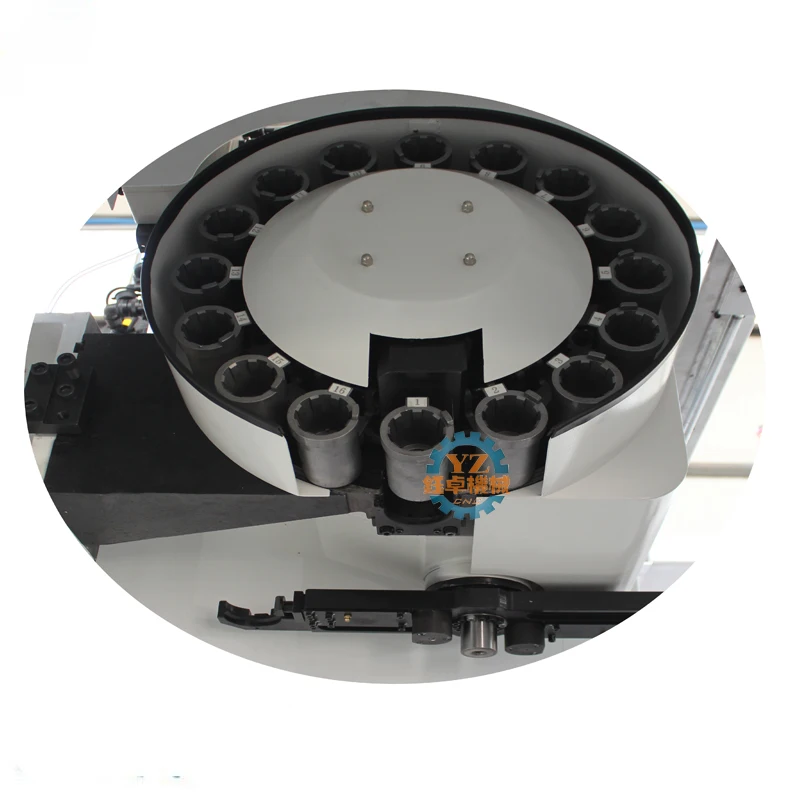

3-Funnel Type Tool Changer

4-Autmatic Central Lubrication System With Alarm

5-Work Lamp

6-high precision ball screw and guide

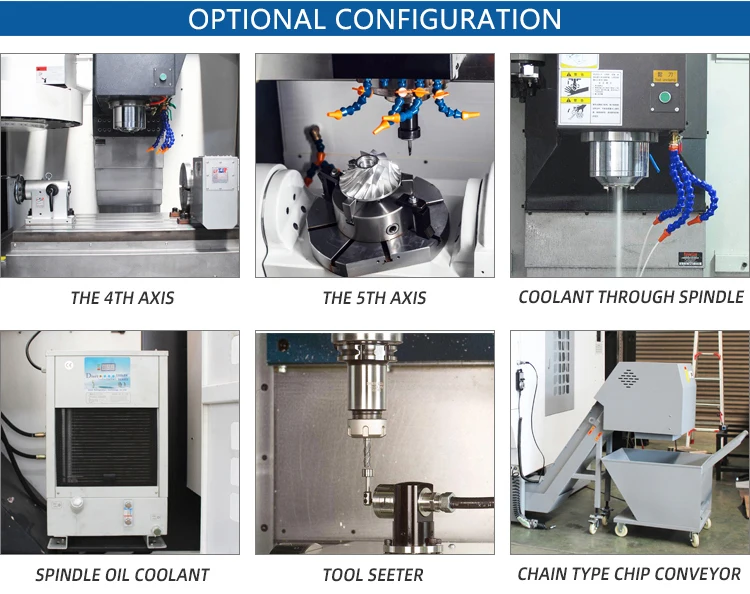

Optional Configuration:
1-GSK KND Siemens Fanuc Mitusbishi
2-Arm type ATC
3-chip conveyor
4-4 axis and 5 axis
5- Spindle oil coolant,center to water
6.Renishaw probe for workpiece and tool














Packing & Delivery




Packaging Details :Exporting Standard Package, Water Proof, Anti-rust and Fumigation-free.



Our Company






Our Service


Pre-Sales Service

1.Customers provide the detailed work piece size or drawing, our professional engineer will check and recommend suitable machine model for you.

2.Or customers send us samples by courier, we can process some samples for customers checking.

3.We can customize machine for customers' requirements.

4.Welcome customers can come to our factory Taian Yuzhuo company for visiting and checking machine.

After-Sales Service

1.Training how to instal the machine, training how to use the machine.

2.Engineers are available to service machinery overseas.

3.Warranty is one year, we would offer the parts (quality problem) free of charge during this period.

4.Note: GSK, Servo driven, motor and transformer, warranty is 3 years.



FAQ


Q1.How to send my enquiry?

You can contact us by email, phone call, message (Whats APP, We Chat, Skype).


Q2.How long can I get feedback after enquiry?

We will reply you within 6hrs in working day.


Q3.Where is your factory located? How can I visit there?

Our factory is located in South Development zone, Tai An City, Shan Dong Province, China. There has flight from Jinan need 1.5 hours, or High speed train directly to our city. Welcome to visit our factory.


Q4.Delivery time

Machines order takes 20 days after deposit payment received. Please inquiry sales.


Q5.What is the package? Is it suitable for shipment?

Machine is by waterproof cloth to covered.And be packed by standard exported wooden case with steel foot.. It is very much strong for oversea transportation.


Q6.Payment term

30% by T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss.Welcome to inquiry sales.


Q7.Can I trust you?

Sure, we're Alibaba Gold Suppliers , Alibaba Assessed Supplier , Alibaba Trade Assurance Supplier.


Q8.How long is the warranty for machines?

Machines warranty is 24 months after receive goods. in Warranty time,we can provide new free parts for changing.Please contact your YZ CNC sales representative for details.


Q9.How' s your after-sale service?

Out after sales support and service is second to none and we urgently respond to your queries, if parts are required they would be sent to you by international courier within 48 hrs upon registering your need.


Q10.Can you engineer come to our place to help with machine installation & commission?

Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.


Q11. If i can't know how to operate. Can your engineer help me programme well on machine ?

Sure. You can provide your detailed sample drawing.engineer can programme well on machine. Or in some machines, we will put into U-disc of operation video to help you.
