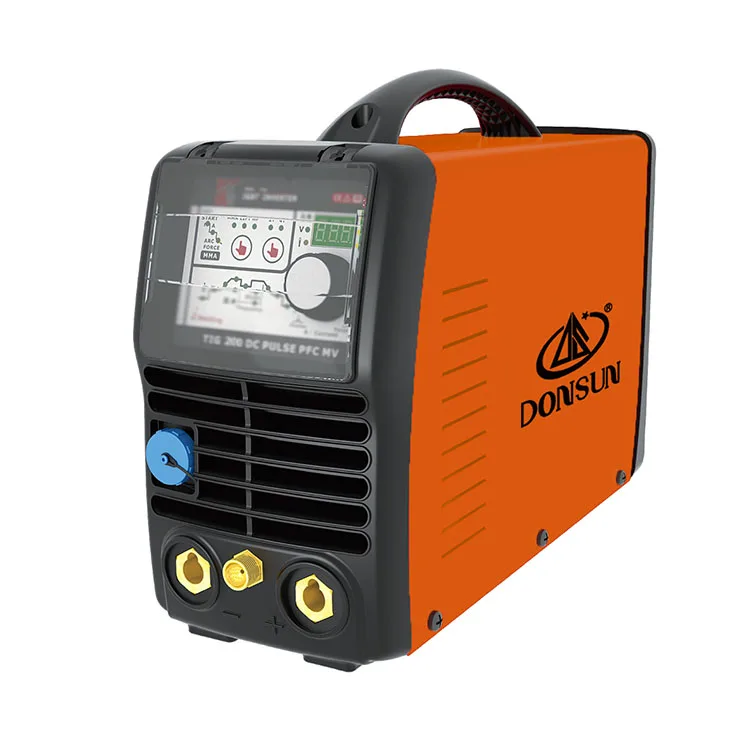

TIG 200DC PULSE PFC MV, portable inverter Welding Small Dc Tig Welder
- Category: >>>
- Supplier: Shanghai Donsun Welding Equipment Co. Ltd.
Share on (62054594495):
Product Overview
Description
Product Description
Features:
Pulse
High performance on ultra thin surfaces with on deformation.
PFC Technology
Power factor more than 0.99.
Multiple advantages such as energy saving and wider input voltage,works with 110V and 220V.
Protections
Equipped with temperature, voltage and current sensors for high protection.
Generator friendly
Designed to work with diesel generators and to avoid failures due to its voltage spikes.
Pre/Post Flow
Selectable Pre/Post Flow Time.
Multipurpose
MMA/LIFT TIG/HF TIG.
Up/Down Slope
Selectable Up and Down Slop Time.
Wide Input Voltage
90VAC~275VAC.
| Model/Parameters | TIG 200 DC PULSE PFC MV | |||
| Power supply voltage(V) | 90~275 | |||
| Fre.(HZ) | 50/60 | |||
| Rated Input Power (KW) | 1~110/120/130 ±10% | 1~220/230/240 ±10% | ||
| TIG | MMA | TIG | MMA | |
| 2.7 | 4.1 | 4.6 | 6.3 | |
| Rated input current(A) | 25.5 | 39 | 21 | 32 |
| Duty Cycle(40 10Min) | 90%130A | 60% 130A | 50% 200A | 30% 200A |
| 100%124A | 100% 105A | 60% 180A | 60% 145A | |
| 100% 145A | 100% 135A | |||
| No Load Voltage(V) | 66 | |||
| Welding Current Range(A) | 5~110 | 5~180 | ||
| Up Slope/Down Slope Time(S) | 0~10 | |||
| Pre/Post Flow(S) | 0~2/0~10 | |||
| Pulse Fre.(HZ) | 0.5~200 | |||
| Pulse width range(%) | 5~95 | |||
| Efficiency | ≥85% | |||
| Net Weight(Kg) | 7.5 | |||
| Dimensions(mm) | 465x146x278 | |||
| Electrode Diamerter(mm) | Φ1.6~Φ4.0 | |||
| Electrode Type | - | |||
| power factor | 0.99 | |||
| Insulation Class | IP23 | |||
| Protection Class | H | |||
| Cooling | AF | |||
