electric small plastic paver block moulds vibration shaker table
- Category: Concrete Machinery >>>
- Supplier: Xinxiang,Yongqing,Screen,Machine,Co.,Ltd.
Share on:
Product Overview
Description

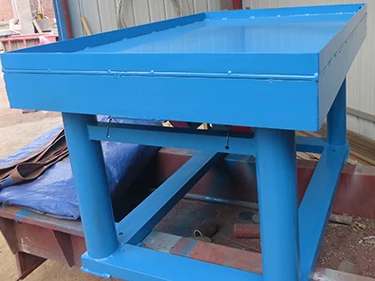

electric small plastic paver block moulds vibration shaker table
| Vibrating Table 5 Big Features |
 | 1. Vibrating motor is the energy source, low power consumption, provding steady amplitude. |

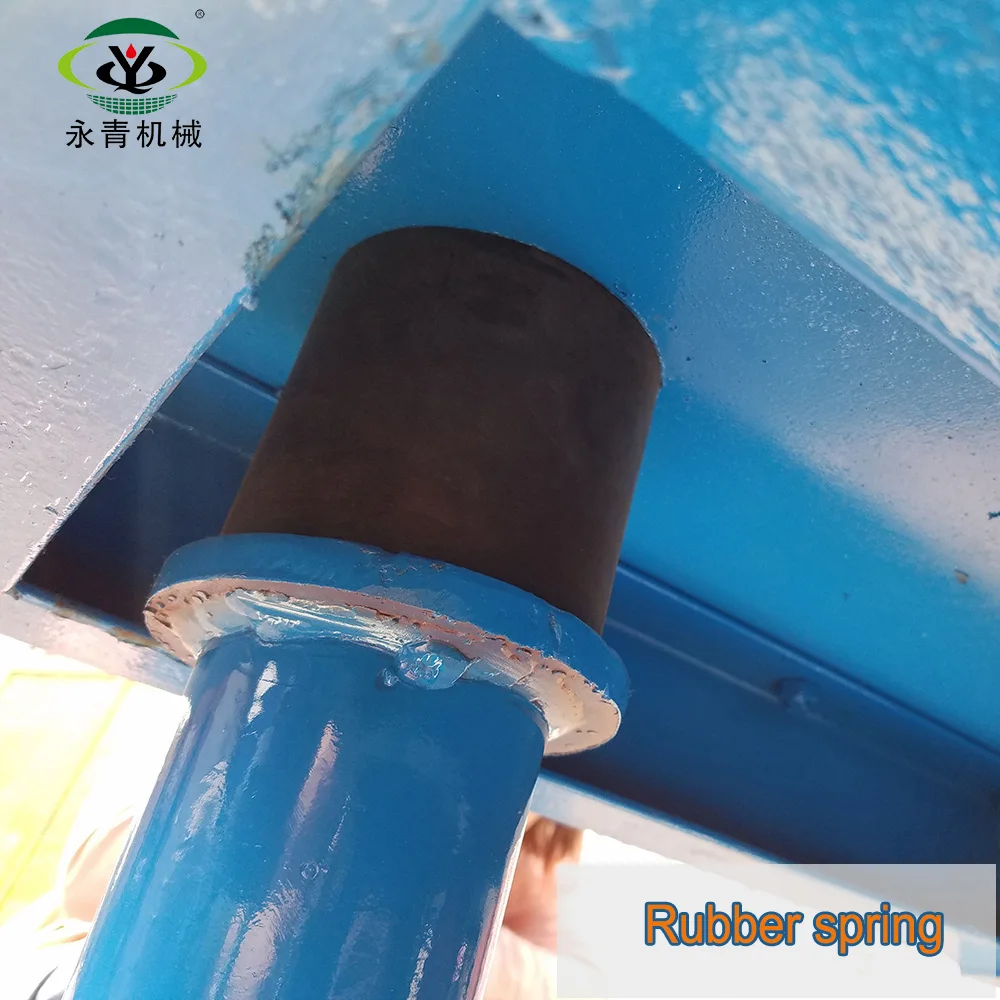

| 2. Rubber Spring is more durable than others, ensuring the table make lower noise. |  |
 | 3. The table dimension can be totally customized, adding edge and groove. |
| 4. The machine has simple structue, no wearing part, easy to maintain. |  |
 | 5. Control box makes it easy to start and stop working, and to adjust the vibrating speed. |
| Parameters of Vibrating Table |
| Model | Table Size (mm) | Power (kw) | Amplitude (mm) | Loading Weight (kg) |
| ZDP500 | 500*500 | 2*0.25 | 2-5 | 300 |
| ZDP800 | 800*800 | 2*0.4 | 2-5 | 500 |
| ZDP1000 | 1000*1000 | 2*0.75 | 2-5 | 1000 |
| ZDP1200 | 1200*1200 | 2*1.1 | 2-5 | 1200 |
| ZDP1500 | 1500*1500 | 2*1.5 | 2-5 | 2000 |
| ZDP2000 | 2000*2000 | 4*1.1 | 2-5 | 2500 |
| ZDP3000 | 3000*3000 | 6*1.5 | 2-5 | 3000 |
| Remarks: Support to customize based on customer's requirement. |
