Патч панель 24 порта cat6

Product Overview

Description

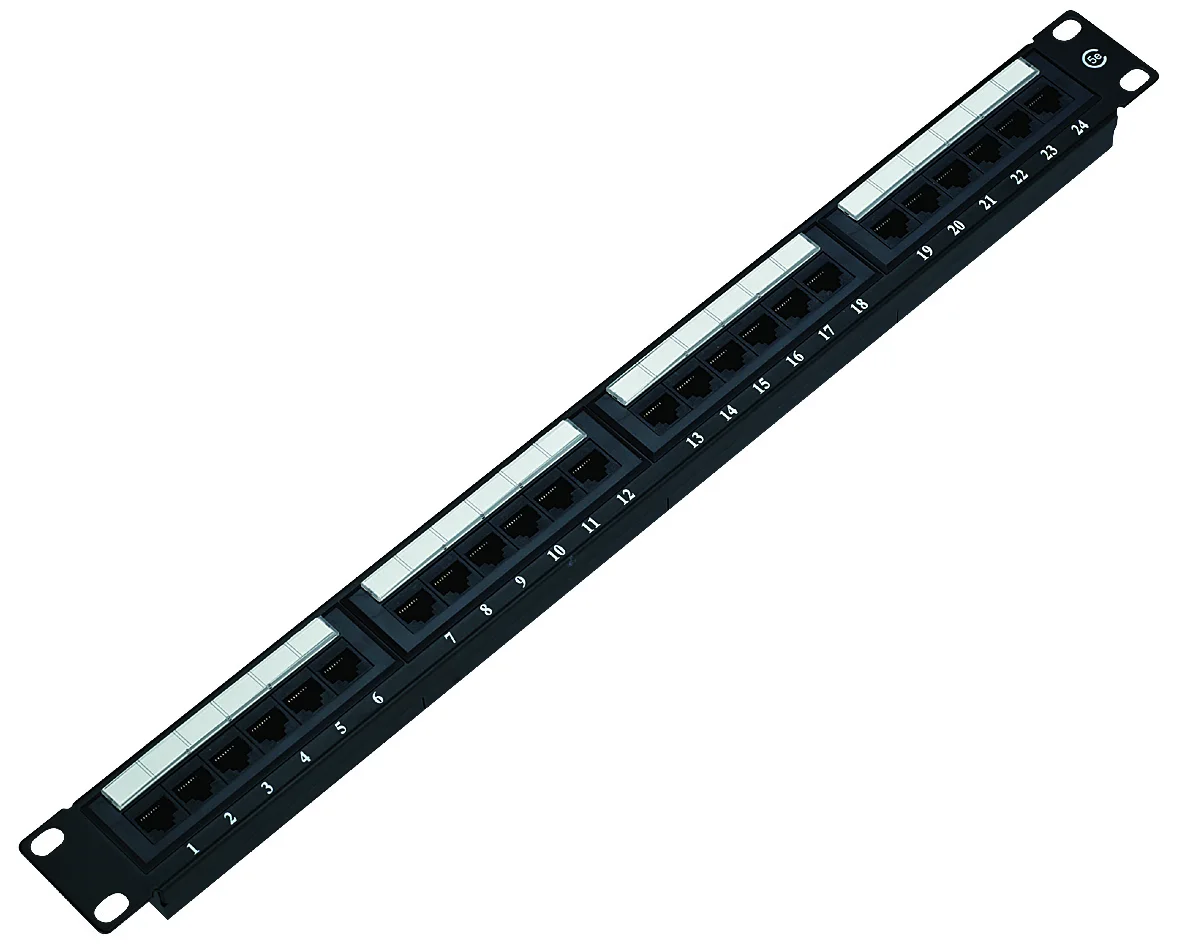

Item name	Patch Panel
Model Number	SMB-PP
IDC Type	110, KRONE,DUAL IDC
Port	24 Port  48 Port
Height	1u Patch Panel
Color	Black
Application	Networking
Category	Cat5e/6/6A
Packing	1pc/box
MOQ	100pcs
Lead Time	about 7-25 days
Payment Terms	T.T / L.C / PAYPAL / WESTERN UNION
OEM Service	Welcome



Meet TIA/EIA-568-A and TIA/EIA-568-B Category 5E requirements.

Meet TIA/EIA TSB-40

Meet ISO/IEC Generic Cabling Standard 11801

Meet CENELEC Generic Cabling Standard EN50173

Angle: 180 Degree

Termination: 110, KRONE,DUALTypes (3 types)

Electrical:

Current rating: 1.5 Amp Max.

Voltage rating: 150 Volts

Contact resistance: 20 m-ohm

Insulation Resistance: 500M-ohm

Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz 1min

Materials:

Housing: PC

IDC: PC , Accept 22-26 AWG Solid Wire.

PCB: FR4 1.6mm(0.04") thickness, 2 layers

Contact: PC , 0.45mm(0.018") Diameter Phosphor bronze with 3 u" to 50 u" Gold plating on contact area.
