N female IBS DAS Solutions 698 2700MHz 2 Way Power Splitter Divider
- Category: >>>
- Supplier: Shenzhen ZD Tech Co. Ltd.
Share on (62054784129):
Product Overview
Description

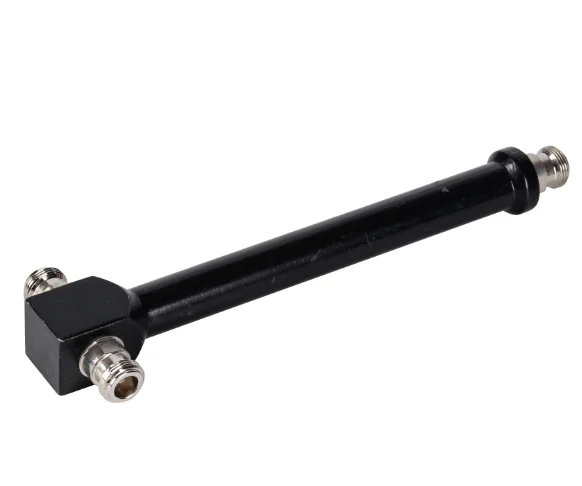

N- female IBS DAS Solutions 698-2700MHz 2 Way Power Splitter Divider
Product Description
| Electrical Specifications: | |||||||||
| Frequency Range | 698-2700MHz | 698-2700MHz | 698-2700MHz | ||||||
| Split Way | 2way | 3way | 4way | 2way | 3way | 4way | 2way | 3way | 4way |
| VSWR | ≤1.25:1 | ≤1.25:1 | ≤1.25:1 | ||||||
| Insertion Loss(dB) | ≤3.3 | ≤5.2 | ≤6.3 | ≤3.3 | ≤5.2 | ≤6.4 | ≤3.3 | ≤5.2 | ≤6.5 |
| In-band Ripple(dB) | ≤0.3 | ≤0.4 | ≤0.5 | ≤0.3 | ≤0.4 | ≤0.5 | ≤0.3 | ≤0.4 | ≤0.5 |
| Average Power(W) | 200/300/500 | 200/300/500 | 200/300/500 | ||||||
| 3rd Order IMD(dBc) | ≤-120/-140/-150@2X43dBm | ≤-120/-140/-150@2X43dBm | ≤-120/-140/-150@2X43dBm | ||||||
| Impedance(Ω) | 50 | 50 | 50 | ||||||
| Connectors Type | N-Female | N-Female | N-Female | ||||||
| Operating Temp.(℃) | -20~+55 | -20~+55 | -20~+55 | ||||||
| Application | For Indoor or Outdoor Use | For Indoor or Outdoor Use | For Indoor or Outdoor Use | ||||||
| Finish | Black Plated | Black Plated | Black Plated | ||||||

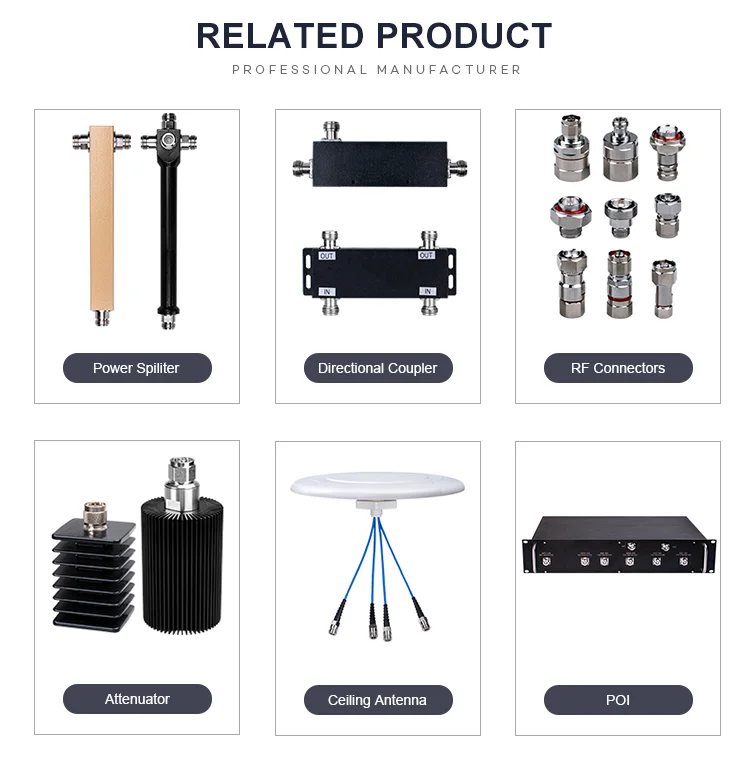

Related Products
Company Information
FAQ
Q: Can offer the free sample?
A: Yes, we offer 1 free sample (But customer pay the shipping charge), or more samples need to pay on your account, the sample cost will be refunded once order confirmed.
Q: How do normally take payments?
A: T/T, Paypal, we also accept West Union.
Q: If goods are not the same as described in the contract pictures or samples provided?
A: Contact us within 48 hours: Return in exchange for replacement; Return in exchange for full refund.
