10L 15 20L 25L Plastic PET Water Bottle Container Producing Machine / 5 Gallon Bottle Machine To Make Bottle Plastic
- Category: >>>
- Supplier: Taizhou Sico Machinery Co. Ltd.
Share on (62054856710):
Product Overview
Description
Product Overview

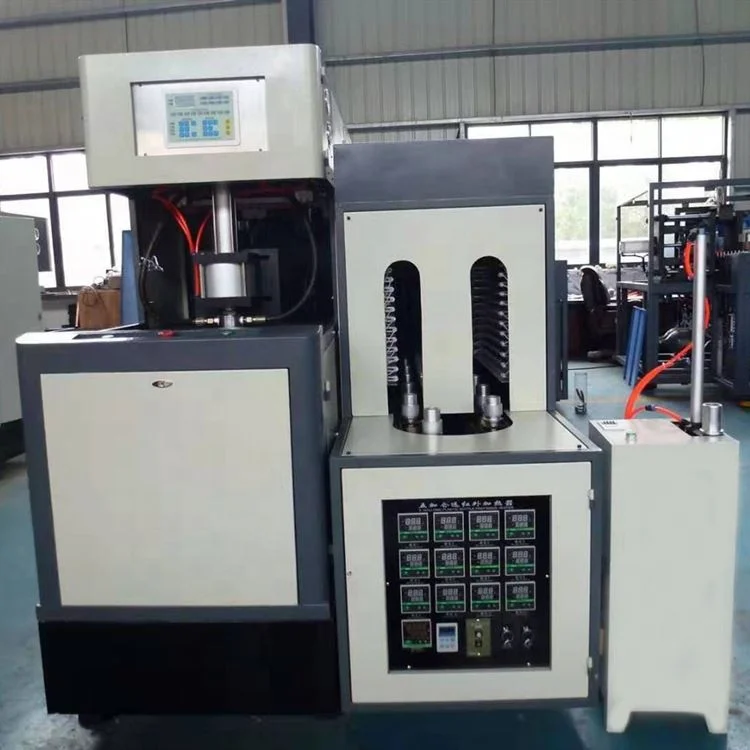

SC-100 Model 1 Cavity Semi Automatic PET Bottle Blowing Machine
80-120BPH for 5 gallon bottle.(Bottle weight 680-750 gram)
160-220BPH for 10L-20L bottle.(Bottle weight 150-350 gram)
160-220BPH for 10L-20L bottle.(Bottle weight 150-350 gram)
FEATURES AT A GLANCE
1. | Advanced PLC control system with use-friendly touch screen. |
2. | Simple installation & start up operation. |
3. | Heating oven equipped with air cooling & water cooling system ensure the bottle neck not deform. |
4. | Equipped with lighting and anti-pinch device to ensure safe production. |
5. | Equipped with mold clamping in-position sensing device to ensure safe production. |
6. | Each wire,button and meter mark with English,easy maintenance. |
PRODUCT SPECIFICATIONS
Model | SC-100 Semi Automatic PET Bottle Blowing Machine | ||
Theoretical output | 80--220 pcs/h | ||
Finished bottle | Max. bottle volume | 10L-20L | |
Neck diameter | 38-160mm | ||
Max. bottle diameter | 270mm | ||
Max. bottle height | 520mm | ||
Mold specifications | Cavity | 1 cavity | |
Mold thickness | 200mm-360mm | ||
Open stroke | 350mm | ||
Electrical system | Power voltage | 380v/3Phase/50HZ | |
Installation power | 36kw | ||
Actual power consumption | 11kw | ||

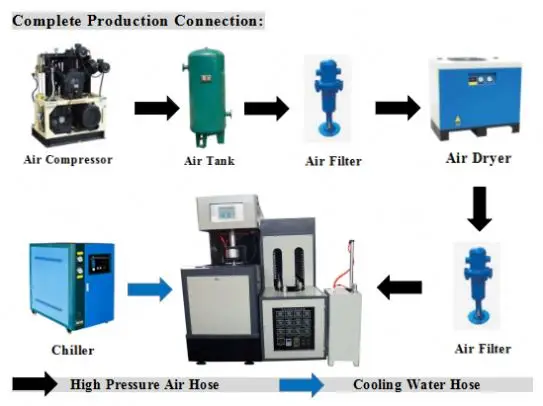

Air source | Recommend air compressor | 1.6m³/min 30Kg | |
Cooling water | Recommend water chiller | 5HP | |
Blowing machine size | Length*width*height/weight | 2190*740*1900mm/950kg | |
Auto Loader size | Length*width*height/weight | 2800*670*1600mm/550kg | |

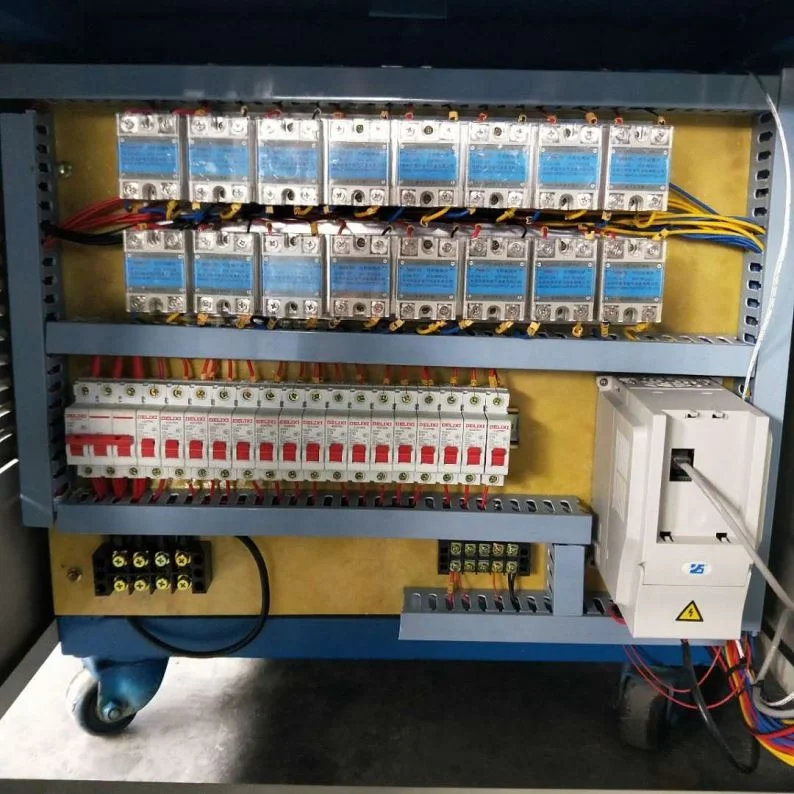

PRODUCT CONFIGURATION
Components Name | Brand |
PLC | Xinje |
Touch Screen | Xinje |
Cylinder | Yongcheng |
Blowing valve | Quanjia |
Operating valve | Airtac |
S.R.C | Zhen Yu |
Circuit Breaker | CHNT |
SICO Machine Advantage
SICO High Quality Bottle Blowing Machine
Normal Bottle Blowing Machine
PLC with touch screen,all important parameter in one page,easy operate.
Normal PLC,operation is complex.
SICO High Quality Bottle Blowing Machine
Normal Bottle Blowing Machine
Working area equipped with lighting
No lighting
SICO High Quality Bottle Blowing Machine
Normal Bottle Blowing Machine
Anti-pinch device to ensure safe production.
No anti-pinch device.
SICO High Quality Bottle Blowing Machine
Normal Bottle Blowing Machine
1.Each cavity 3 pieces high quality blowing valve,with big and strong silencer.
2.Blowing and exhaust independently valve,blowing speed fast,prolong the life of components.
3.Equipped with Pre-blow,easy debug.
2.Blowing and exhaust independently valve,blowing speed fast,prolong the life of components.
3.Equipped with Pre-blow,easy debug.
1.Each cavity only 1 piece normal blowing valve,small silencer.
2.Blowing and exhaust in one valve.
3.No Pre-blow.
2.Blowing and exhaust in one valve.
3.No Pre-blow.
SICO High Quality Bottle Blowing Machine
Normal Bottle Blowing Machine
Equip with high quality AirTac action valve,life long.
Normal action valve.
SICO High Quality Bottle Blowing Machine
Normal Bottle Blowing Machine
Equipped with mold clamping in-position sensing device to ensure safe production.
No clamping in-position sensing device.
SICO High Quality Bottle Blowing Machine
Normal Bottle Blowing Machine

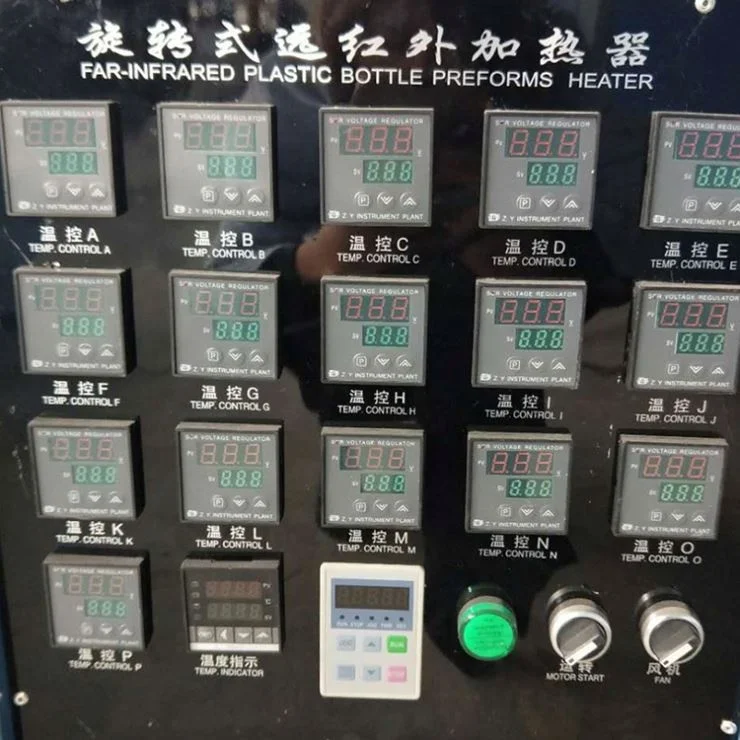

Heating oven double cooling system.
Equip with air cooling and water cooling.
Equip with air cooling and water cooling.
Only air cooling.
SALES AND SERVICE NETWORK
Terms
1. Payment Method
30% by T/T as down payment, 70% by T/T paid before delivery. (Other payment please notice in advance.)
2 . Mechanical Warranty
One year warranty and come with at least one year recommended spare parts.
3. Delivery & Packing \t
Delivery Time: 15 days after get down payment &confirm bottle design.
Packaging requirement:
1) The special packaging wooden case is according to the immunity standard in China,it suits for long-distance transport, damp proof, rustproof, land way and seaway
2) Transportation ways: Sea transportation
4. Install In Spot
1) Installment USD80/day. Person as allowance
2) Free training for buyers worker within the installation period.
