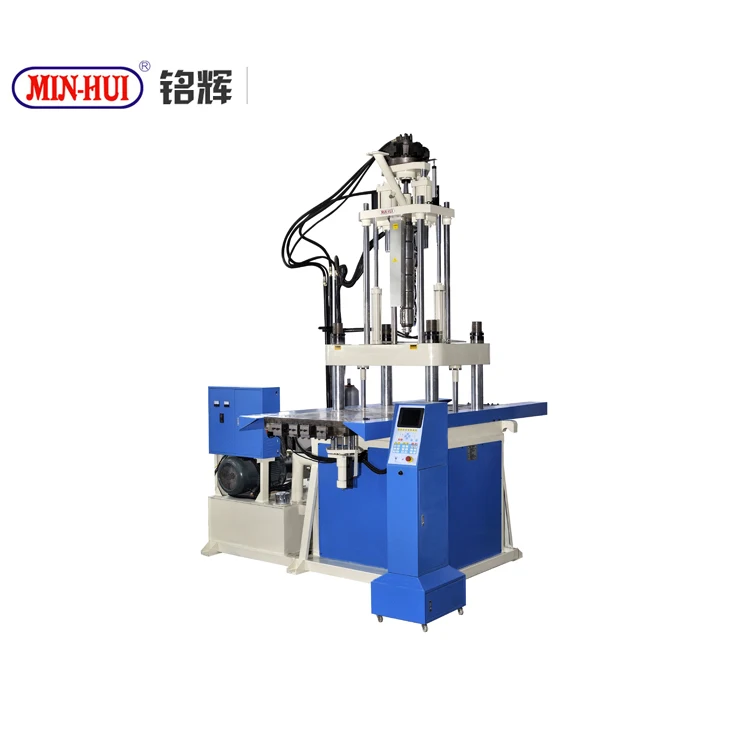

Compression Cap Making Plastic Injection Molding Machine

Product Overview

Description

MH Double Sliding Machine Series

Clamping Force : 10T to 500T

Injection Weight : 35g to 850g

Vertical four coumns clamping, vertical injection.

Suitable for insert injection molding process.

1 top mold,2 botoms mold design; table slid out , put insert part into outer mold and inner mold injection at the same time. Effective to improve production capacity, flexibility and safety. We can upgrade to servo motor for customer's need.

The actual energy save 50%~70%.

Model	unit	MH-35T-2S
Screw Diameter	mm	28
Theoretical Injection Volume	cm³	71
Injection Weight(PS)	g(oz)	65.6(2.3)
Max. Injection Pressure	Mpa	142
Injection Rate	cm³/s	48
Injection Speed	mm/s	77
Speed Promote	mm/s	/
Screw Speed Rotation	r.p.m	0~148
Nozzle Out From Platens	mm	≥45
Clamping Force	Tons	35
Platen Size	mm	500*340
Distance Between Columns	mm	360*200
Min. Mold Thickness	mm	60/145
Opening Stroke	mm	215
Max. Mould Opening Distance	mm	275/360
Sliding Table Size	mm	760*340
Sliding Table Stroke	mm	380
Ejector Force	Tons	1.7
Ejector Stroke	mm	60
Max. Hydaulic Pressure	Kgf/cm²	140
Oil Pump Output	cc/rec	31
Cooling Water Consumption	L/h	500~700
Pump Motor Power	Kw	4(5.5HP)
Barrel Heating Power	Kw	2.4
Total Wattage	Kw	6.4
Machine Weight Net	Kg	1400
Machine Dimensions(L*W*H)	m	1.8*0.9*2.5
Shipping Weight Gross	Kg	1500
Shipping Dimensions)(L*W*H)	m	2.0*1.1*2.7
