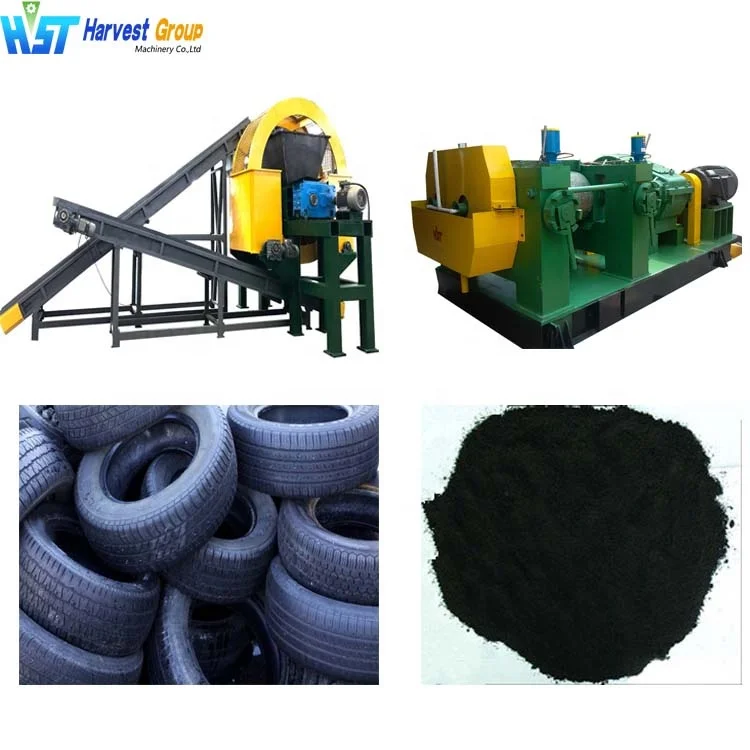

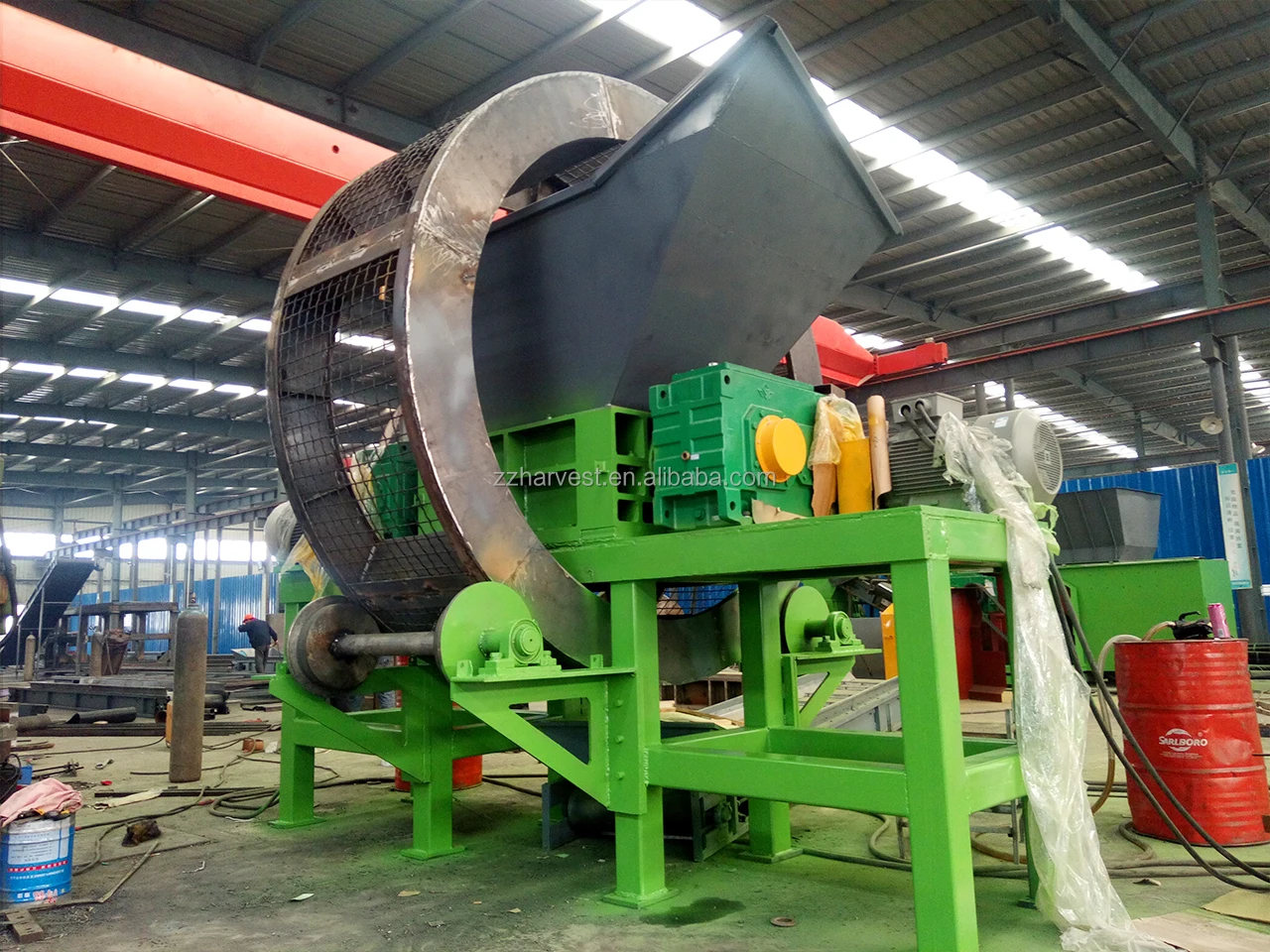

Машина для измельчения шин, переработка шин, Малайзия
- Category: >>>
- Supplier: Zhengzhou Harvest Machinery Co. Ltd.
Share on (62054921245):
Product Overview
Description
Product Description
Technical Parameter
Model | Input size | Output size | Capacity | Motor | Weight |
TS-800 | 800mm | 50*50mm | 1-2t/h | 2*22kw | 8t |
TS-1200 | 1200mm | 60*60mm | 3-5t/h | 2*37kw | 14t |
TS-1600 | 1600mm | 50-150mm | 6-8t/h | 2*45kw | 18t |
TS-1800 | 1800mm | 50-150mm | 7-10t/h | 2*55kw | 23t |
Details Images
Planetary Reducer
PLC Control cabinet
PLC control system
①. Overloading automatic reversal function.

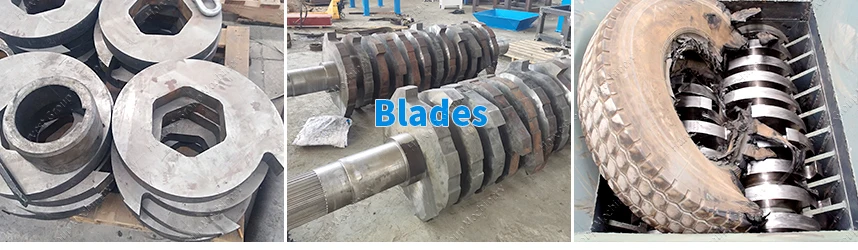

②. Replaceable blade bit tool is fixed by both screws and grooves on the blade base, so the screws won’t get loosen.
③. The transmission parts are connected by coupling to reduce vibration and protect the main shaft and reducer from force loss.
④. Crushing chamber is open structure, easily for maintenance.
⑤. High torque and strong power, ensures low noise and power consumption with high productivity.
⑥. Blades are made one of best material 9Cr2Mo, long service life.
⑦. Planetary reducer is equipped with high accuracy, high loading power, high speed ratio, durable use, low noise, low vibration and low inertia.
⑧. Driven by SIEMENS motor, quality and power guaranteed.
②. Replaceable blade bit tool is fixed by both screws and grooves on the blade base, so the screws won’t get loosen.
③. The transmission parts are connected by coupling to reduce vibration and protect the main shaft and reducer from force loss.
④. Crushing chamber is open structure, easily for maintenance.
⑤. High torque and strong power, ensures low noise and power consumption with high productivity.
⑥. Blades are made one of best material 9Cr2Mo, long service life.
⑦. Planetary reducer is equipped with high accuracy, high loading power, high speed ratio, durable use, low noise, low vibration and low inertia.
⑧. Driven by SIEMENS motor, quality and power guaranteed.

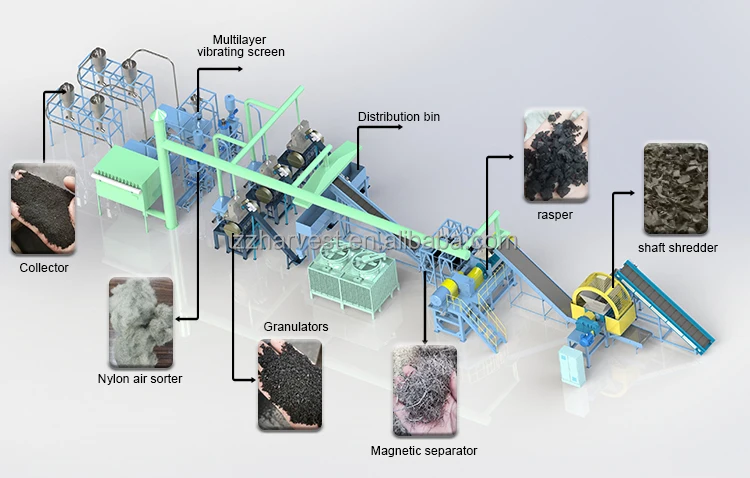

Main Recycling Process
PLC Fully-automatic Production Line
1.Conveyor-Transport the tire to the shredder; 2.Double shaft shredder---Shears the tire into 5-10 cm blocks;
3.Recirculation system---To control the size of shreds going to the raspers;
4.Raspers-Reduce the shreds into 15-20 mm chips and liberates steel from the rubber;
5.Over belt magnet--Separation of liberated steel from the rubber chips;
6.Vibratory feeder--Transports the rubber chips;
7.Granulator--Size reduction of the chips to 1-4 mm granules and liberates the textile fraction to air flow separation.
8.Vibratory screen-Sorts the granules by size and removes the majority of textile;
9.Classifer-Removal of remaining textile; Drum magnet-Removal of remaining steel fines;
10.Central de-dusting unit--Remove dust and fines from the system and filter the air before returning it to the atmosphere.
3.Recirculation system---To control the size of shreds going to the raspers;
4.Raspers-Reduce the shreds into 15-20 mm chips and liberates steel from the rubber;
5.Over belt magnet--Separation of liberated steel from the rubber chips;
6.Vibratory feeder--Transports the rubber chips;
7.Granulator--Size reduction of the chips to 1-4 mm granules and liberates the textile fraction to air flow separation.
8.Vibratory screen-Sorts the granules by size and removes the majority of textile;
9.Classifer-Removal of remaining textile; Drum magnet-Removal of remaining steel fines;
10.Central de-dusting unit--Remove dust and fines from the system and filter the air before returning it to the atmosphere.

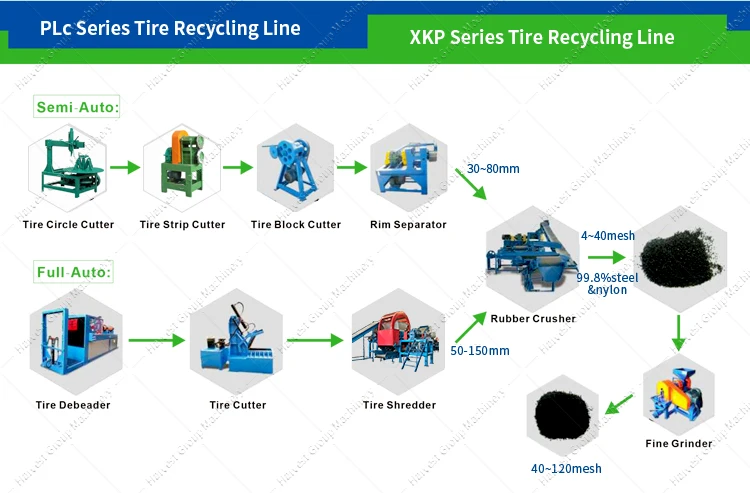

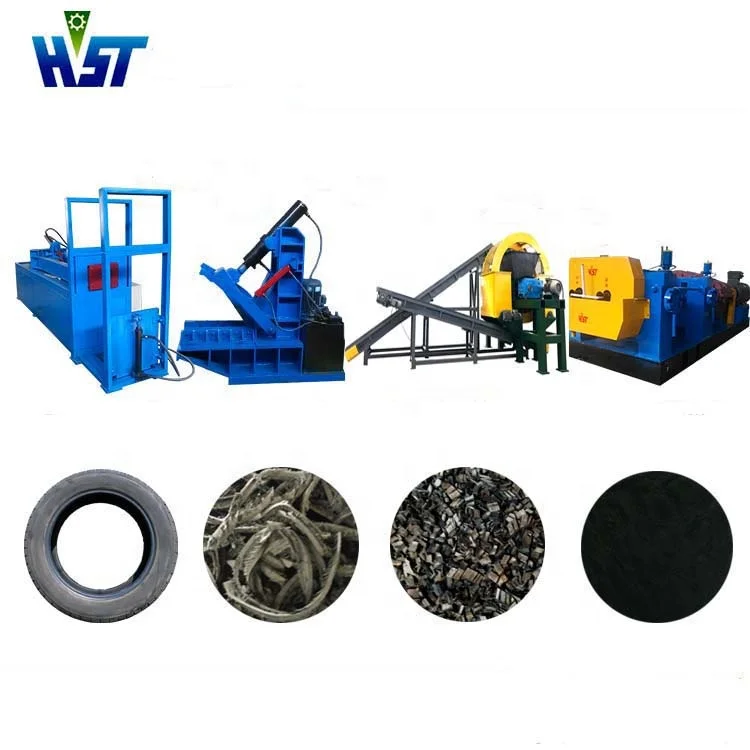

Flow chart of tire recycling
(Fully-automatic Production Line):
Waste tire - Tire debeader- whole tire cutting - tire shredder - Rubber crushing - magnetic separator - fiber separator - Rubber powder

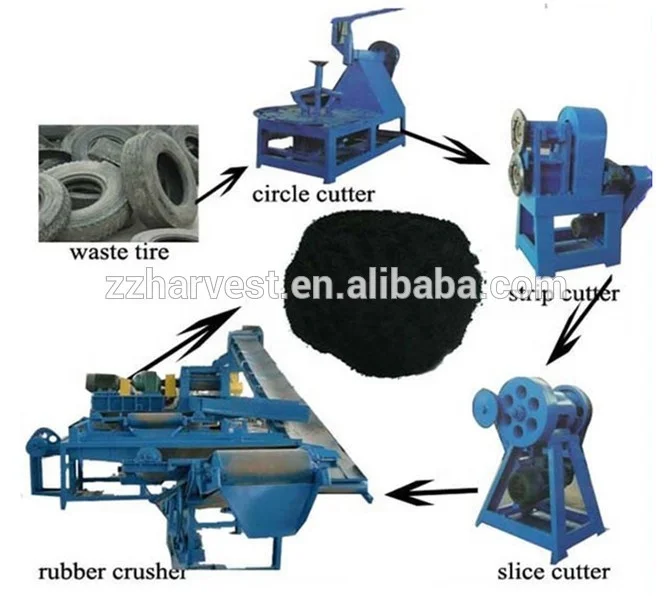

Flow chart of semi automatic tire recycling line

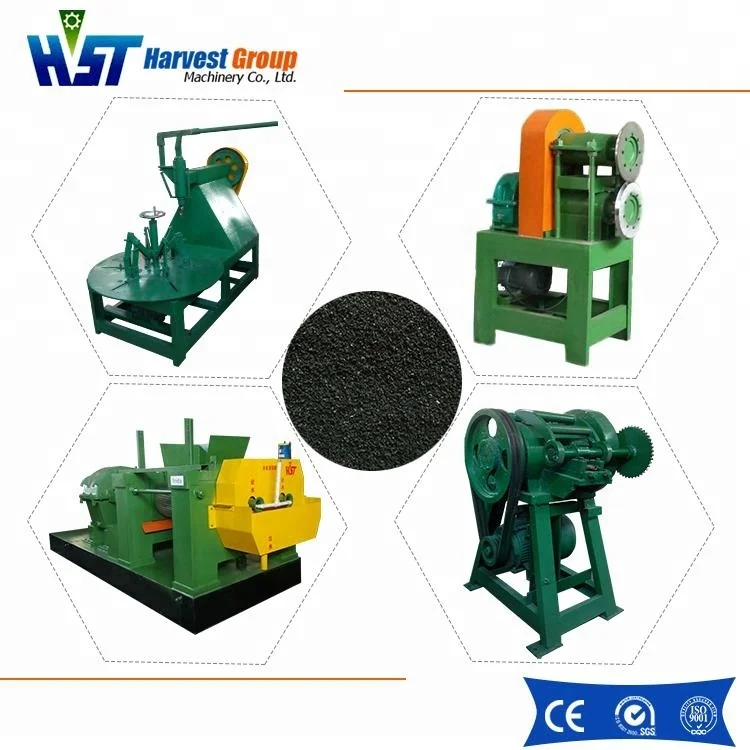

Whole tire--tire circle cutter--tire strip cutter--tire slice cutter--rubber crusher--Magnetic separator--Nylon fiber separator--rubber powder
(Fully-automatic Production Line):
Waste tire - Tire debeader- whole tire cutting - tire shredder - Rubber crushing - magnetic separator - fiber separator - Rubber powder
Flow chart of semi automatic tire recycling line
Whole tire--tire circle cutter--tire strip cutter--tire slice cutter--rubber crusher--Magnetic separator--Nylon fiber separator--rubber powder

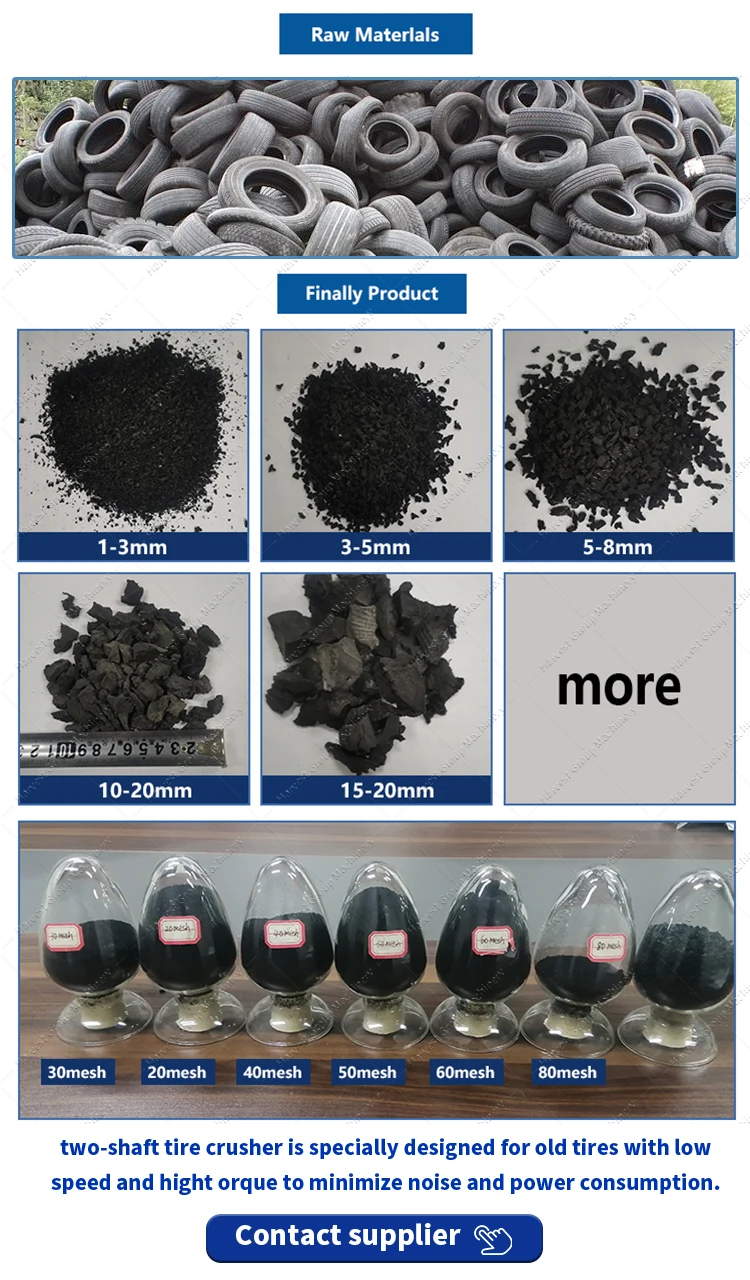

Application Scopes
Why Choose Us
Zhengzhou Harvest Machinery Co., Ltd
HVET's main focus is to provide our customer cost-effective waste recycling system applied in all kinds of waste recycling like tire/plastic/wood/metal/car/pcb board recycling and could provide output products like chips(50-150mm), mulches( 10-30mm), granules (1-6mm), powder (30-120 mesh) and other size as customer required. HVET also offers machines for specialized markets. The most important to theHVET family of products is the Tire Shredding System. These machines are designed to process used car and truck tires. We offer complete systems to produce separated crumb or powder.
1.Provide the floor space and size required for recycling machine.

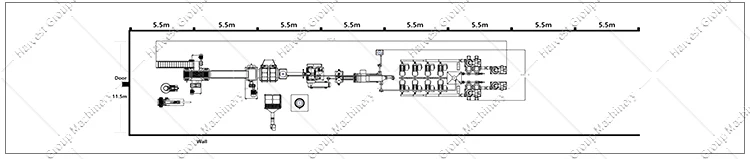

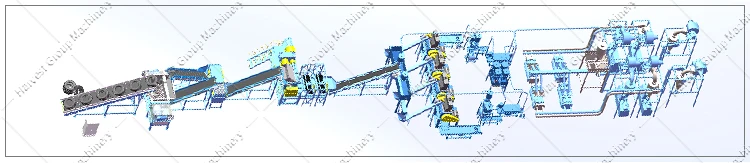

2.Provide the complete recycling line layout and its 3D drawing
3.After machine reach the customer's working site, We will assemble the main parts, then mark all the joint parts and send videos to guide the installation and training

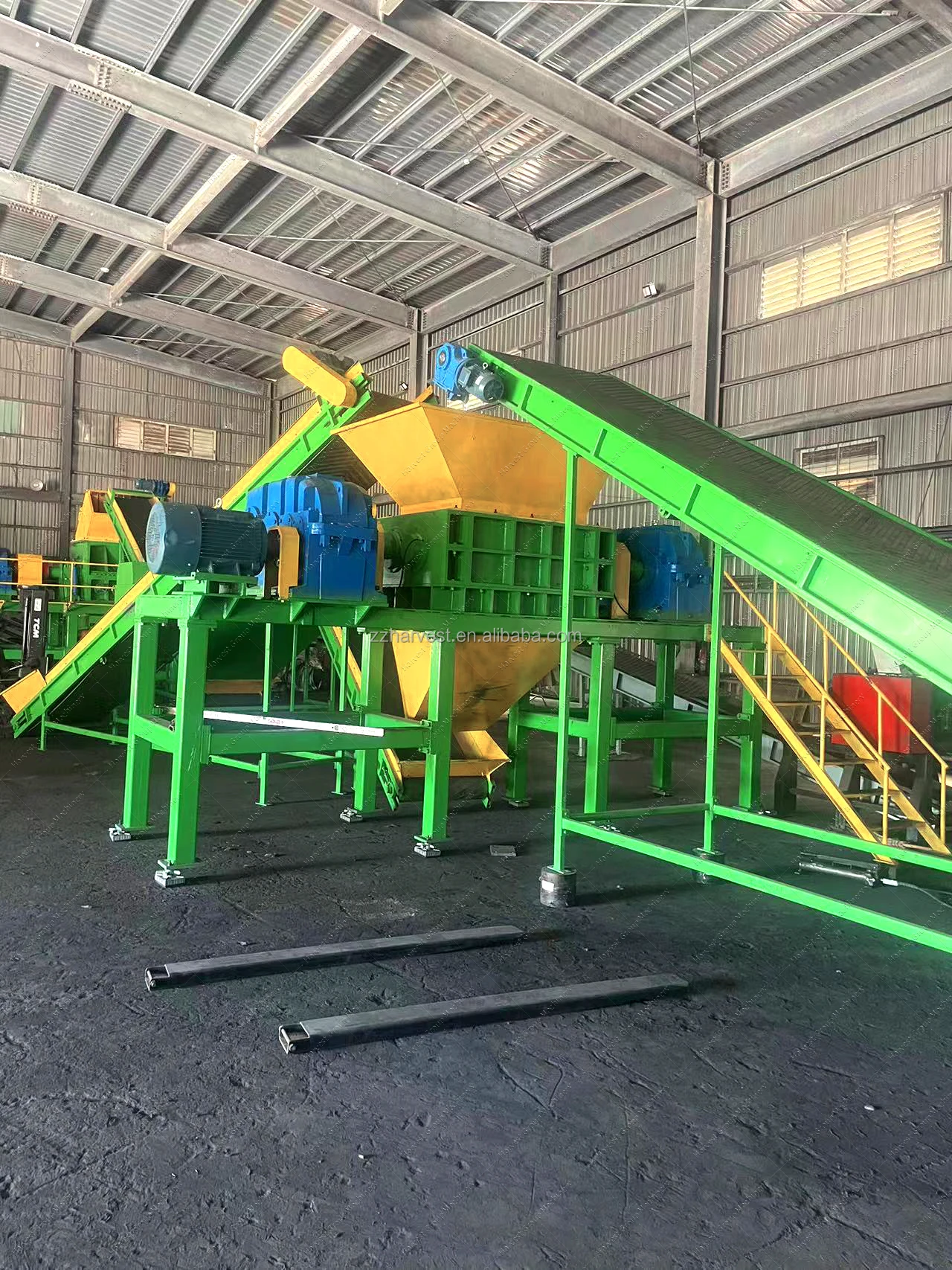

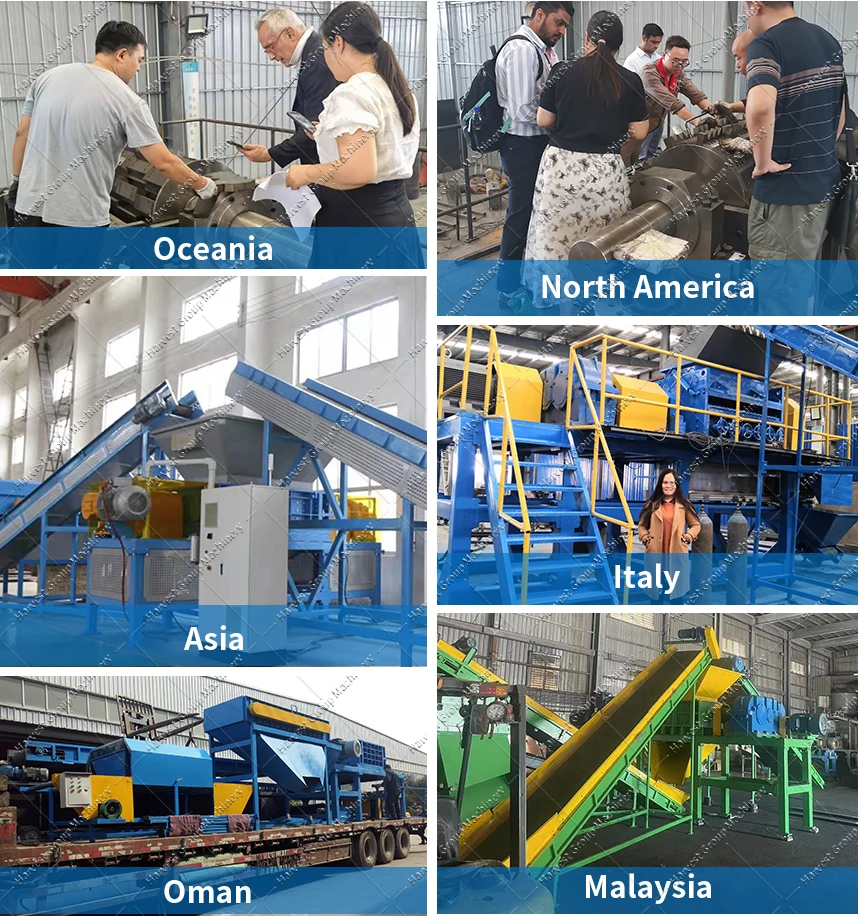

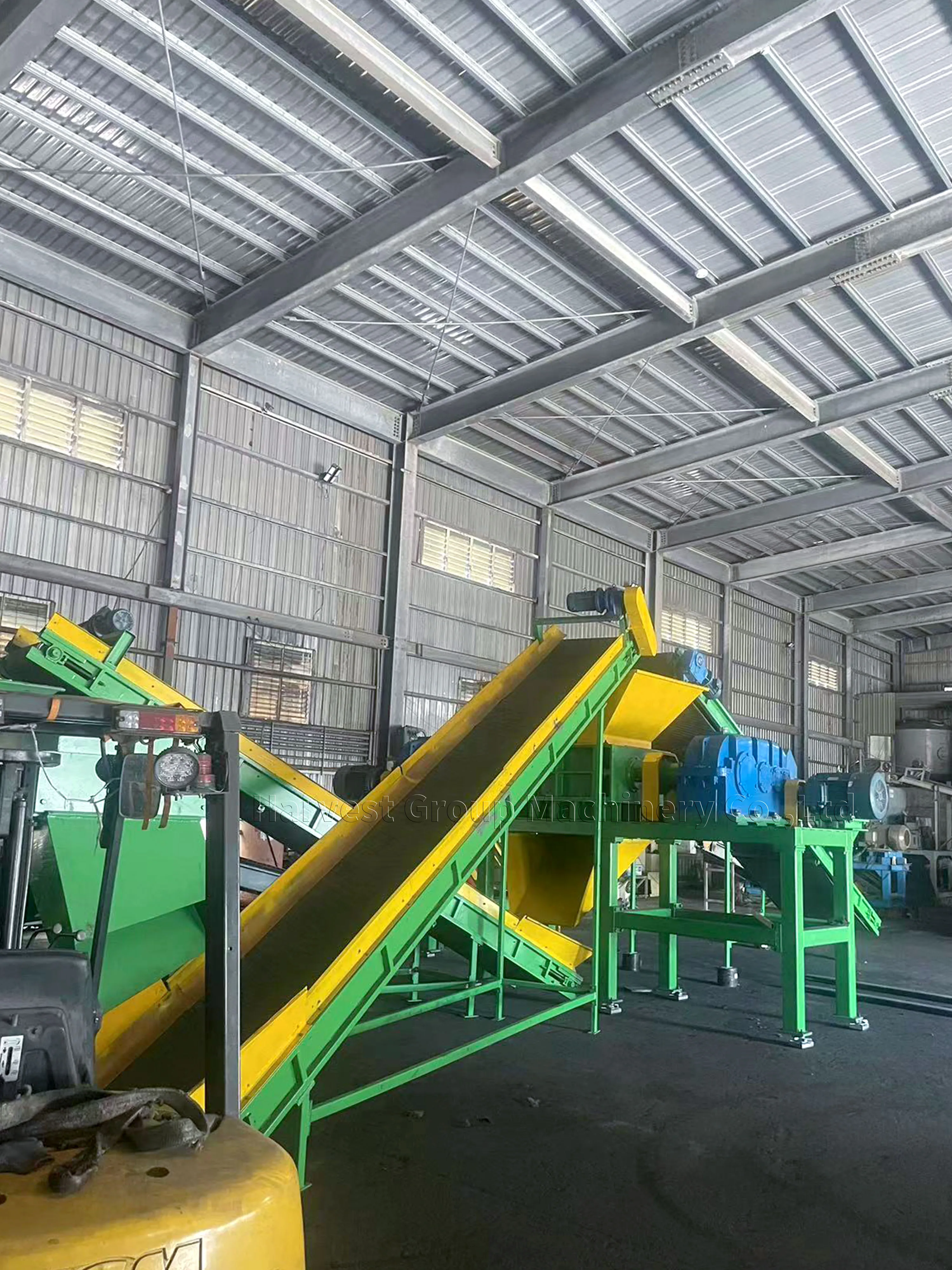

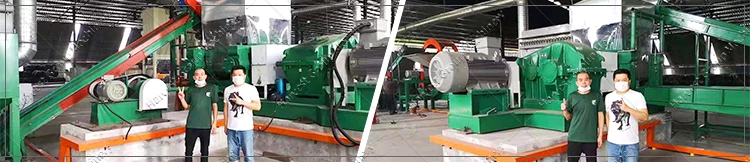

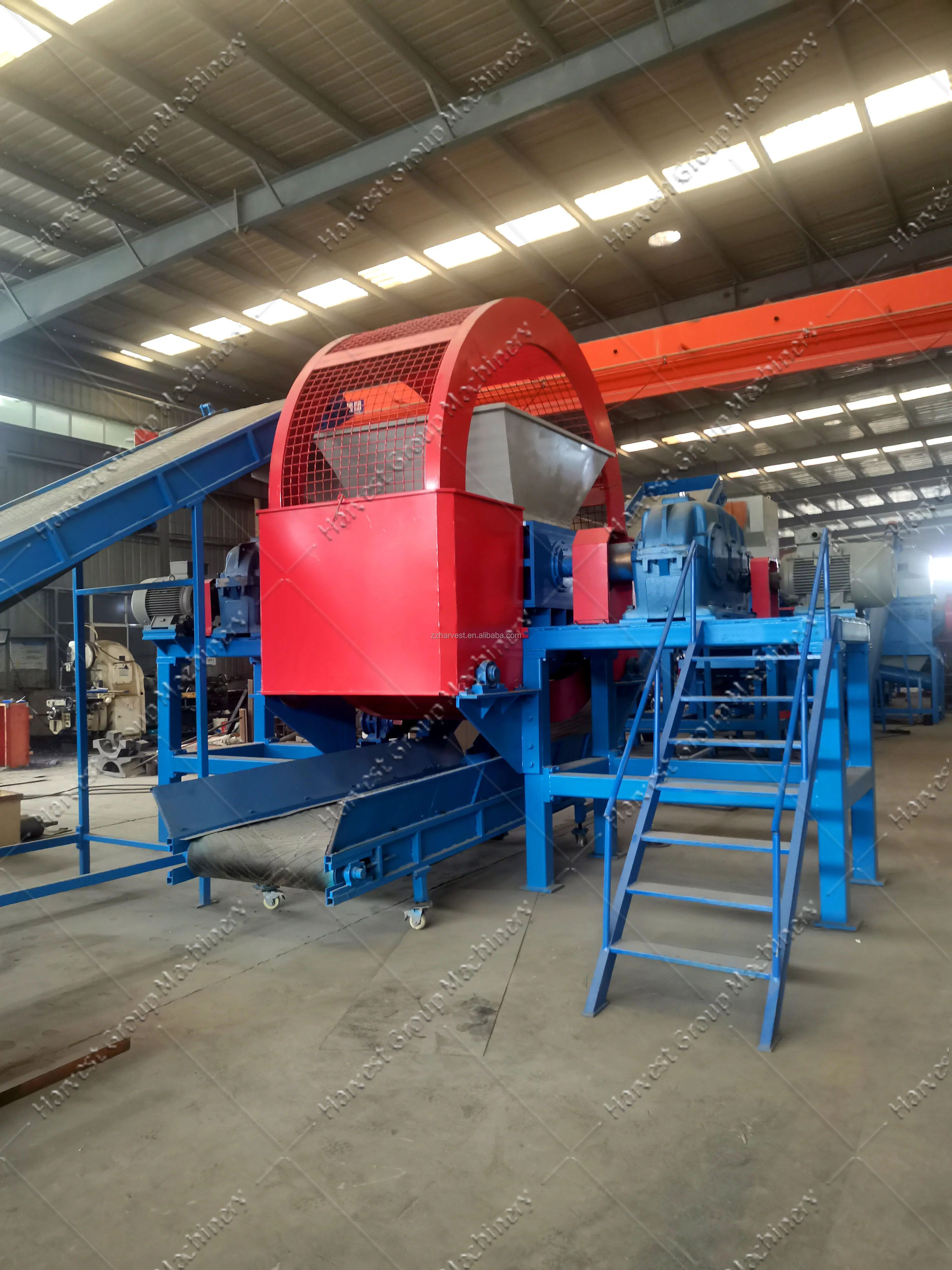

Customer Site
