DPP 88 Automatic Blister Tablet Packing Machine For Capsule
- Category: Blister Packaging Machines >>>
- Supplier: ZHEJIANG CAPSULCN IMP&EXP CO. LTD
Share on (62054978468):
Product Overview
Description
Main Application
DPP-88 is a flat-plate aluminum-plastic blister packaging machine which integrates many functions including PVC feeding, PVC heating, PVC forming, PTP feeding, sealing of PVC and PTP, batch number printing, indentation line making, etc. It is suitable for all kinds of capsules, tablets, sugar coated tablets, honey pills, injections, ampoules, etc. CapsulCN The products have the characteristics of long shelf life, good sealing performance, beautiful appearance, safety and hygiene, conforming to the GMP production standards.
Products Description
Model | DPP-88 |
Cutting Frequency | 20-40 times/min |
Capacity | 2400strip/h |
Max shaping areas and depth | 80*100*15mm |
Stroke | 20-100mm(customizable) |
Standard Sheet | 80*57mm(customizable) |
PVC hard pieces | 0.15-0.5*88mm |
PTP Aluminum Foil | 0.02-0.035*88mm |
Air Pressure | 0.4-0.6 Mpa |
Air Compressed Capacity | ≥ 0.3m³/min |
Power Supply | 380V/220V 50Hz 1.8kw |
Main motor power | 0.55kw |
Cooling of Mold | Tap water or Recycling water |
Noise (dBA) | < 75dBA |
Net Weight | 450kg |
Overall Size | 1840*590*1100mm |
Remarks：
* Best option for small batches, pharmaceutical R&D and pilot plants.
* It allows forming thermoplastic and cold forming materials (Alu-Alu).
* It stands out for its simple operation, high reliability and compact design. Its main structure is made of stainless steel.
* Automation by PLC and operation through touch screen control panel.
* It has pneumatic drives, which lend it high robustness and low maintenance.
* It is suggested for R&D departments, considering that its easy operation and maintenance makes it user-friendly to personnel that are not familiar with the use of blister machines.
* It allows forming thermoplastic and cold forming materials (Alu-Alu).
* It stands out for its simple operation, high reliability and compact design. Its main structure is made of stainless steel.
* Automation by PLC and operation through touch screen control panel.
* It has pneumatic drives, which lend it high robustness and low maintenance.
* It is suggested for R&D departments, considering that its easy operation and maintenance makes it user-friendly to personnel that are not familiar with the use of blister machines.
Details Images
Recommend Products

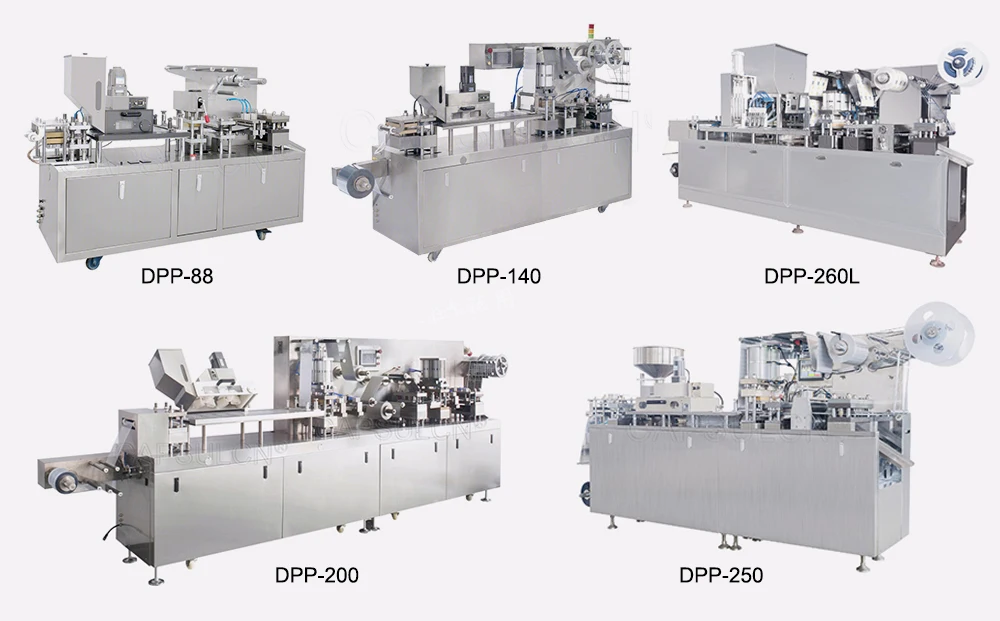

(Don't Worry! We have several Models. We can recommend you according to your requirement. Just Tell Us: Capacity, packing machine and Capsule Size.) Contact us>>
