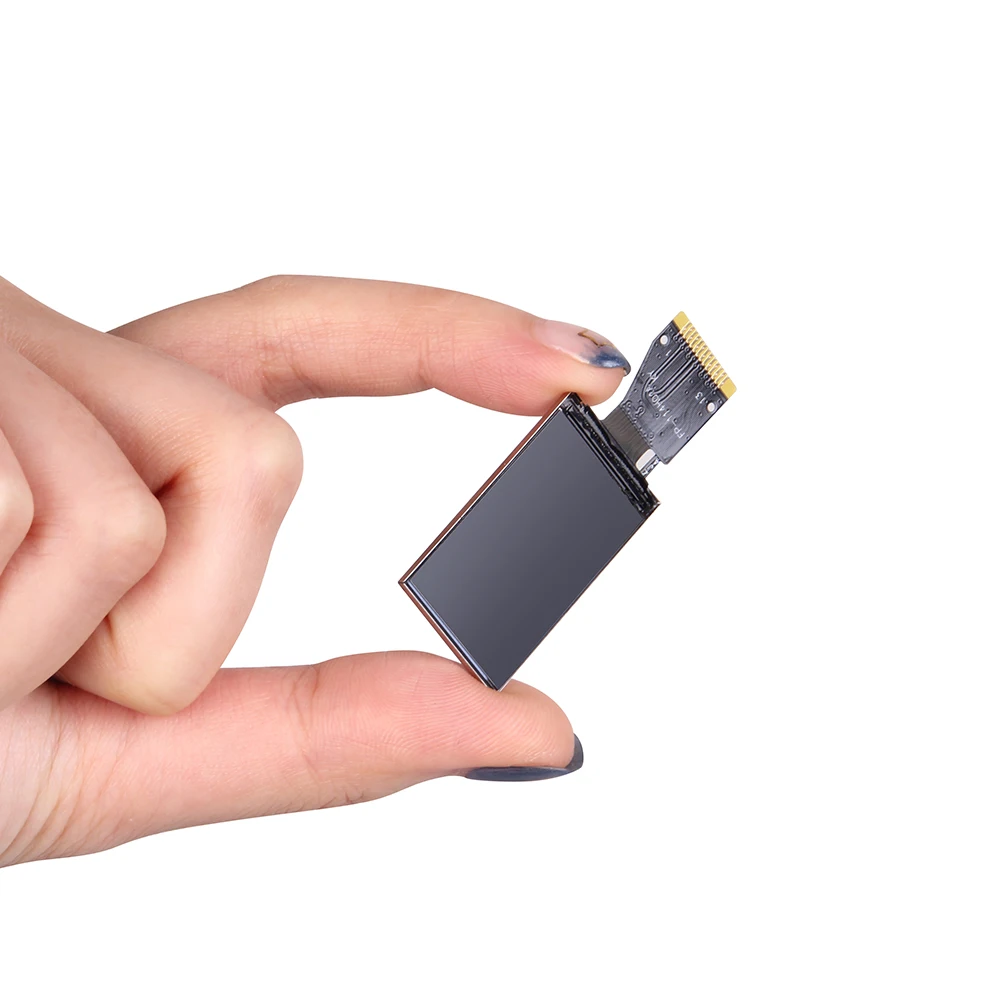

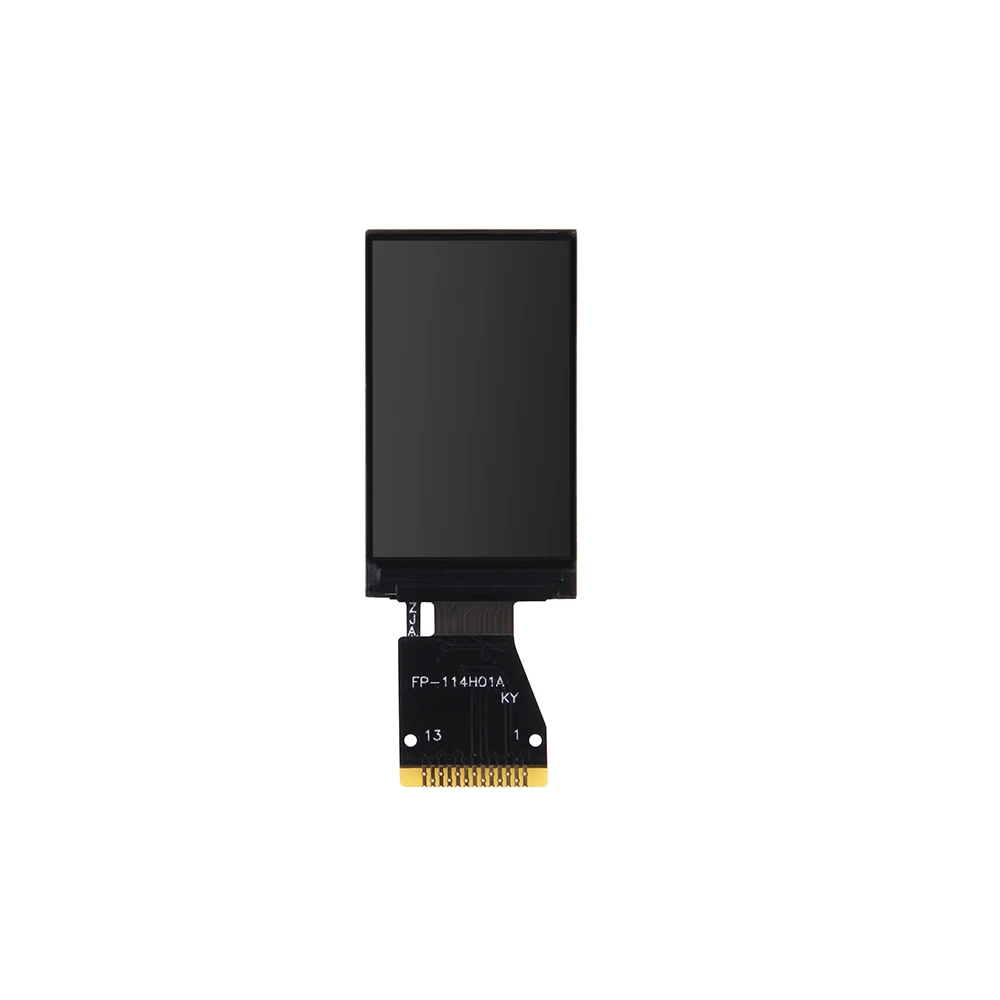

Цветной TFT дисплей IPS 1,14 дюйма

Product Overview

Description





TFT Display





1.14inch IPS TFT Display
Diagonal Screen Size	1.14inch
Color Arrangement	RGB Vtertical Stripe
Module Construction	COG
Number of Pixels	135(RGB)x240
Active Area	14.864x24.912mm
Pins	13
Drive IC	ST7789VW
Interface	4 Wire SPI





Temperature range
Item	Min.	Max.
Operating Temperature (°C)	-30	70
Storage Temperature (°C)	-40	80





OEM & ODM are accepted.

 Various LCD Display Mode Available
Various Temperature Range Available

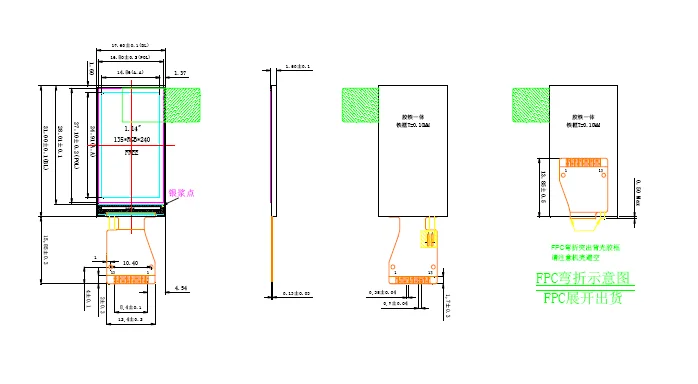

Drawing





More Product of TFT Displays
Screen Size	Item No.	Number of Pixels	Pins	Interface	Drive IC
0.96inch TFT Display	LH096T-IG11	80(RGB)x160	13 pin	4 Wire SPI	ST7735S
0.96inch TFT Display	LH096T-IF09	80(RGB)x160	8 pin	4 Wire SPI	ST7735S

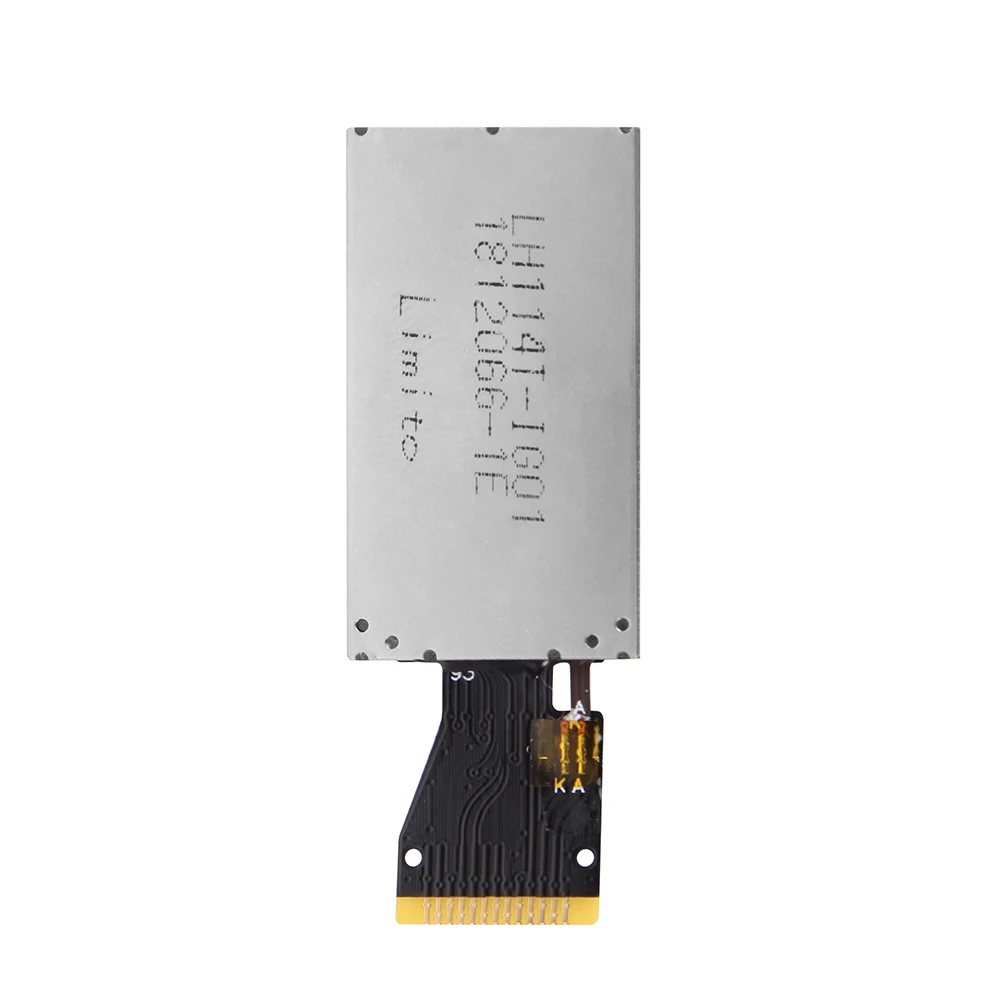

1.14inch TFT Display	LH114T-IG01	135(RGB)x240	13 pin	4 Wire SPI	ST7789V

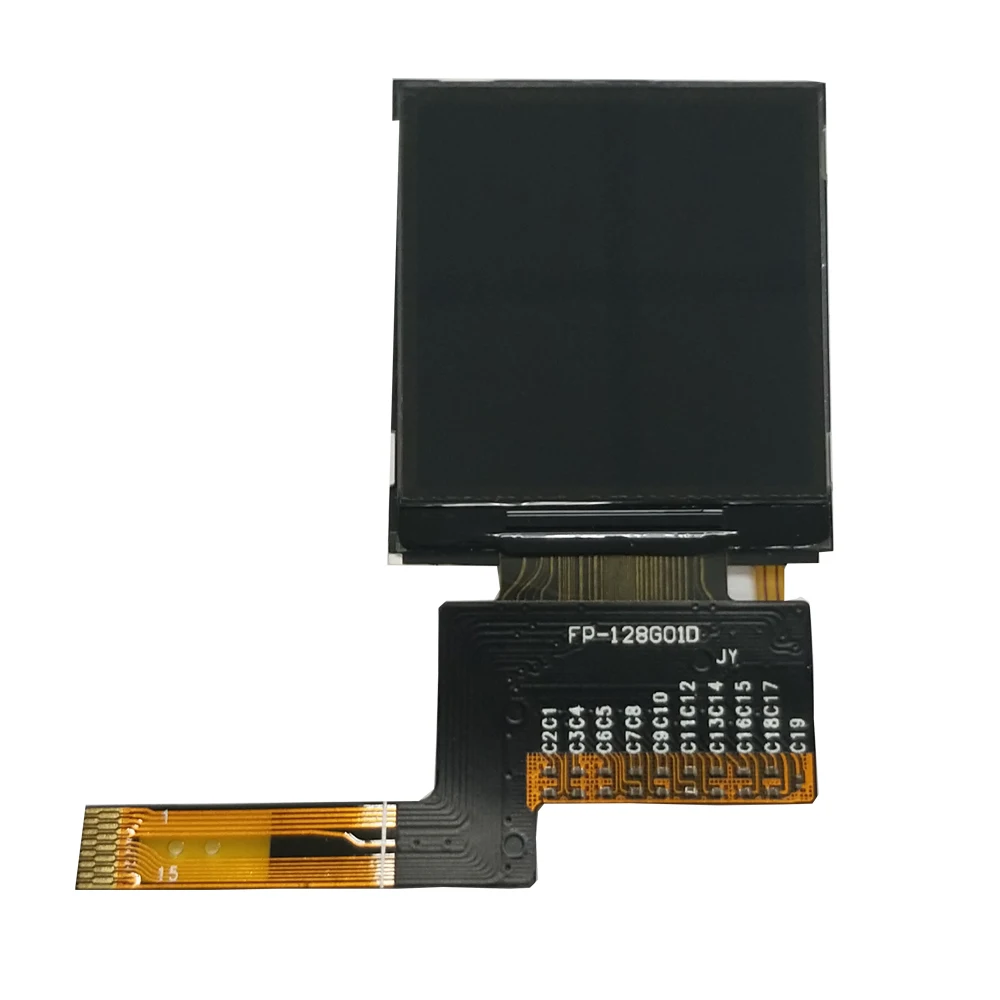

1.28inch TFT Display	LH128R-IF04	240(RGB)x240	15 pin	4 Wire SPI	GC9A01
1.3inch TFT Display	LH133T-IG01	240(RGB)x240	12 pin	4 Wire SPI	ST7789VW
1.44inch TFT Display	TFT14406A	128(RGB)x128	39 pin	4 Wire SPI	ST7735S
1.54inch TFT Display	LH154T-PC03	240(RGB)x240	24 pin	8 Bit MUC	ST7789V
1.54inch TFT Display	LH154T-PG04	240(RGB)x240	12 pin	4 Wire SPI	ST7789V
