TIG 200 ACDC PFC MV, 110V/220V multi voltage inverter PFC, professional aluminum Welder, GTAW, everlast, miller, WTL

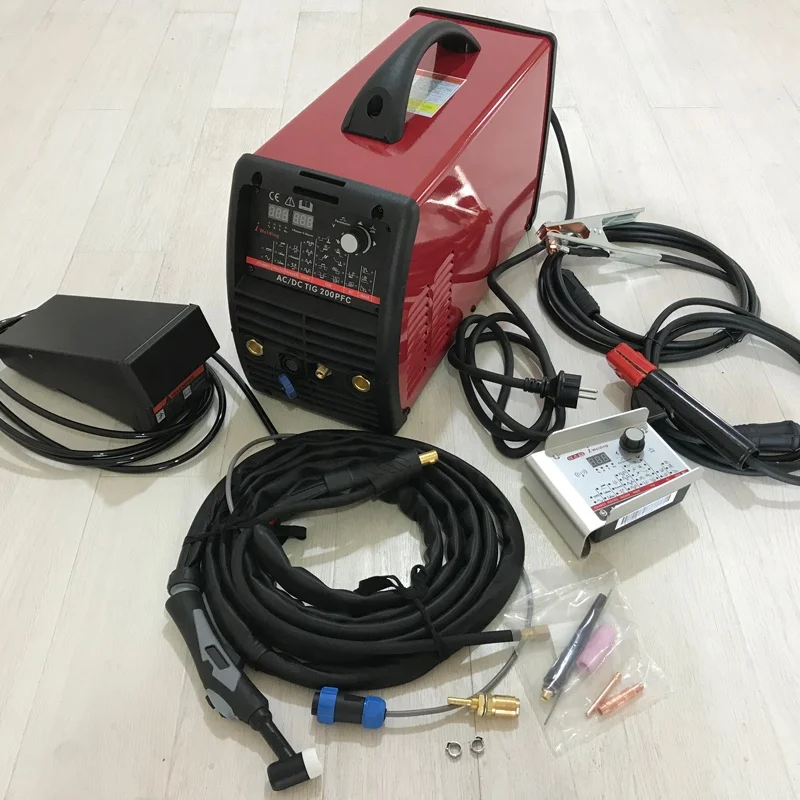

The price with standard accessories:

1, Welding cable: 16SQwith 3m cable with 35-70SQ euro connector with 200A electrode holder.
2, Earth cable: 16SQwith 3m cable with 35-70SQ euro connector with 300A earth clamp.

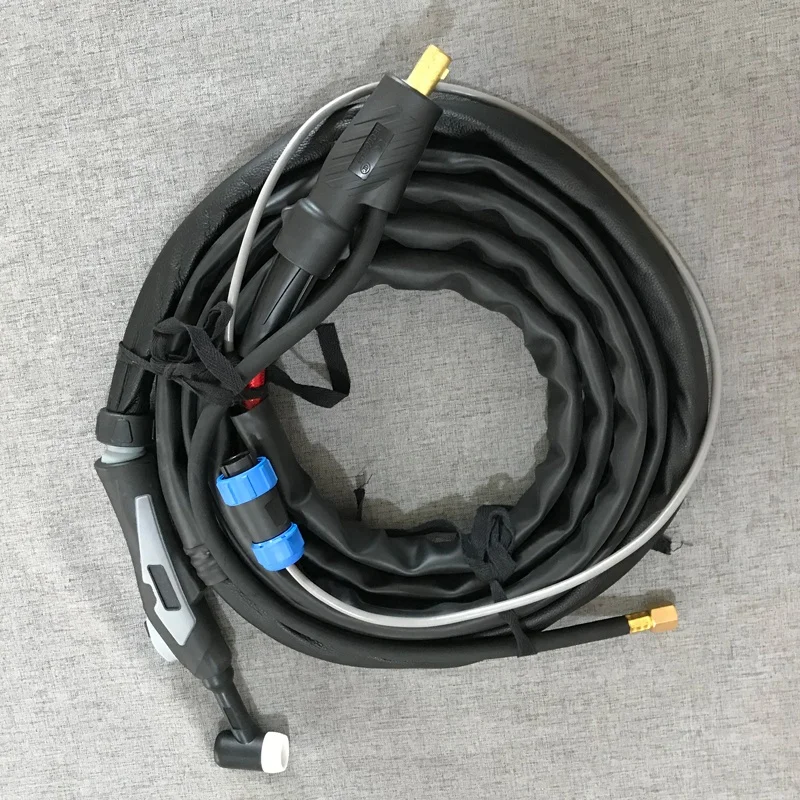

3, PARWELD torch: TIG-17 torch air cooled with 4m cable with 35-70SQ euro connector, M12*1 connector, with potentiometer current adjustment function with all the torch spare parts, with WEIPU 12 pins air plug
4, Air tube: SIZE 5*8 4m, Water connector (Trafimet): 6mm FA3045(Copper), Tube clip: 9.5mm
5,Wireless remote control device: TIG AC/DC US
6,Wireless pedal control device

Product Description

 ·Remote Foot Control

·Wireless Remote Fingertip Control
·Remote Foot Control
·Up/Down Remote Torch
·Remote Control Torch

Multi-Waveform Output
AC waveforms include square wave,sine wave, triangular wave and trapezoidal wave.

AC Balance Control
AC balance(50~85%)control monitors the oxide and helps better cleaning during aluminum welding.

Protections
Equipped with temperature,voltage and current sensors for high protection.

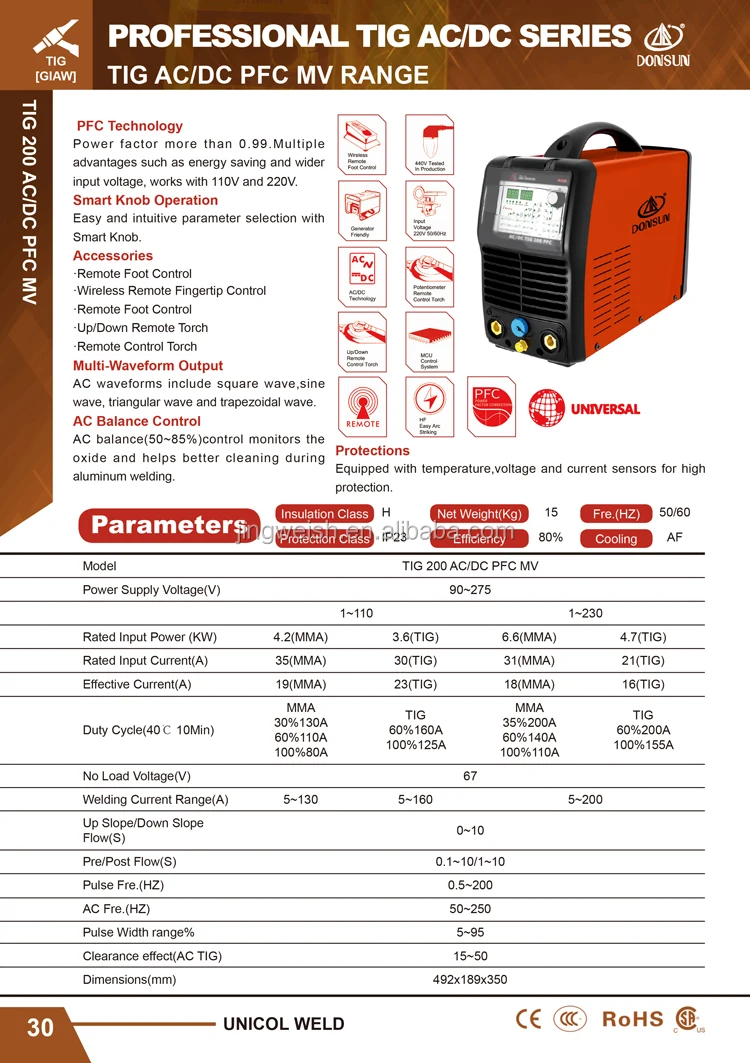

Model	TIG 200 AC/DC PFC MV
power supply voltage(V)	90~275
Fre.(HZ)	50/60
	1~110/120/130±10%		1~220/230/240±10%
Rated Input Power (KW)	4.2 (MMA)	3.6 (TIG)	6.6 (MMA)	4.7 (TIG)
Rated input current(A)	40 (MMA)	32 (TIG)	28 (MMA)	21 (TIG)
	MMA	TIG	DC	AC
Duty Cycle(40   10Min)	130A 30% 110A 60% 80A 100%	160A 60% 125A 100%	200A 35% 140A 60% 110A 100%	200A 60% 155A100%
No Load Voltage(V)	67
Welding Current Range(A)	5~130	5~160	5~200
Up Slope/Down Slope Time(S)	0~10
Pre/Post Flow(S)	0.1~10/1~10
Pulse Fre.(HZ)	0.5~200
Pulse width range(%)	5~95
AC Fre.(HZ)	50~250
Clearance effct(AC TIG)	15~50
Efficiency	≥80%
Net Weight(Kg)	15
Dimensions(mm)	492x189x350
power factor	-
Insulation Class	IP23
Protection Class	H
Cooling	AF
