Rapid Thin-Wall Plastic Products Making Machine
Plastic Disposable Cups Injection Molding Machine for Plastic Cutlery
\t
Number Item
\t
HD260K
\t
Category
\t
HDK Series
\t
OEM
\t
Available
\t
Warranty
\t
1 Year
\t
Factory
\t
Yes

Application >>

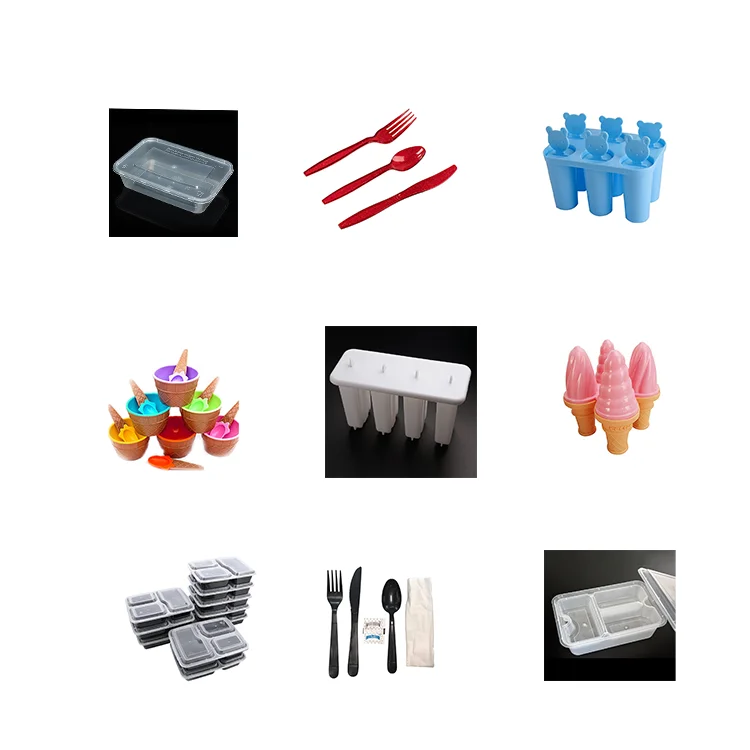

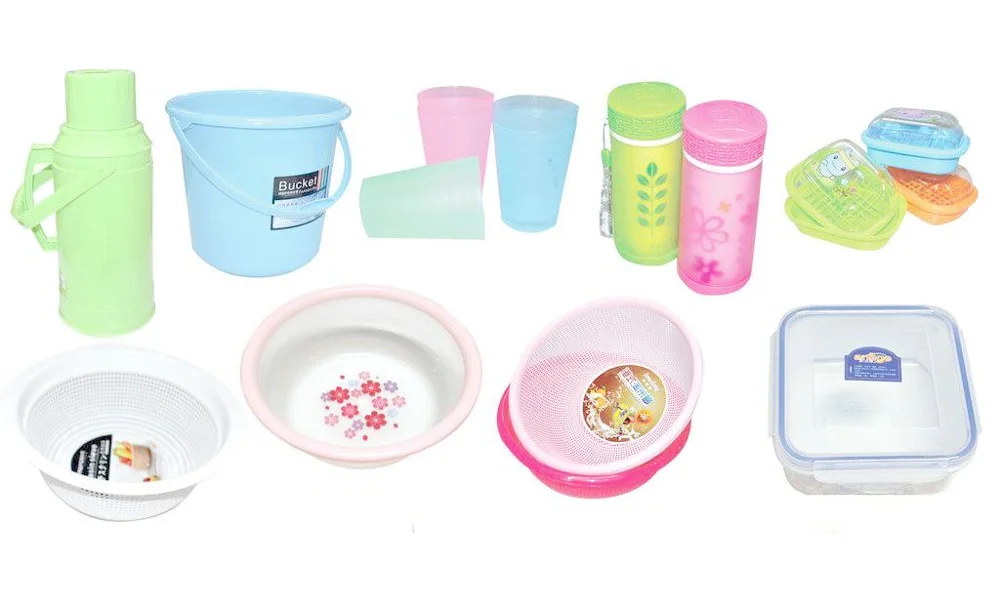

HAIDA K Series High-performance High speed Thin-wall Injection Machine is specially designed for high-speed thin-wall products, multiple-cavity products and relevant civil products in current market.


Technical Parameters >>

\t
MODEL
\t
HD300K
\t
ITEM
\t
UNIT
\t
DATA
\t



INJECTION UNIT
\t
Screw Diameter
\t
mm
\t
40
\t
45
\t

\t
Screw L/D Ratio
\t
L/D
\t
25
\t
23
\t

\t
Injection Volume
\t
cm3
\t
251
\t
318
\t

\t
Shot Weight
\t
g
\t
229
\t
289
\t

\t
Injection Rate
\t
g/s
\t
394
\t
499
\t

\t
Injection speed(max)
\t
mm/s
\t
350
\t
\t
Injection Pressure
\t
Mpa
\t
175
\t
138
\t
\t
\t
Screw Speed
\t
RPM
\t
350
\t



CLAMPING UNIT
\t
Clamping Force
\t
KN
\t
2600
\t
Opening Stroke
\t
mm
\t
500
\t
Space Between Tie-Bars
\t
mm
\t
565×515
\t
Mould Thickness(Min-Max)
\t
mm
\t
200-560
\t
Ejector Force
\t
KN
\t
70
\t
Ejector Stroke
\t
mm
\t
140
\t





GENERAL
\t
Pump Pressure
\t
MPa
\t
14
\t
Motor Power
\t
KW
\t
22×2
\t
Heater
\t
KW
\t
18
\t
Machine Dimension
\t
m
\t
6.0×1.5×2.3
\t
Machine Weight
\t
t
\t
10
\t
Mould Orientation Ring Diameter
\t
mm
\t
Φ125
\t
Nozzle Radius
\t
mm
\t
SR10




Characteristics >>


HAIDA K Series High-performance High speed Thin-wall Injection Machine.

Specially designed for high-speed thin-wall products, multiple-cavity products and relevant civil products in current market. The model is created in accordant with latest national design concept, combining decades of experience in design and manufacture of the company.


Higher work efficiency. According to features of injection, optimize and integrate injection, clamping, hydraulic and control units, which has greatly shortened the production cycle.


Stricter safety standards.Comply with national mandatory safety standard to guarantee operators' safety.


More perfect organization.Frame-type rack design; improve rigidity and strength on the basis of finite element analysis, which has greatly improved rack precision, reduced rack deformation and realized a more stable and smooth operation.

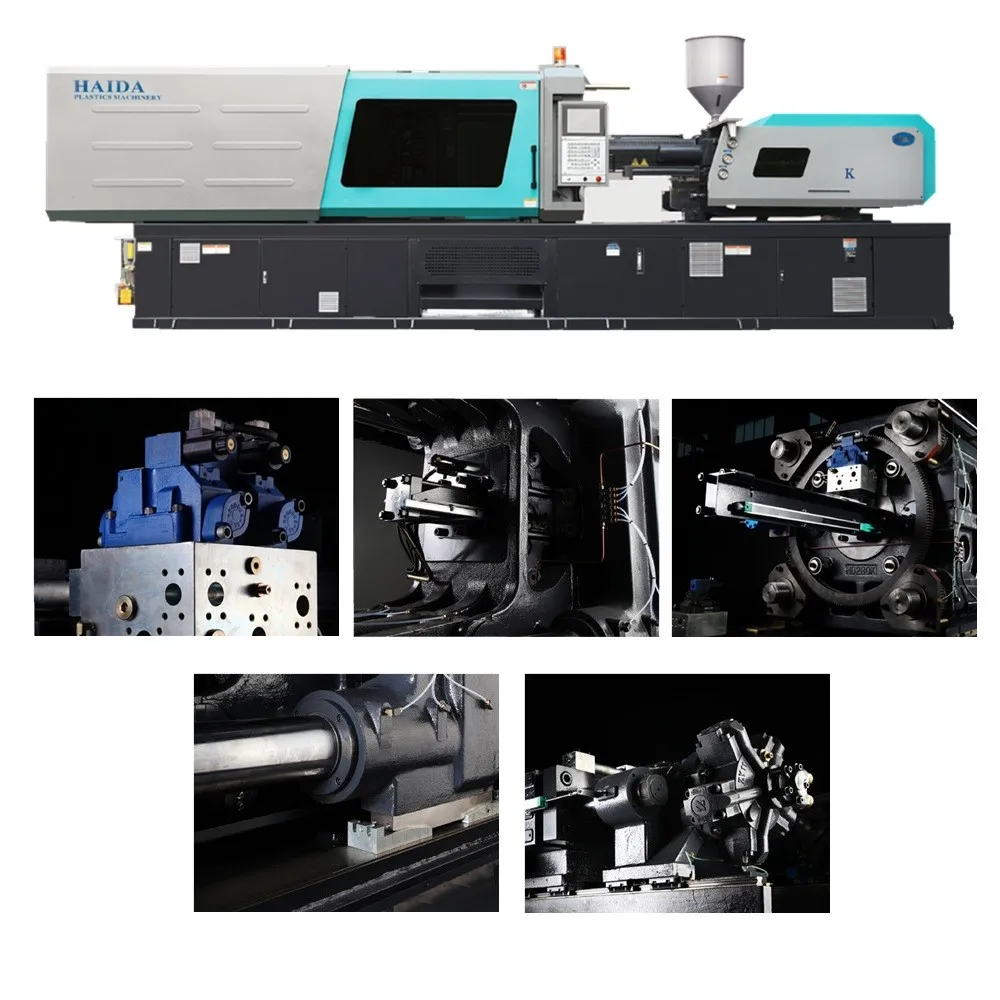

Detailed Images

Similar Products >>


                  HD260K

               View Details>>

                      HD360K

                  View Details>>

                      HD420K

                 View Details>>


About Us


WHY CHOOSE US


HAIDA Machinery established in the year 1991 at Ningbo, is one of the top 10 Chinese injection molding machinery manufacturer. Nearly  30 years, we had established more than 60 sales and service agencies in China and overseas.

We are manufacturing different types of injection molding machines and range starts from 50 Ton to 3300 Ton.

These products find application in various industries for several functions.

We committed to providing the complete solutions for Plastic. Our name involved in manufacturing and supplying a flawless quality range.
