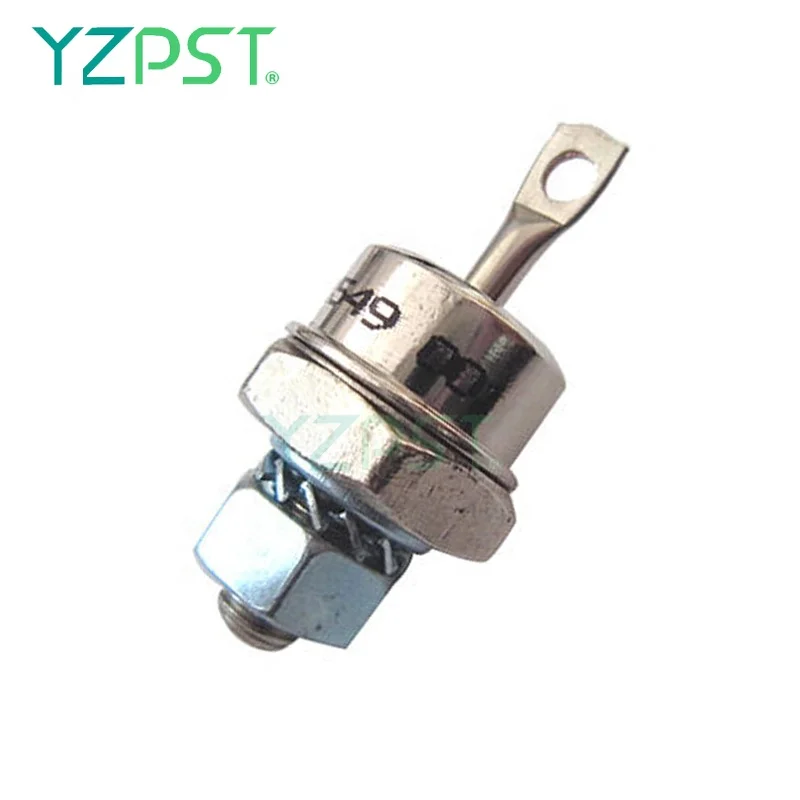

Factory Leaded version available Rotating diodes 1400V
- Category: >>>
- Supplier: Yangzhou Positioning Tech. Co. Ltd.
Share on (62055271322):
Product Overview
Description
Product Description
ZX70(R) ROHS Compliant
Features
High surge current capability
Designed for a wide range of applications

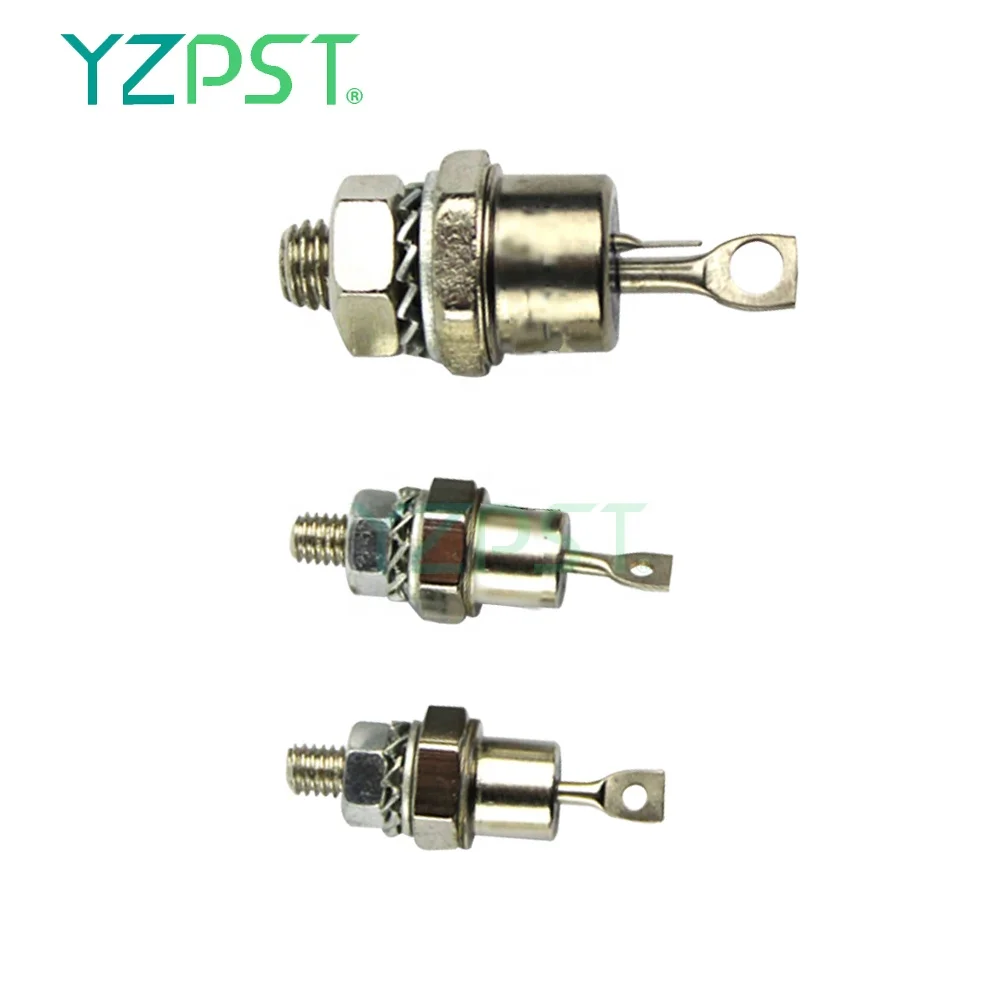

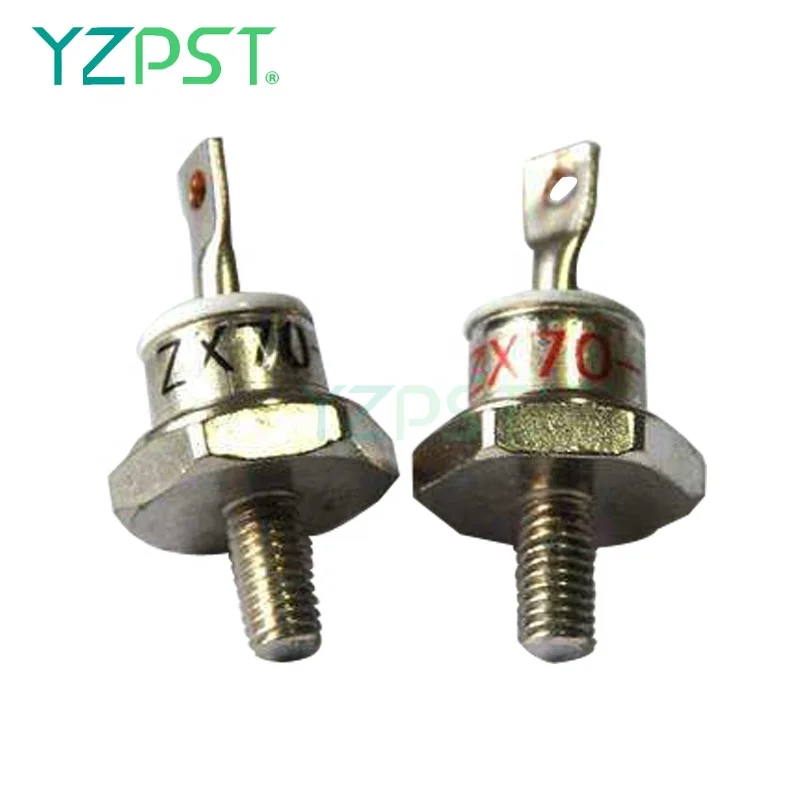

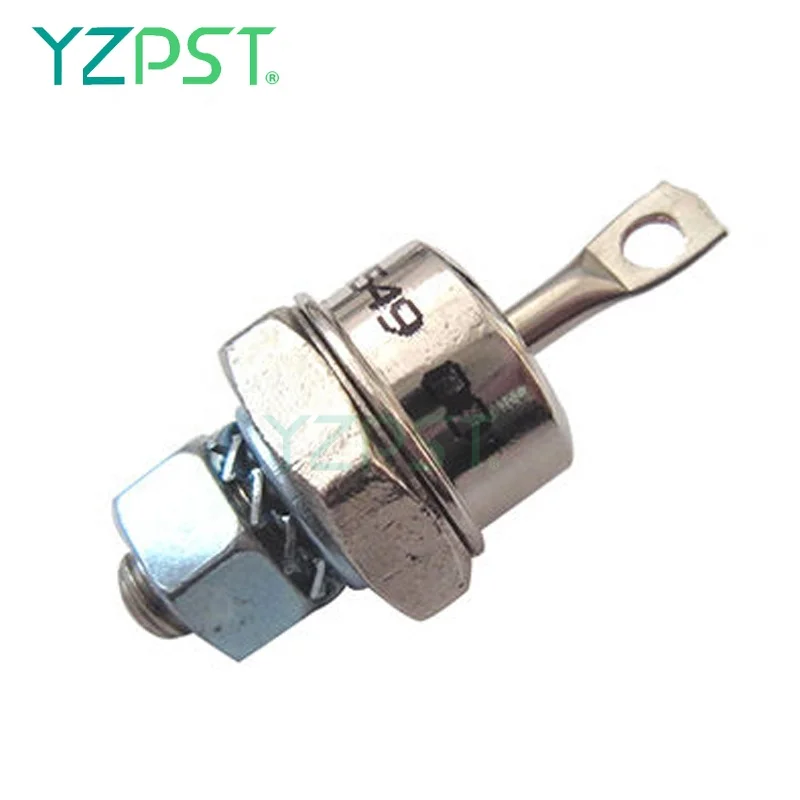

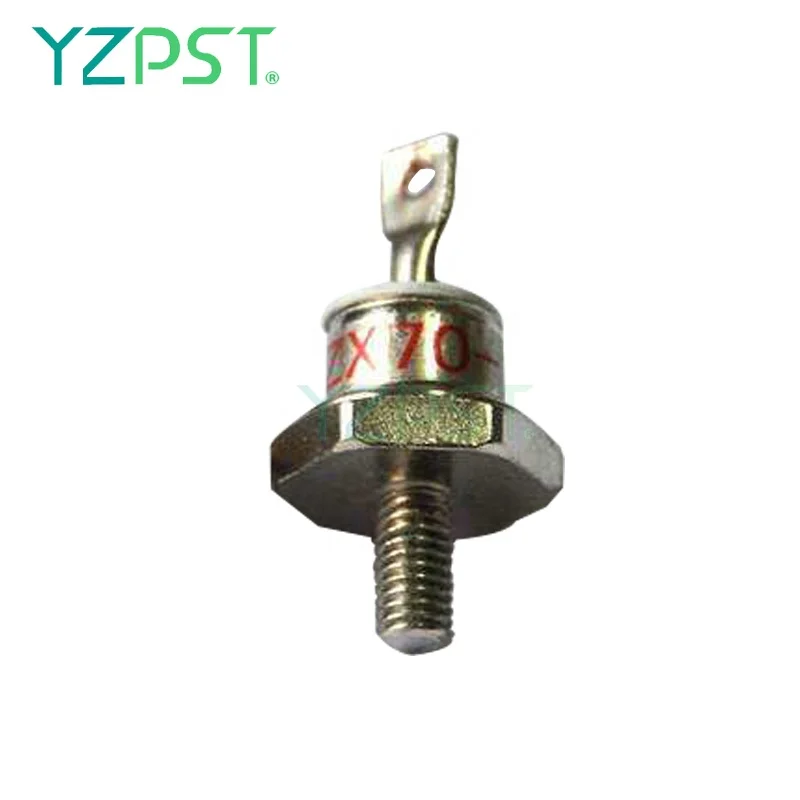

Stud cathode and stud anode version
Leaded version available
Types up to 1600V VRRM
Typical Applications
Battery charges
Converters
Power supplies
Machine tool controls

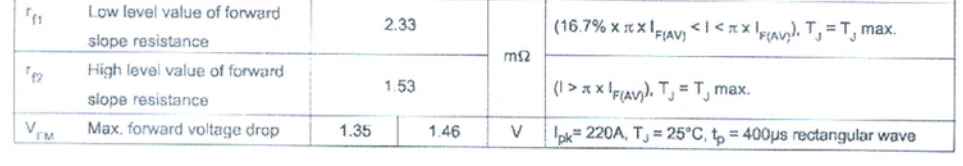

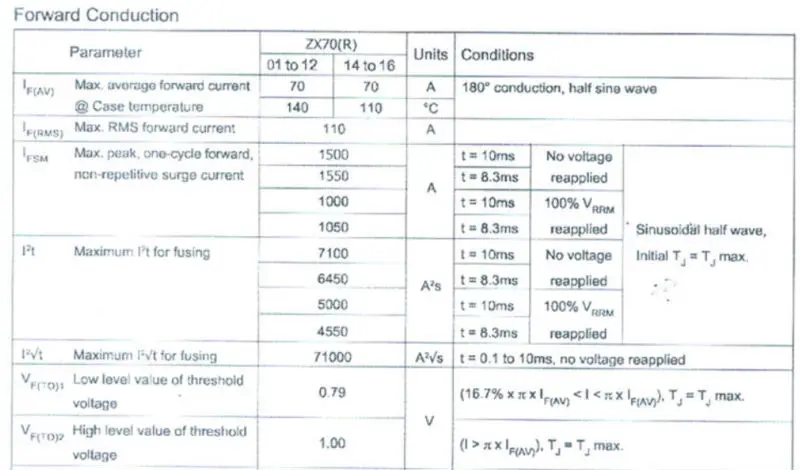

Major Ratings and Characteristics
Parameters | ZX70(R) | Units | ||
01 to 12 | 14 to 16 | |||
IF(AV) | 70 | 70 | A | |
@Tc | 140 | 110 | ℃ | |
IF(RMS) | 110 | A | ||
IFSM @50 Hz | 1500 | A | ||
@60 Hz | 1250 | A | ||
I2 t @50 Hz | 7100 | A2s | ||
@60 Hz | 6450 | A2s | ||

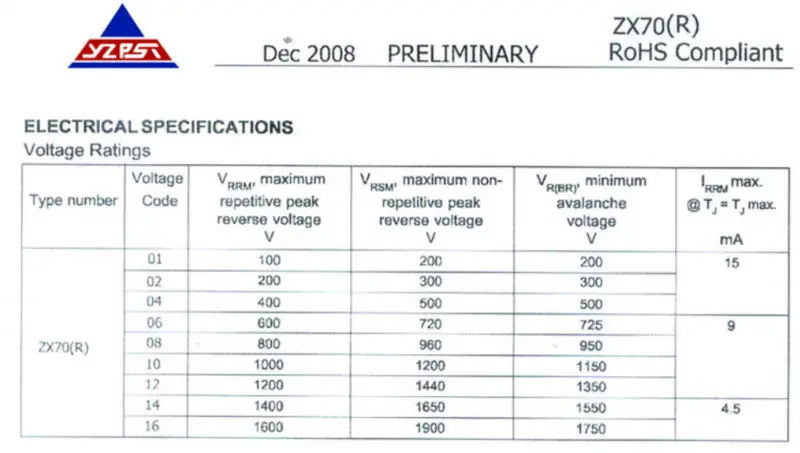

VRRM range | 100 to 1200 | 1400 to 1600 | V | |
Tj range | -65 to 180 | -65 to 150 | ℃ | |
