DGRHT50 Simulation linear actuator for(2DOF, 3DOF, 4DOF, 6DOF)motion platform (VR) car racing simulator Technical Data
Product Series
DGRHT50
Screw lead / pitch (mm)
5
510
Max. Power of Motor (W)
750
750
Max. Rated Thrust (N)
1500
1500
Max. Speed (mm/s)
250
500
Rated Driving Torque (N.m)
1.3
2.5
Max. Ball Screw Diameter (mm)
16
16
Rated Dynamic Load of Ball Screw (kgf)
1380
1108
Max. stroke (mm)
1200
1200
Axial Backlash (mm)
0.02-0.04
0.02-0.04
Lead Error Every 300mm (mm)
0.023
0.023
Repeatability Accuracy (mm)
0.02
0.02
Flange Size of Optional Servo Motor Series (mm)
60
80
Flange Size of Optional Stepper Motor Series (mm)
57
60
Flange Size of Optional Gear Box Series (mm)
60
80
Note: 1.If you need to know the ball screw life, please contact customer service for detailed consultation; 2.The max. thrust and the max. speed can not be reached at the same time. Different motor and gear boxes will be used. 3.If the Max. stroke exceeds 500mm, it is recommended to add a guiding device; Note: If above parameters can not meet your needs, please contact us, we can customize according to your requirements with NO MOQ.

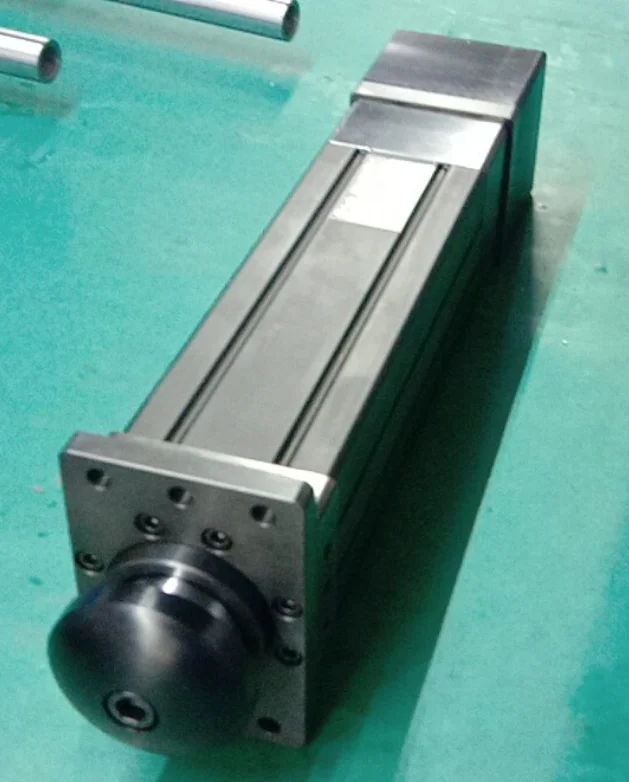

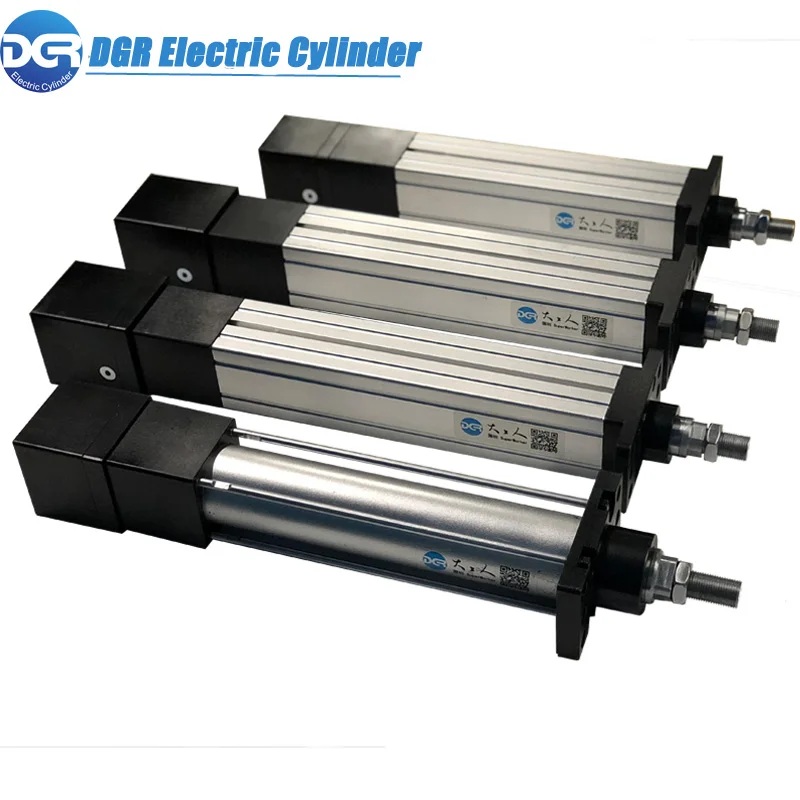

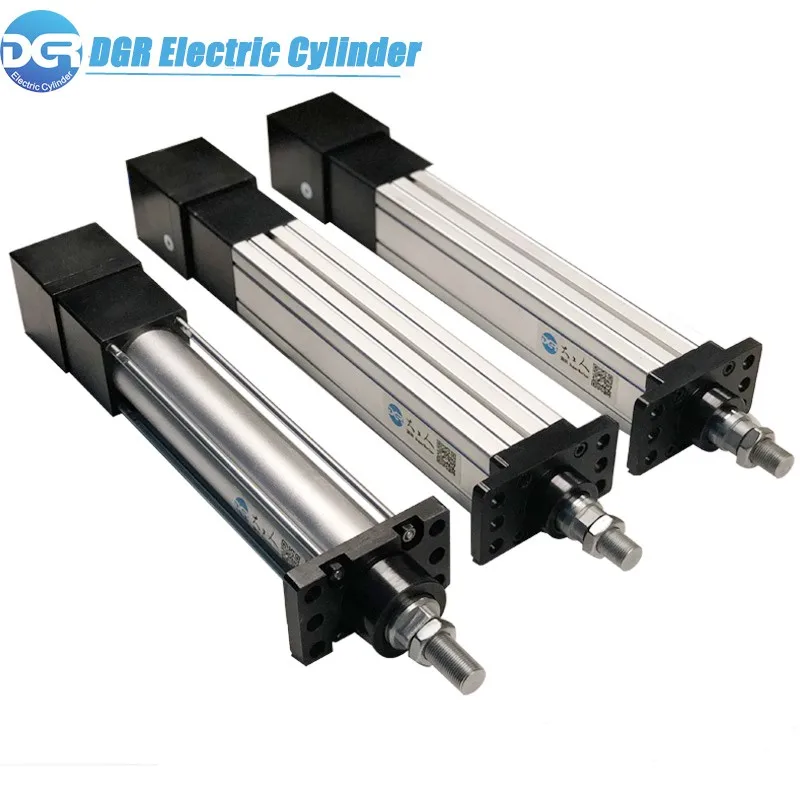

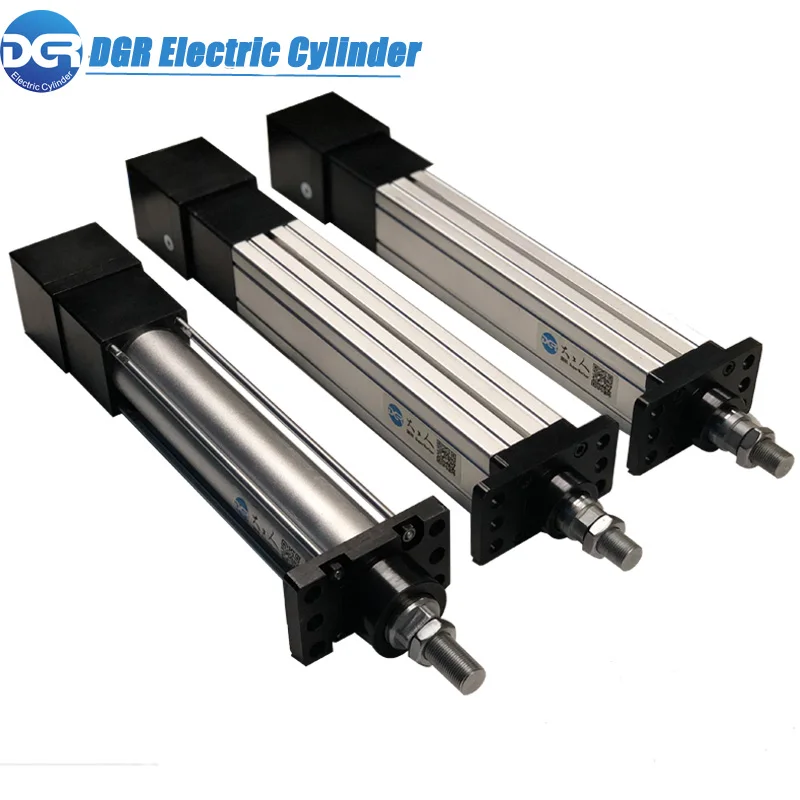

DGRHT50 Linear Actuator For(2DOF/3DOF/4DOF/6DOF)Motion Platform (VR) Flight Simulator Car Racing Simulator Features :
High Accuracy
Using servo motor as the drive mechanism, the servo control system has very high precision and can achieve precise positioning of about 0.01mm.
High Reliability
Highly security
Long Life
High-precision transmission parts such as ball screws can reduce the friction and increase the service life of the electric cylinder.
Careful Material Selection
1. Round carbon steel is used as the cylinder material, the thrust is very large, and the maximum rated load can reach 20 tons.
2.Key components are made of high quality materials and processed with vacuum heat treatment or surface treatment (including: coating, azotizing, oxidation)
3.Select high-quality grease to minimize friction, which enables the drive efficiency to reach up to 90%.

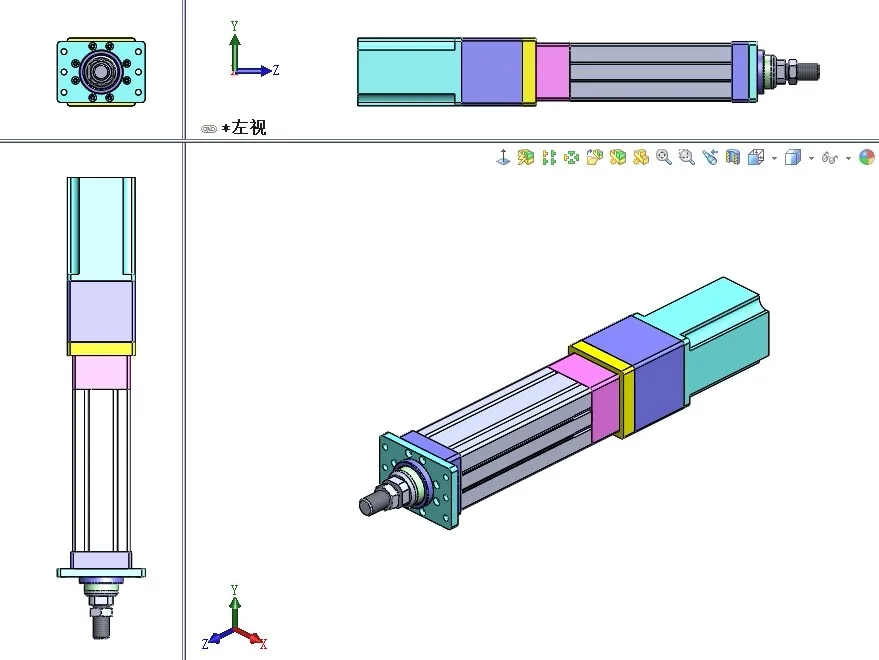

Refined Design and Processing
1.Snap fastener will be required to locate the part in its fixed position to avoid assembly errors that affect mechanical properties.
2.All screw threads are coated with screw locking adhesive after commissioning to ensure the equipment is stable and trouble-free.
3. The anti-torsion mechanism is installed inside, no need to match the output shaft, the user can directly use
4.All heavy-duty cylinders use sliding key guides. (The square cylinders are using guided rod)
Excellent Service
1.Each DGR electric cylinder is backed by a lifelong tracking service to ensure it can be used normally over its life cycle. (including: handling product failure, providing spare parts and technical support) 2.DGR Electric cylinder can be custom engineered for customer's particular application. 3.5 years' experience in electric cylinder production. 4.All customer requirements will be responded within 12 hours
Duty Cycle
The ball screw can be operated frequently and achieve high strength, high speed and high precision positioning.
Complete Testing
Professional factory inspection: including appearance, stroke, load, noise decibel etc.

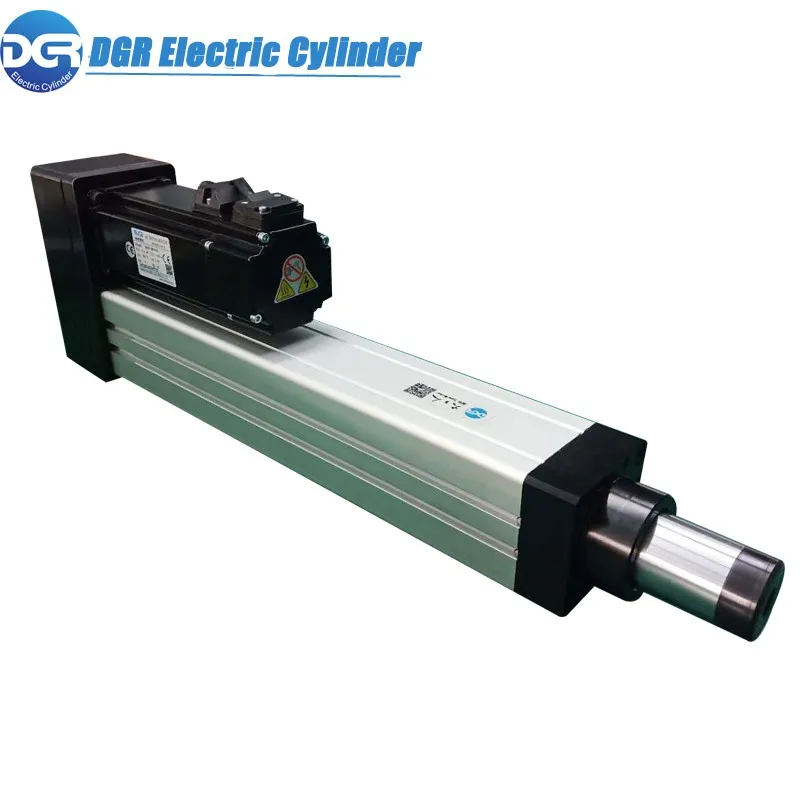

Wide Selection of Motors
1.Servo and inverter control are performed by servo motor, stepper motor, DC motor, and AC motor.
2.Motor comes with brake to ensure secure operation.

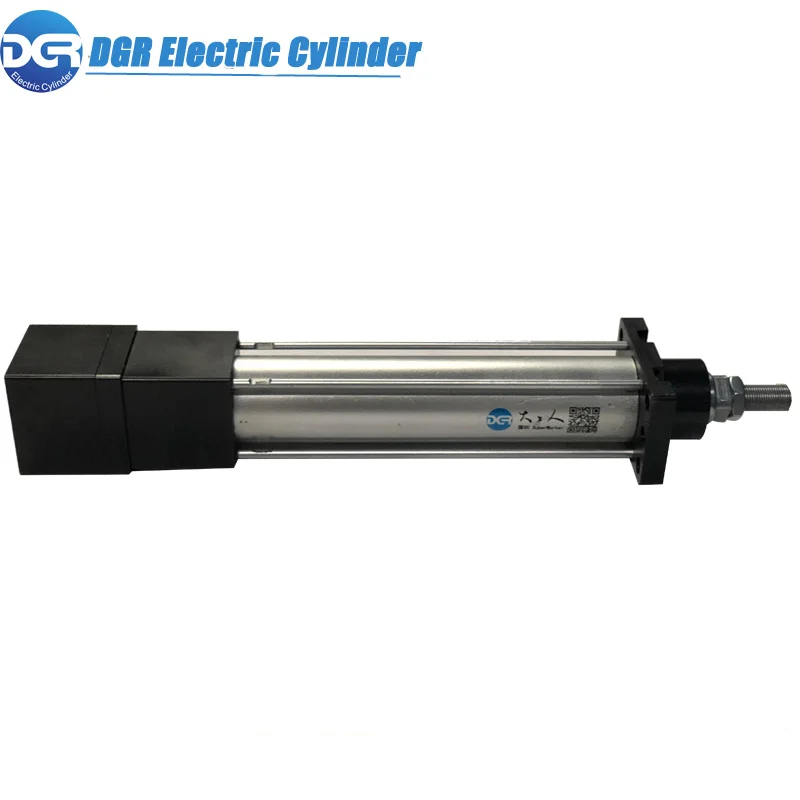

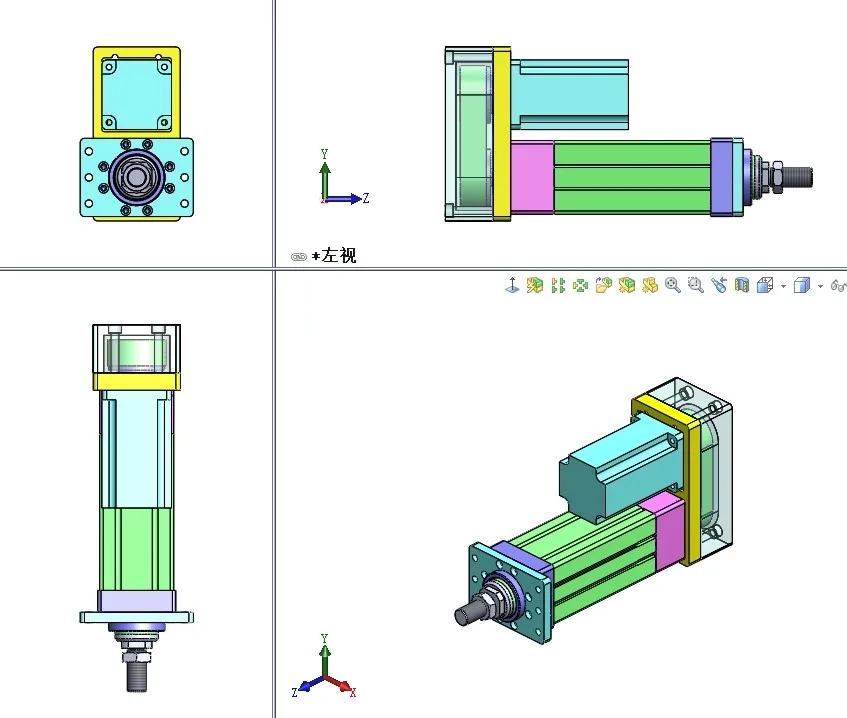

DGRHT50 Simulation linear actuator for(2DOF, 3DOF, 4DOF, 6DOF)motion platform (VR) car racing simulator

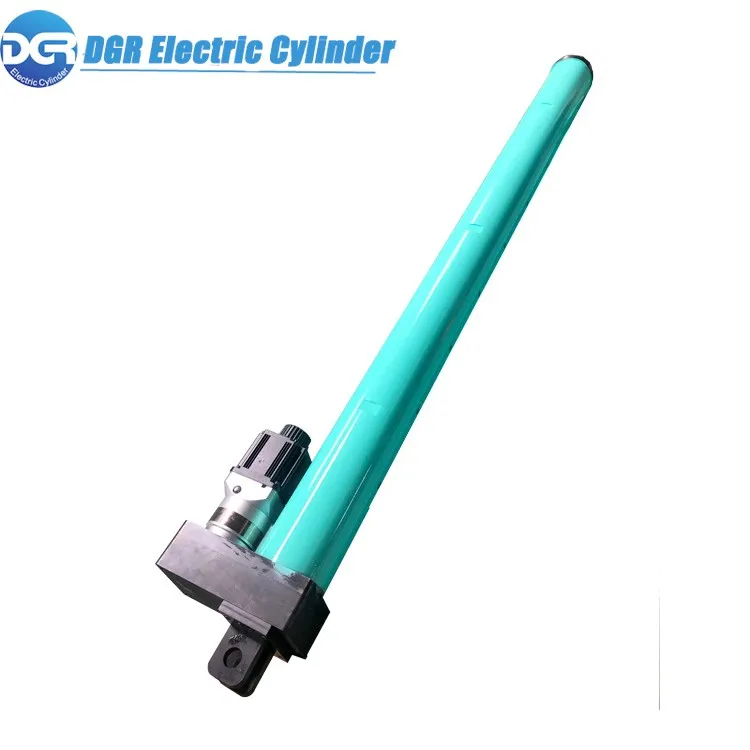

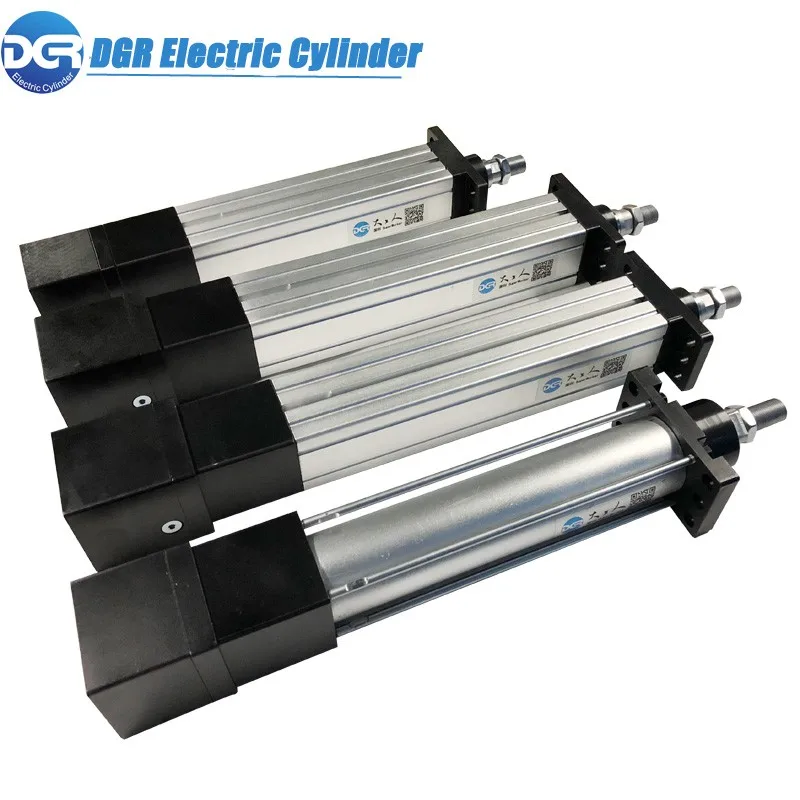

Dagongren Electric Cylinder HT-50
