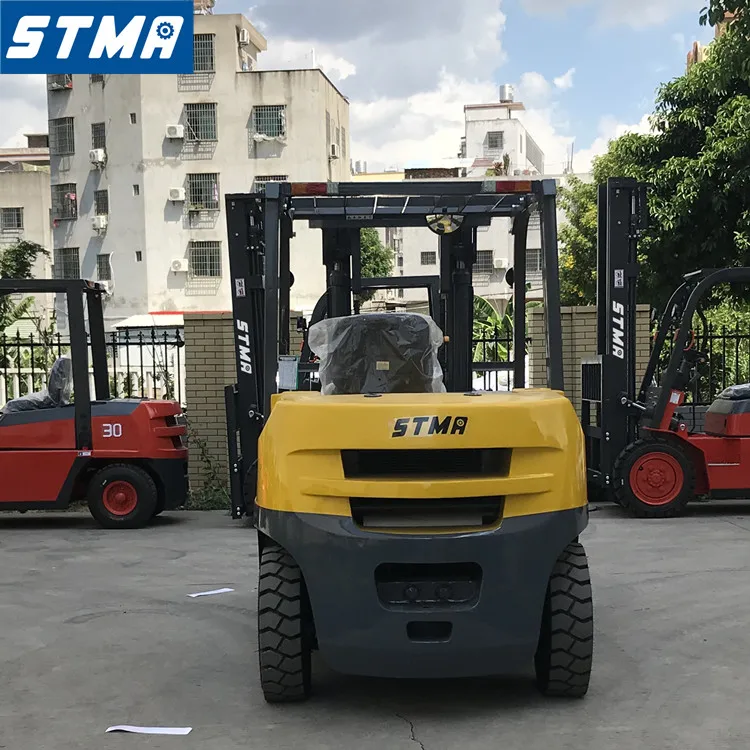

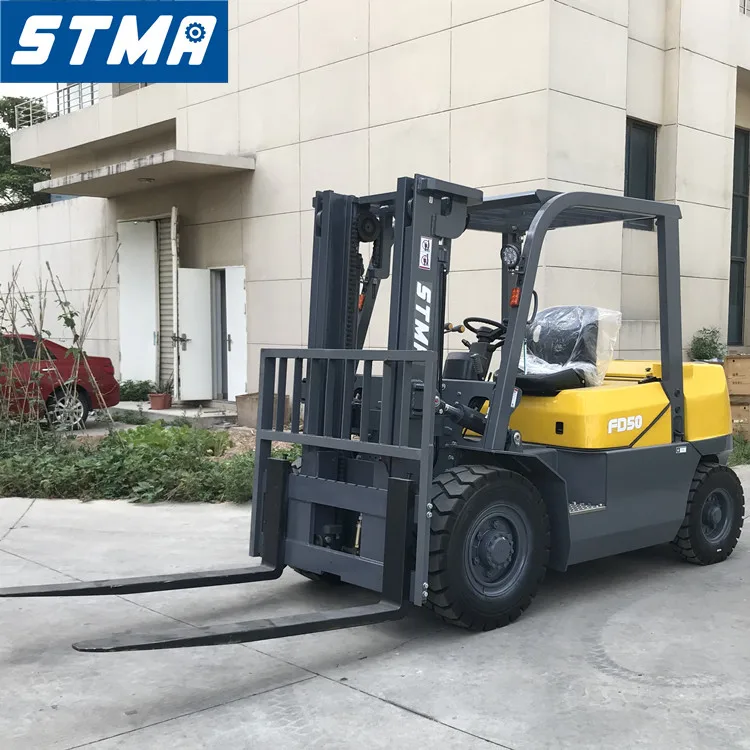

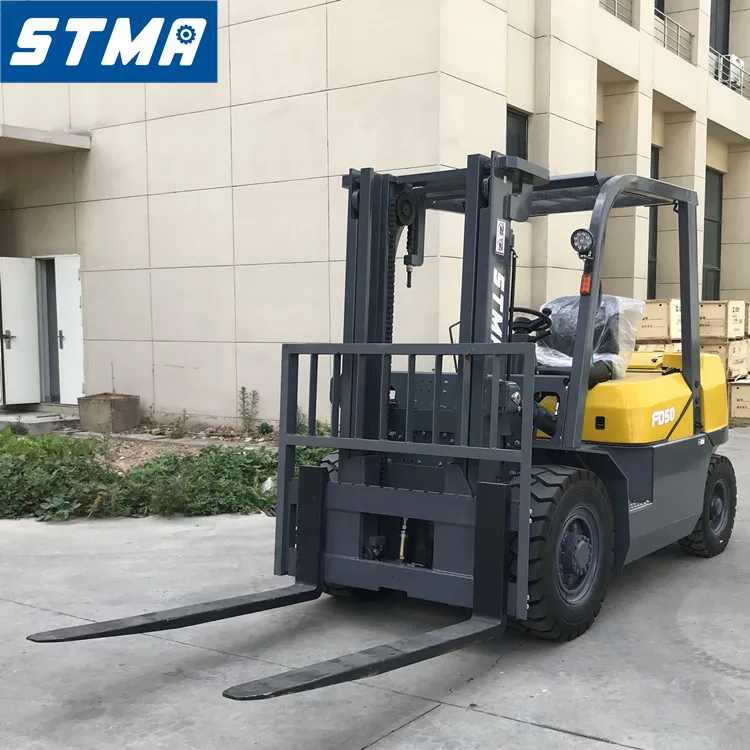

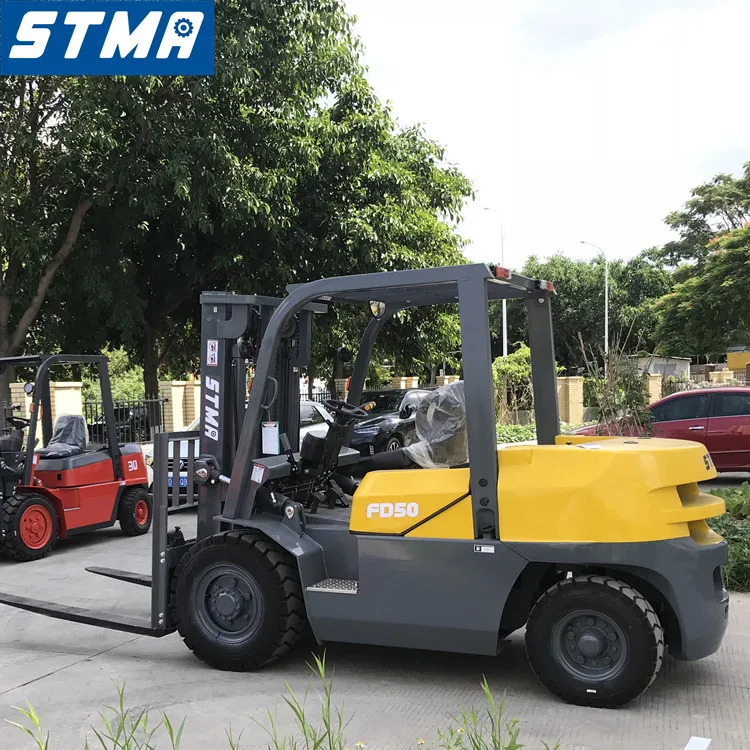

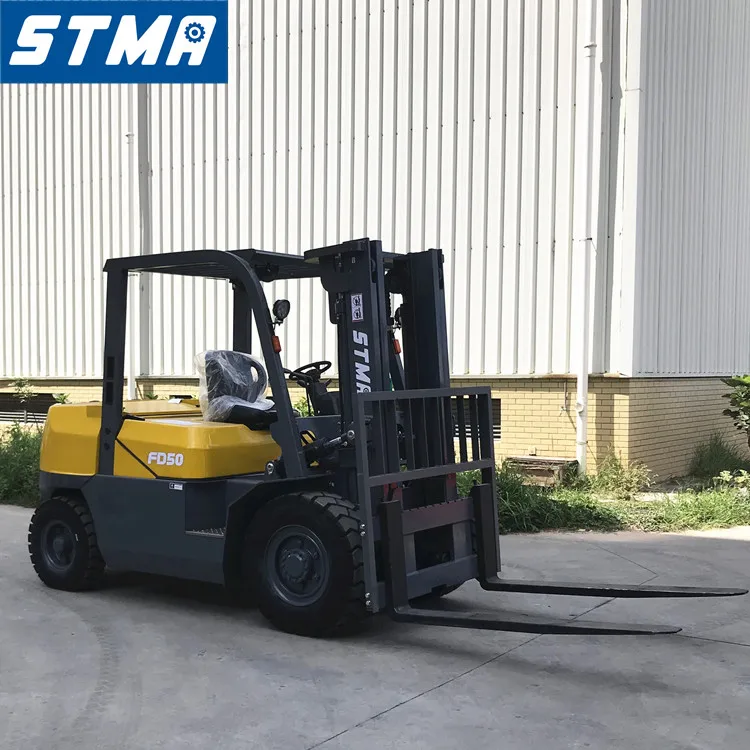

high performance mitsubishi s6s engine forklift 5 ton diesel new 5000 kg forklift
- Category: >>>
- Supplier: STMA Industrial (Xiamen) Co. Ltd
Share on (62055341154):
Product Overview
Description
Product Description
high performance mitsubishi s6s engine forklift 5 ton diesel
forklift 5 ton diesel
Detailed Images
SPECIFICATIONS FOR FORKLIFT 5 TON DIESEL | ||||||
Model | FD50 small | |||
1 | Power Type | Diesel | ||
2 | Rated Capacity | kg | 5000 | |
3 | Load Centre | mm | 500 | |
4 | Lift Height | mm | 3000 | |
5 | Fork Size (L×W×T ) | mm | 1070×150×55 | |
6 | Mast Tilt Angle (F/R) | Deg | 6°/12° | |
7 | Front Overhang (Wheel center to fork face) | mm | 570 | |
8 | Ground Clearance(Bottom of mast) | mm | 158 | |
9 | Turning Radius (outside) | mm | 2445 | |
10 | Min. Intersecting aisle | mm | 2235 | |
11 | Max.Gradeability (No load/Full load) | % | 19 | |
12 | Wheelbase | mm | 1700 | |
13 | Service weight | kg | 6370 | |
14 | Battery (Voltage/Capacity) | V/Ah | 12/80 x 2 | |
15 | Overall Dimension | Length to face of fork(Without fork) | mm | 3110 |
16 | Speed | Overall Width | mm | 1480 |
17 | Mast Lowered Height | mm | 2350 | |
18 | Mast Extended Height(With backrest) | mm | 4180 | |
19 | Overhead Guard Height | mm | 2290 | |
20 | Travel (No load) | km/h | 24 | |
21 | Lifting(Full load) | mm/s | 450 | |
22 | Tire | Front | mm | 300-15-18PR |
23 | Rear | mm | 7.00-12-12PR | |
24 | Engine | Model | 1104D | |
25 | Manufacture | PERKINS | ||
26 | Rated output/r.p.m. | kw | 56/2200 | |
27 | Rated torque/r.p.m. | N·m | 260/1900 | |
28 | No.of Cylinder | 4 | ||
29 | Bore×Stroke | mm | 105X127 | |
30 | Displacement | cc | 4400 | |
31 | Fuel Tank Capacity | L | 90 | |
32 | Transmission | Type | Powershift | |
33 | Stage FWD/RVS | 43101 | ||
34 | Operating Pressure for Attachment | Mpa | 17.5 |
