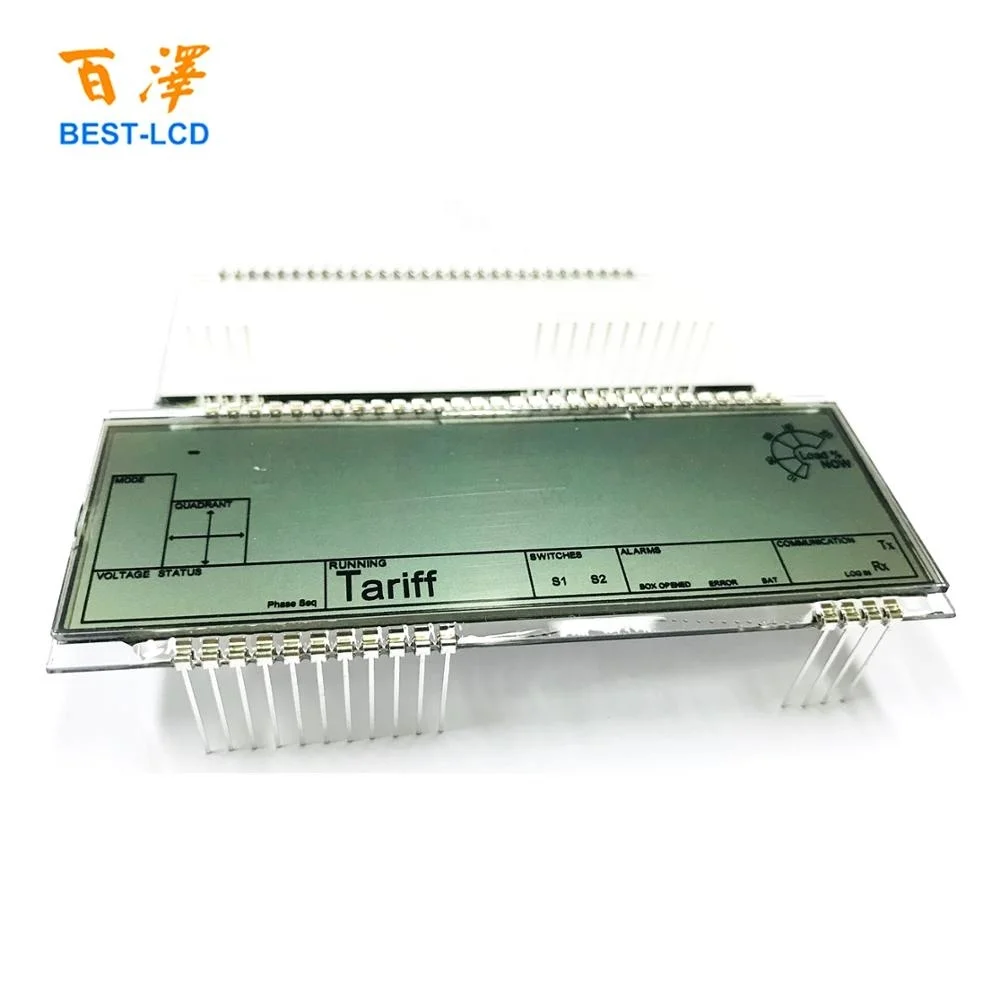

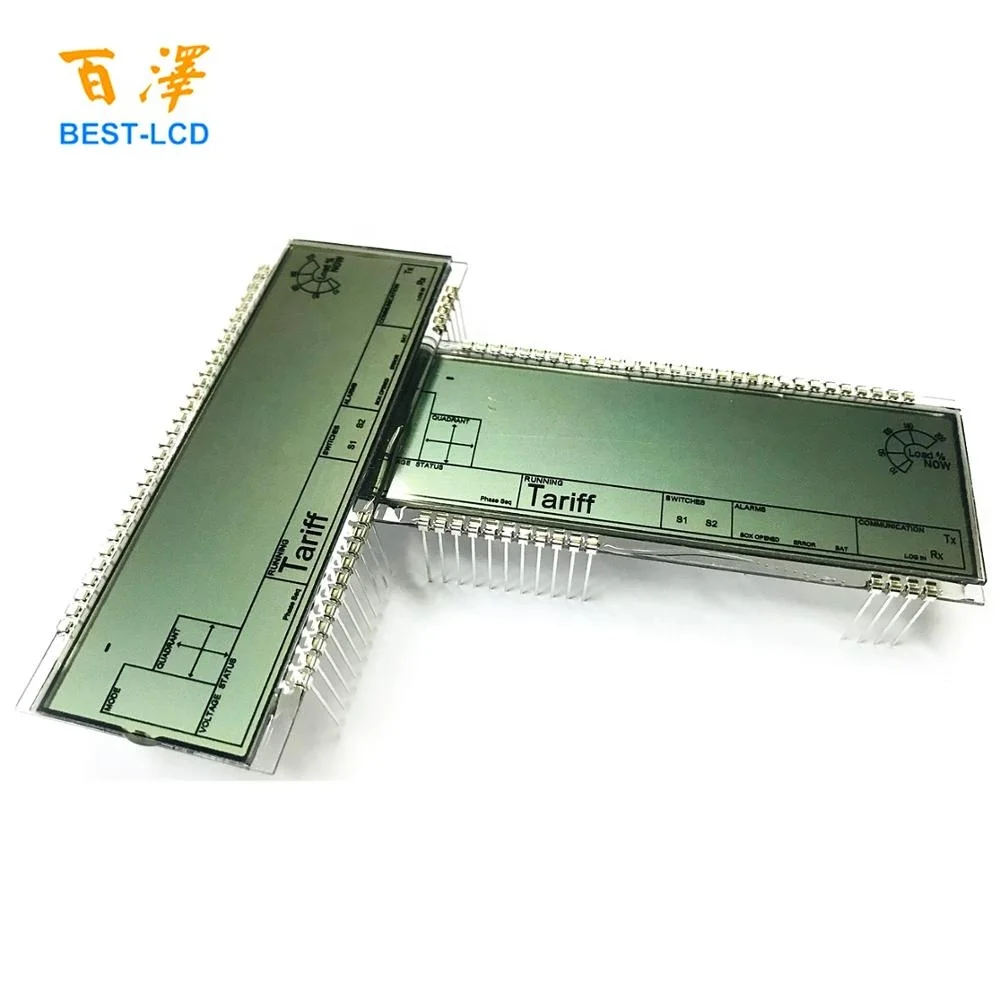

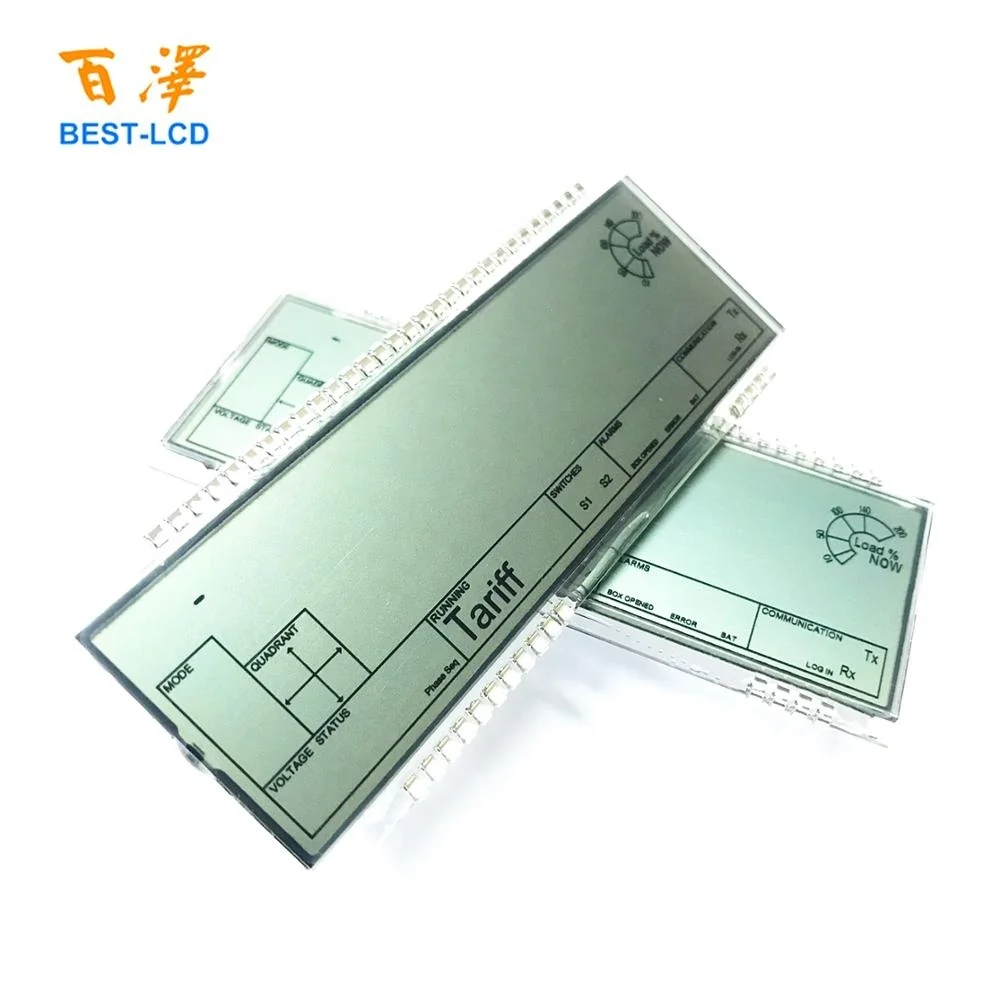

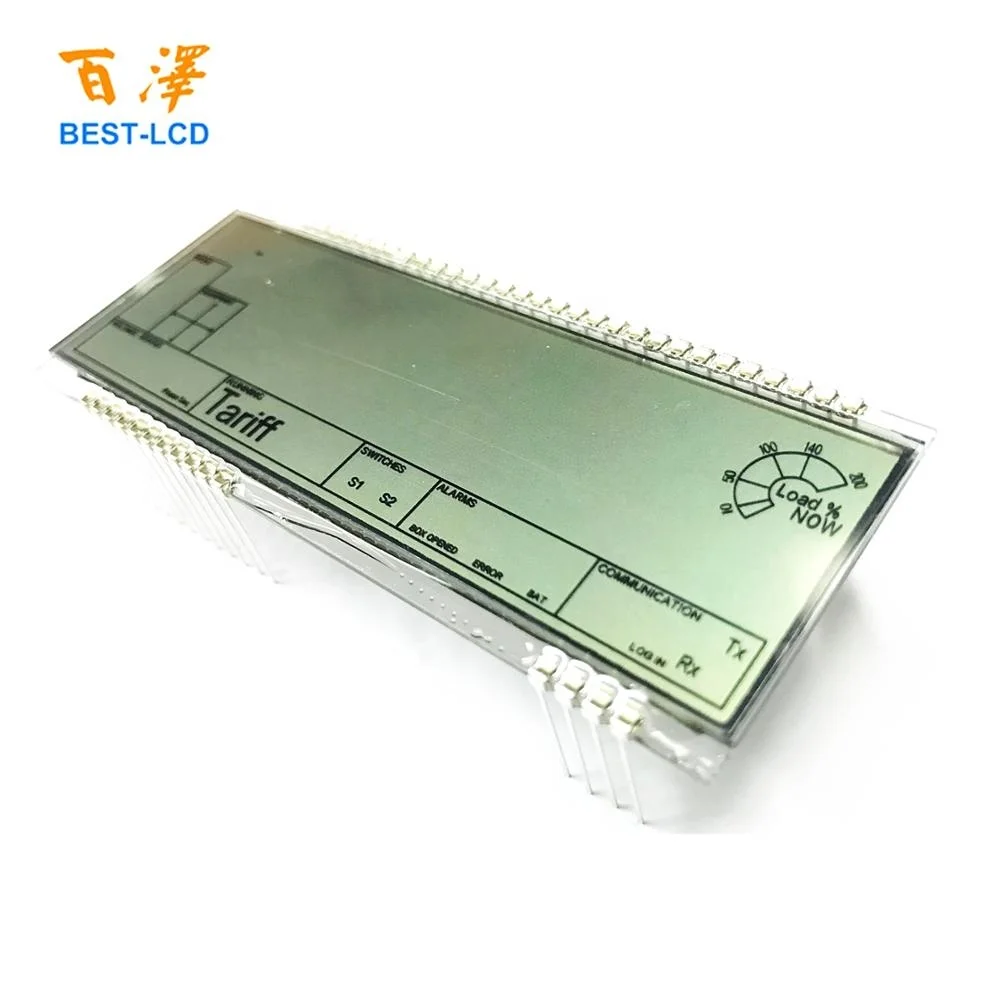

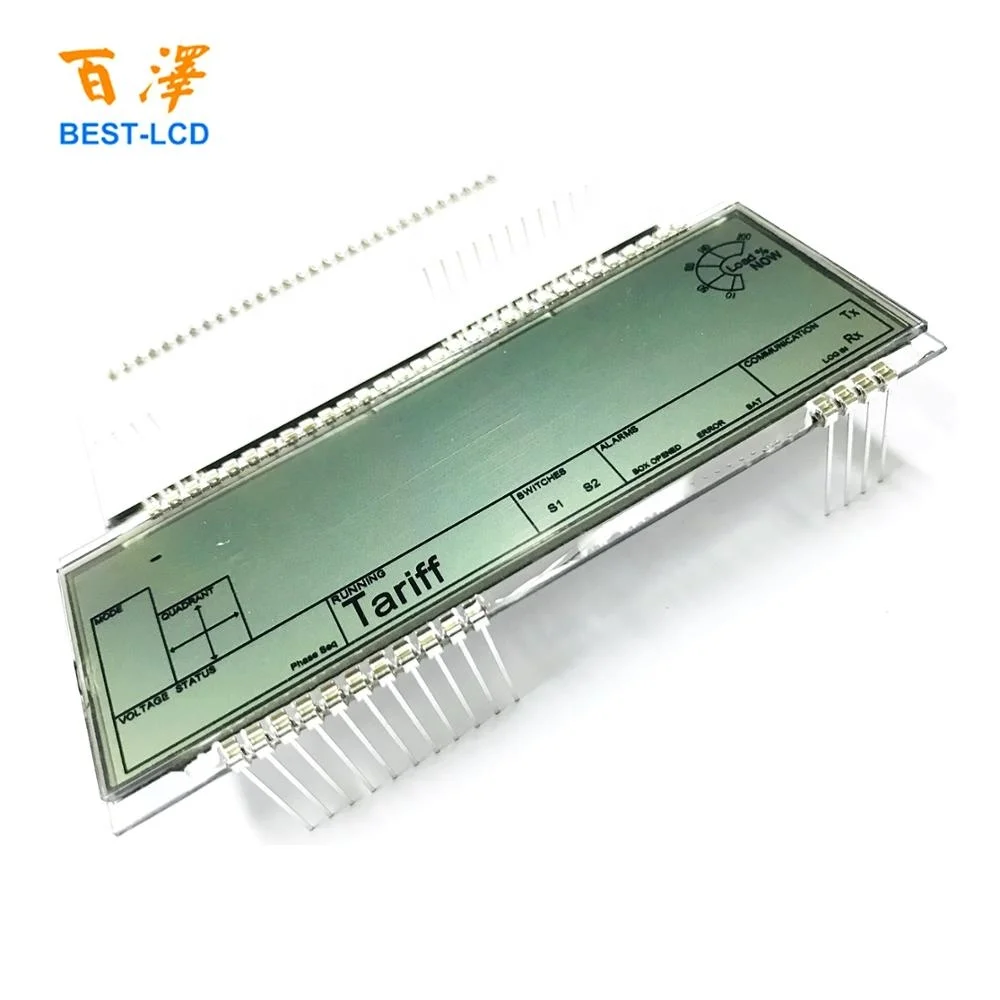

Black Silk Printing 45 Pin 6 Digits 7 segment HTN Reflective LCD Display For Electricity Meter/Gas Meter/Flow Meter

Product Overview

Description

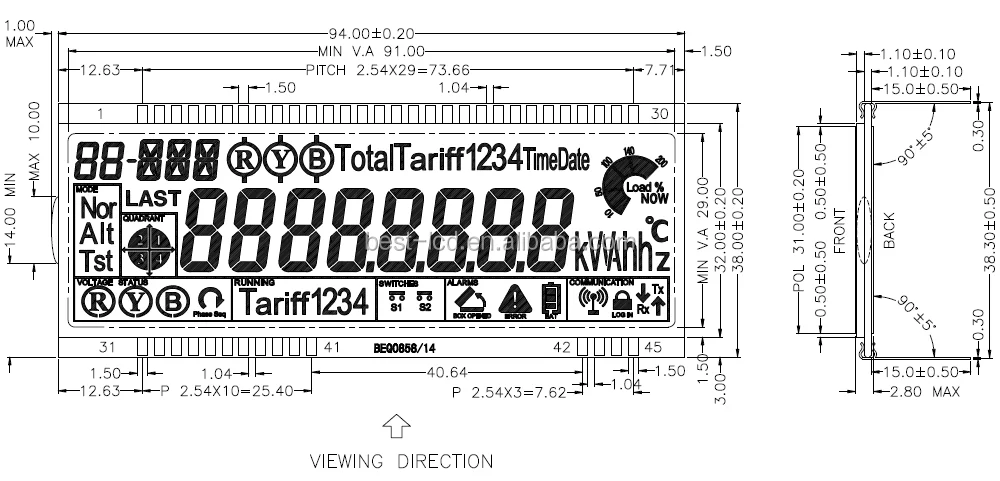

1. Professional Mechanical Drawings:







2. Precisely Technical&Mechanical Parameters FYI:



Application	For Electricity Meter/Gas Meter/ Industrial Meter/ Multi-meter/Universal Meter etc.
LCD mode	HTN Positive / Reflective
Outline size	94.00x32.00/38.00x1.10mm
Viewing size	91.00x29.00mm
Viewing Angle	6  O’ clock
Driving Method	1/4Duty 1/3Bias
Pitch	2.54mm
Connector Type	Metal Pin
Operate Temp	-30~80degree
Storage Temp	-35~85degree
Operative Voltage	3.0V
RoHS / REACH











5. Trusted Shipping:











6. Outstanding Capabilities&Services:

Customizing & designing segment, character, graphic LCD Display and LCD Module(Including LED Backlight, IC) with different sizes, shapes, display icons and other accessaries for clients.



Product Type:

1. LCD Type:  TN, HTN, STN, FSTN, VA, COB, COG etc.....

2.  Any digitals, Icons, graphic can be customized and designed according to customers' requirements.

3. Polarizer type: Transmissive, Transflective, Reflective

4. Connector Type: Metal Pins, Zebra, Heat-seal, FPC...

5. ITO Glass thickness: 1.1mm, 0.7mm, 0.55mm

6. The range of operating Temperature: -40~90°C





Our products are widely and well accepted in North America such as USA,Canada; European countries such as UK, Germany, France, Netherlands, Greece, Russia, Sweden, Ireland, Swiss, Austria, Luxembourg, Belgium, Italy, Spain, etc. ; Asia countries such India, Singapore, Malaysia etc..
