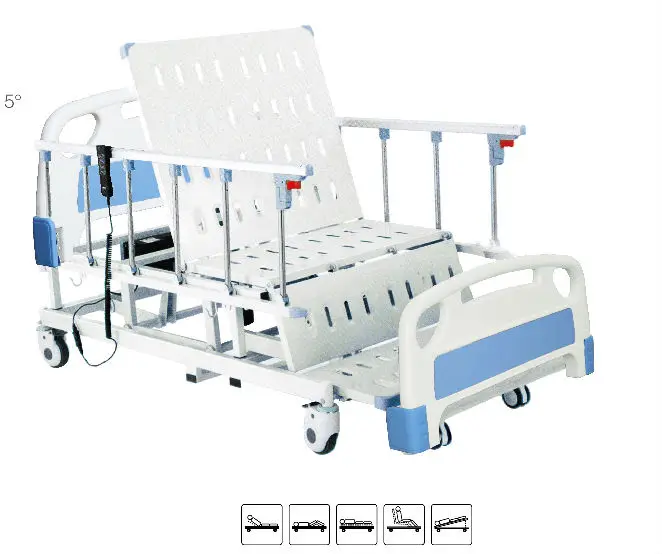

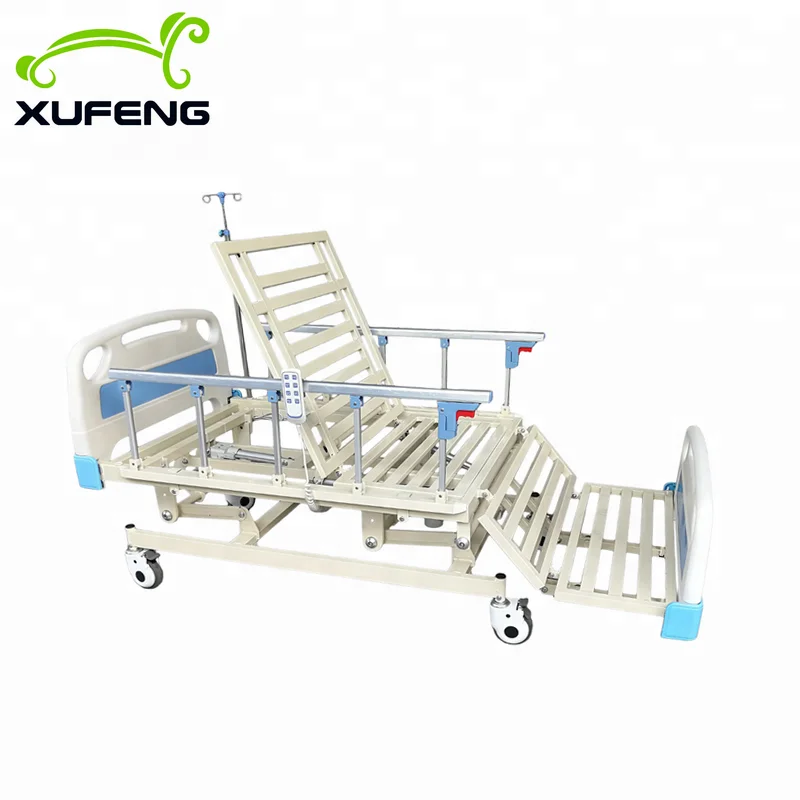

High Quality 3 functions medical electric convertible hospital recliner chair bed/seating bed

Product Overview

Description

High Quality 3 functions medical electric convertible hospital recliner chair bed/seating bed

1) Advance medical motors system,(3pcs motors,1 pcs control box,1 pcs handset)
2)Cold steel plate wholly molded surface;
3)P. P head and foot board;
4)Aluminum alloy guadrails,which can be foldable up and down easily
5)5"white noiseless caster;
Accessories:
1)I.V holes,and Urine hooks
Parameter:
1)Angle of back section: 0 ~ 80° (±5°)
2)Angle of leg section: -40°~ 40° (±5°)
3)Adjustable height:500-750mm
4)Size:L2120×W970×H500-750mm
Optional configuration: Linak/M-Tech/T-Motion/Jiechang Motor ;
Mattress,Over bed table,oddment shelf ,I.V. pole;

This general care electric bed is specially designed for the elderly care during the process of treatment and recovery. By adopting high level international technology and on basis of ergonomics science, this general care electric bed alleviates the nurse and attendant’s workload remarkable and provides patient great comfort. All the position is achieved by automatic motor control which generates a high efficiency for patient care.

Overall Size: 2120*970*450-700mm(L*W*H)

3-Functions:

1.HI-LOW: 500-750mm

2.Backrest adjustable angle: 0~80°(±5°)

3.Footrest adjustable angle: -40~40°(±5°)



Standard Configurations:

1.3 pcs advanced medical actuators

2.1 pc control box

3.1 pc handset

4.1 set ABS head&foot board,detachable,with protection bumpers

5.2 pcs aluminium side rails

6.4 pcs antistatic swiveling castors with individual break,5 inches

7.1 pc S.S I.V support with hooks,adjustable lifting pole(option)

8.4 pcs holes for I.V pole

9.4 pcs hooks for urine bags

Specification:

1.Frame: made of cold-rolled steel plate,treated by electro-coating & powder-coating,any painting color

2.4 sections mattress platform

3.Detachable ABS head/foot board, Protection bumpers at corners

4.2 pcs aluminium side rails,collosible,up and down by safe locks

5.Quiet and robust electric actuators provide reliable operation

6.Remote handset control of all electrically operated functions and movements

7.4 pcs Antistatic noiseless wheels,with individual brakes,dia.125mm

8.Motor:Taiwan T-motion motor(3 pcs motors,1pc handset,1 pc control box)/Other motors option

9.Maximun Weight Capacity: 250kgs

10.1 S.S I.V pole;4 supports for urine bags;6 I.V holes for IV stand

Quantity(Pieces)	1 - 2	3 - 10	11 - 50	>50
Est. Time(days)	15	20	25	To be negotiated
