MUST Shenzhen factory 3600W pure on grid inverter high frequency grid tie inverter price
- Category: >>>
- Supplier: Shenzhen Must Power Limited
Share on (62055422574):
Product Overview
Description
***************ANY QUESTIONS, INQURIES WELCOMED TO ZOEY !!!!***************
WHATSAPP/WECHAT: 008613694205624
MUST Shenzhen factory 3600W pure on grid inverter high frequency grid tie inverter price

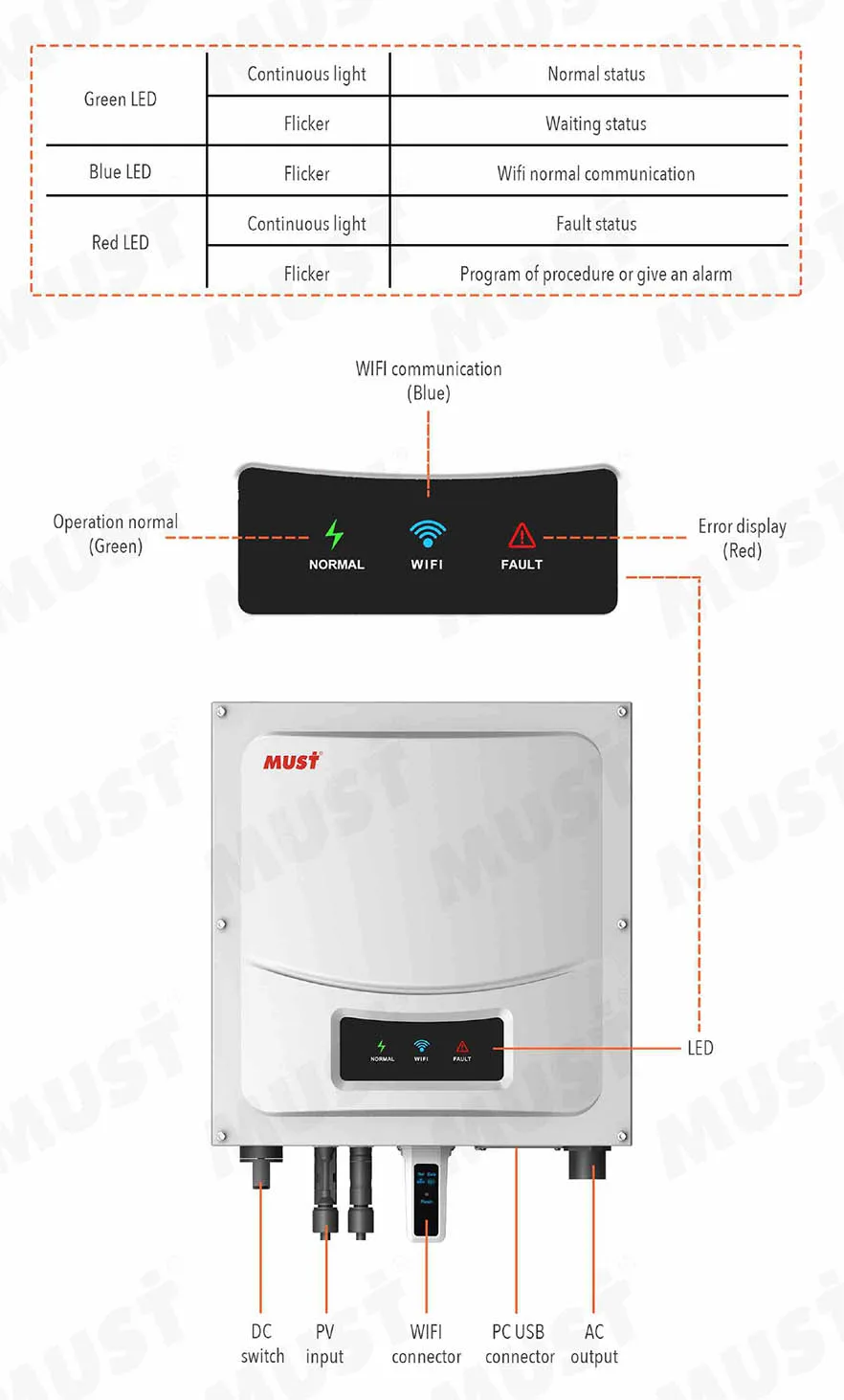

PH5000 series PV inverters take full account of the needs of end customers, with excellent performance at the same time, use LED as inverter status display, effectively improve product life. Using DSP digital control,could afford wide grid voltage range, have a full range of protection features; to maximize the benefits at the same time, greatly enhance the reliability of the product.
Product Description
| Product Features |
- High Frequency On Grid Transformerless pure sine wave Solar Inverter
- MPPT efficiency up to 99.5%
- Euro-efficiency up to 97%
- Full protection fu nction : over-voltage, over-frequency, over-current, over-temperature, and AC short-circuit automatic protection
- Multiple communications:USB, WIFI etc
- Fanless low-noise design
- IP65 Dust-Proof and Water-Proof

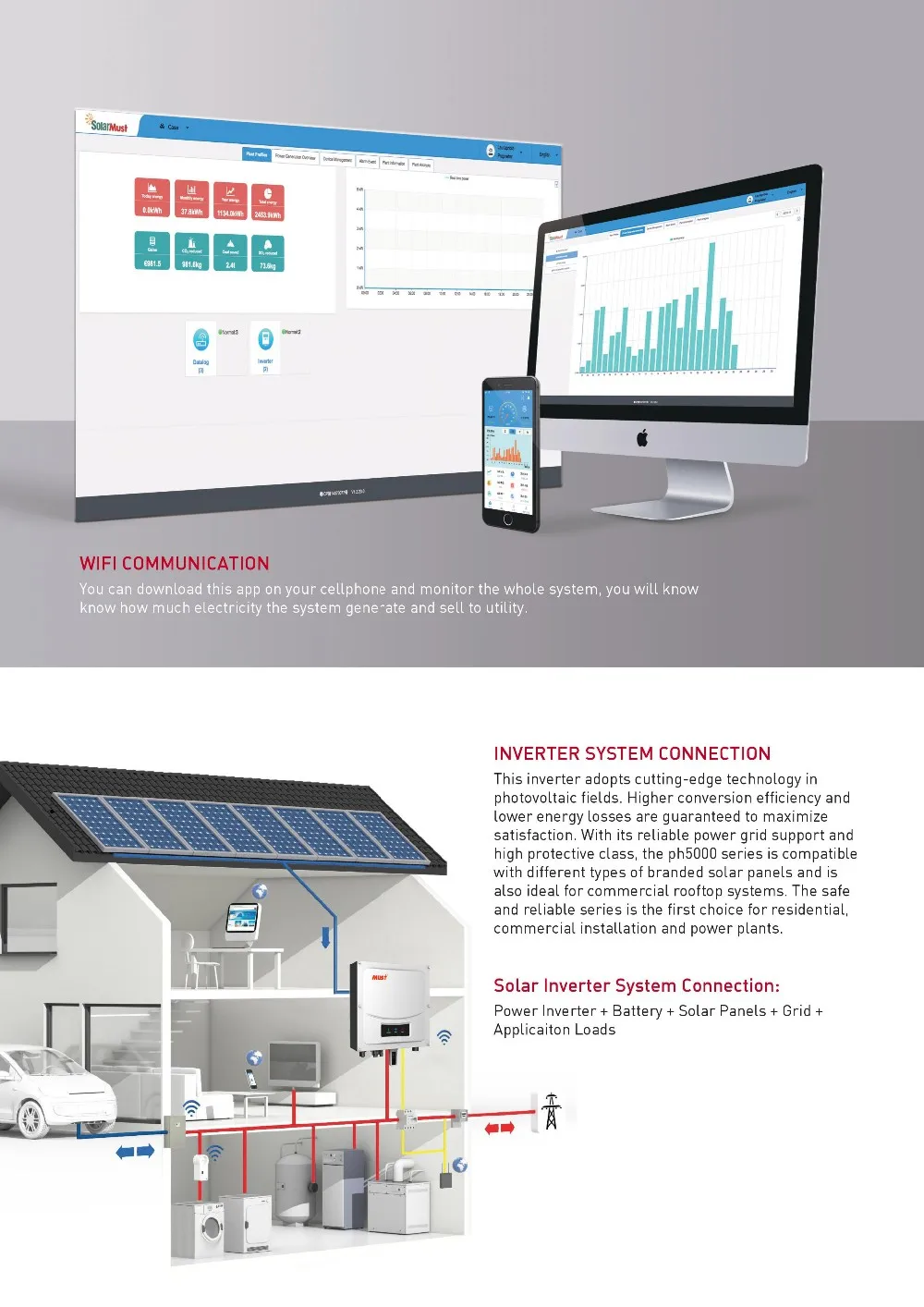

This inverter adopts cutting-edge technology in photovoltaic fields. Higher conversion efficiency and lower energy losses are guaranteed to maximize satisfaction. With its reliable power grid support and high protective class, the ph5000 series is compatible with different types of branded solar panels and is also ideal for commercial rooftop systems. The safe and reliable series is the first choice for residential, commercial installation and power plants.
| Technical Specification |
| MODEL | PH50-3000 | PH50-3600M | PH50-4200M | PH50-4600M | PH50-5000M |
|---|---|---|---|---|---|
| RATED POWER(W) | 3000 | 3600 | 4200 | 4600 | 5000 |
| PV INPUT(DC) | |||||
| Maximum recommended DC power(W) | 3450 | 4100 | 4800 | 5300 | 5750 |
| Nominal DC operating voltage(V) | 360 | ||||
| Maximum DC voltage(V) | 550 | ||||
| MPPT voltage range(V) | 100~550 | ||||
| Maximum input current(A) | 11 | 11/11 | |||
| Maximum short circuit current(A) | 15 | 15/15 | |||
| No.of MPP tracker | 1 | 2 | |||
| Strings per MPP tracker | 1 | ||||
| INVERTER OUTPUT(AC) | |||||
| Nominal AC output power(W) | 3000 | 3600 | 4200 | 4600 | 5000 |
| Nominal output voltage(V);range(V) | 220/230/240;180~280 | ||||
| AC grid frequency(Hz);range(Hz) | 50/60;45~55/55~65 | ||||
| Nominal output current(A) | 13.1 | 15.7 | 18.3 | 20 | 21.7 |
| Maximum output current(A) | 13.7 | 16.4 | 19.1 | 21 | 22.8 |
| Total harmonic distortion i(THDi) | <3% | ||||
| Power factor at rated power | 1 | ||||
| Displacement power factor | / | 0.8leading~0.8lagging | |||
| Efficiency | |||||
| Maximum efficiency | 97.4% | ||||
| Euro-efficiency | 97% | ||||
| MPPT efficiency | 99.5% | ||||
| Standby losses(W) | <1 | ||||
| Protection devices | |||||
| DC switch rating for each MPPT | Yes | ||||
| Grid monitoring | Yes | ||||
| Output over current protection | Yes | ||||
| Output overvoltage protection-varistor | Yes | ||||
| Ground fault monitoring | Yes | ||||
| Integrated all-pole sensitive leakage current | Yes | ||||
| General | |||||
| Dimension(W/H/D)(mm) | 259*340*138 | 355*412*153 | 355*412*153 | 355*412*173 | 355*412*173 |
| Net weight (kgs) | 9.5kg | 14kg | 14kg | 14.5kg | 14.5kg |
| DC connection | H4/MC4 | ||||
| AC connection | Connection | ||||
| Display | LED | ||||
| Communication interfaces | Wi-Fi/USB | ||||
| Ingress protection rating | IP65 | ||||
| Humidity | 100% | ||||
| Operating temperature range | -20℃~+60℃ With derating above 45℃ | ||||
| Cooling concept | Natural | ||||
| Altitude | <2000m | ||||
| Product Details |
| APPLICABLE PLACE |
Packaging & Shipping
1. Package: Carton Box for packaging, Colorful gift box for package, 4pcs/carton, Carton Size:625*366*232mm. Package designed by Clients is welcomed.
2.Shipping: DHL,FEDEX,UPS,EMS,AirWay and By Sea.
3.Payment: T/T( telegraphic transfer (T/T) and Western Union
4.Welcome to your Sample Order of mppt solar charge controller to test First.
Certifications
Company Information
| Must Company Information |
MUST Power Limited was established in 1998, with the headquarter in Hong Kong, which is a professional hi-tech enterprise specializing in research, developing and manufacturing of solar system.
Our comprehensive product lines including: solar inverter, home inverter, MPPT/PWM solar charge controller, mono/poly solar panel and AGM/Deep Cycle/Gel battery. Most products are certified by CE, SONCAP and ISO9001. We are one of the authorized suppliers for China Government.
MUST own an excellent R&D team formed by over 30 engineers, covering an area of 10,000 square meters in-house manufacturing facilities in Shenzhen City, Guangdong, China. With 230 outstanding employees, the production capacity per month reaches 30,000pcs to fulfill the increasing demand of our clients.
MUST keeps gaining the market share by offering quality product and service. Having cultivated prospective market worldwide, most of our clients are from Europe, Africa, Asia and America.
FAQ
Q1: How to choose a right inverter?
A1:Tell us your demand, then our sales will recommend a suitable inverter to you.
Q2: What's the different between inverter and solar inverter?
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.
Q3: How about the delivery time?
A3: 7 days for sample; 25 days for bulk order.
Q4: What is the warranty of inverter?
A4: One year warranty on Must-Solar product.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
Samples and OEM
Samples are Available for Testing and Market Test. OEM is welcomed for us.
Want to know more about our Company, Products, Price, Packing, Shipy discount? Dear Friend, Let's Inquiry NOW !!!!!
************************************
Welcome to contact me freely.
MUST Power Limited
Zoey Zou
Whatsapp: 0086 13694205624
*************************************
