automatic sllitting machine kraft paper rolls rewinding cutting machine

Product Overview

Description

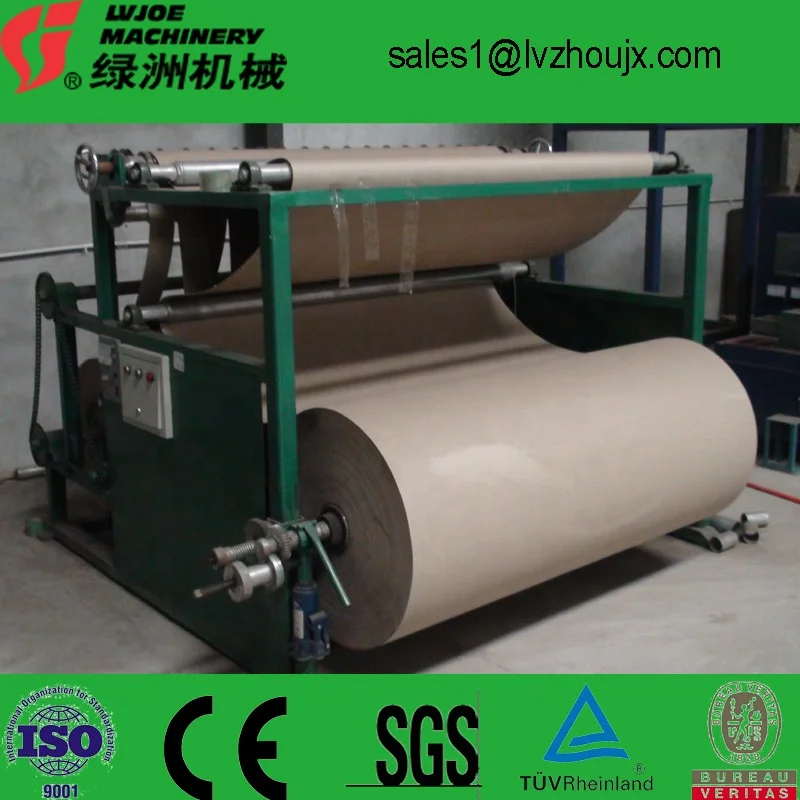

Kraft Paper Rolls Slitting Machine



Usage:

Apply to slitting and rewinding raw paper.



Specification:

Dividing &cutting speed: 200m/min

Quantity of operators: 1-2

Dividing & cutting capacity: 60-600g/m2

Main machine power: 1.5kw

Min. dividing & cutting width: 40mm

Max. dividing & cutting diameter: 650mm

Original paper max. width: 1600mm

Cutters quantity: 25 pairs

Original paper max. diameter: 1200mm

Main machine spec. (mm): 2200*2200*1600

Paper feeding method: Lifting jack

Speed regulation: Electromagnetic Speed regulation

Paper reeling method: Pneumatic expansion internal retraction

Power supply: Four



Features:

Double-blade cutting, upper-dish type cutting disc, Inferior fovea cutter

The upper and lower blades can be adjusted within 20-1600mm for random width

Both edges of paper strip after cutting

is smooth and clean cut without any burrs

All operations are integrated on the control panel of

convenient operation

Paper roll is coiled firmly with clean-cut

edges

High production capacity, output of each machine

can supply pare for three paper tube reeling machines simultaneously.

Steel plate structure of the complete machine, favorable appearance

Controlled by double magnetic-particle brake with

Uniform tension force

Low noise, stable operation

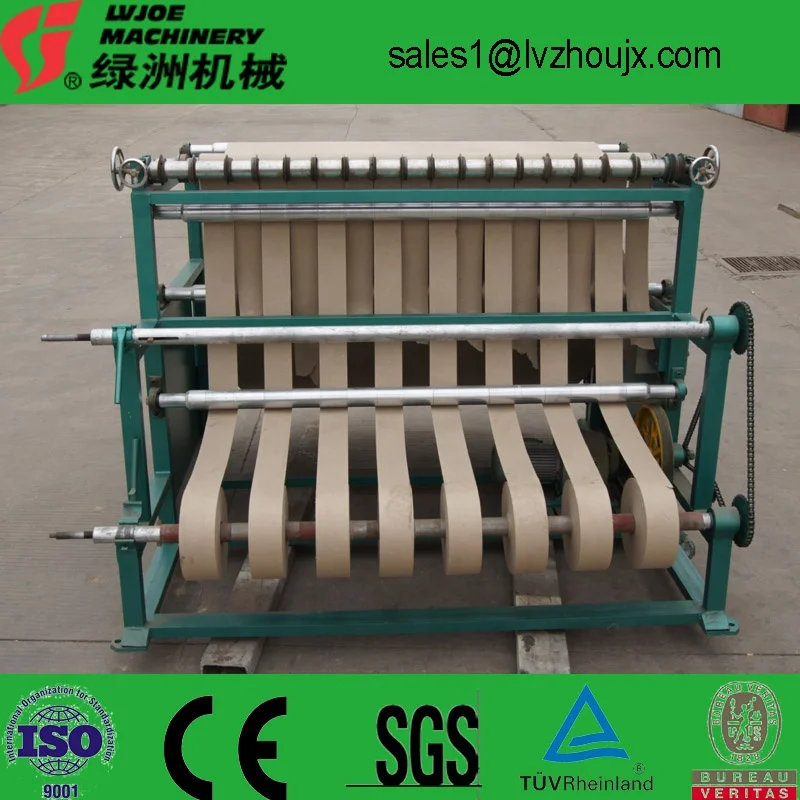

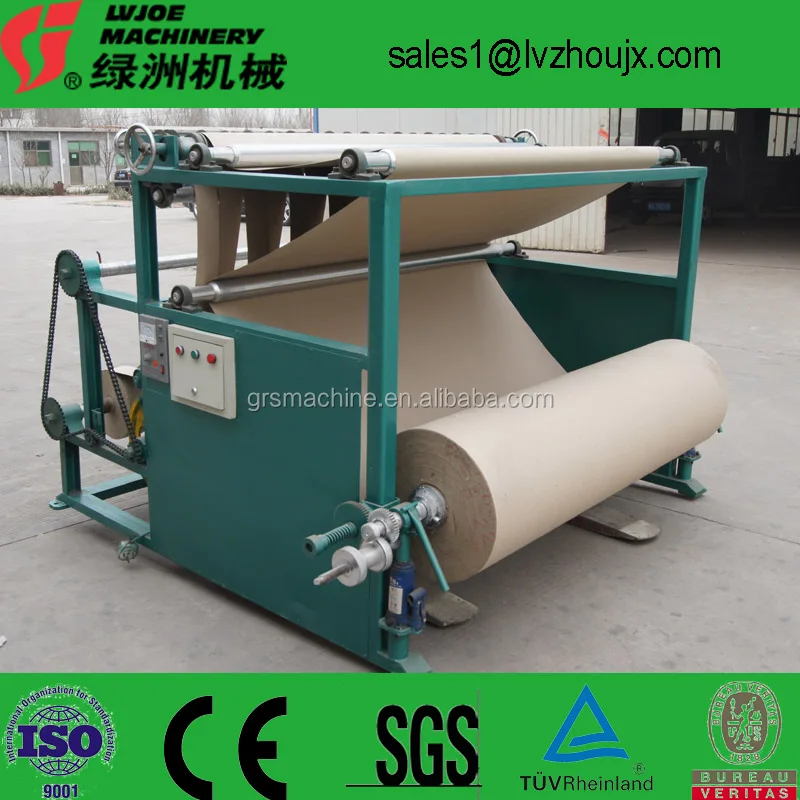

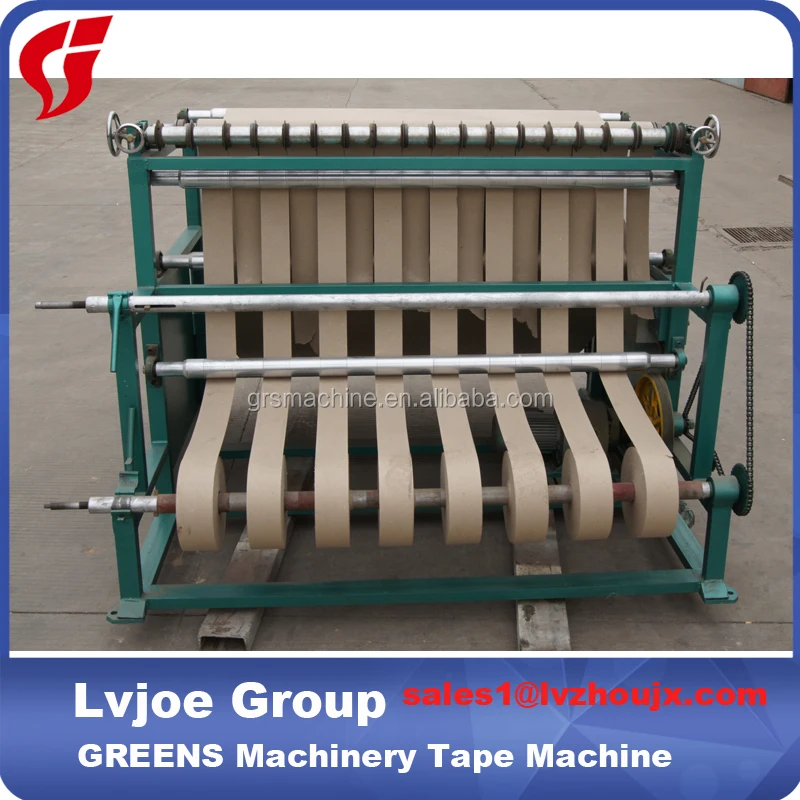

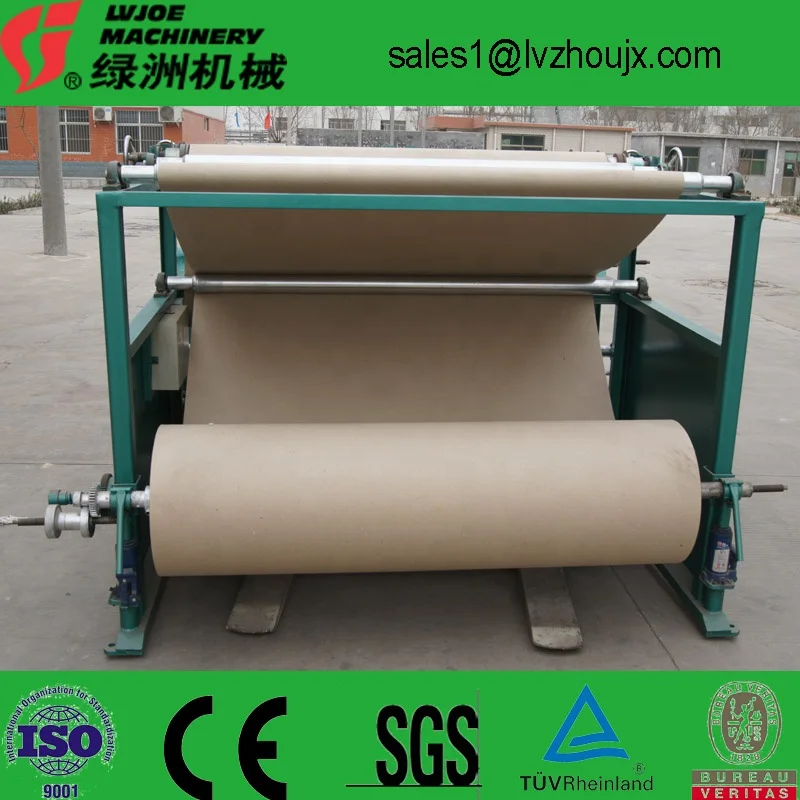

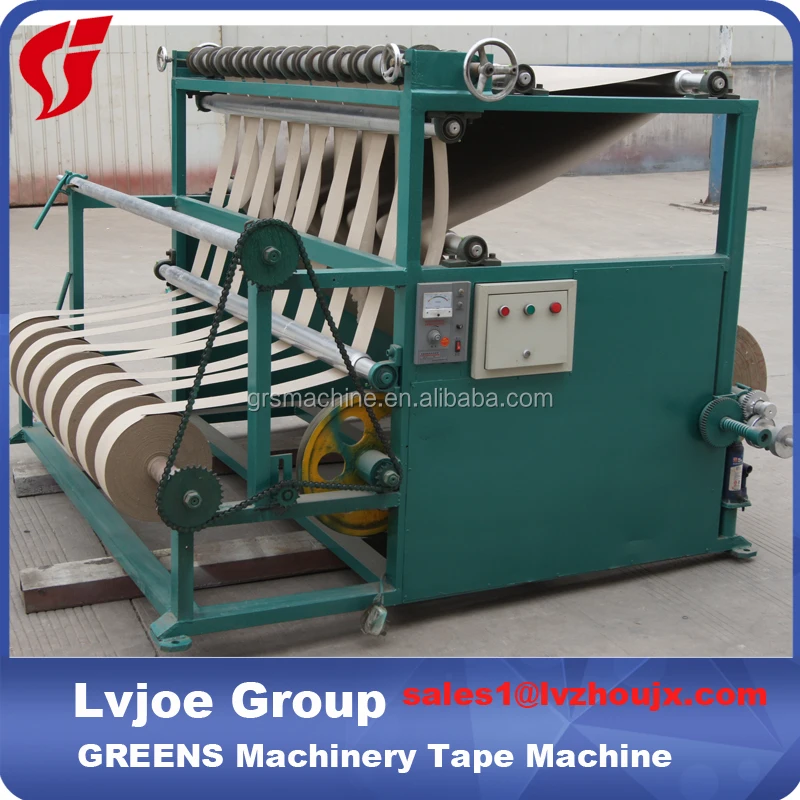

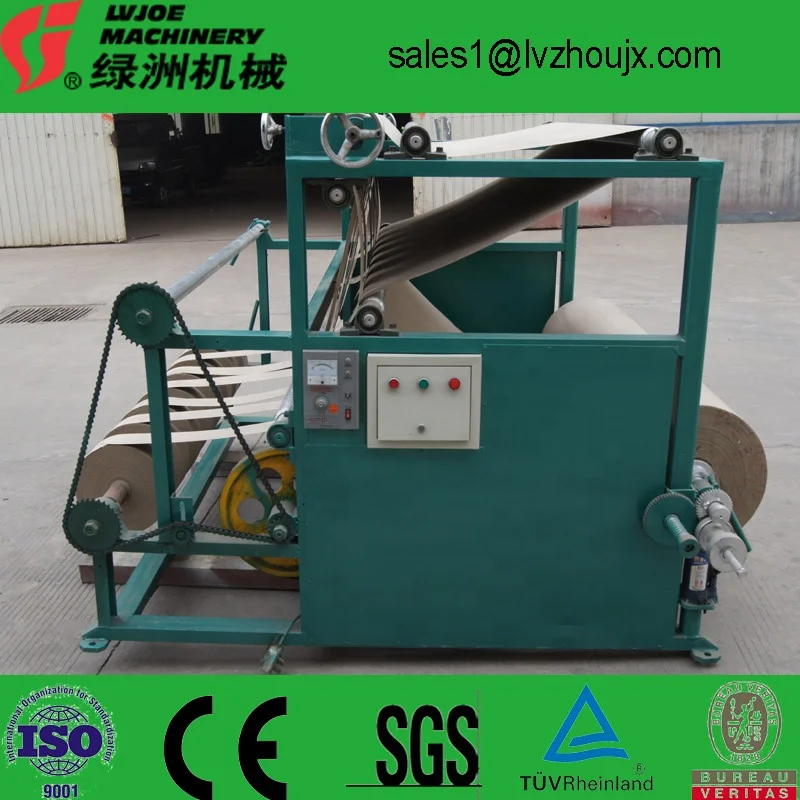

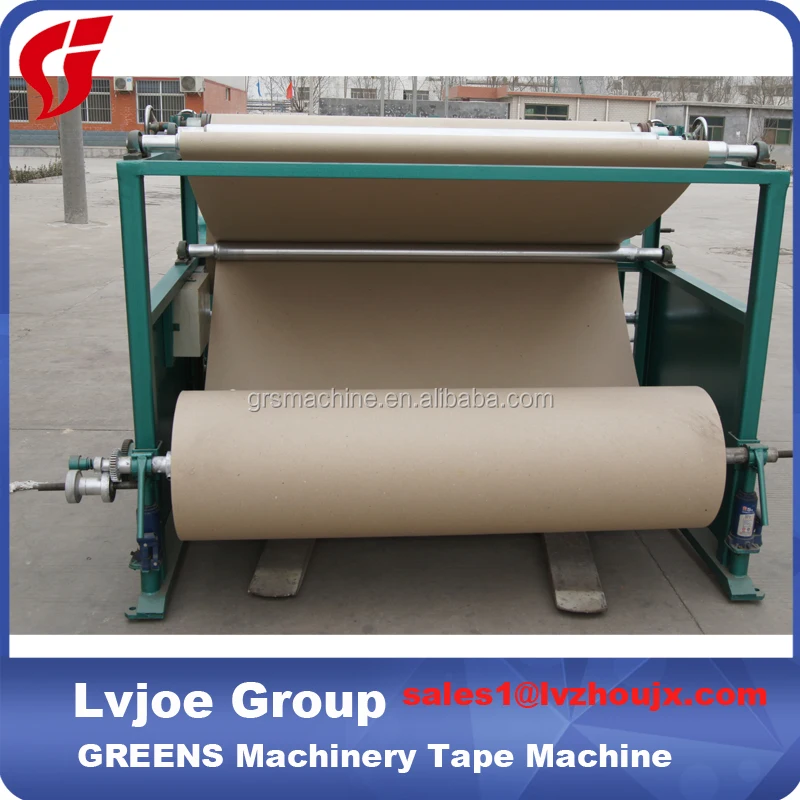

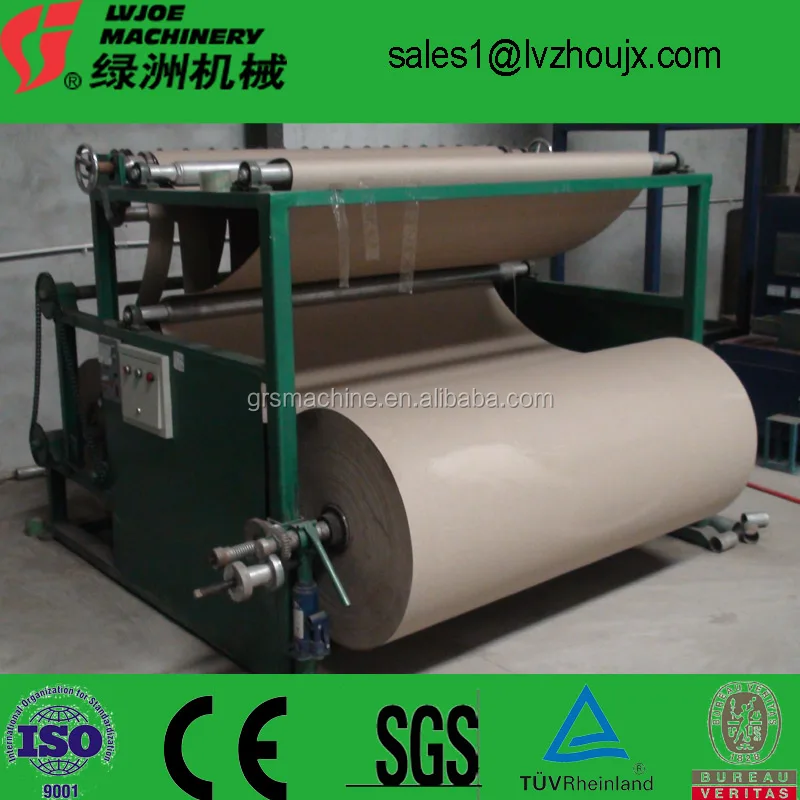

Photos:











Packaging & Shipping:

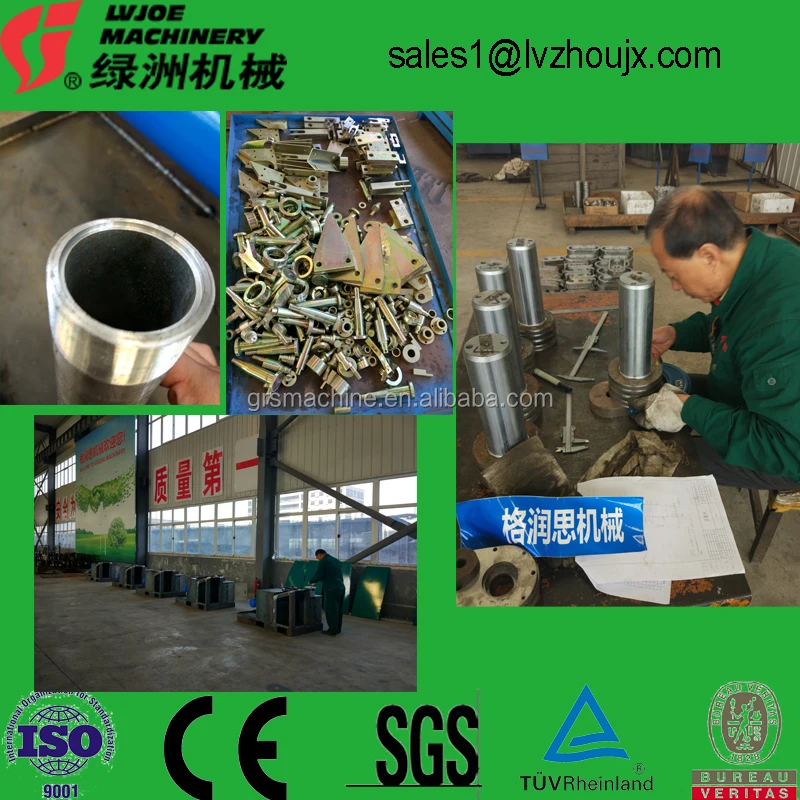

Our Factory:
