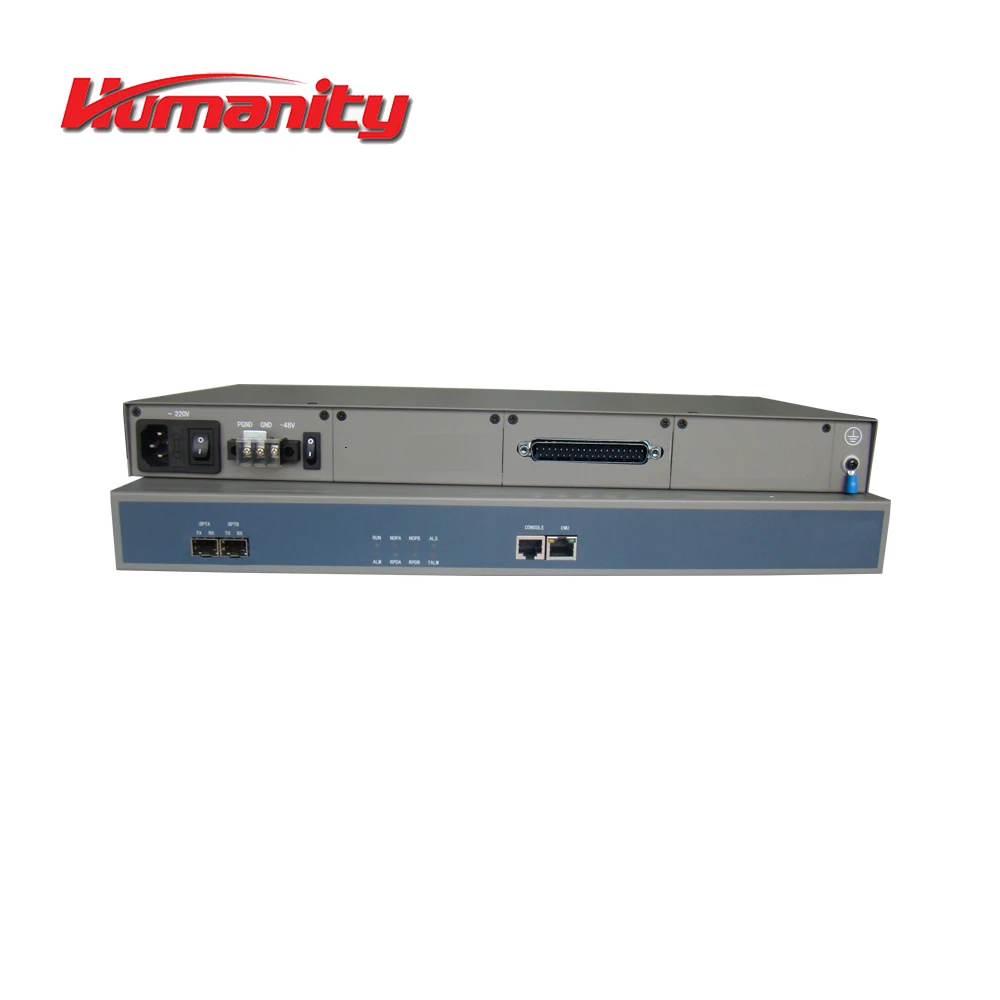

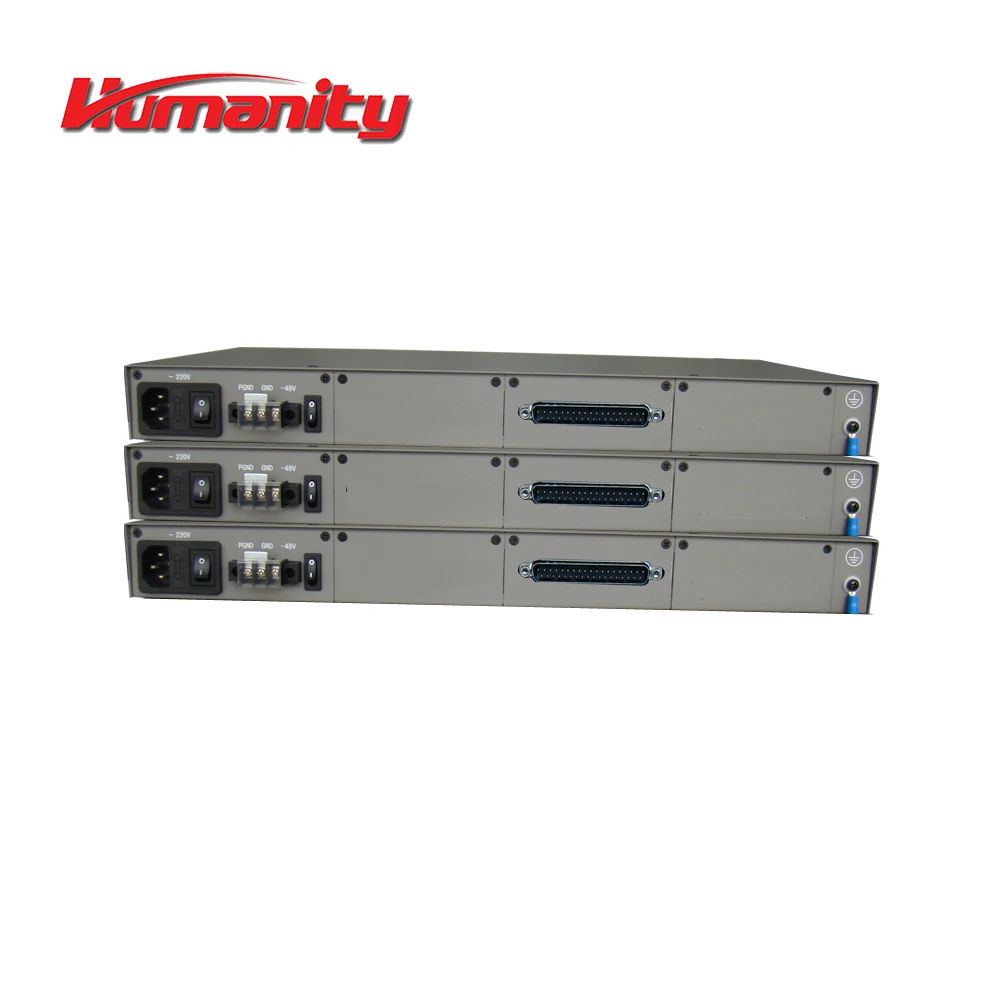

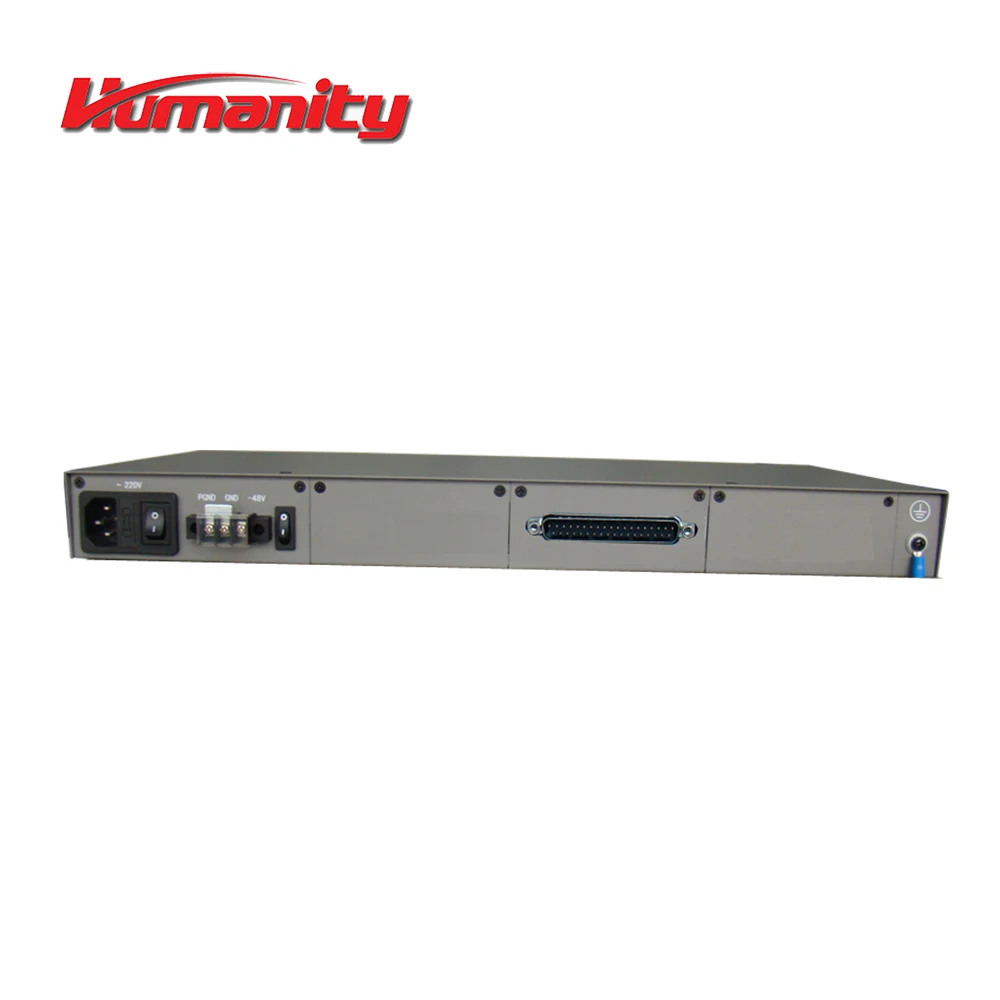

Humanity HM RS1030N 4E1 4Ethernet PDH fiber optical multiplexer FOM with SFP optical redundancy option
- Category: >>>
- Supplier: Beijing Human Information Technology Co. Ltd.
Share on (62055475469):
Product Overview
Description
Humanity HM-RS1030N SFP type 4E1 +4Ethernet over fiber optical multiplexer
Humanity HM-RS1030N SFP type 4E1+4Ethernet fiber optical multiplexer realizes 16E1 and 4Ethernet transmission over fiber. It's with full alarm monitor, high integration, low power consumption, stable performance and easy to use.
Main Features
- Single board design, 1U, 19inches
- Comply with ITU-T G.703, G.823 and G.742
- Optical rate with 155Mbps
- Ethernet option with 10/100M, MDI/MDIX, full/half duplex adaptive
- Full alarm indicators, easy to monitor the local and remote device status
- AC and DC dual power supply
- Support CLI and SNMP management
Technical Parameters
Optical interface | 2xSFP slot for SFP modules |
| SFP modules not included | |
E1 interface | 4E1 |
Comply with ITU-T G.703, G.823, G.742 | |
Rate: 2.048Mbps±50ppm | |
Code: HDB3 | |
Connector: RJ45 for 120Ohm | |
Ethernet interface | 4 Ethernet ports |
| Connector: RJ45 | |
Environment | Power: AC220V, DC-48V |
Power consumption: less than 15W | |
Operating temperature: -5°C~50°C | |
Relative humidity: ≤95%, non-condensing | |
Power consumption: less than 15W |
