Promotional Toothbrush Machine Price Tooth Brush
- Category: >>>
- Supplier: Guangdong Chuangyan Technology Co. Ltd.
Share on (62055547443):
Product Overview
Description
Product Description
SPECIFICATIONS | ||||||
Model | AH9-C2 | Type | Two-color | |||
Servo Motor | Fuji Electric | Computer | Touch screen LCD | |||
Power Input | Three-phase 380V AC 4KW (MAX) | Quantity of Axis | 4 axis | |||
Air Source Input | 0.4-0.5MPa | Positioning Accuracy | 0.05mm/100mm | |||
Equipment Size | 1200*1150*1340(mm) | Tufting Speed | 820 holes/min | |||
MEAS | 1250*1250*1450(mm) | Tufting Length | 10-15mm | |||
GW | 900Kg | Ordinary Hole Diameter | 1.2-3mm | |||
Main Features
1) R&D intelligent digital control scanning hole coordinate LCD touch screen computer base on German CNC technology .
2) Adopting Japan Fuji Electric 4 axis original servo motor.
3) Installing trimming device to reduce trimming process.
4) The bearings of whole machine are made up of IMA, AFG, DURBAL imported from Germany, NSK, IKO and other brands imported from Japan.
5) Universal fixture and universal special-shaped handle box.
6) Automatic cylinder pressure, nylon rolling handle-off hopper.
7) Strong stability of the whole closed loop system, high precision of repeated positioning, easy operating and strong anti-interference ability.
Detailed Images

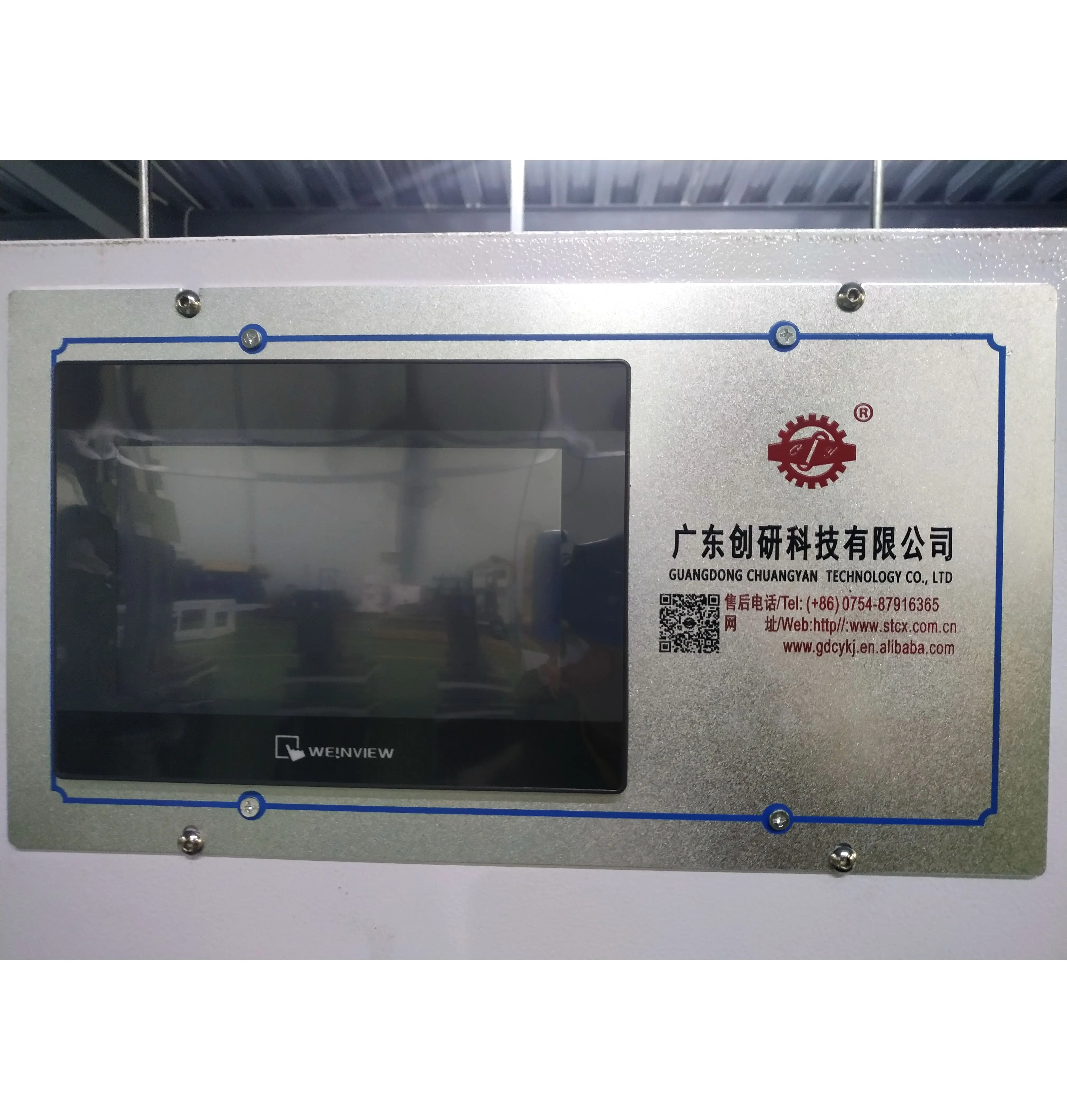

Intelligent NC Computer Parts
Features:
1) The introduction of Germany CNC technology research and development of intelligent numerical control touch screen LCD computer scanning hole coordinates.
2) American import NC CPU chip, speed P4 and dual core.
3) Automatic tracking speed.
4) Positioning precision and convenient operation.
5) The system is stable and reliable, adapting to different environments.
6) The whole closed loop system, strong anti- interference ability.
7) Upgradable to maximum tufting number of 99 holes.
8) Can be point to upgrade to add wool implement.
5) The system is stable and reliable, adapting to different environments.
6) The whole closed loop system, strong anti- interference ability.
7) Upgradable to maximum tufting number of 99 holes.
8) Can be point to upgrade to add wool implement.

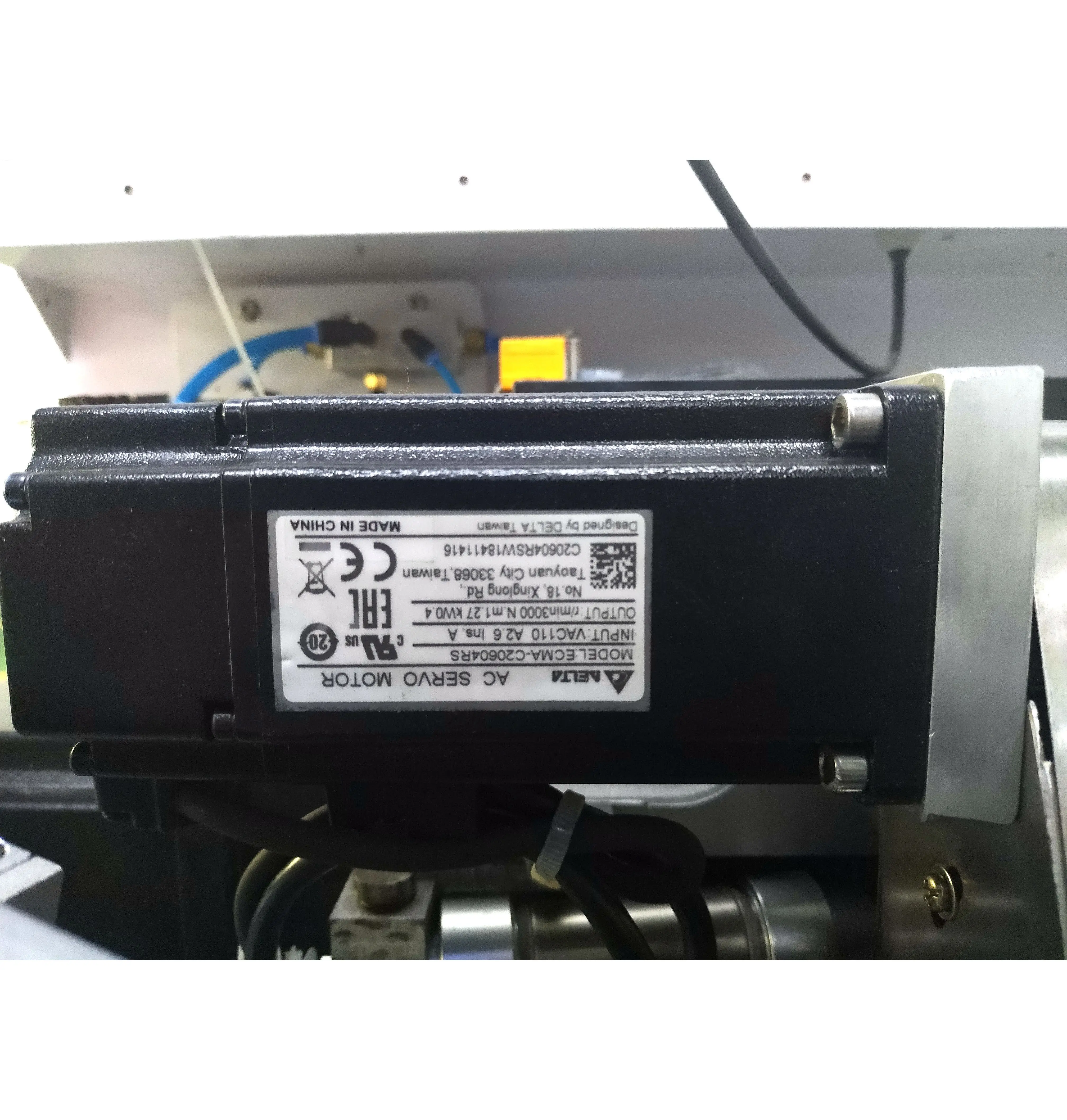

Servo Motor Parts
Features:
1) XY axis worktable and handle change adopt japanese imported high precision servo motor.
2) German imported precision level C1 double thread ball screw.
3) Fast displacement: 820holes/min, hole-jumping distance can reach to 8-10mm.
4) Rigid soft stability and reliability.
1) XY axis worktable and handle change adopt japanese imported high precision servo motor.
2) German imported precision level C1 double thread ball screw.
3) Fast displacement: 820holes/min, hole-jumping distance can reach to 8-10mm.
4) Rigid soft stability and reliability.
Automatic scanning holes coodinate Parts
Features:
1) High-tech infrared automatic scanning brush handle hole coordinates.
2) High efficiency in changing product: 40 holes for about 5 minutes.
3) High precision positioning coordinates: tolerance +/- 0.02 mm.
4) Easy to operate and learn with high scanning speed.
5) Less tedious steps: manual measuring pitch error precision fine tuning.
High Speed Tufting Parts
Features:
1) The introduction of German technology research and development to jig.
2) German import materials plant garden, tufting cutter and tufting pole.
3) The tufting mouth and rod are made by imported vacuum processing and high-precision mirror spark technology with high hardness, good toughness and strong wear resistance.
4) Tufting machine precision machining process error value: +/-0.01mm
Tufting aperture: 1.2 to 3.0mm.
5) Strong stability and tension, high efficiency and not easy to loose filament.
Double Color Box Parts
Feature:
1) Citing Germany technology automatic cycle pressure cylinder principle: high pressure uniform and adjustable.
2) Convient adjustment adopts double dabbing cylinder filament neatly.
3) Color change using Japanese original servo motor, can support color change every two holes.
4) Electronically controlled brushing technology.
5) Tufting cutter takes filament with high stability, not thinly and not scatted.
Trimming Parts
Feature:
Adding trimming device to reduce trimming process.

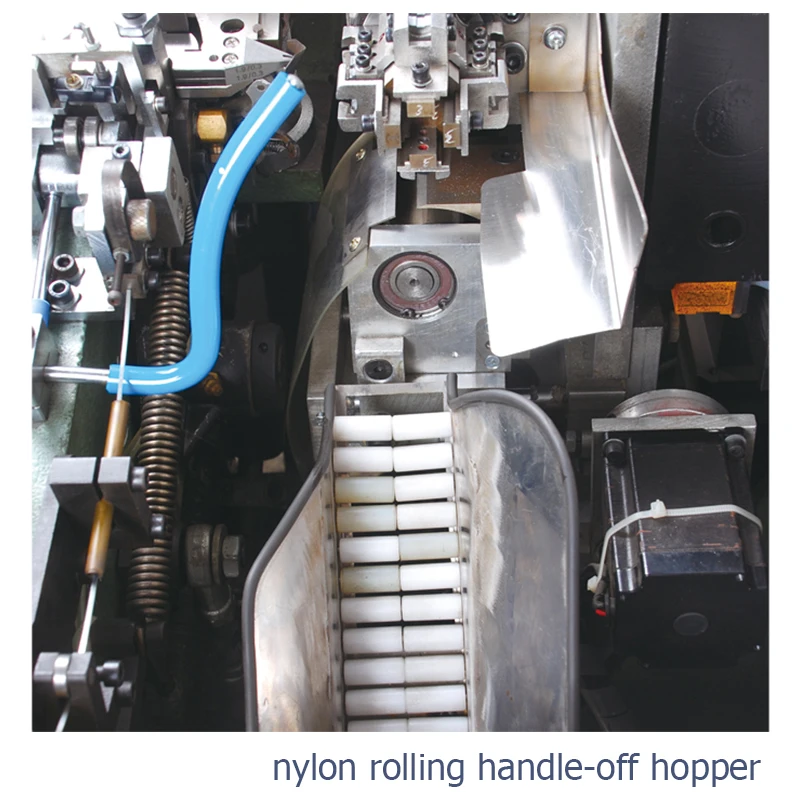

Nylon Rolling handle-off Box Parts
Feature:
Easy to land rubber toothbrush.

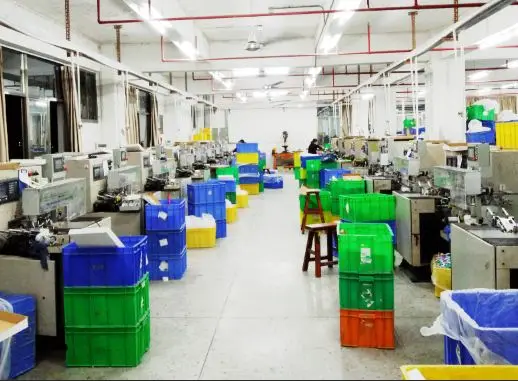

Our Company
Certifications
Packing & Delivery
Packaging | ||
Size | 1400 (L) * 1400 (W) * 1600 (D) | |
Weight | 900kg | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries, the wooden box will be fumigated. If container is too tigher, we will use pe film for packing or pack it according to customers special request. | |
Our Service
Pre-Sales Service
* View our factory.
* Inquiry and consulting support.
* Provide advice based on buyer funds budget.
* Toothbrush whole production line support.
* Introduction raw material suppliers
After-Sales Service
* Training how to install and operate the machine.
* Engineers available to service machinery overseas.
*1 year non-human damage warranty on spare parts.
FAQ
1. Q: Are you a factory or trade company?
A: We are a factory of toothbrush machinery manufacturer.
2. Q: Where is your factory located in? How can I visit there?
A: Our factory is located in Shantou City, Guangdong Province, China. Warmly welcome to your visit!
Airport: Jieyang Airport
High speed train: Chaoyang Station / Puning Station (2-3 hours from Shenzhen/HongKong/Guangzhou)
3. Q: What is your terms of payment?
A: 30% deposit frist, and 70% balance before shipment. We'll show you the photos of the products and packages before you pay the balance.
4. Q: How long is the delivery time?
A: 30-40 days for tufting machine and trimming machine.
45-50 days for blister labeling packaging machine.
5. Q: What is the advantage of your products?
A: High-tech, pretty competitive price and superior after-sale service!
