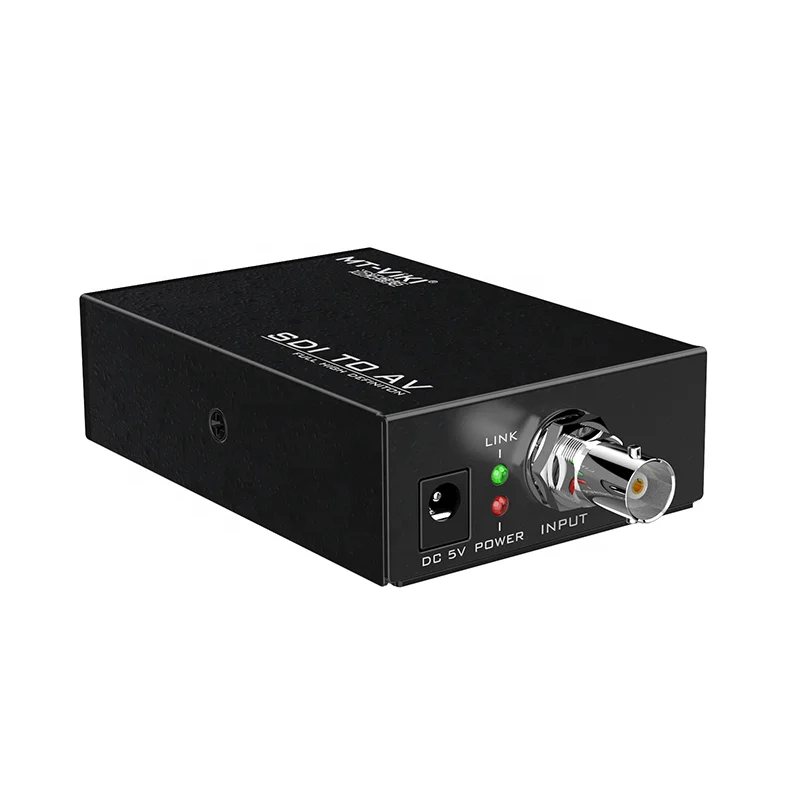

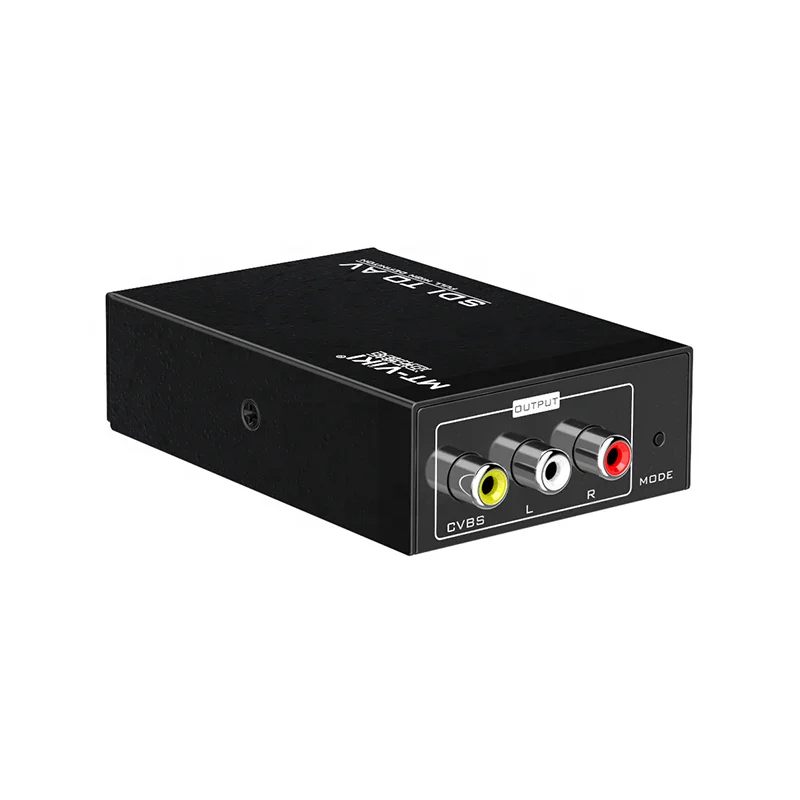

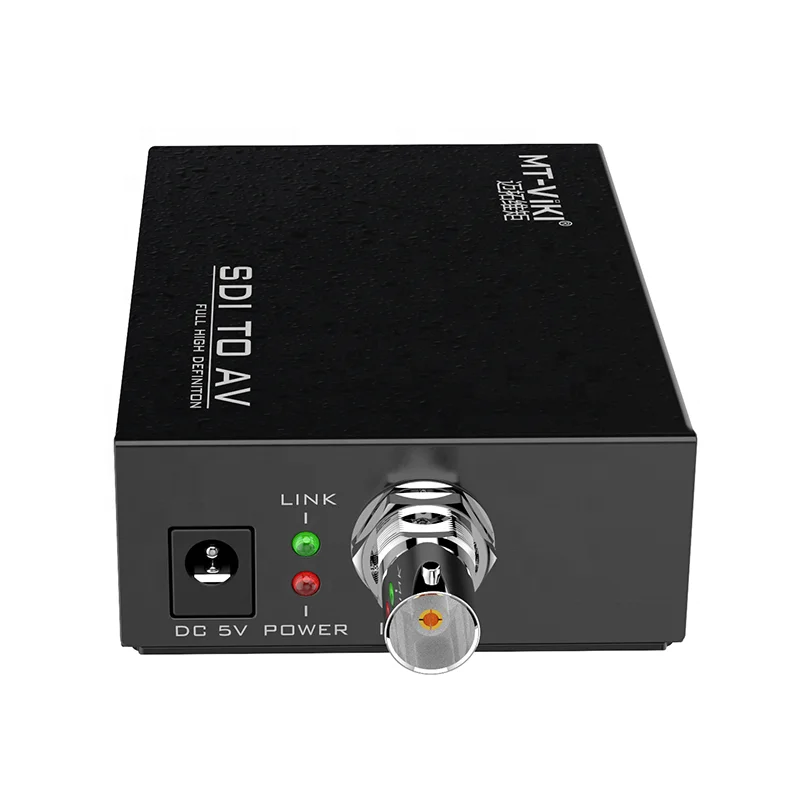

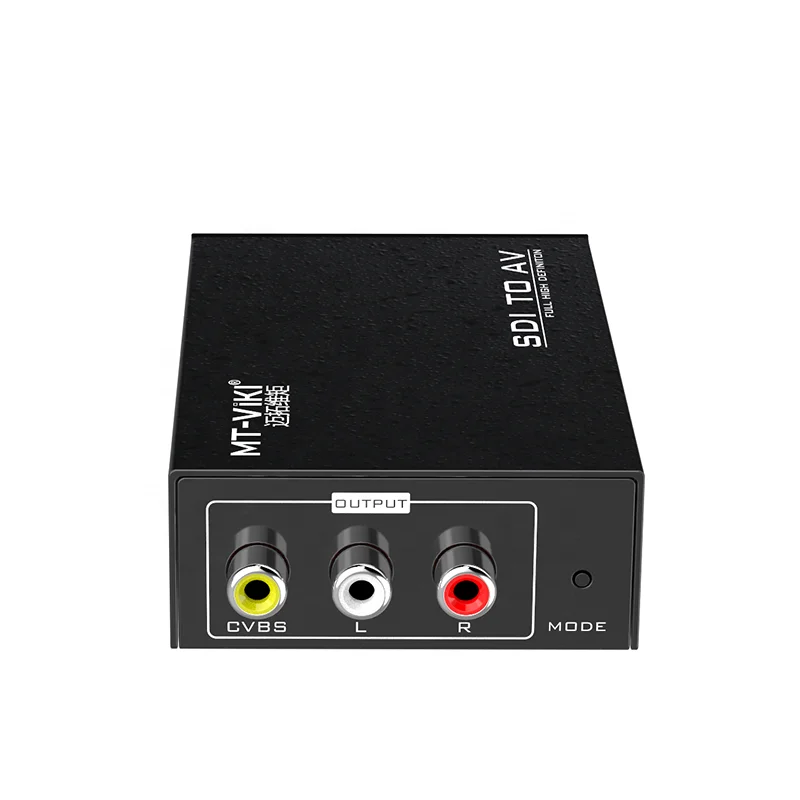

Broadcast Grade 1080P Hd Sdi Av Converter Sdi To Av(Cvbs L/R)
- Category: >>>
- Supplier: Guangdong Mt-Viki Electronics Technology Co. Ltd.
Share on (62055569230):
Product Overview
Description
Brief introduction
This converter supports SDI (SD-SDI/HD-SDI/3G-SDI) input, AV signal output. Easy to use. Built-in high-quality AV accessories, excellent image quality. Widely used in SDI broadcasting, CCTV security control systems and training function rooms
Product feature
| Product Name | SDI to AV Converter | |
| Interface type | Input port | 1xSDI BNC jack |
| Output port | 1xRCA CVBS port 1xRCA stereo port | |
| Power consumption | <5W | |
| SDI Input | DC5V/1A | |
| Format | 3G-SDI:SMPTE 424M | |
| HD-SDI:SMPTE 292M | ||
| Speed | 2.970Gbit/s 1.485Gbit/s | |
| Resolution | 720p@50/60, 1080i@50/60 | |
| 1080p@23/24/25/29.97/30/50/60 | ||
| Distance & Resistance | 3G-SDI:80m-100m(1649A coaxial cable)/75Ω | |
| HD-SDI:150m-200m(1649A coaxial cable)/75Ω | ||
| AV output | NTSC and PAL | |
| Electrostatic protection | Contact discharge:±4KV Air discharge:±8KV | |
| Working condition | Temperature | "-10℃ to 50℃(14-122F) |
| Humidity | 5%-85%(No condension) | |
| Dimmension & weight | Dimmension:94*64*27MM Weight:206G | |
| Package accessories | 1*Host 1*power adapter 1*user manual | |
