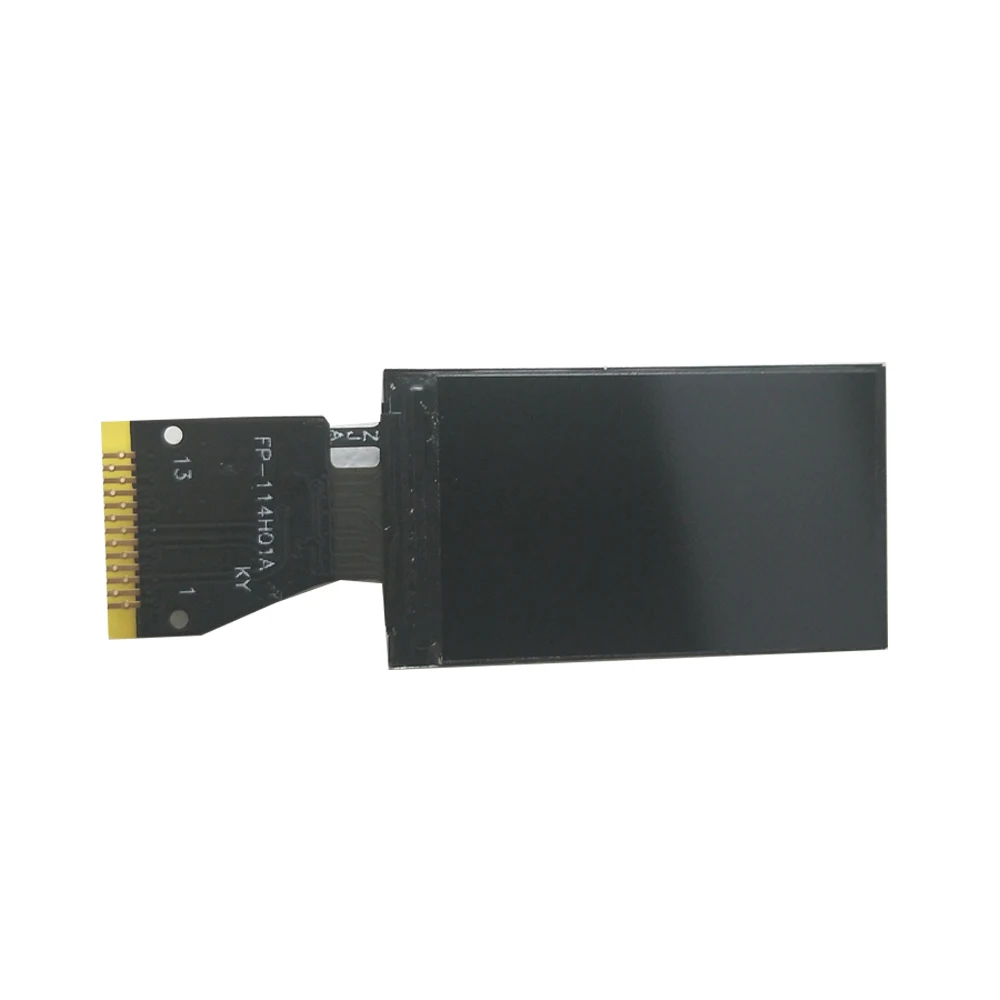

1.14 inch cheap price 135x240 TFT Display 13 Pin LCD for Toys
- Category: >>>
- Supplier: Dongguan Shineworld Innovations Co. Limited
Share on (62055650851):
Product Overview
Description
Display General Description

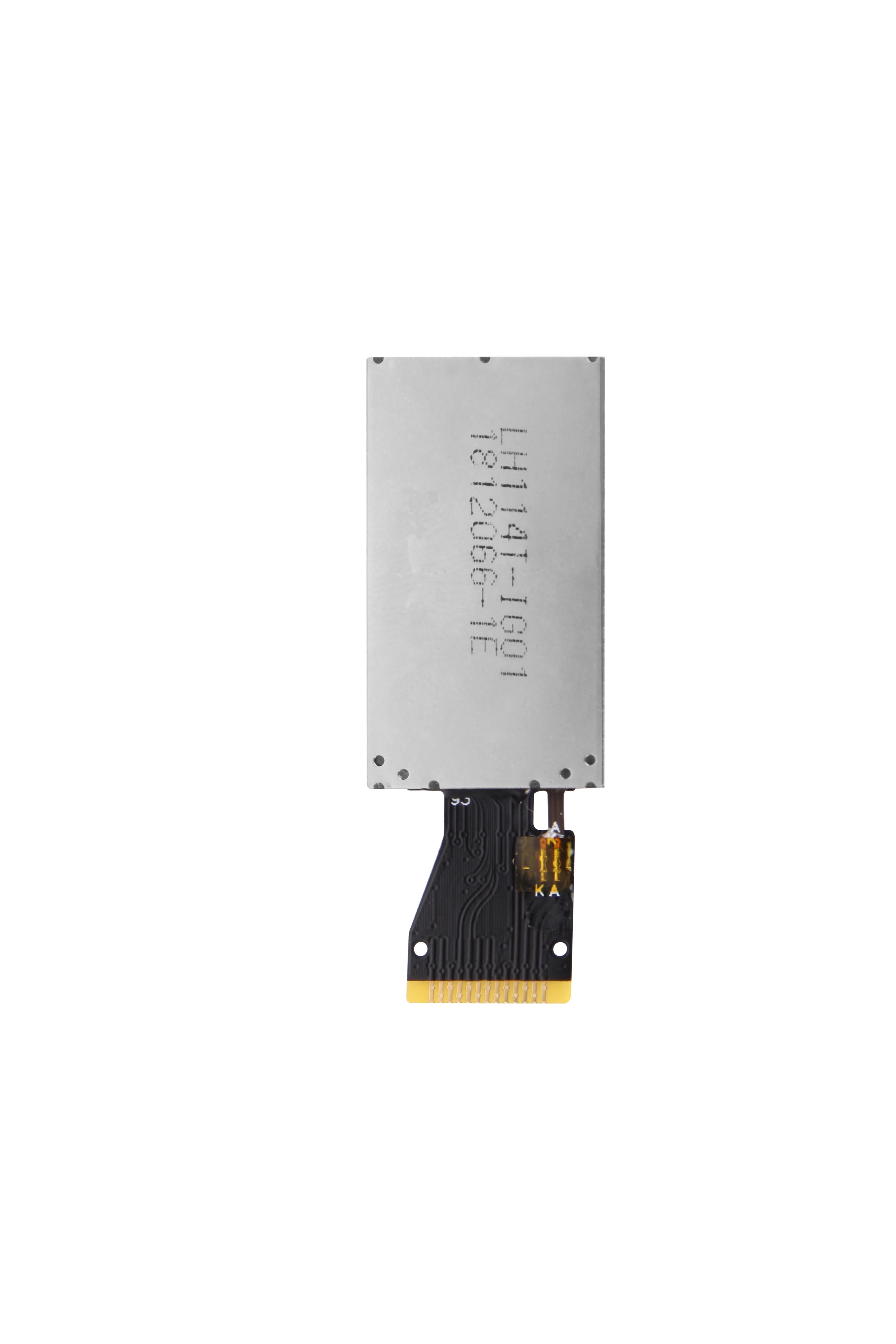

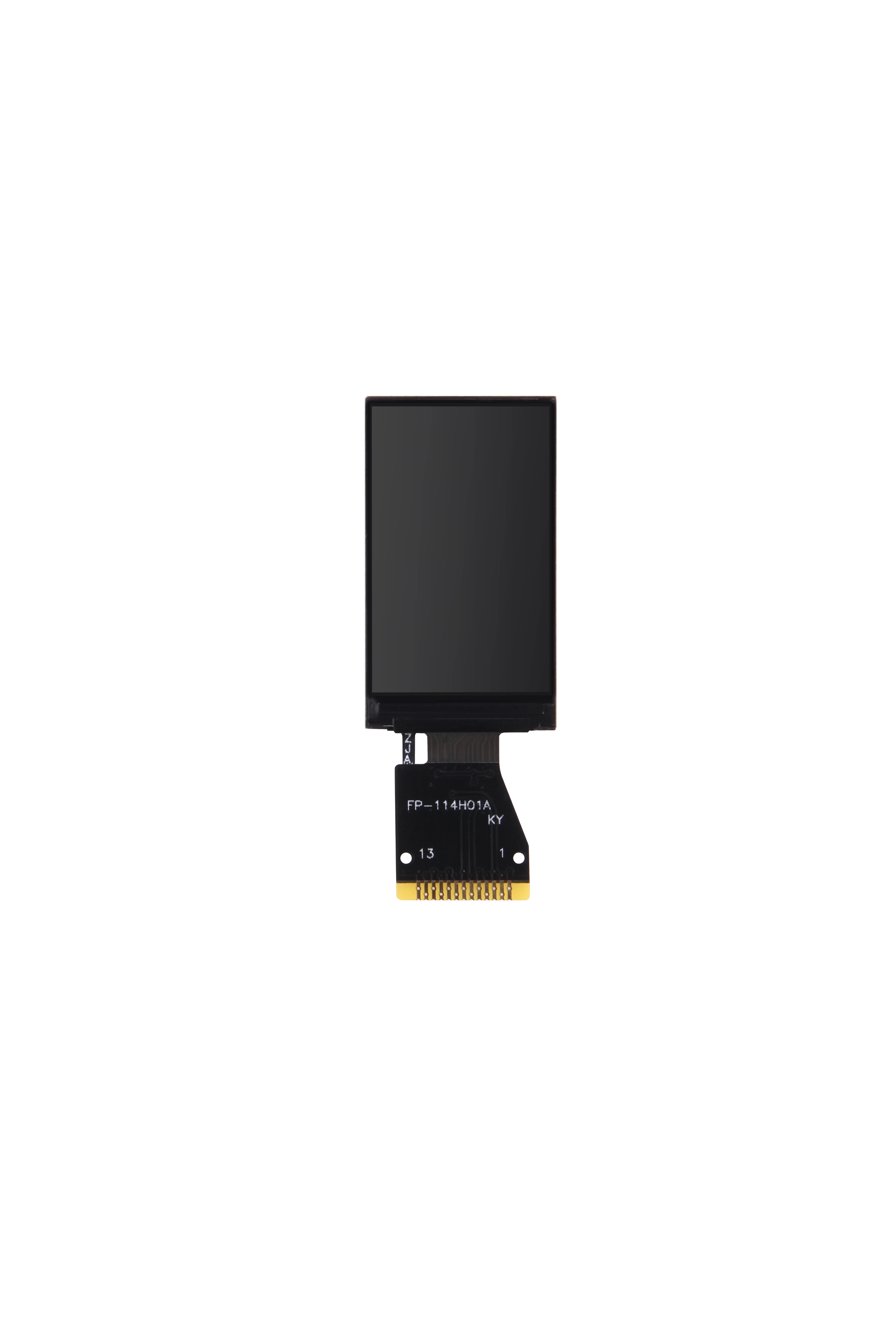

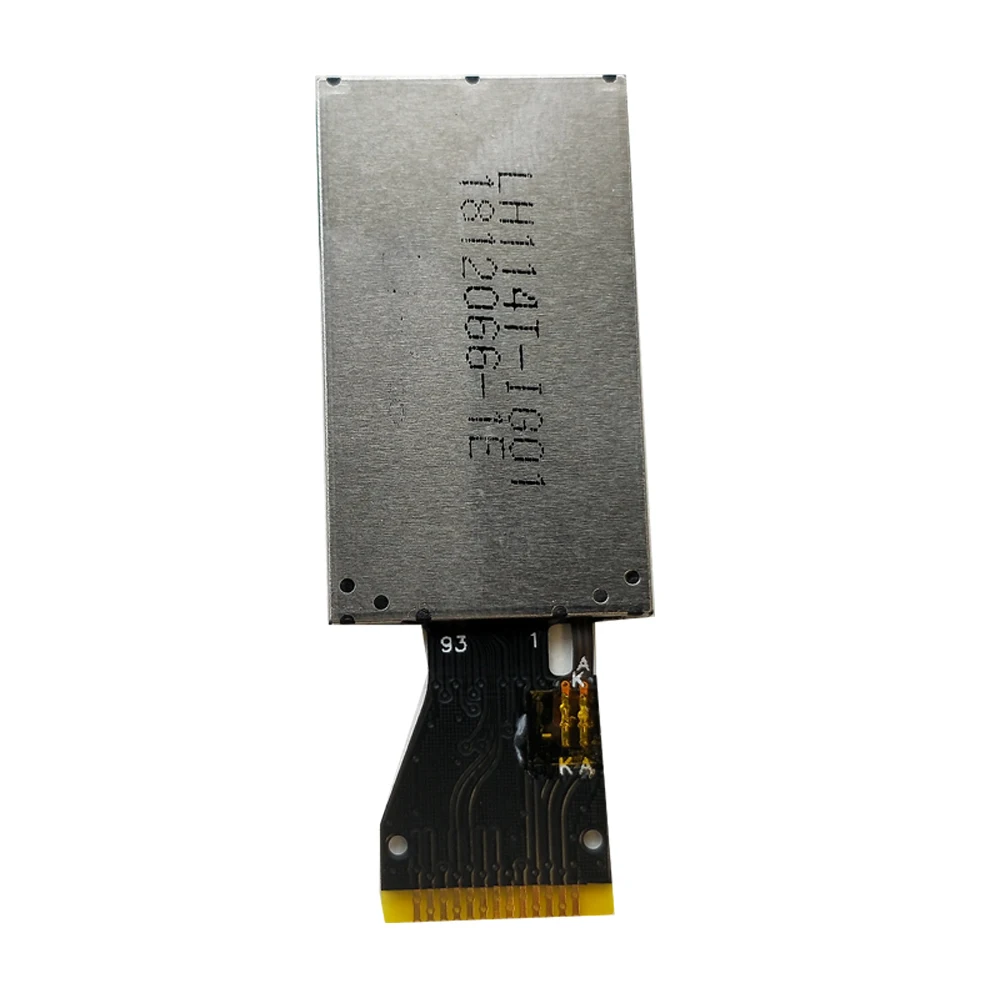

The SWICN LH114T-IG01 is a compact and vibrant 1.14-inch IPS TFT LCD module. Created by SWICN, this module features a 135x240 RGB pixel resolution on a black background, delivering an attractive visual experience. With a typical brightness of 400cd/m2, it ensures clear visibility even in diverse lighting conditions. Powered by the ST7789V driver IC and supporting the 4-wire SPI interface, this module guarantees reliable performance.
The LH114T-IG01 is compatible with various MCUs, including 8051, PIC, AVR, ARDUINO, ARM, and Raspberry Pi. This wide compatibility makes it suitable for a broad range of applications, such as embedded systems, industrial devices, wearables, MP3 players, e-cigarettes, security systems, medical equipment, consumer electronics, banking devices, cryptocurrency hardware wallets, and handheld devices.
To simplify the integration process, the module's 13-pin Flexible Printed Circuit (FPC) is designed for direct soldering onto your PCB. This eliminates the need for a separate connector, ensuring a secure and hassle-free connection.
Shineworld Innovations Limited, the manufacturer of the LH114T-IG01, offers customization options to meet specific requirements. We provide tailored solutions, including customized FPC, integrated cover lenses, touch screens, or driver boards. This flexibility enables customers to receive an optimized display solution that perfectly aligns with their unique needs and preferences. Additionally, SWI can provide customized demo kits upon customer request.
The LH114T-IG01 is compatible with various MCUs, including 8051, PIC, AVR, ARDUINO, ARM, and Raspberry Pi. This wide compatibility makes it suitable for a broad range of applications, such as embedded systems, industrial devices, wearables, MP3 players, e-cigarettes, security systems, medical equipment, consumer electronics, banking devices, cryptocurrency hardware wallets, and handheld devices.
To simplify the integration process, the module's 13-pin Flexible Printed Circuit (FPC) is designed for direct soldering onto your PCB. This eliminates the need for a separate connector, ensuring a secure and hassle-free connection.
Shineworld Innovations Limited, the manufacturer of the LH114T-IG01, offers customization options to meet specific requirements. We provide tailored solutions, including customized FPC, integrated cover lenses, touch screens, or driver boards. This flexibility enables customers to receive an optimized display solution that perfectly aligns with their unique needs and preferences. Additionally, SWI can provide customized demo kits upon customer request.
General Data
NO. | ITEM | SPECIFICATIONS | UNIT | ||
1 | Display Mode | IPS TFT | |||
2 | Diagonal Size | 1.14 | Inch | ||
3 | Resolution | 135(RGB)x 240 | Dots | ||
4 | Active Area | 14.864(W) x 24.912(H) | mm | ||
5 | Outline Dimension | 17.6(W) x 31.0(H) | mm | ||
6 | Thickness | 1.6±0.2 | mm | ||
7 | Pixel Pitch | 0.1101(W) x 0.1038(H) | mm | ||
8 | Pixel Size | 0.1101(W) x 0.1038(H) | mm | ||
9 | Display Driver IC | ST7789V | - | ||
10 | Touch Driver IC | No Touch | - | ||
11 | Display Color | 262K | - | ||
12 | Gray Scale | 8 | Bit | ||
13 | Brightness | 400(min) | cd /m2 | ||
14 | Contrast Ratio | 800:1 | - | ||
15 | Interface | 4-wire SPI | - | ||
16 | IC Package Type | COG | - | ||
17 | Module Connecting Type | Soldering | - | ||
18 | Weight | TBD | g | ||
19 | Pins | 13 | Pins | ||
20 | Operating Temperature | -20~70 | ℃ | ||
21 | Storage Temperature | -30~80 | ℃ | ||

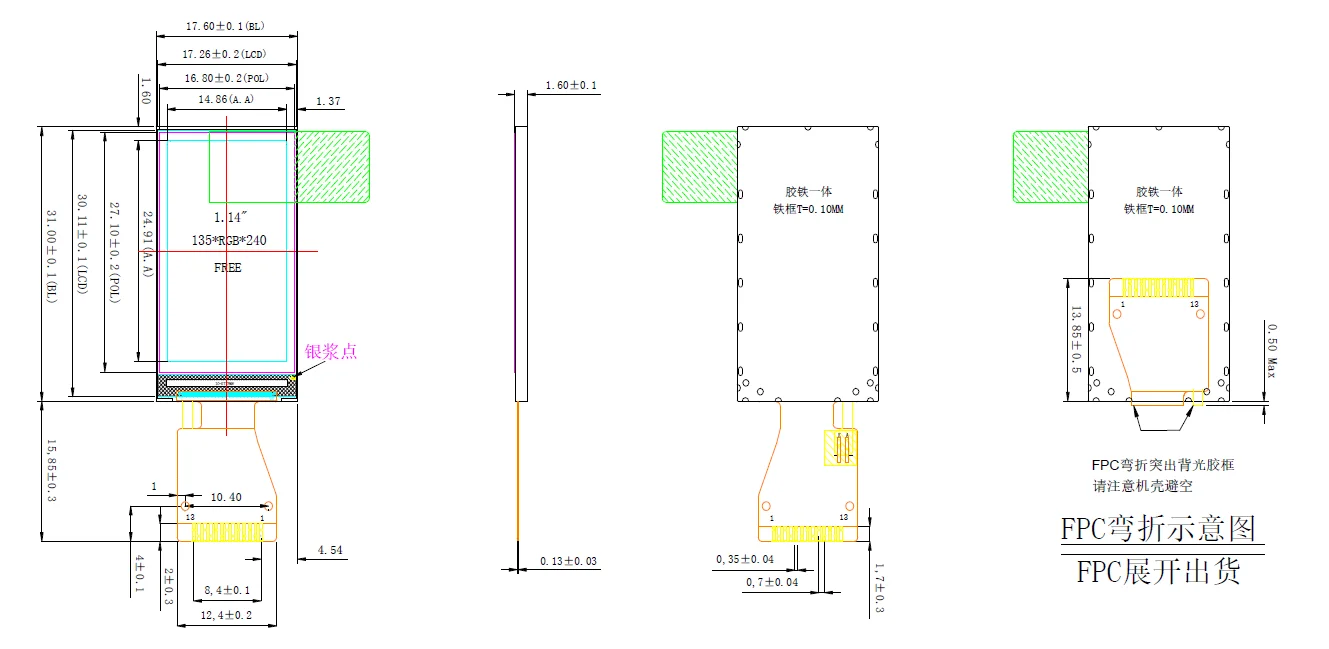

Drawing
