Cast tungsten Carbide particles for welding industry Hard facing material sanxin

Product Overview

Description

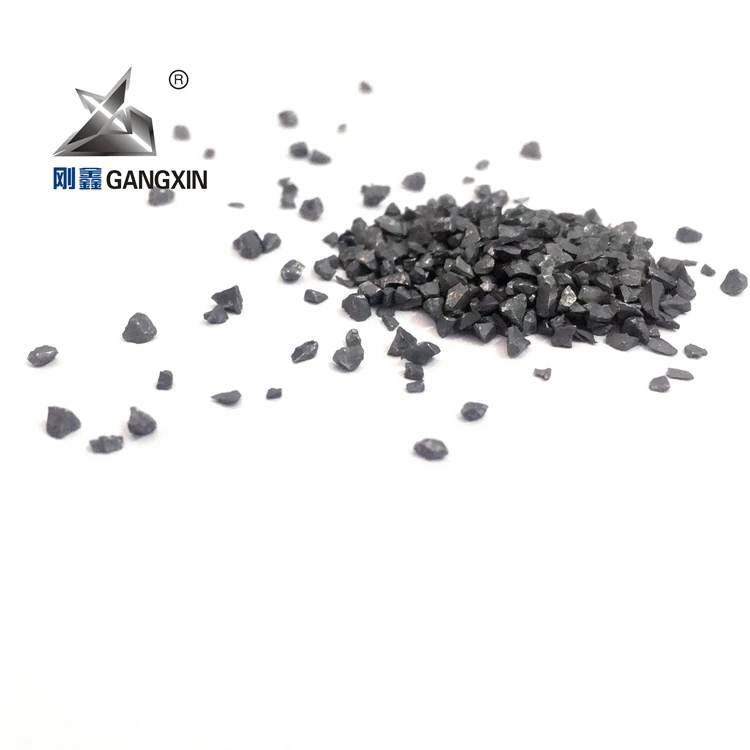

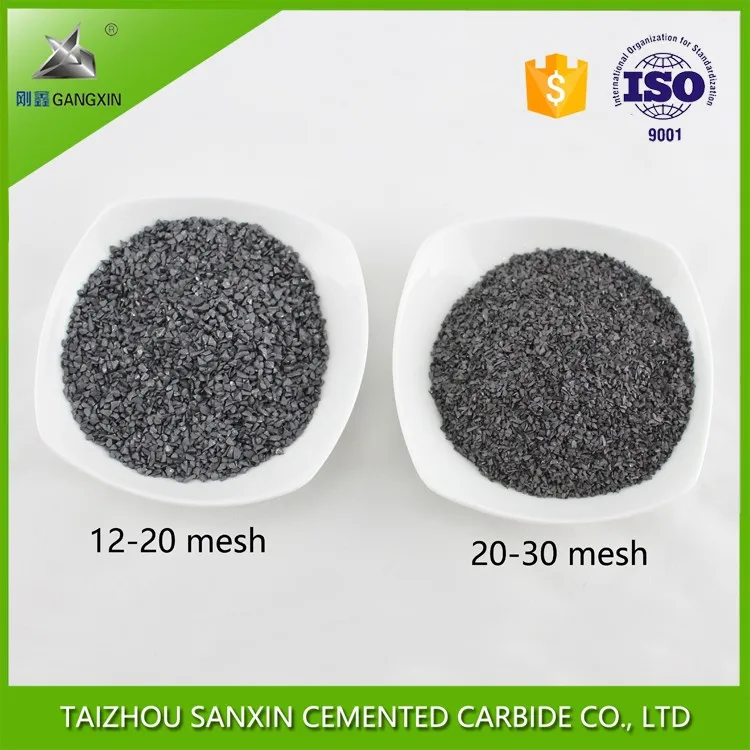

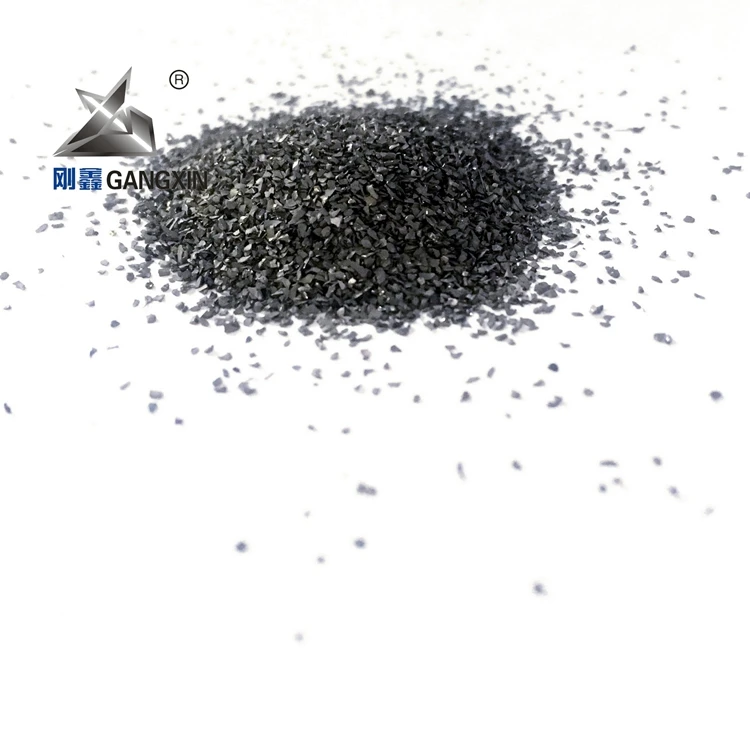

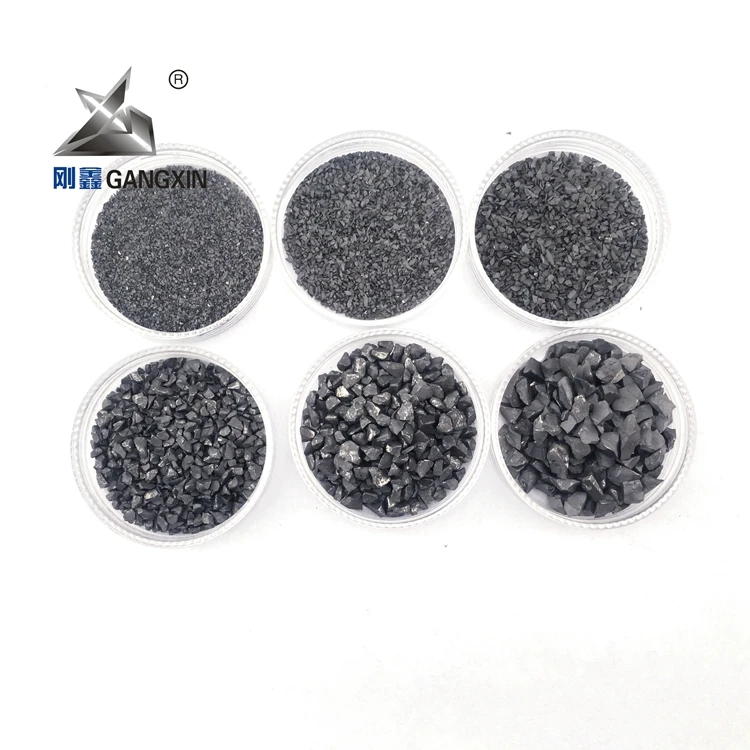

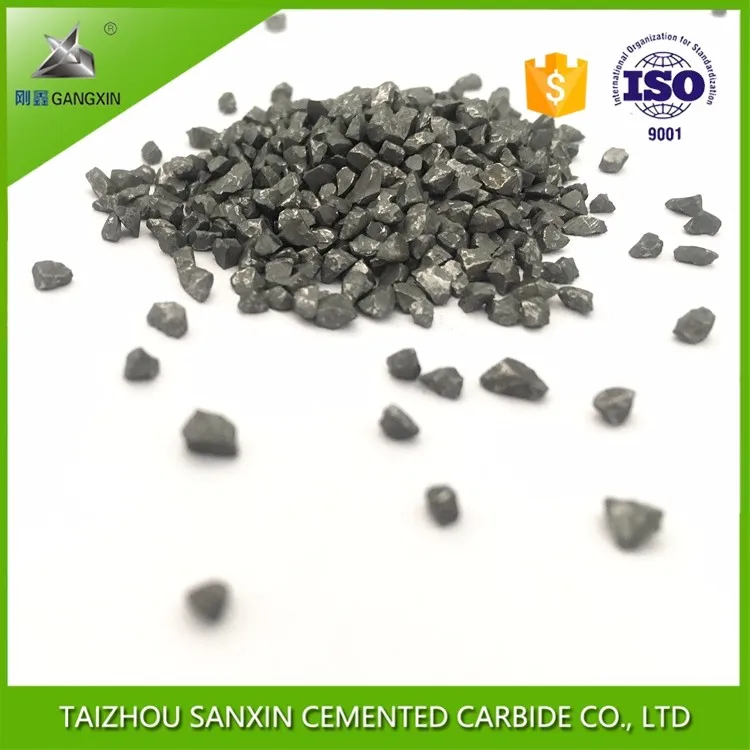

Cast tungsten Carbide particles for welding industry Hard facing material

Features of Tungsten carbide

Our products have high hardness,high strenth,high wear resistance and high anti-thermal ability. There're saw tips, gear, special spare parts, non-magnetic parts, special shaped solid carbide products, etc. Above all, it's made from your design and drawing.

No matter how strange your design is, talk to us to see if we could find some way to do it.



Application:

Non-standard/customized tungsten carbide products are usually made from virgin raw material. Using different material grades, like K10 K20 K30 K40 YG6 YG6X YG8 YG10 YG10X YG15 YG20 YG20C YG25 YG25c YN6 YN8 YW1 YW2 YT5 and so on.

Free smaple was available!

Mains Grade for Tungsten carbide

Grade	Density (g/cm³)	Hardness (HRA)	T.R.S (Mpa)	Application Recommended
YG4C	15.00	89.5	1800	Mainly used as small buttons for percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations.
YG6	15.8	89.5	1700	Mainly used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations.
YG8	14.7	88.5	2300	Mainly used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations.
YG11C	14.4	86.5	2450	Chiefly for the inserts and buttons of heavy rock drill bits and rotary-percussive bits, coal-cutting bits and tricone bits to cut medium-hard and hard formations.
YG13C	14.3	86.0	2500	Mainly used as the inserts and buttons of tricone bits rotary-percussive bits and heavy rock drill bits to cut medium-hard and hard formations.
YG15	14.0	86.5	2500	It is stronger, and is mainly used as the inserts and buttons of rotary-percussive bits, heavy rock drill bits to cut hard and very hard formations.







 There is a group of experienced technical personnel and a staff of 80 people including 5 engineers, 8 assistant engineers, and 29 people having college degree or above. The company mainly produces cemented carbide drawing dies, cold heading dies, mining tools, sealing rings, and other nonstandard products, wherein the cemented carbide drawing dies and cold heading dies take a leading position in the industry, and the bore of wire-drawing die can be minimized to 0.1mm, deeply popular with customers.
