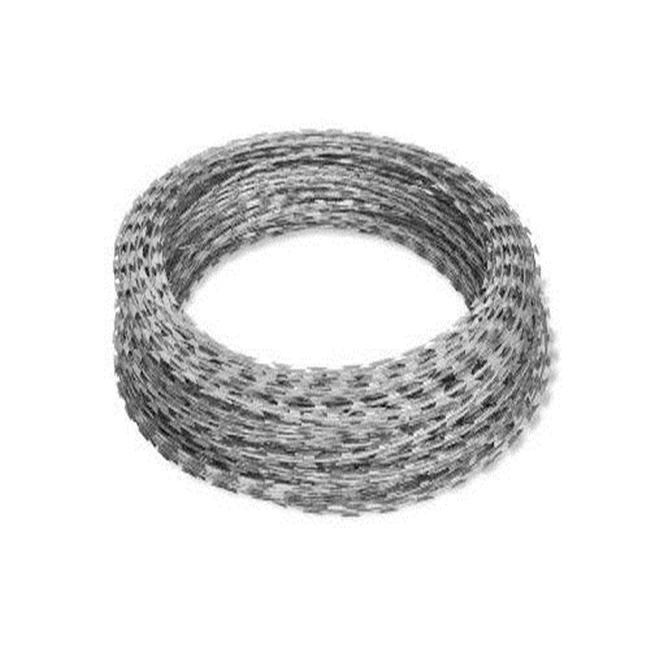

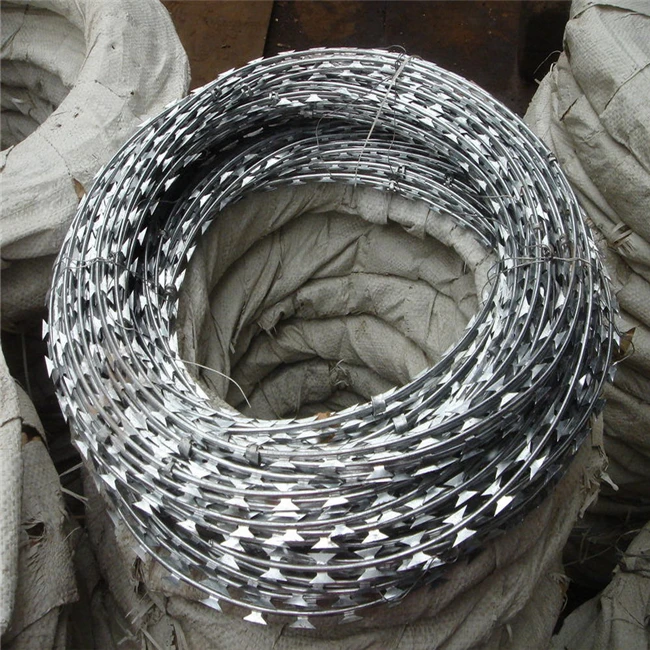

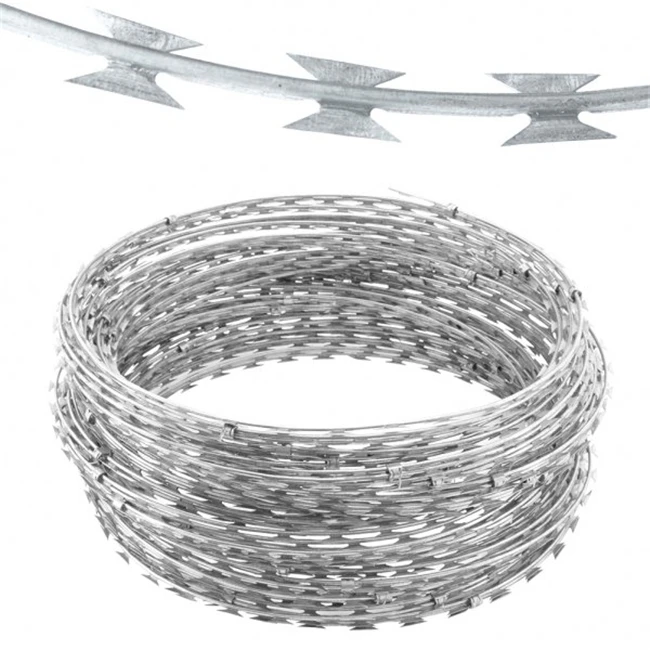

Razor Wire Fence/ Razor Barbed Wire/ Concertina Razor Wire
- Category: >>>
- Supplier: Anping County Dechengli Hardware Products Co. Ltd.
Share on (62055710899):
Product Overview
Description
Product Description
Razor Blade Barbed Wire:
Razor barbed tape is a kind of modern security fencing materials fabricated with razor-sharp steel blade and high-tensilewire. Barbed Tape can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders,with piecing and cutting razor blades mounted at the top of the wall, also the special designs making climbing and touching extremely difficult. The wire and strip are galvanized to prevent corrosion.

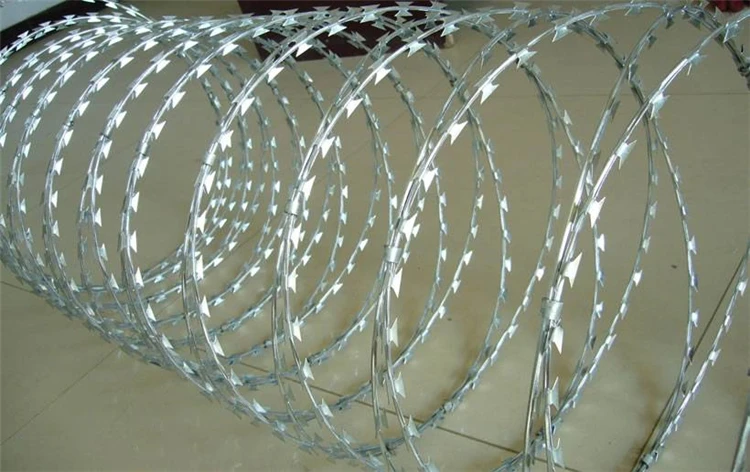

Concertina Coil Wire:
Concertina Coil Barbed Wire is also known as crossed razor barbed wire. Two pieces of stainless steel razor wire or zinc-coatedrazor wire are bound together by clips to make it stronger.The spiral intersecting barbed wire presents an intersecting shape after opening with beautiful feature and practicality.
Single Coil Razor Wire:
Single coil barbed tape wire is installed without clips, it runs in natural loops on walls or fencings. Single coil razor wire is ostless and can be easily installed
Materials: galvanized steel iron wire ,stainless steel wire

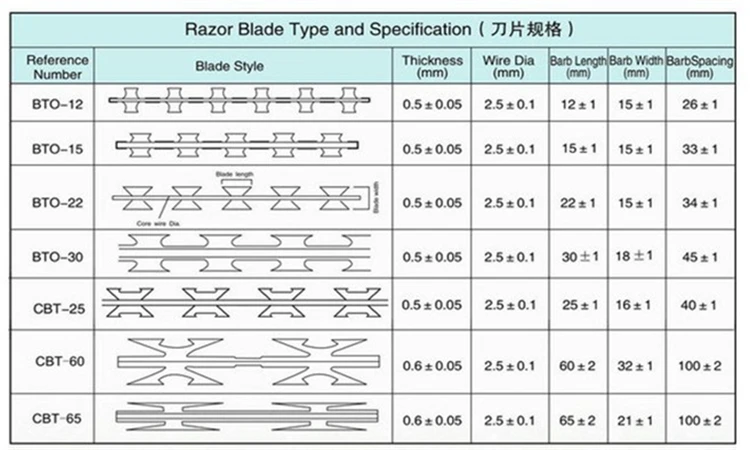

Specification:
Ref. NO. | Thickness | Wire Dia | Barb Length | Barb Width | Barb spacing |
BTO-10 | 0.5±0.05 | 2.5±0.1 | 10±1 | 13±1 | 26±1 |
BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 |
BTO-15 | 0.5±0.05 | 2.5±0.1 | 15±1 | 15±1 | 33±1 |
BTO-18 | 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 33±1 |
BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 |
BTO-28 | 0.5±0.05 | 2.5±0.1 | 28±1 | 15±1 | 45±1 |
BTO-30 | 0.5±0.05 | 2.5±0.1 | 30±1 | 18±1 | 46±1 |
Size of using:
Outside Diameter | No. of Loops | Standard Length per Coil | Type | Notes |
450mm | 112 | 17M | BTO-10. 12.18.20.22 | Concertina |
500mm | 102 | 16M | BTO-10. 12.18.20.22 | Concertina |
600mm | 86 | 14M | BTO-10. 12.18.20.22 | Concertina |
700mm | 72 | 12M | BTO-10. 12.18.20.22 | Concertina |

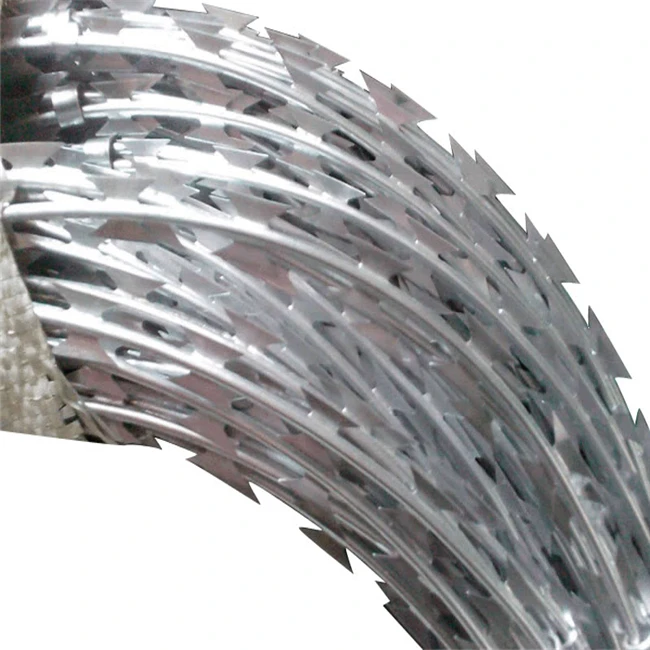

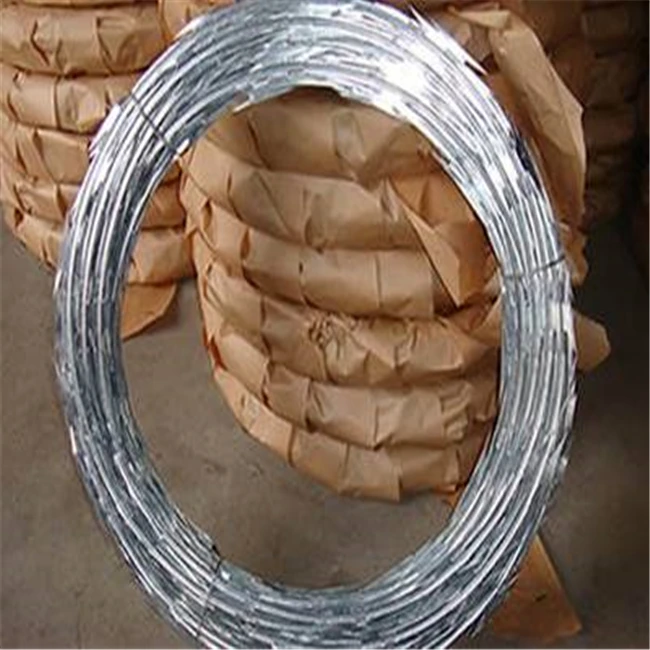

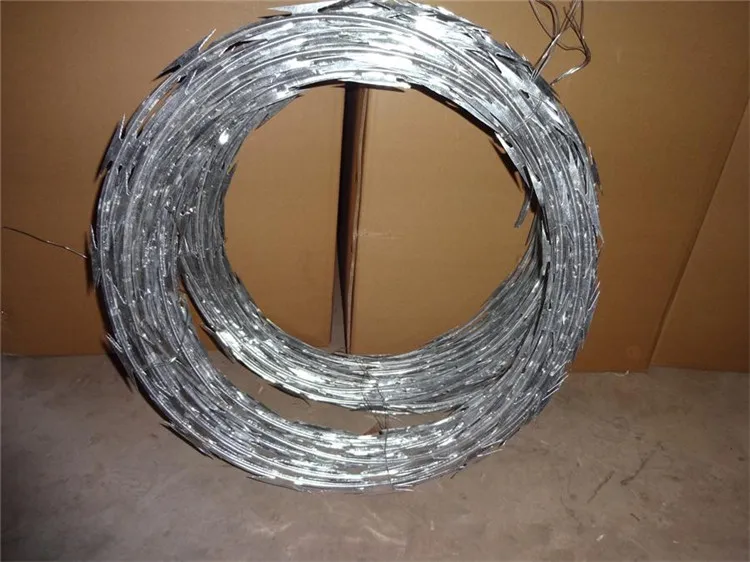

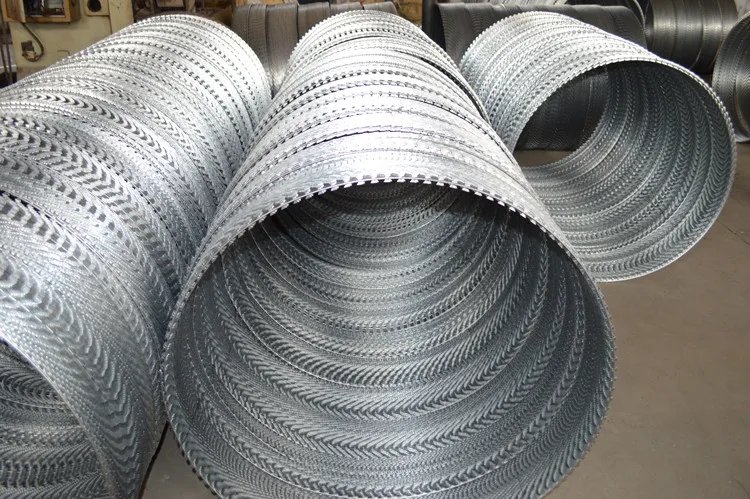

Product Photos

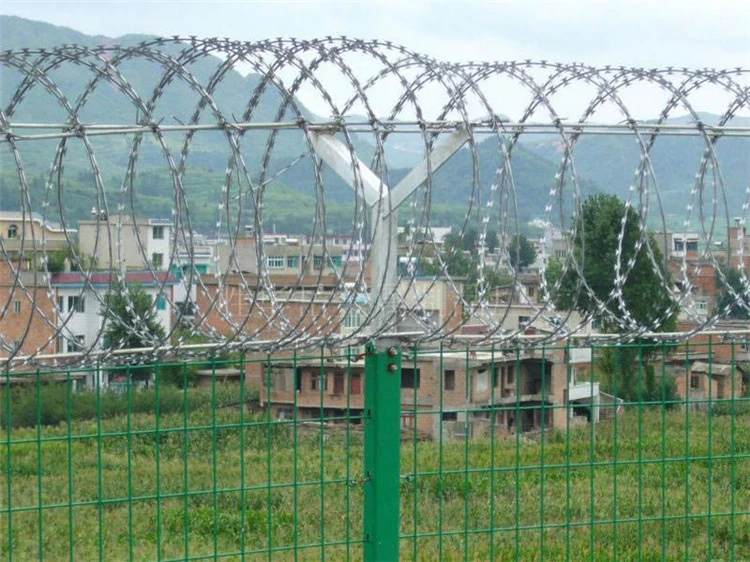

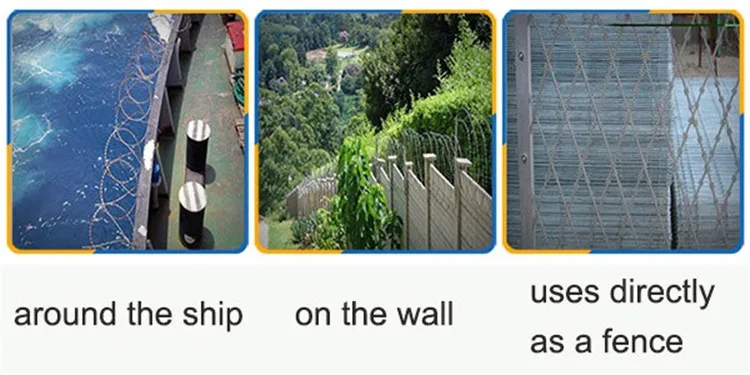

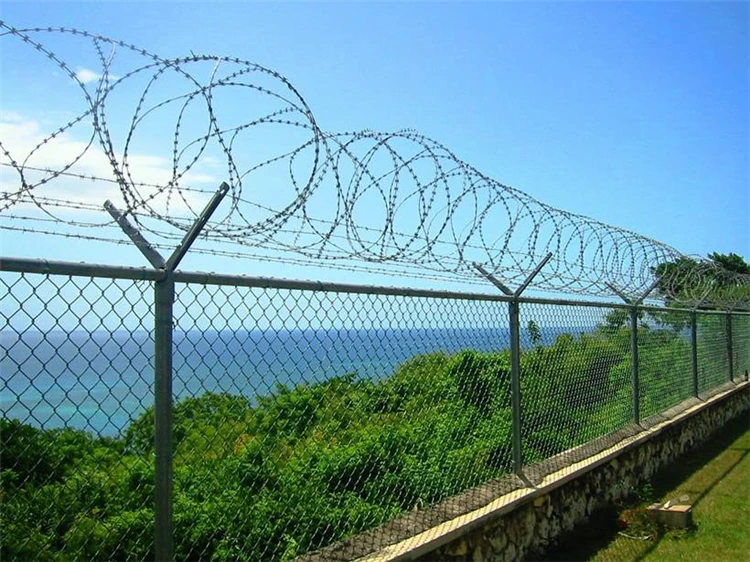

Application
Useage hot dip galvanized razor barbed wire can be used as concertina, flat, beeline, welded razor mesh and etc.
Application razor barbed wire is mainly used for military affairs, prison, government, bank, ship(vessal) and also in living wall, personal house, villatic wall, window, autobahn, railway and border of the fence.

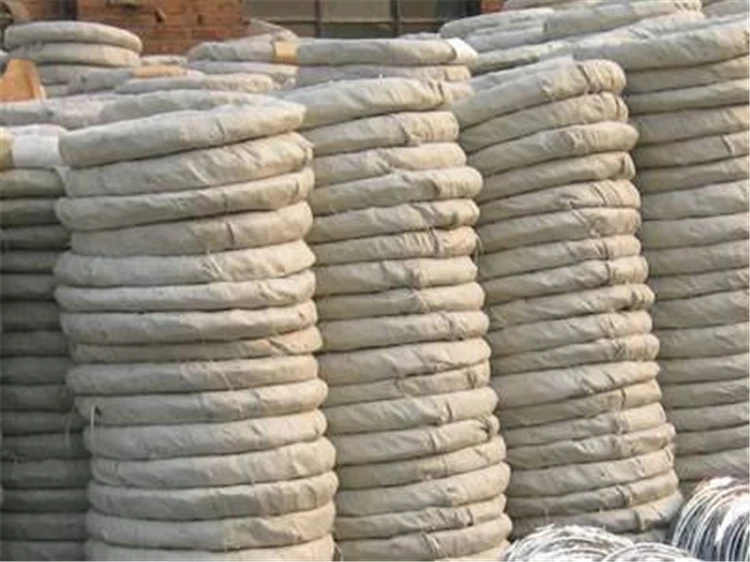

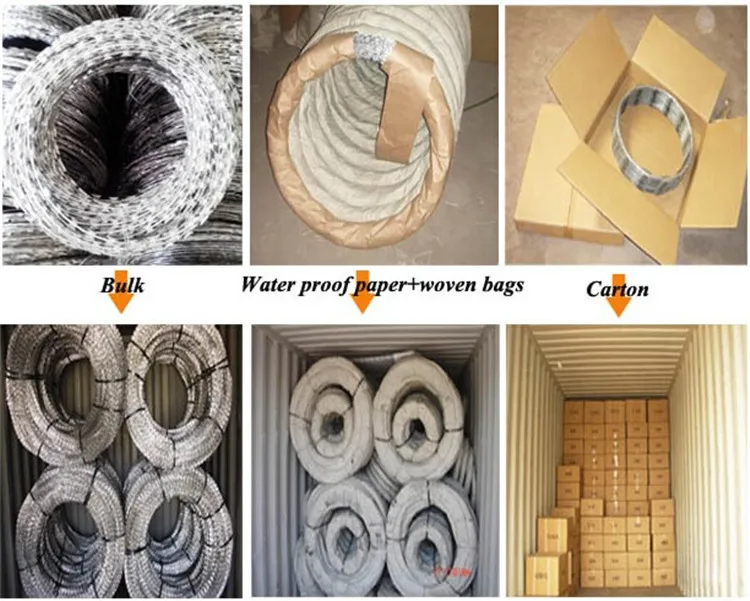

Packaging & Shipping
