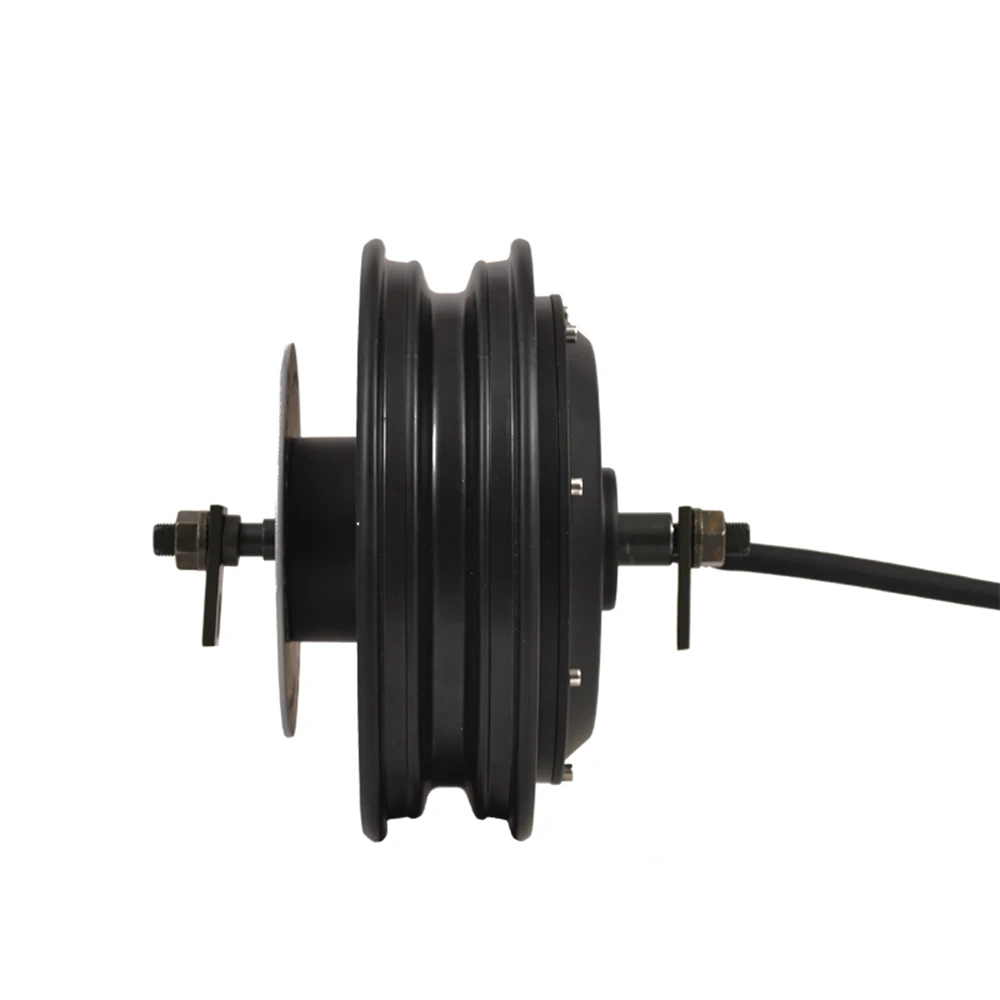

10inch 1500W 205 40H V3 Brushless DC Electric Scooter Hub Motor

Product Description

For 10inch E-Scooter wheel hub motor, it could be used for electric scooter, electric motorcycle.

There are two width of wheel, 10*2.15inch, 10*3.0inch for choice.

We offer narrow tire, 10*2.15inch as default.





Feature

1). Simplify to make a electric-scooter. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 84~92%



QS Motor Specification

Motor Type: BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor

Brand: QS Motor,QSMOTOR

Motor Design: Double axle with 10inch moped rim (integrated)

Rim size:10x2.15inch(Narrow Tire as default), Matched tire:3.0-10

              10x3.0inch(Wide Tire), Matched tire:5.0-10

Magnet Height: 40mm, 16pole pairs

Stator: Aluminum Core

Rated Power: 1500W

Speed(customizable):

                     48v 21km/h~60km/h

                    60v 26km/h~60km/h

                    72v 32km/h~60km/h

Max Torque approx 148.3N.m

Thermic Probe: KTY83-122 (as default, optional)

Max Efficiency approx 88%

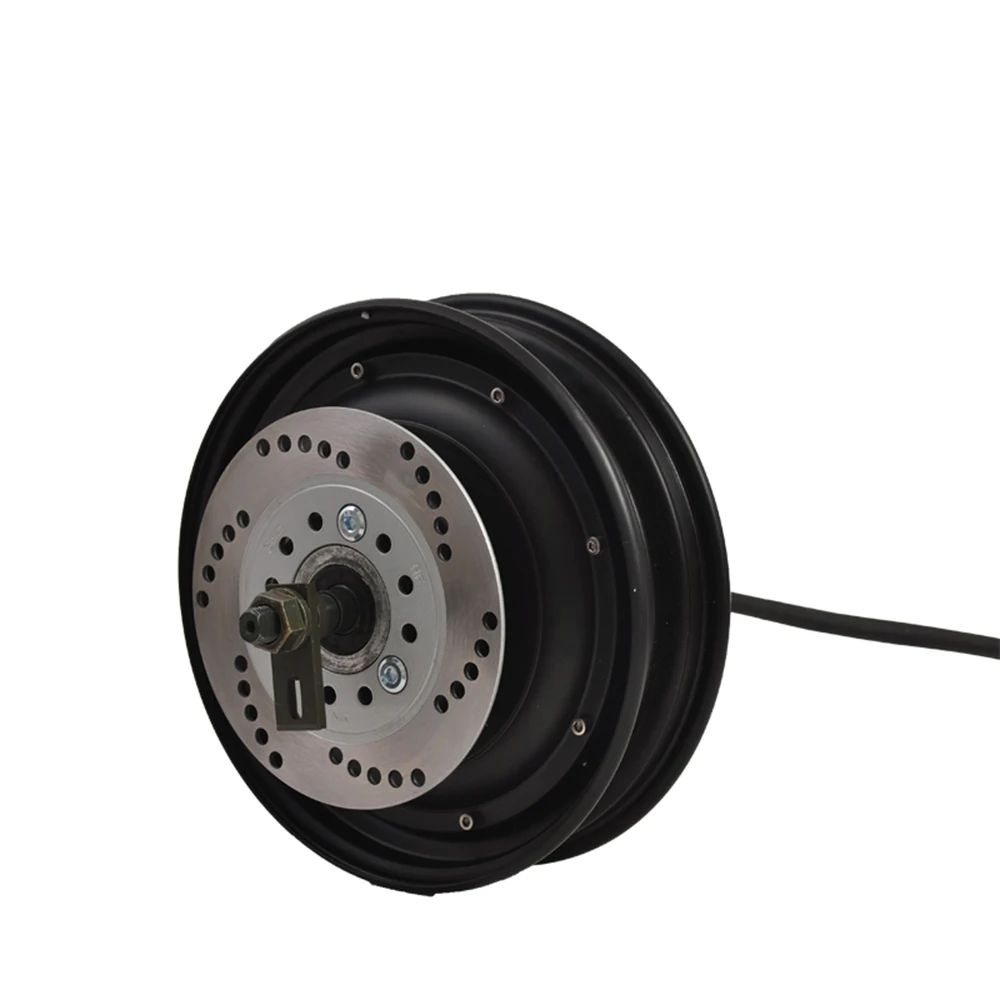

Brake type: Disc brake (as default), PCD3*80mm-M8, CB 58mm

Drop-outs: 200mm

Dual Halls with waterproof connectos

4mm² Phase Wire

Waterproof Grade: IP54

Color: Black (as default), Yellow or White/Luminous

Pictures Show

 1 (1).jpg1 (2).jpg

1 (3).jpg



QS Motor 10inch 500W-4000W 205 E-scooter/Motorcycle List




How to Recommend you suitable motors?

Firstly, To customize a suitable electric hub motor for your vehicle, could you please inform the points in below?

1. E-bike, E-scooter, E-tricycle or E-car?

2. Weight of vehicle with battery, loading weight (weight with load only)?

3. Tire model/diameter?

4. Rated voltage and wattage of motor, nominal speed/top speed, and climb angle or torque @ what speed?

5. Battery nominal voltage, peak voltage, capacity and vehicle range?

6. What's the drop-outs/rear fork width of your frame?

Within your details information, we could make assessment and calculation accordingly for your project
