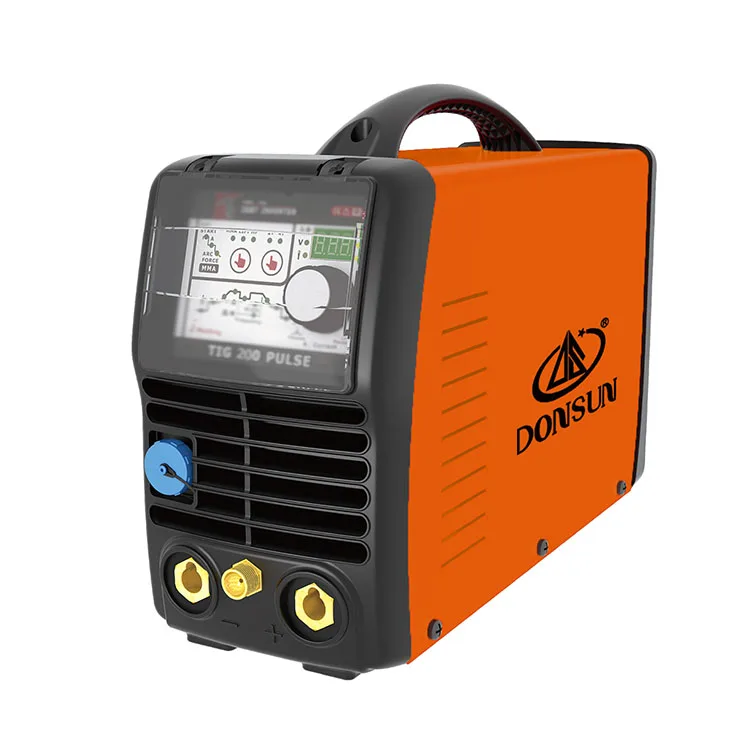

TIG 200DC Pulse, Multi Functions Portable Electric Dc Tig pulse Welder, popular to USA and European market

Product Overview

Description

Multiplse Mode
MMA/LIFT TIG/HF TIG.

Up/Down Slope
Selectable Up/Down Slope Time.

Pre/Post Flow
Selectable Pre/Post Flow Time.

Pulse
High performance on ultra thin surfaces with no deformation.

Protections
Equipped with temperature, voltage and current sensors for high protection.

Generator friendly
Designed to work with diesel generators and to avoid failures due to its voltage spikes.



Model/Parameters	TIG 200 DC PULSE
Power supply voltage(V)	1~220/230/240 ±10%
Fre.(HZ)	50/60
Rated Input Power (KW)	4.5(TIG)/7.0(MMA)
Rated input current(A)	32(TIG)/45(MMA)
Duty Cycle(40    10Min)	35%200A 60%125A 100%100A
No Load Voltage(V)	74
Welding Current Range(A)	5~200
Up Slope/Down Slope Time(S)	0~10
Pre/Post Flow(S)	0~2/0~10
Pulse Fre.(HZ)	0.5~200
Pulse width range(%)	5~95
Efficiency	≥85%
Net Weight(Kg)	5.5
Dimensions(mm)	410x146x278
power factor	0.75
Insulation Class	H
Protection Class	IP23
Cooling	AF
