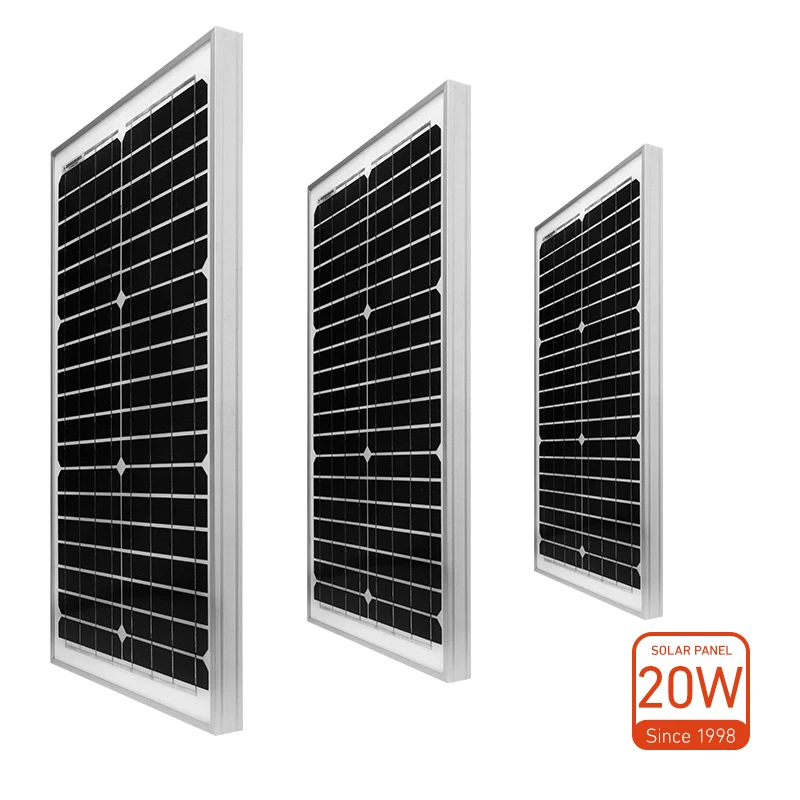

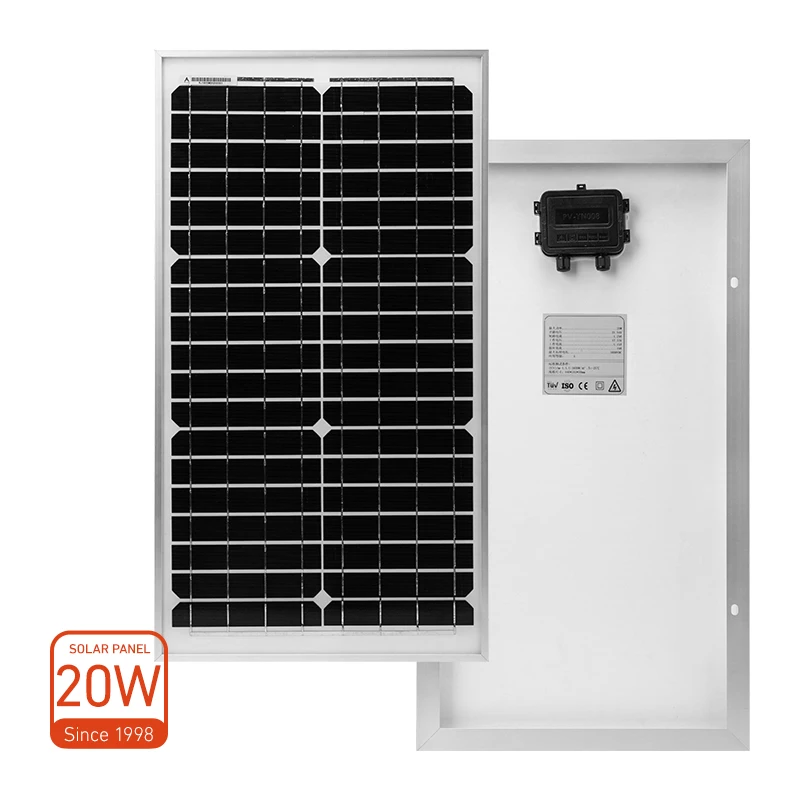

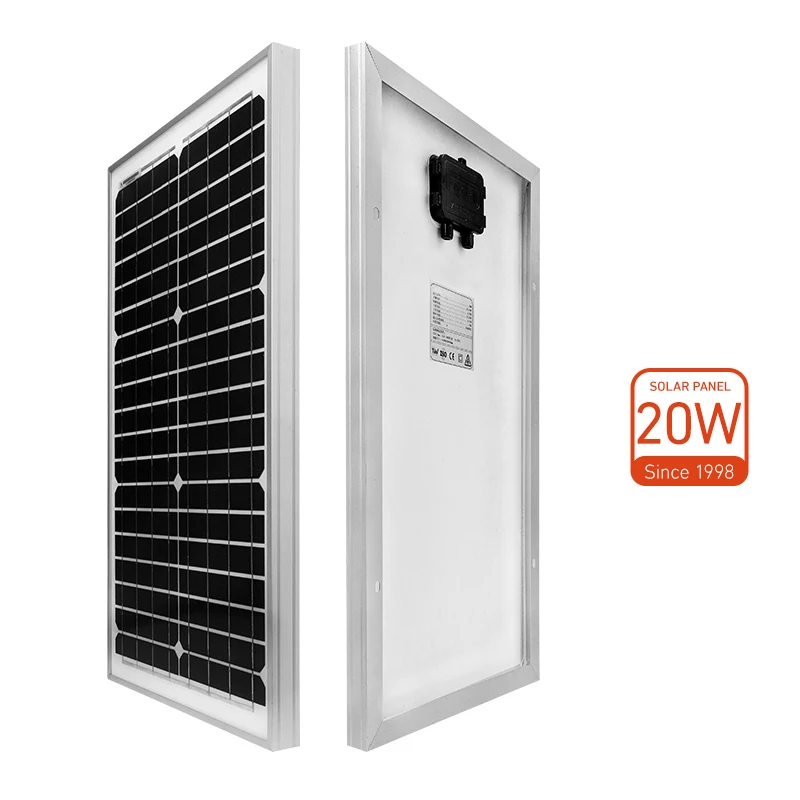

20W Monolithic Power Quality Warranty Solar Power 220 Volt
- Category: >>>
- Supplier: Jiangxi Renjiang Technology Co. Ltd.
Share on (62055854615):
Product Overview
Description
156*26Mm 0.75Mm Cable Cross Section Size Import Solar Panel From China
| Technical Parameter | ||||
Rated Output (Wp) | Opencircuit voItage (Voc) | Maximum Power voItage (Vm) | Short circuit current (Isc) | Maximum Power current (Im) |
| 20 | 21.58 | 17.42 | 0.64 | 0.57 |
| Temperature Coefficient of Voc | -0.38%/℃ | CeII(mm) | 156*26 | |
| Temperature Coefficient of lsc | +0.04%/℃ | Weight(kg) | ||
| Temperature Coefficient of Power | -0.47%/℃ | Dimensions(LxWxH)(mm) | 535*350*25 | |
| NOCT | 45±3℃ | Cable Cross Section Size (mm) | 0.75 | |
| Working Temperature Range | - 40℃~+85℃ | No.of Cells and Connections | 36( 2*18) | |
| Maximum Permitted Load | 5400Pa | No.of Diodes | 1*10A | |
| Maximum Series Fuse Rating(A) | 10 | Monolithic power | 3.5w | |
| Maximum System Voltage(V) | 1000 | The efficiency of single chip | 14.38% | |
| Standard Test Conditions | 1000W/m2;25℃;AM1.5 | The packing way | 10pcs/Carton | |
>>>>>>>>>View more solar panels of different watts.
